- Main FMU Processor:STM32H743
- Accelerometer/Gyroscope1:ICM-20689
- Accelerometer/Gyroscope2:ICM-20649
- Accelerometer/Gyroscope3:BMI088
- Magnetometer:RM3100
- Barometer:MS5611*2
- Power:4.3~5.4V
- Servo Rail Input:0~36V
- USB Input:4.75~5.25V
- Operating temperature:-20 ~ 80°c(Measured value)
- Certification:ce
- Gender:Unisex
- Age Range:14 Years & up
- Use:Vehicles & Remote Control Toys
- Place of Origin:CN;GUA
- Type:Pixhawk
- Brand Name:CUAV
- Model Number:CUAV-X7
Product Description

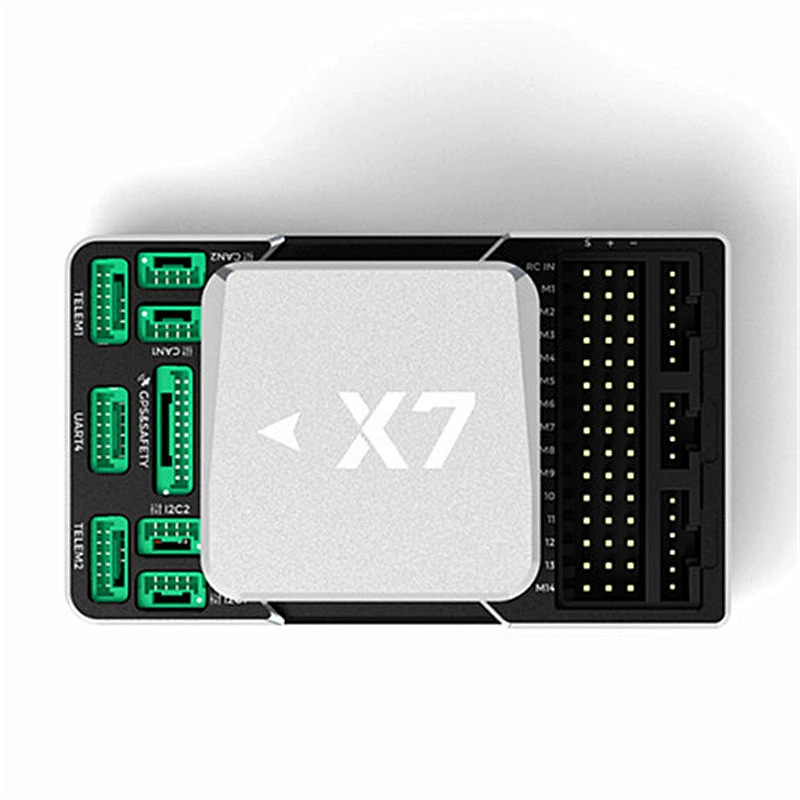

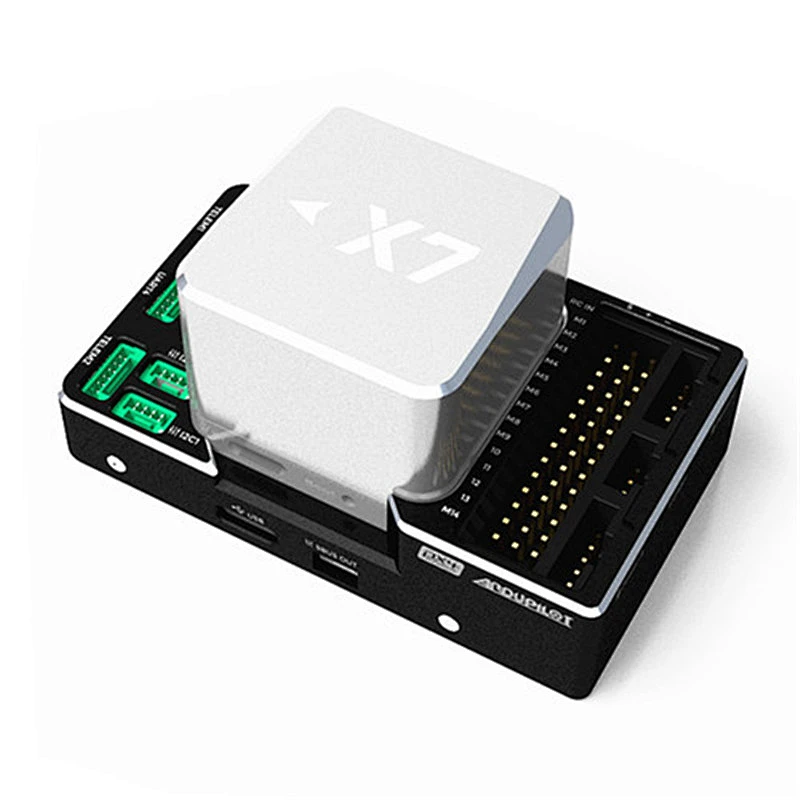

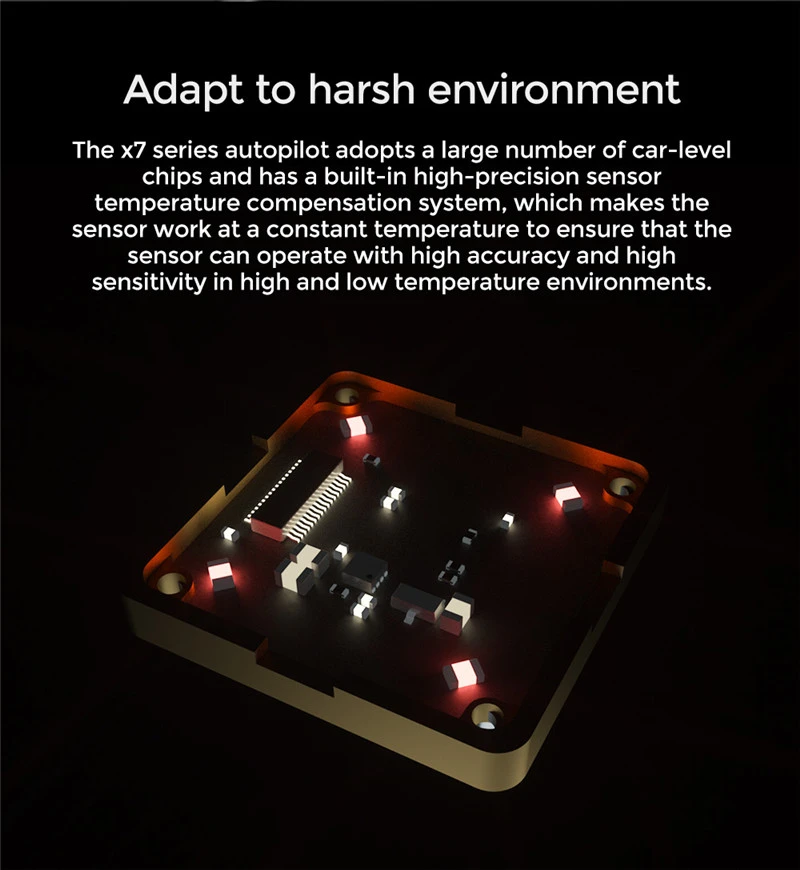

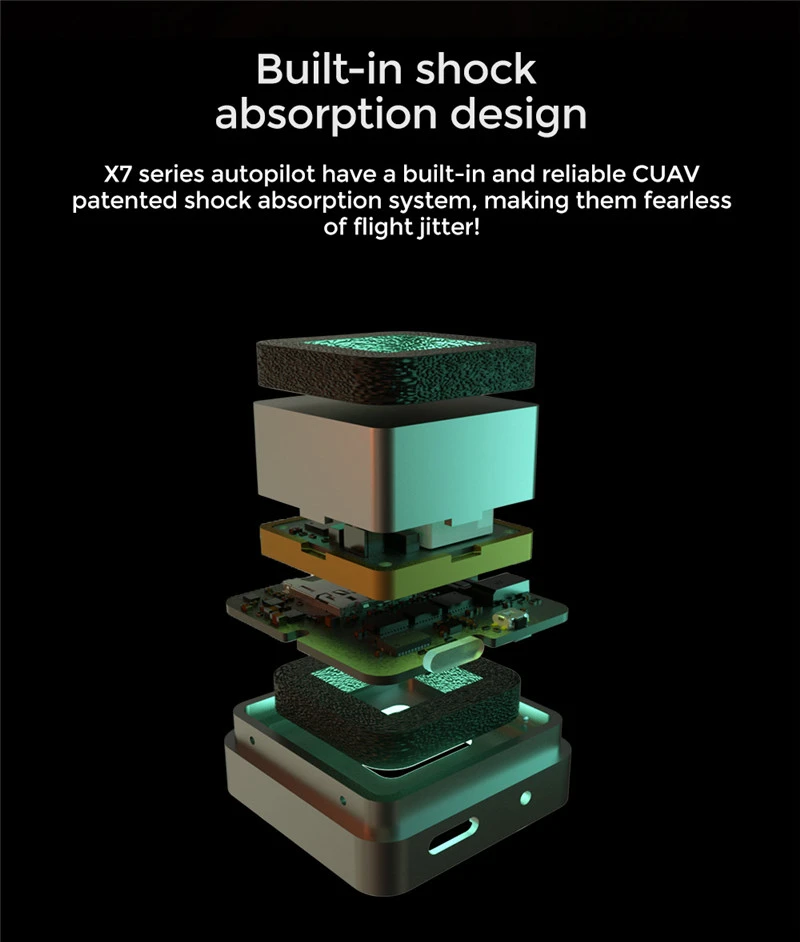

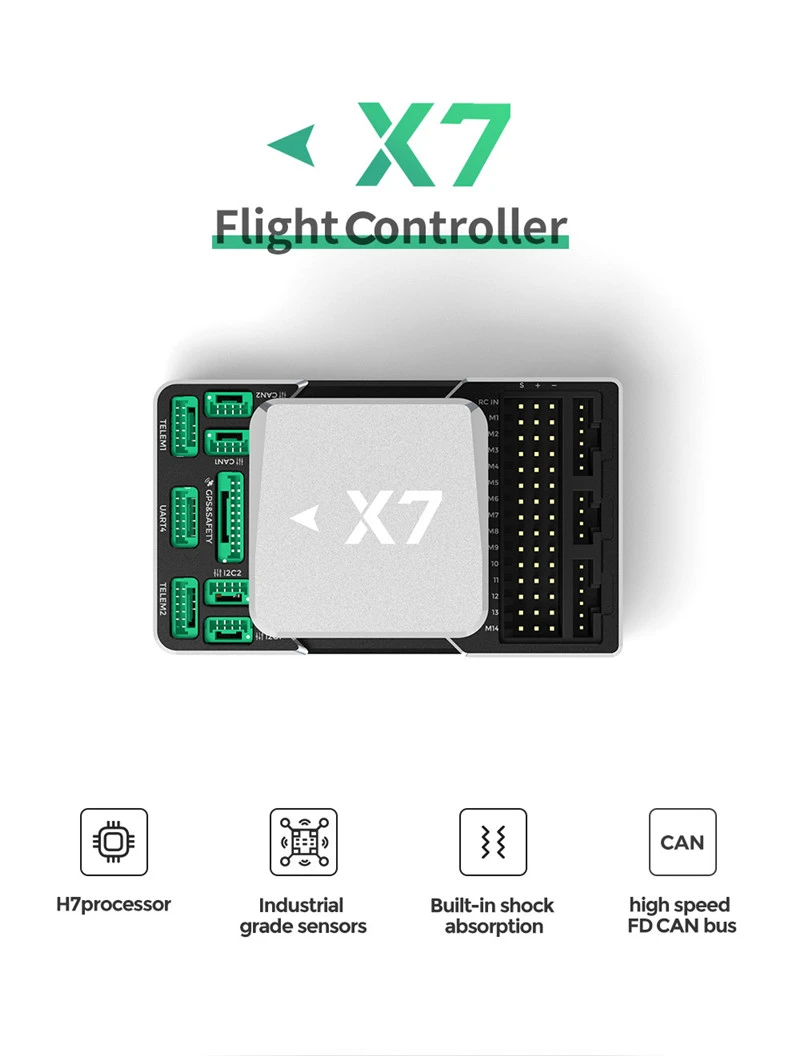

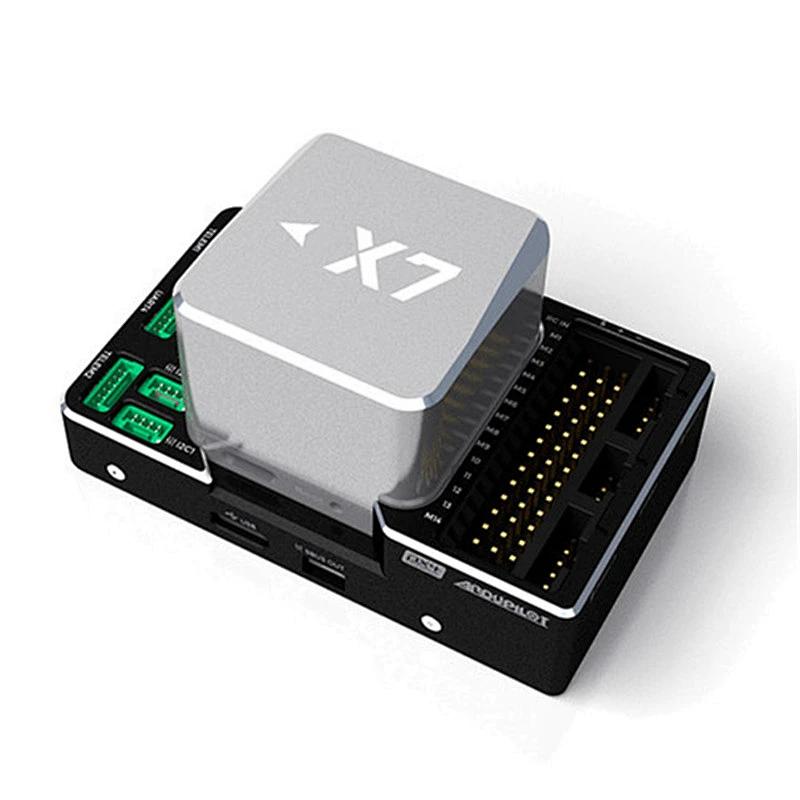

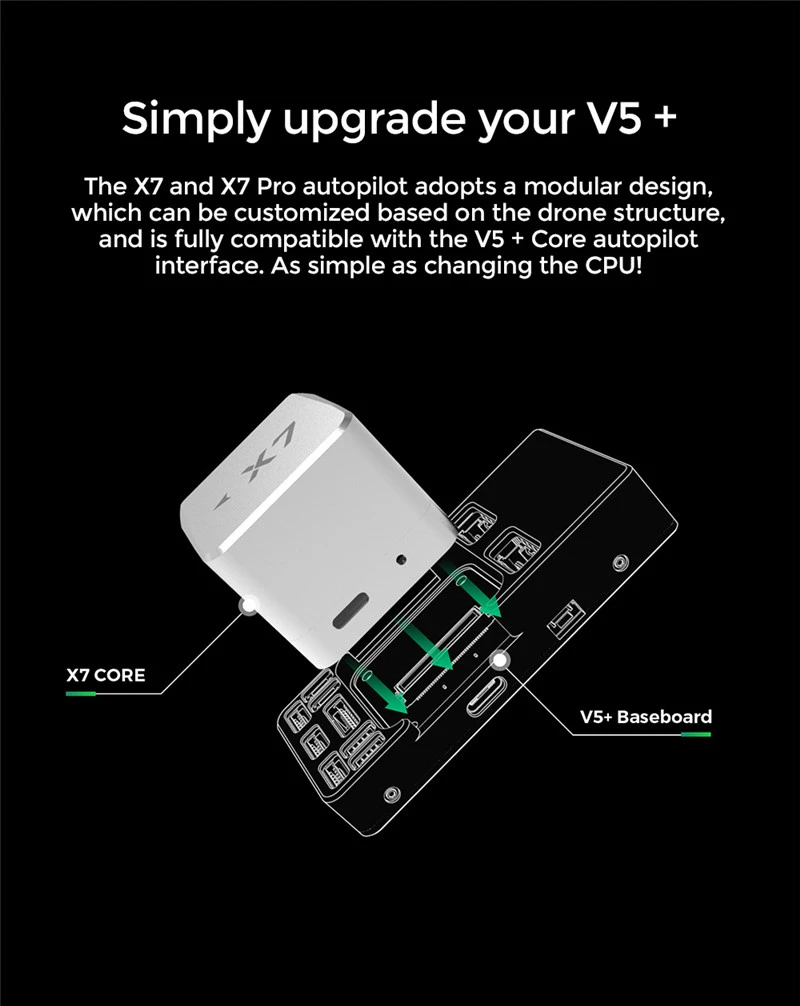

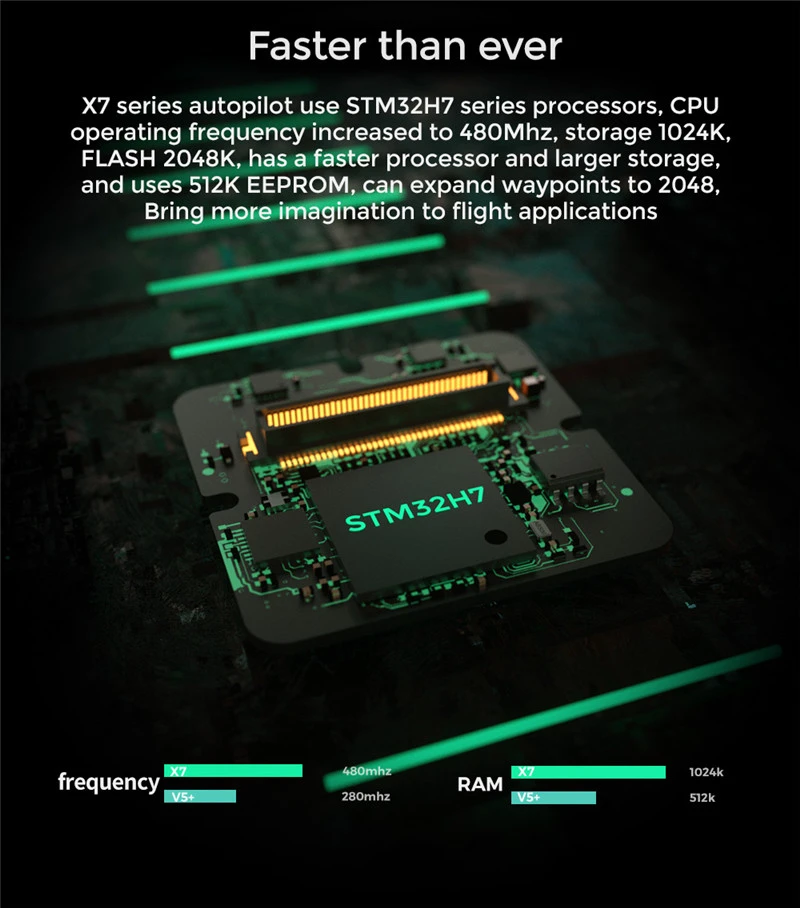

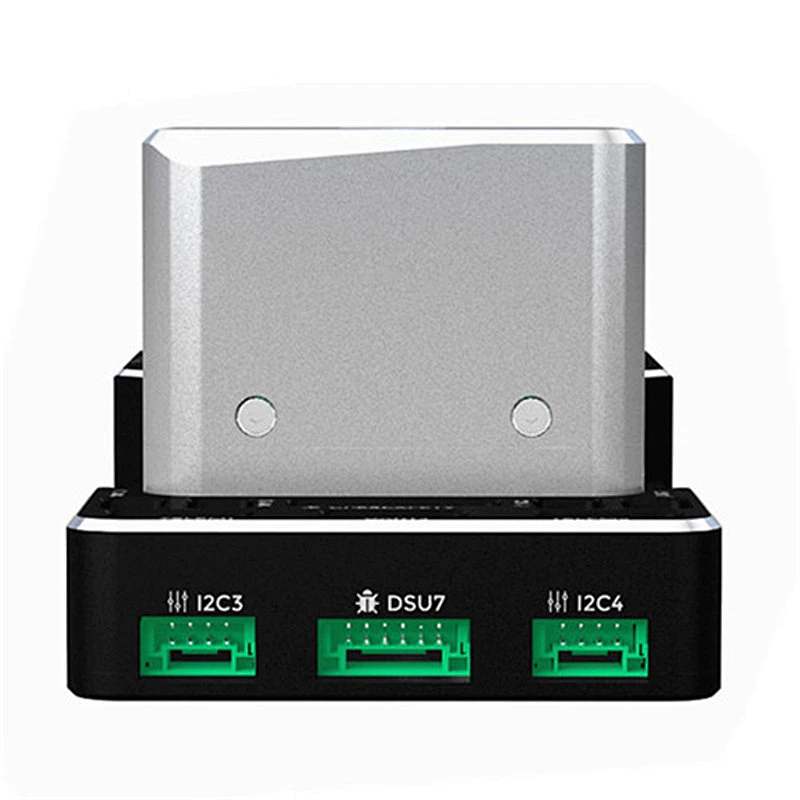

X7 AutopilotX7® is an advanced autopilot independently designed by CUAV®. It uses a higher-performance STM32H7 processor and integrates industrial-grade sensors and ultra-low temperature drift sensors. Compared with the previous flight controller,it has better performance and more reliability. This board can run ArduPilot firmware perfectly, and it will also be compatible with PX4 firmware. X7 is ideal for academic research and commercial systems integration.Other characteristicsInternal shock absorptionModular design, can be DIY carrier boardSupport USB_HS, download logs fasterSupport more dshot outputSupport IMU heating, make the sensor work betterDedicated uavcan battery port3 sets of IMU sensorsQuick SummaryMain FMU Processor: STM32H743On-board sensors:Accelerometer/Gyroscope: ICM-20689Accelerometer/Gyroscope: ICM-20649Accelerometer/Gyroscope: BMI088Magnetometer: RM3100Barometer: MS5611*2Interfaces:14 PWM outputs （12 supports Dshot）Support multiple RC inputs (SBUs / CPPM / DSM)Analogue / PWM RSSI input2 GPS ports(GPS and UART4 ports)4 i2c buses(Two i2c dedicated ports)2 CAN bus ports2 Power ports(Power A is common adc interface, Power C is uavcan battery interface)2 ADC intput1 USB portsPower System:Power: 4.3~5.4VUSB Input: 4.75~5.25VServo Rail Input: 0~36VWeight: 101 gOther Characteristics:Operating temperature: -20 ~ 80°c（Measured value）Three imusSupports temperature compensationInternal shock absorption
Specification
item | value |
Use | Vehicles & Remote Control Toys |
Brand Name | CUAV |
Model Number | CUAV-X7 |
Main FMU Processor | STM32H743 |
Accelerometer/Gyroscope1 | ICM-20689 |
Accelerometer/Gyroscope2 | ICM-20649 |
Accelerometer/Gyroscope3 | BMI088 |
Magnetometer | RM3100 |
Barometer | MS5611*2 |
Power | 4.3~5.4V |
Servo Rail Input | 0~36V |
USB Input | 4.75~5.25V |
Operating temperature | -20 ~ 80°c(Measured value) |
Packing & Delivery

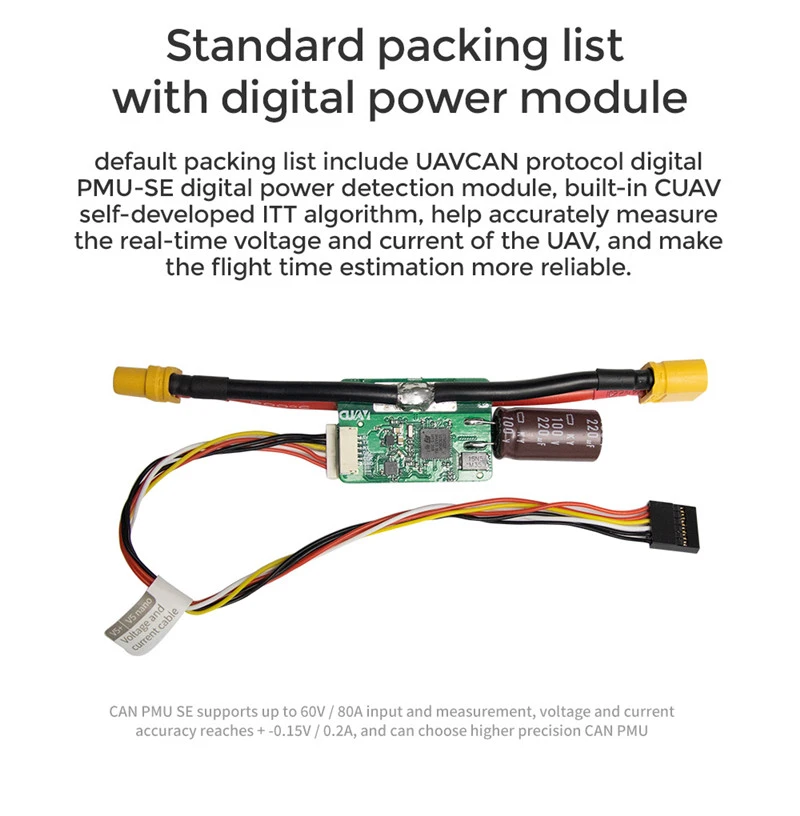

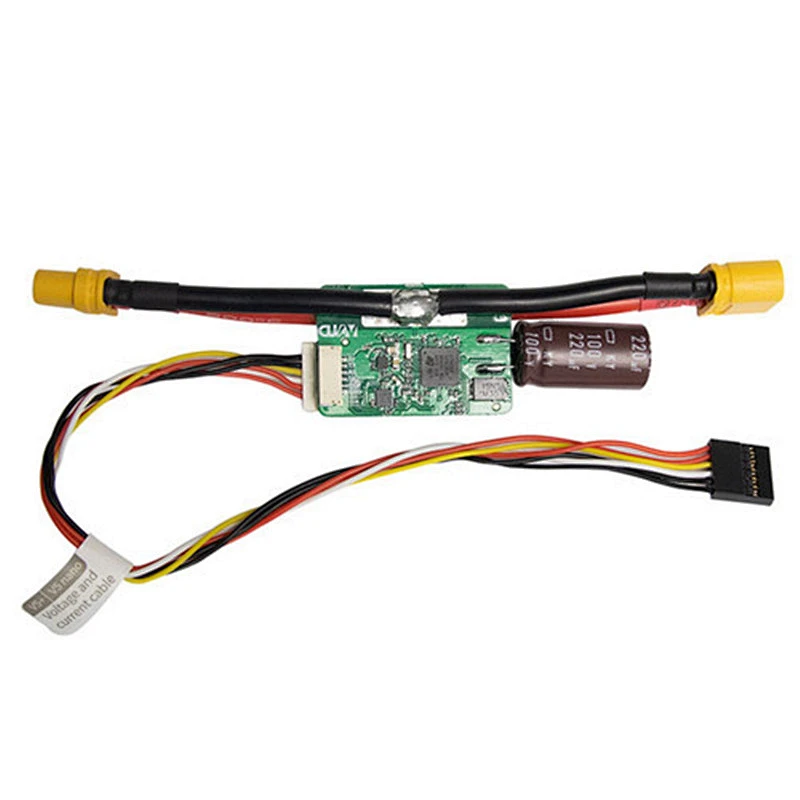

X7 Autopilot x 112C/CAN cable x 2ACD3.3 cable x 1RSSI cable x 1CAN PMU SE standrd power management module x 1DuPont cable x 1Safety switch x 1Pw-Link module x 1USB-TypeC cable x 116G memory card x 1
