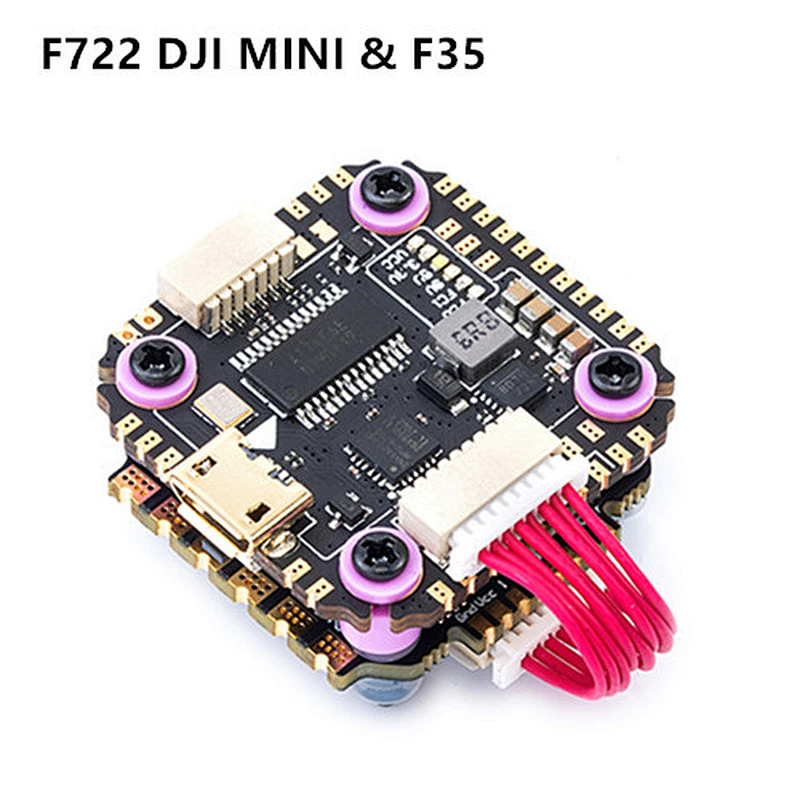

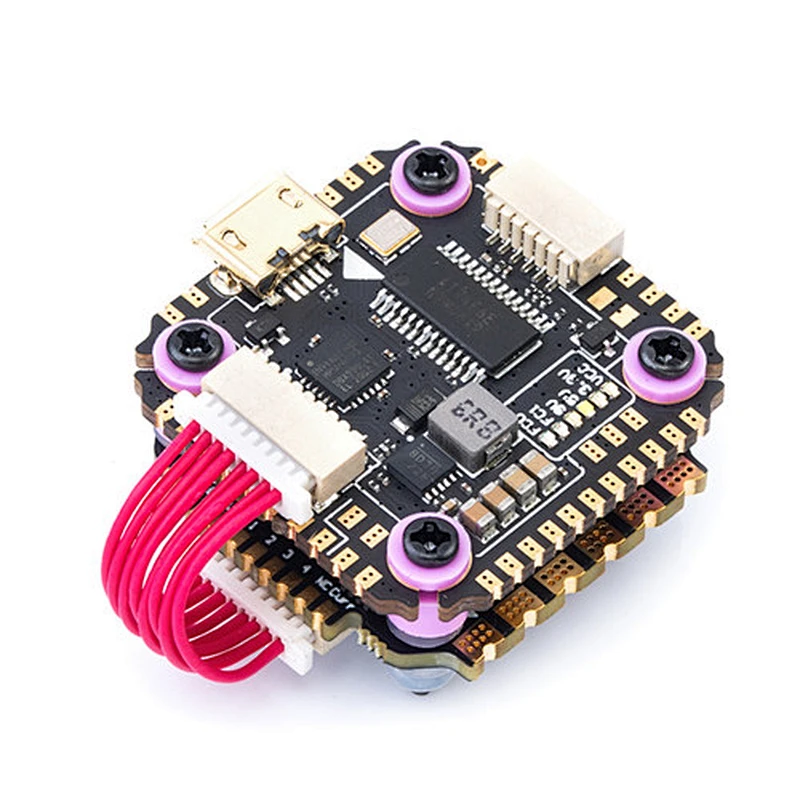

20x20mm MAMBA F722 DJI MINI F7 Flight Controller OSD & F35 35A 6S Blheli_S Brushless ESC for RC Drone FPV Racing FPV Air Unit
What is the Details of our Product?
Product parameters:
Specification:
Brand name: MAMBA
Item name: F722 DJI MINI Stack

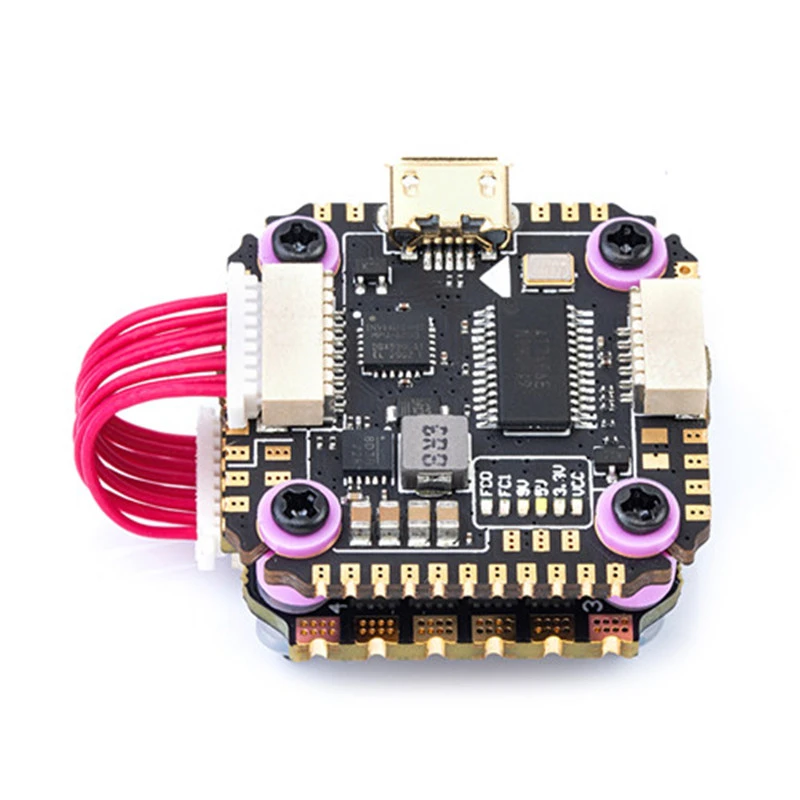

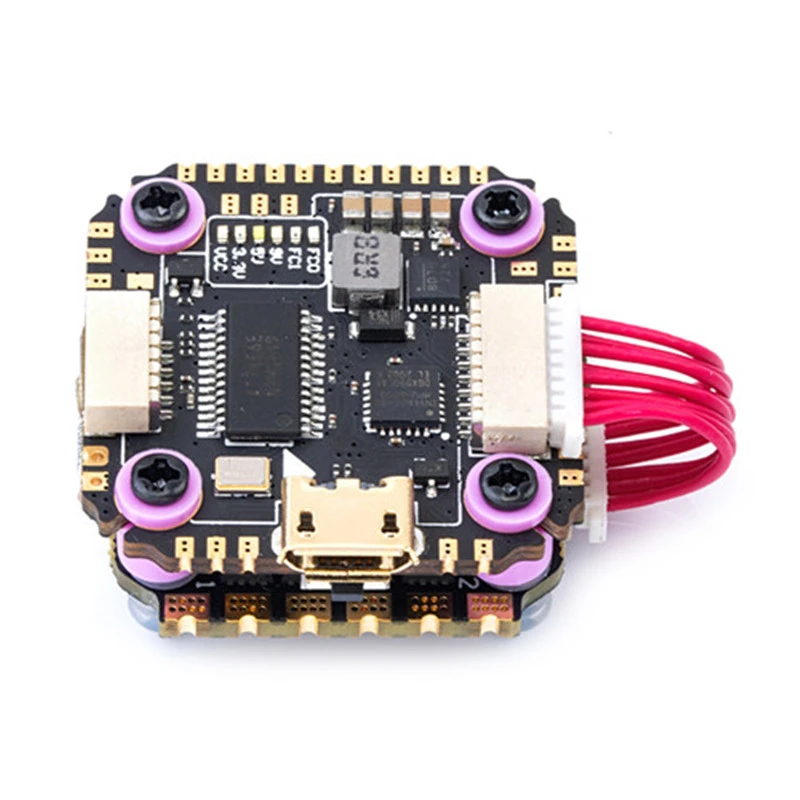

F722 DJI MINI Flight Controller:
MCU: STM32F722RET6
IMU: MPU6000
OSD: AT7456E
Blackbox: NO
Uarts: 6 Set
Receiver: TBS/PPM/SBUS/IBUS/DSM
RSSI Pad: YES
Buzzer Pad: YES
CURR Pad: YES
Motor: 4 Set
BEC 3.3V: NO
BEC 5V: 2A
BEC 9V: 1.5A
MB LED: NO
BF LED: YES
Bluetooth: NO
Input: 6S
VTS Protection: YES
Soft: Betaflight
Target: MAMBAF722
Mounting: 20×20mm, M2/M3
Size: 30.5×29.5×7.0mm
Weight: 5g

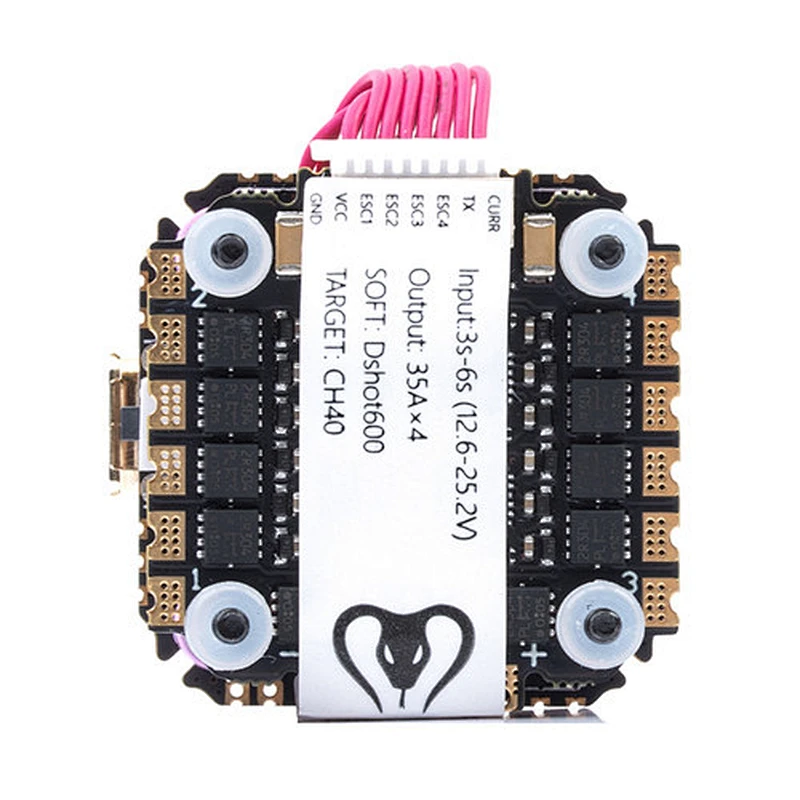

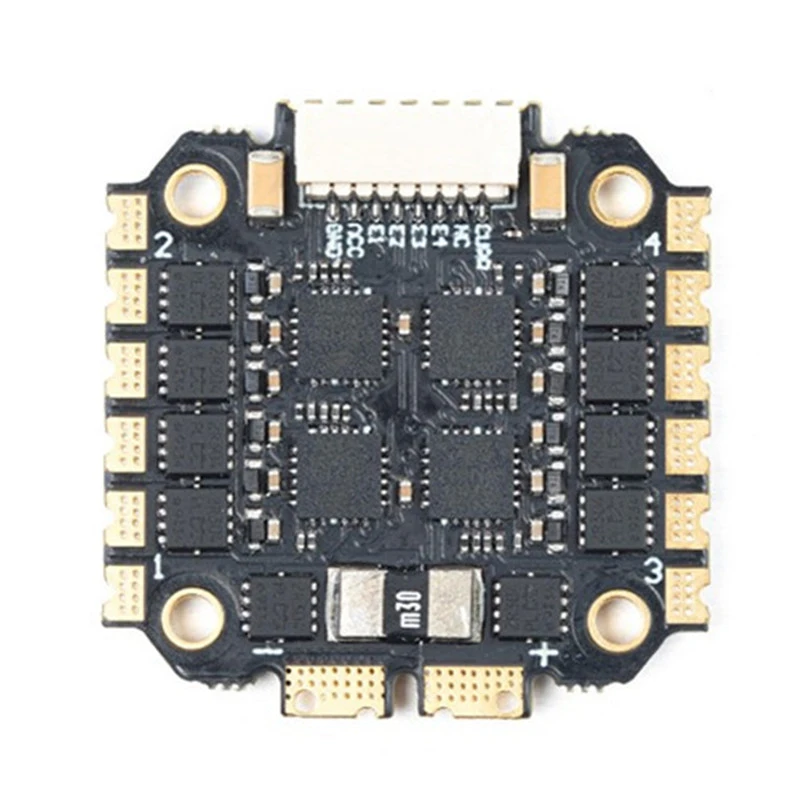

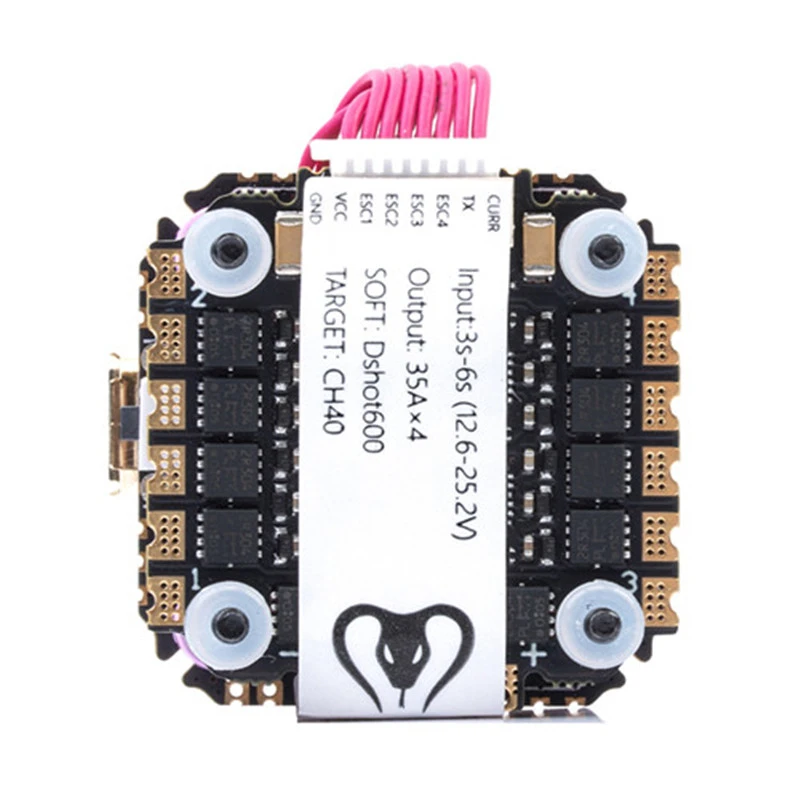

F35 35A Blheli_S Brushless ESC:
Output current: 35A
Peak current: 45A
Input: 6S
Target: CH40
Dshot: Dshot 300/600
CURR: Yes
BEC: NO
Telemetery: NO
Mounting: 20×20mm, M2/M3
Size: 29.0×29.0×5.5mm
Weight: 6.5g
Brand name: MAMBA
Item name: F722 DJI MINI Stack
F722 DJI MINI Flight Controller:
MCU: STM32F722RET6
IMU: MPU6000
OSD: AT7456E
Blackbox: NO
Uarts: 6 Set
Receiver: TBS/PPM/SBUS/IBUS/DSM
RSSI Pad: YES
Buzzer Pad: YES
CURR Pad: YES
Motor: 4 Set
BEC 3.3V: NO
BEC 5V: 2A
BEC 9V: 1.5A
MB LED: NO
BF LED: YES
Bluetooth: NO
Input: 6S
VTS Protection: YES
Soft: Betaflight
Target: MAMBAF722
Mounting: 20×20mm, M2/M3
Size: 30.5×29.5×7.0mm
Weight: 5g
F35 35A Blheli_S Brushless ESC:
Output current: 35A
Peak current: 45A
Input: 6S
Target: CH40
Dshot: Dshot 300/600
CURR: Yes
BEC: NO
Telemetery: NO
Mounting: 20×20mm, M2/M3
Size: 29.0×29.0×5.5mm
Weight: 6.5g

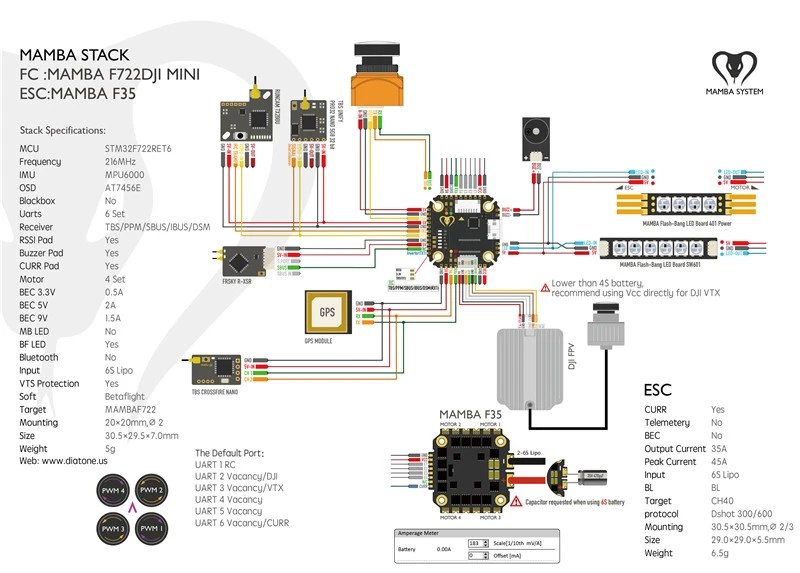

Detailed Images

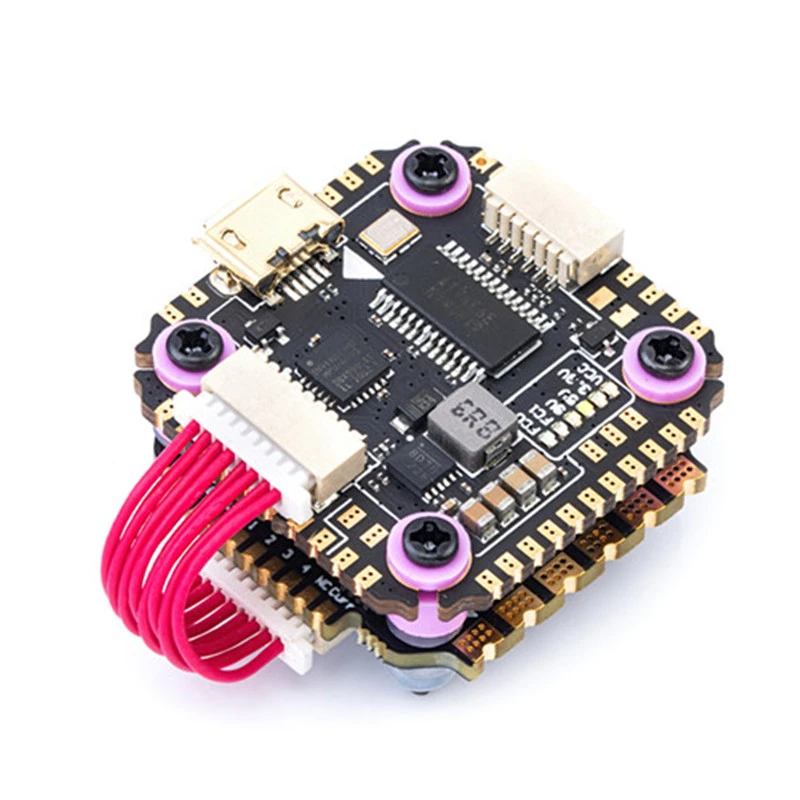

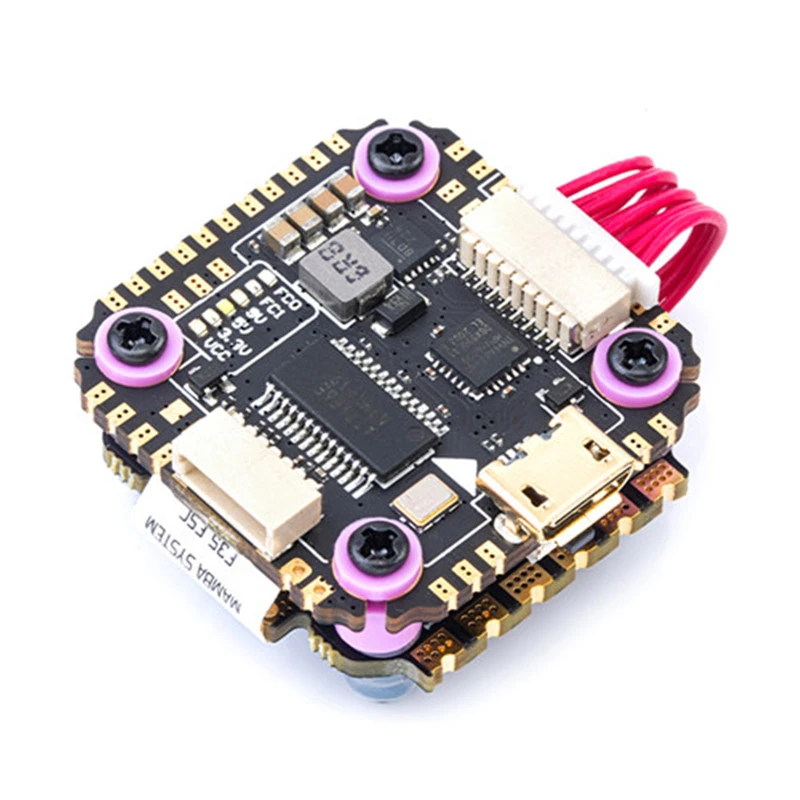

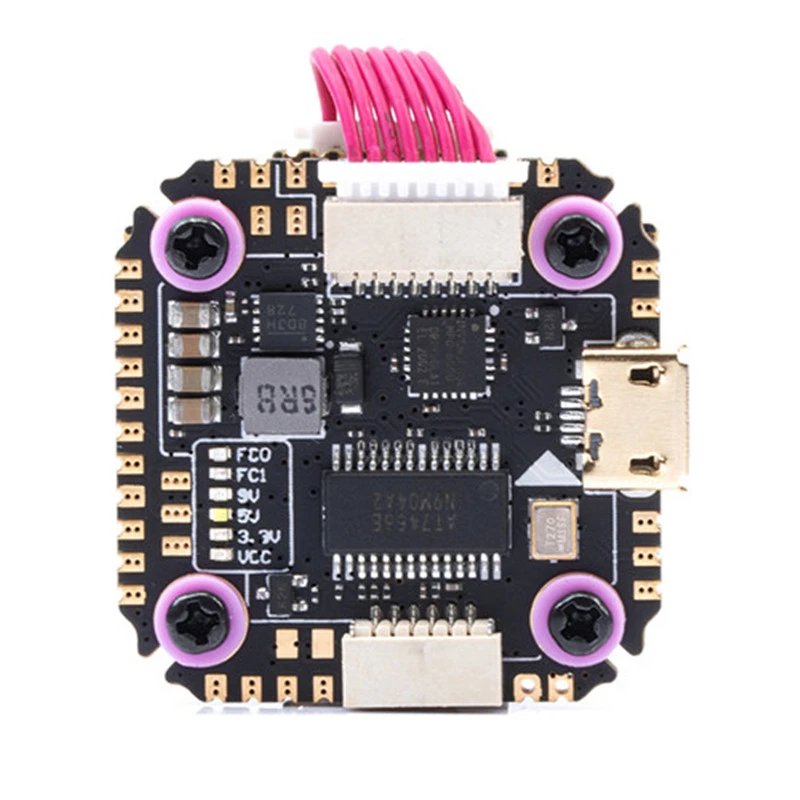

Product Picture
Item Packing
1 x F722 DJI MINI Flight Controller
1 x F35 35A Blheli_S Brushless ESC
