- MCU:216MHz STM32F722RET6
- IMU:MPU6000 (SPI)
- Baro:BMP280 (I2C)
- Blackbox:32M-byte Flash memory (SPI)
- Input:9~36V (3~8S LiPo)
- BEC:5V 2A cont. (Max.3A)
- LDO 3.3V:Max.200mA
- website:www.lxrcmodel.com
- Use:Vehicles & Remote Control Toys
- Place of Origin:CN;GUA
- Brand Name:Matek
- Model Number:F722-HD

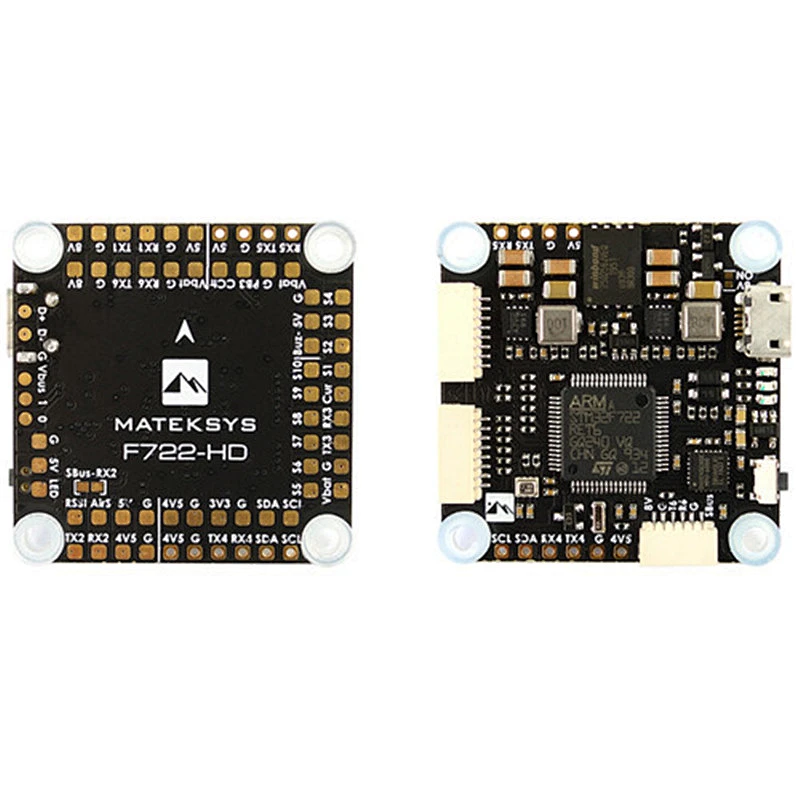

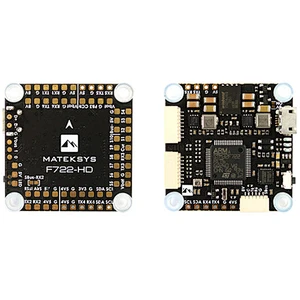

Matek F722-HD BEC 5V 2A MPU6000 Flight Controller Support external DJ I OSD/Frsky OSD for D JI FPV Air Unit
Features
What is the Details of our Product?
FC Specifications
MCU: 216MHz STM32F722RET6
IMU: MPU6000 (SPI)
Baro: BMP280 (I2C)
Blackbox: 32M-byte Flash memory (SPI)
OSD: Support external DJI OSD/FrskyOSD, No Analog MAX7456 OSD built-in
6x Uarts with built-in inversion
1x Softserial_Tx option
10x Dshot/PWM outputs
1x I2C
4x ADC (VBAT, Current, RSSI, AirSpeed)
2x SH1.0_8pin connector (Vbat/G/Curr/Rx3/S1~S10)

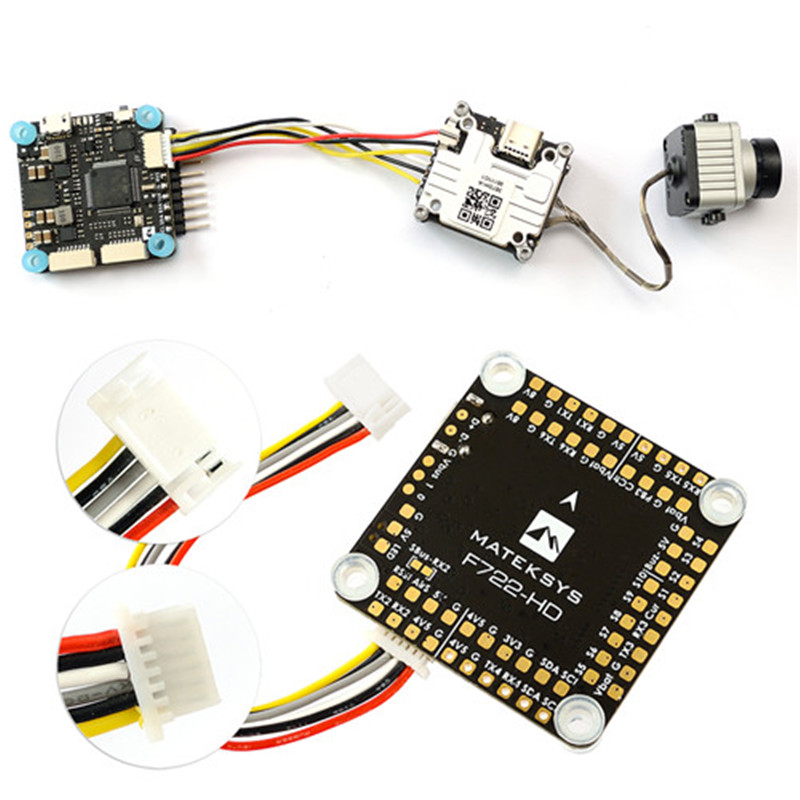

1x SH1.0_6pin connector for DJI FPV Air Unit
3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
Switchable 8V output
PWM camera control: Yes
TR/SA VTX control: Yes
WS2812 Led Strip : Yes
Beeper : Yes
RSSI: Yes
Analog Airspeed sensor: Yes
Digital Airspeed sensor: Yes
MCU: 216MHz STM32F722RET6
IMU: MPU6000 (SPI)
Baro: BMP280 (I2C)
Blackbox: 32M-byte Flash memory (SPI)
OSD: Support external DJI OSD/FrskyOSD, No Analog MAX7456 OSD built-in
6x Uarts with built-in inversion
1x Softserial_Tx option
10x Dshot/PWM outputs
1x I2C
4x ADC (VBAT, Current, RSSI, AirSpeed)
2x SH1.0_8pin connector (Vbat/G/Curr/Rx3/S1~S10)
1x SH1.0_6pin connector for DJI FPV Air Unit
3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
Switchable 8V output
PWM camera control: Yes
TR/SA VTX control: Yes
WS2812 Led Strip : Yes
Beeper : Yes
RSSI: Yes
Analog Airspeed sensor: Yes
Digital Airspeed sensor: Yes
Power
Input: 9~36V (3~8S LiPo)
BEC: 5V 2A cont. (Max.3A)
BEC: 8V 2A cont. (Max.3A)
LDO 3.3V: Max.200mA
Battery Voltage Sensor: 1:10 (Scale 110)
No Current Sensor built-in
FC Firmware
BetaFlight unified target: MATEKF722HD(MTKS)
INAV target: MATEKF722PX
Physical
Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
Dimensions: 36 x 36 x 5 mm
Weight: 6.5g
Input: 9~36V (3~8S LiPo)
BEC: 5V 2A cont. (Max.3A)
BEC: 8V 2A cont. (Max.3A)
LDO 3.3V: Max.200mA
Battery Voltage Sensor: 1:10 (Scale 110)
No Current Sensor built-in
FC Firmware
BetaFlight unified target: MATEKF722HD(MTKS)
INAV target: MATEKF722PX
Physical
Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
Dimensions: 36 x 36 x 5 mm
Weight: 6.5g

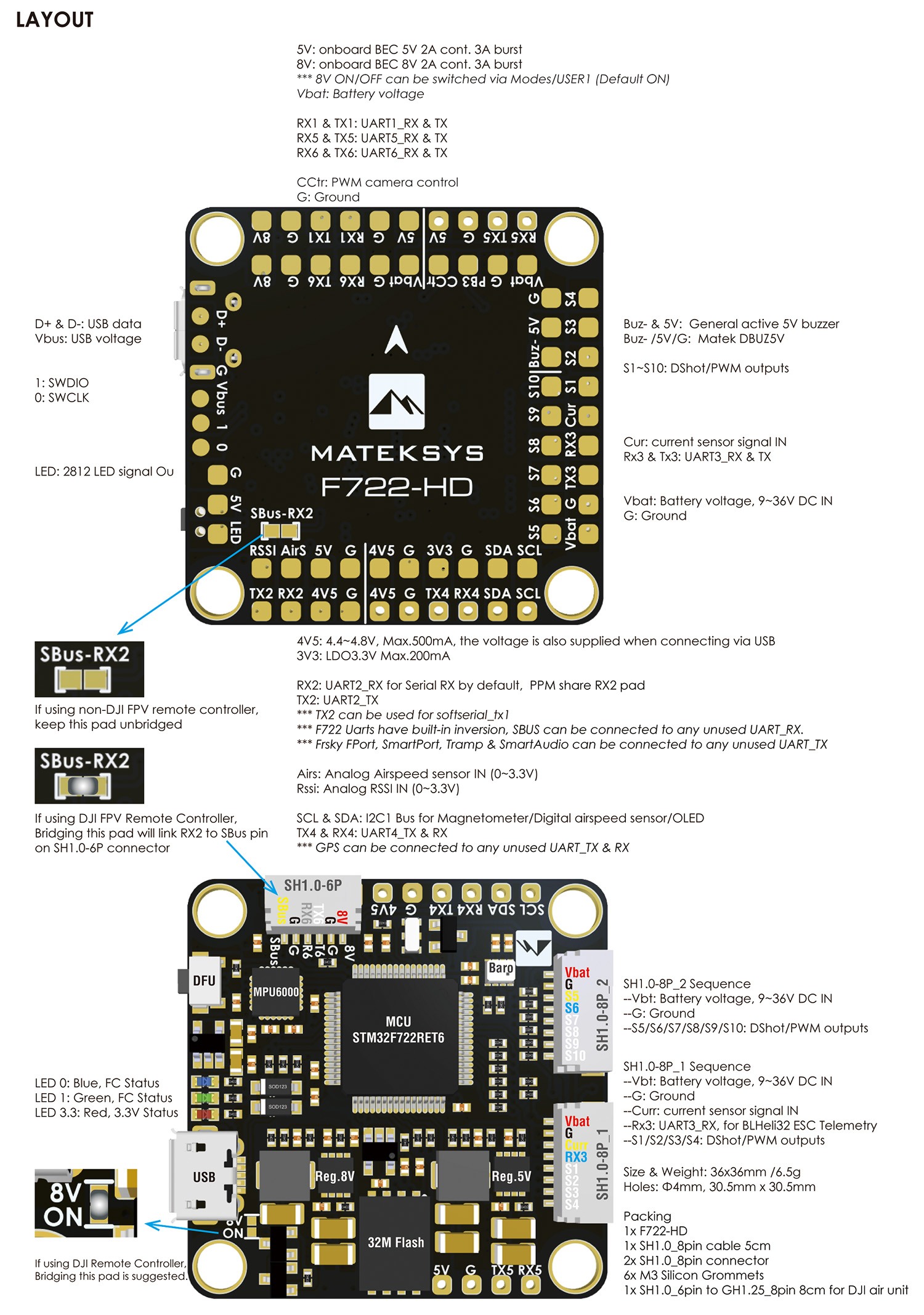

Detailed Images

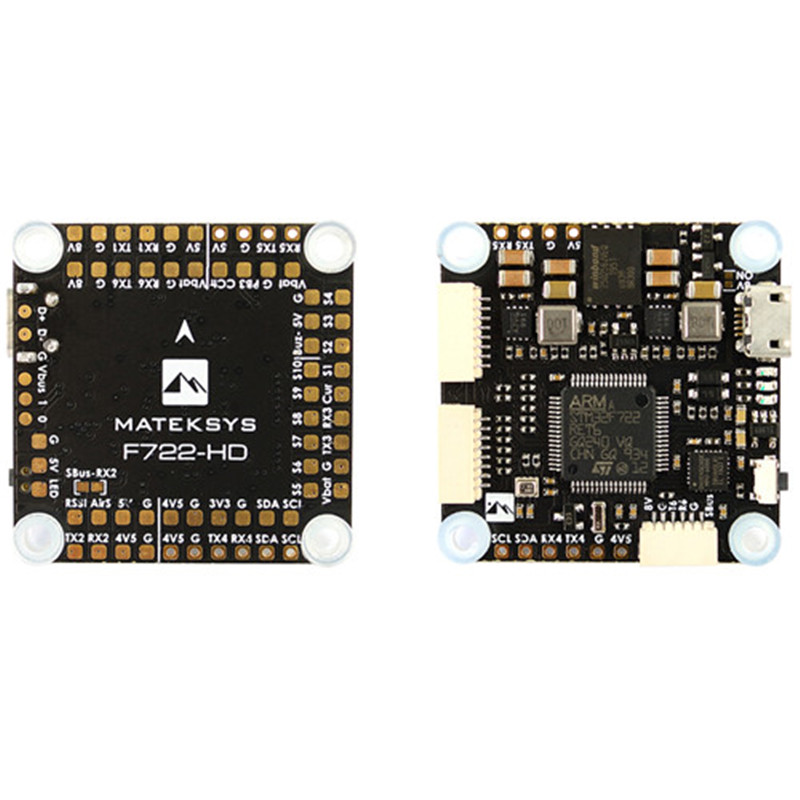

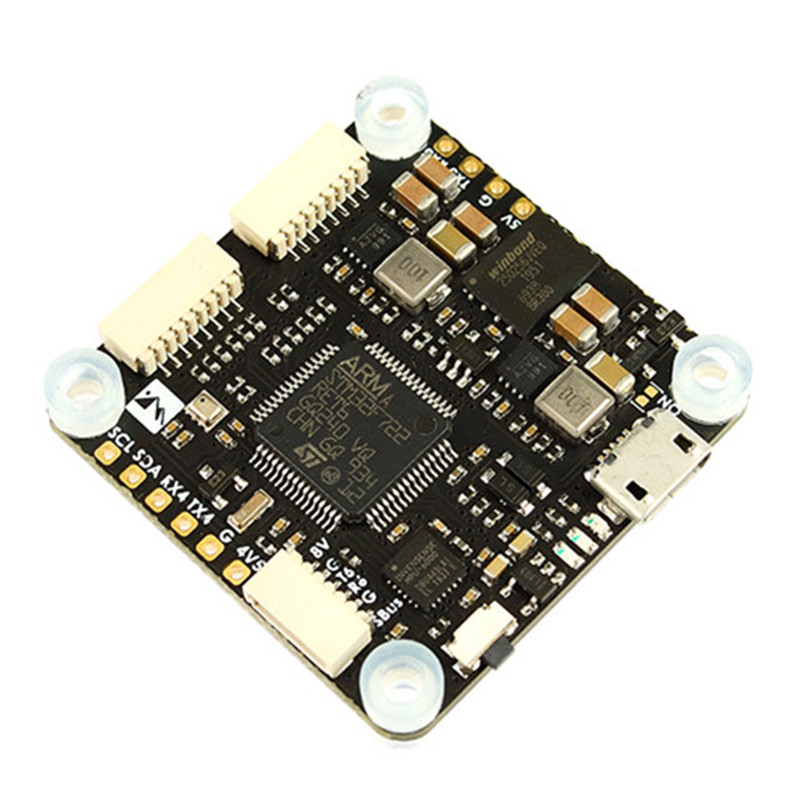

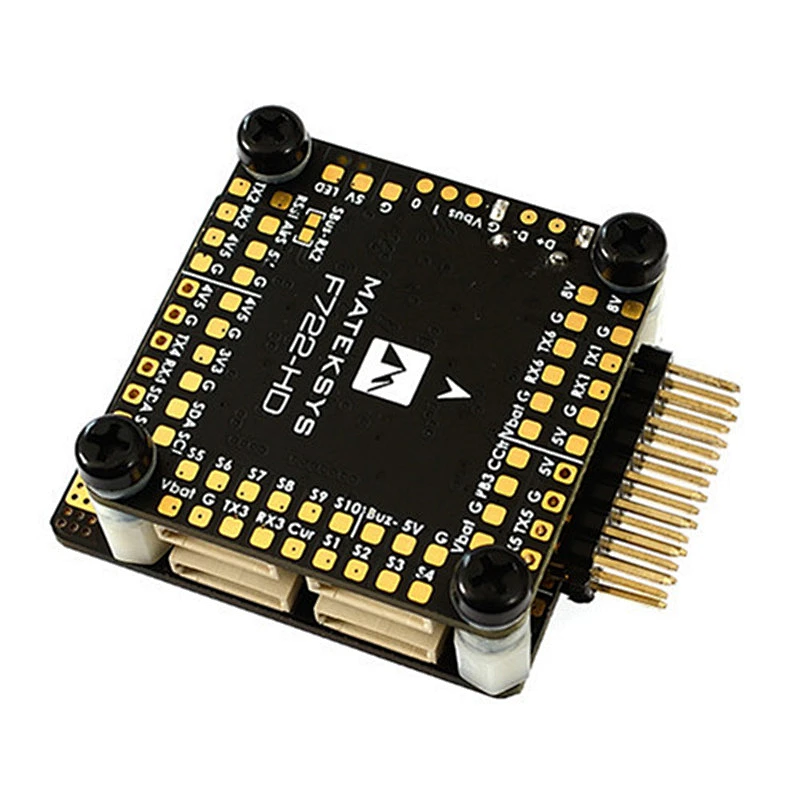

Product Picture

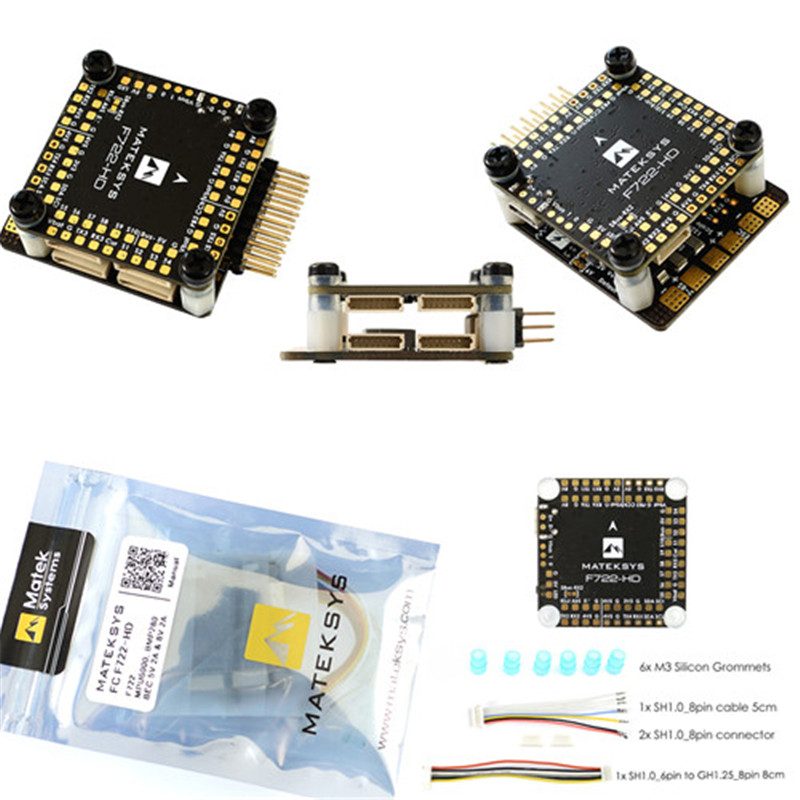

Item Packing
FC F722-HD x 1
Silicon grommets M4 to M3 x 6
SH1.0_8pin cable 5cm x 1
SH1.0_8pin connectors x 2
SH1.0_6pin to GH1.25_8pin cable 8cm x 1
