- Use:Vehicles & Remote Control Toys
- Place of Origin:CN;GUA
- Brand Name:Hobbywing
- Model Number:QuicRun-1200KV/1800kv
Features
The integrated design of the ESC makes the overall volume
is only the size of 550 motor, and the overall weight is only
201g, which makes the layout and wiring of car frame
simpler and more beautiful, perfectly solves the difficulty of
wiring due to the small internal space of rock crawler.
is only the size of 550 motor, and the overall weight is only
201g, which makes the layout and wiring of car frame
simpler and more beautiful, perfectly solves the difficulty of
wiring due to the small internal space of rock crawler.
Product Details

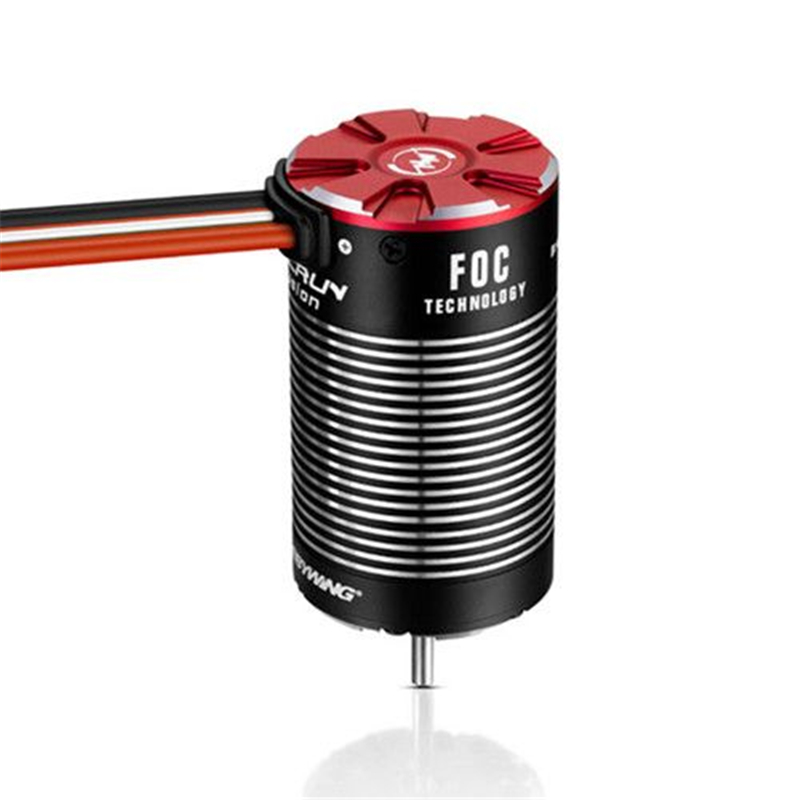

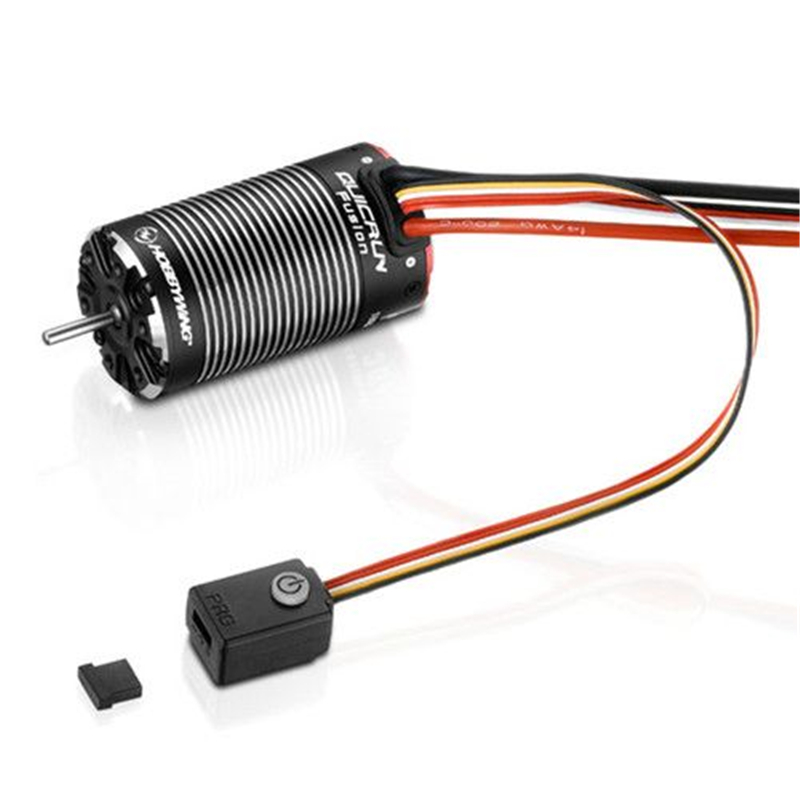

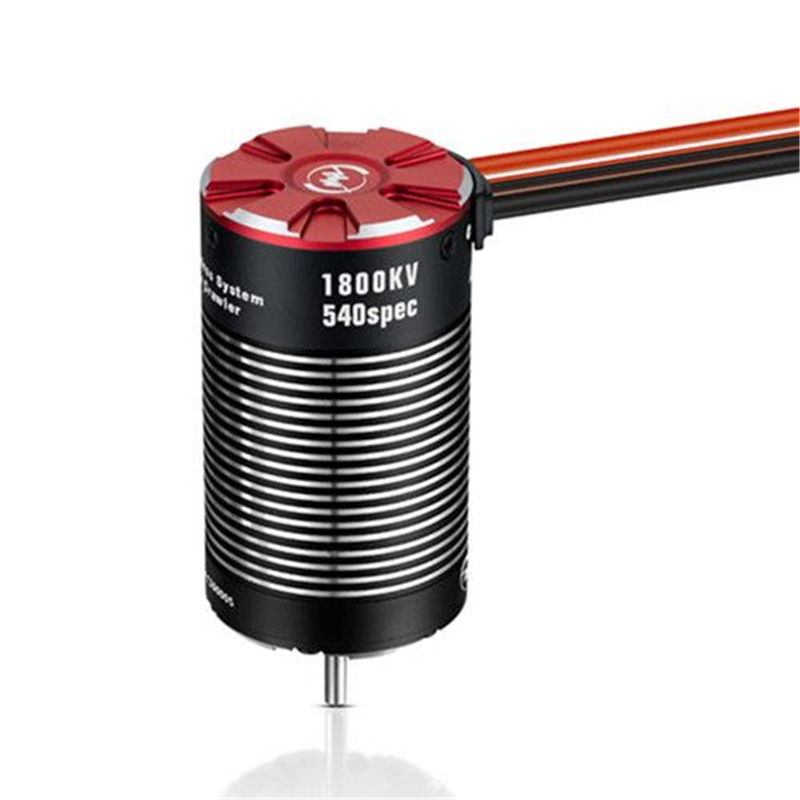

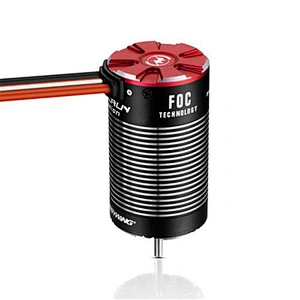

Product Name: QuicRun Fusion BL SYS for Crawler-540 Spec
Type
Scale: 1/10th
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensored
Waterproof: Waterproof
Specifications
Cont./Peak Current: 40A/160A
Input Voltage: 2-3S Lipo/6-9 Cell NiMH
BEC Output: 6V/7.4V adjustable, continuous curr ent 4A (Switch mode)
Motor KV: 1200KV
Diameter/length of Motor: 36mm/64mm
Shaft diameter / exposed shaft length: 3.175mm/16mm
Motor Poles: 4
Size: 36*64mm
Weight: 201g (including wir e plug)
Wires & Connectors
Input Wires: Red-14AWG-200mmx1 / Black-14AWG-200mmx1
Input Connectors: XT60
Type
Scale: 1/10th
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensored
Waterproof: Waterproof
Specifications
Cont./Peak Current: 40A/160A
Input Voltage: 2-3S Lipo/6-9 Cell NiMH
BEC Output: 6V/7.4V adjustable, continuous curr ent 4A (Switch mode)
Motor KV: 1200KV
Diameter/length of Motor: 36mm/64mm
Shaft diameter / exposed shaft length: 3.175mm/16mm
Motor Poles: 4
Size: 36*64mm
Weight: 201g (including wir e plug)
Wires & Connectors
Input Wires: Red-14AWG-200mmx1 / Black-14AWG-200mmx1
Input Connectors: XT60
Detailed Images
