- Style:Radio Control Toy
- Standard servo for:1:10 1:8 EP on road Car
- Gears material:gears material
- Bearring:2BB
- Type:Car
- Power:Battery
- Scale:1:10
- Radio Control Style:RC Model
- Material:METAL
- Brand Name:fitec
- Model Number:FS5106B
- Place of Origin:CN;GUA
1.RC ROBOT TOY servo
2.High torque 6kg
3.Operating Voltage:4.8-6Volts
4.Interface: (like JR)
Servo for rotation robot arm FEETECH competitive price!!! FS5106B rc servo standard size Instead of S3003

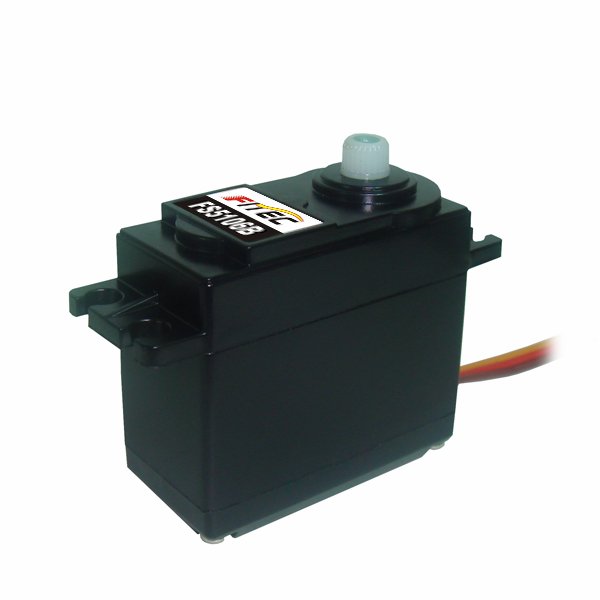

FS6106B Generic High Torque Standard Siz servo that has been built by FEETECH (formerly known as Fitec)
Here is a powerful, low-cost, reliable servo for all your mechatronic needs.
This servo is able to take in 6 volts and deliver 83.47 oz-in. of maximum torque
at 0.16 sec/60°

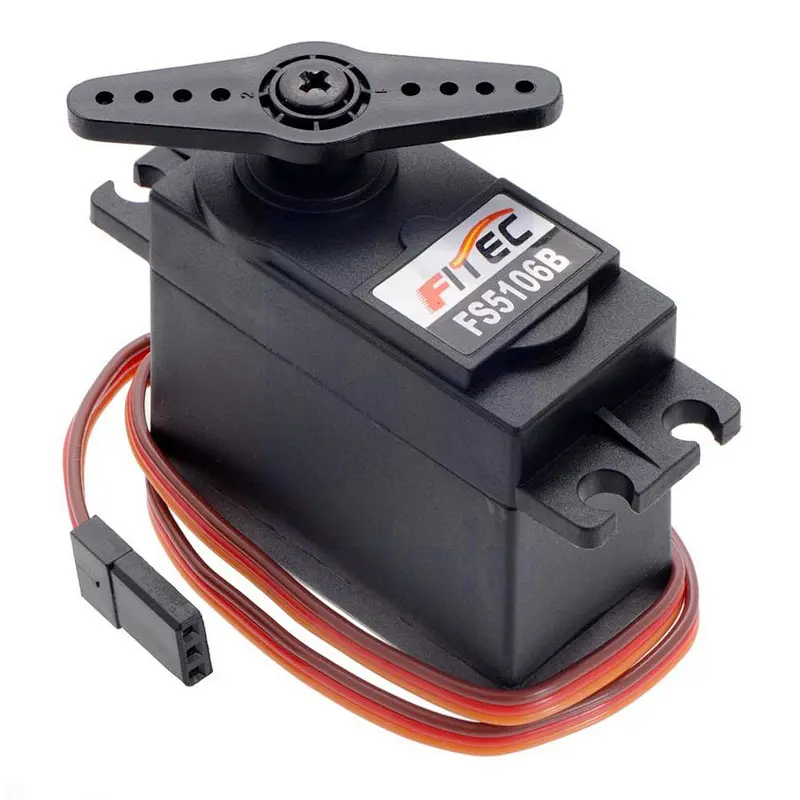

This is a tough little servo with a standard 3 pin power and control cable,
Features:

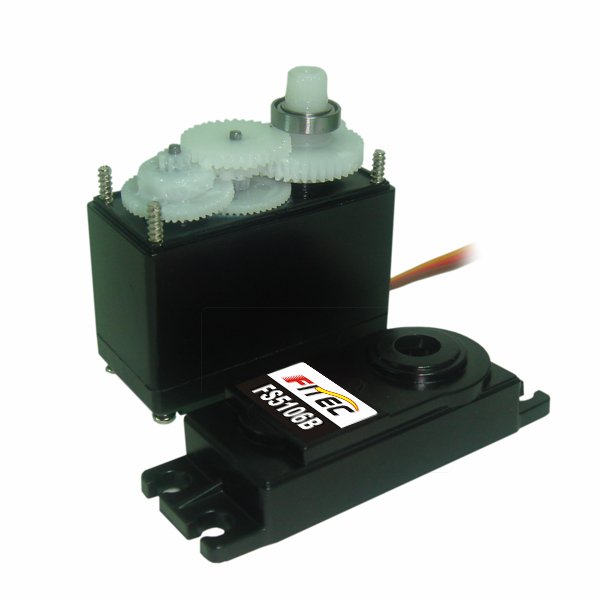

- Standard analog plastics gears servo,2BB
-Operating Voltage:4.8-6Volts
-Interface: (like JR)
-Wire length: 30cm
-Application for RC ROBOT TOY

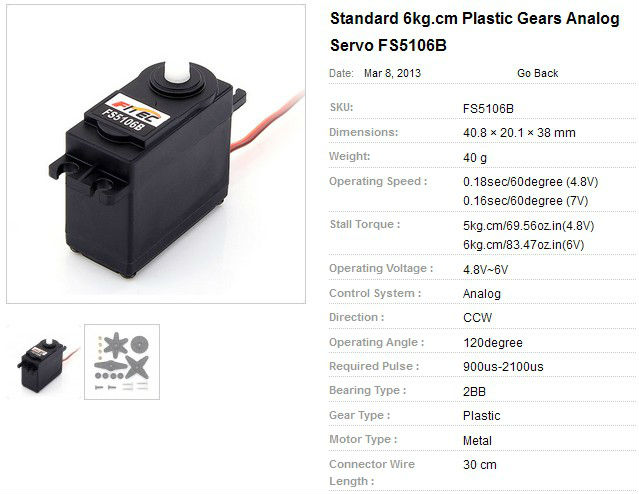

| Electrical Specification (Function of the Performance) | |||
| No. | Operating Voltage Range | 4.8V | 6V |
| 1 | Idle current(at stopped) | 5mA | 7mA |
| 2 | No load speed | 0.18sec/60° | 0.16 sec/60° |
| 3 | Runnig current(at no load) | 160 mA | 190 mA |
| 4 | Peak stall torque | 5kg.cm | 6kg.cm |
| 69.56oz.in | 83.47oz.in | ||
| 5 | Stall current | 980 mA | 1100mA |
| Note: "*"definition is average value when the servo runing with no load | |||
| Control Specification: | |||
| No. | Item | Specification | |
| 1 | Command signal | Pulse width modification | |
| 2 | Amplifier type | Analog comparator | |
| 3 | Pulse width range | 700~2300µsec | |
| 4 | Neutral position | 1500 µsec | |
| 5 | Running degree | 120°(±5°)(when 900~2100 µsec) | |
| 6 | Dead band width | 5 µsec | |
| 7 | Rotating direction | Counterclockwise (when 1000~2000 µsec) | |
Full Packaged
-Servo×1PCS

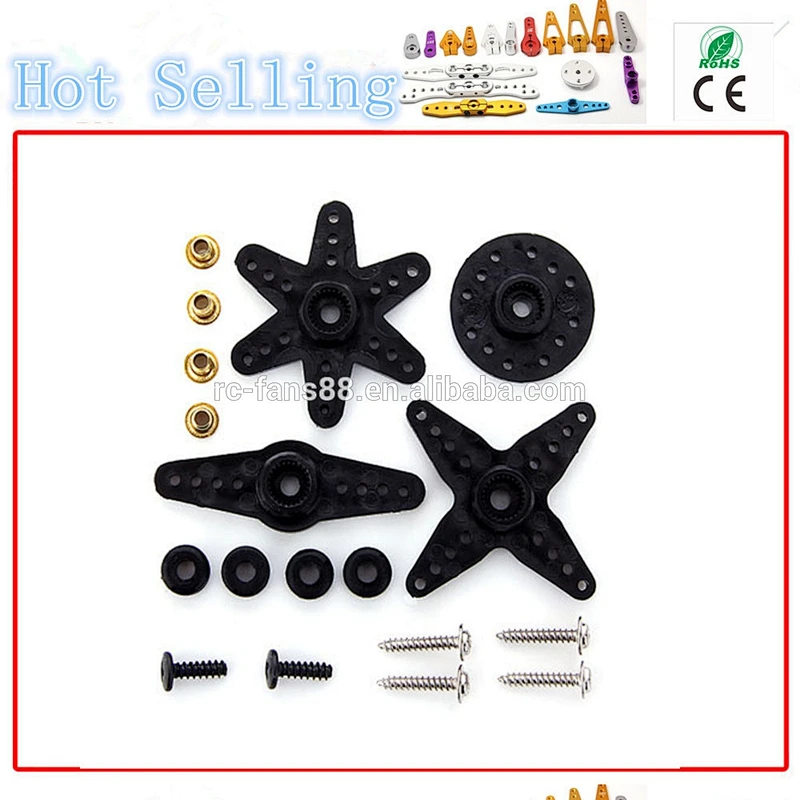

-Servo arm×1 bag
-GW: 49g
Shipping
We adopt EXW term. Generally, we choose, DHL, FedEx, EMS or UPS as our forwarder. Of course, you can choose your own most favorable forwarder, and we would provide the freight bill according to the quantity and weight of the total products, Freight Collect can also be acceptable.
We also specialized in ODM and OEM
Payment
We adopt T/T,west union,paypal payment methods. After we receive your payment, we will arrange shipment. All banking charges and interest are charged to purchasers.
Warranty Procedure
As long as you choose to use FEETECH products, you can enjoy the warranty service that we provide. Please print our Repair Request Form (.PDF, .DOC) and fill it out in its entirety, being as comprehensive as possible, in order to receive the best possible service.
Warranty Period
All FEETECH products are warranted against defects for a period of one (1) years from the date of purchase. During this period we will repair or replace (at our discretion) any defective products. You should always retain your original receipt as proof of the date of purchase.
