- Servo type:Standard digital servo
- Gear materials:metal gears
- Motor type:Cored motor
- Dead band width:2usc
- Color:Blue
- Product name:Rc car servo
- Function:Forward
- Certificate:ROHS
- Product size:40*20.*40.4mm
- Feature:Remote Control Model
- Type:Car
- Power:Battery
- Material:METAL
- Scale:1:10
- Radio Control Style:RC Model
- Place of Origin:CN;GUA
- Brand Name:fitec

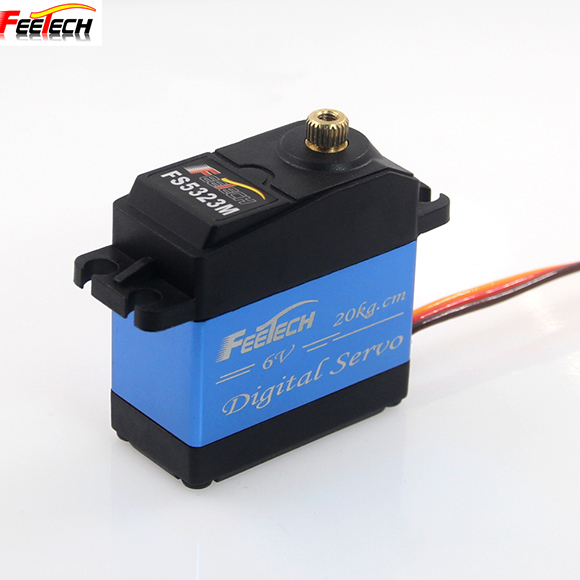

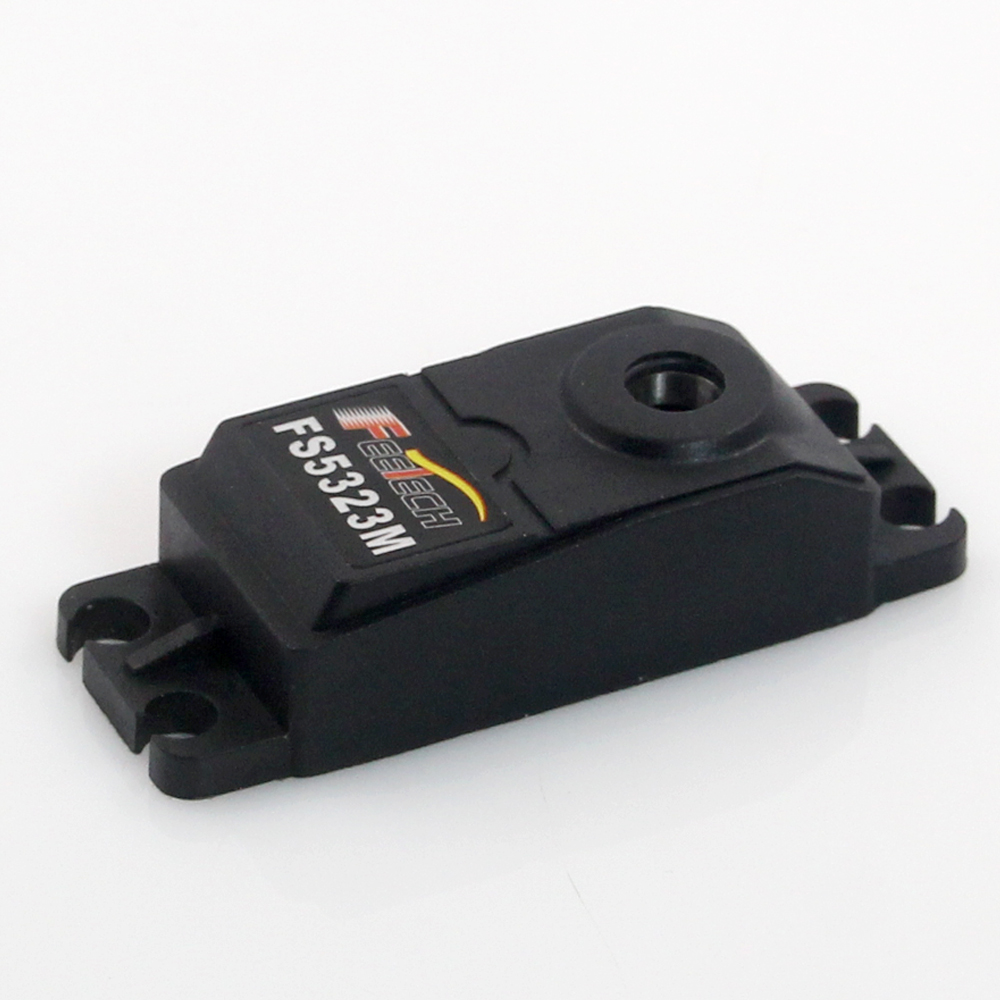

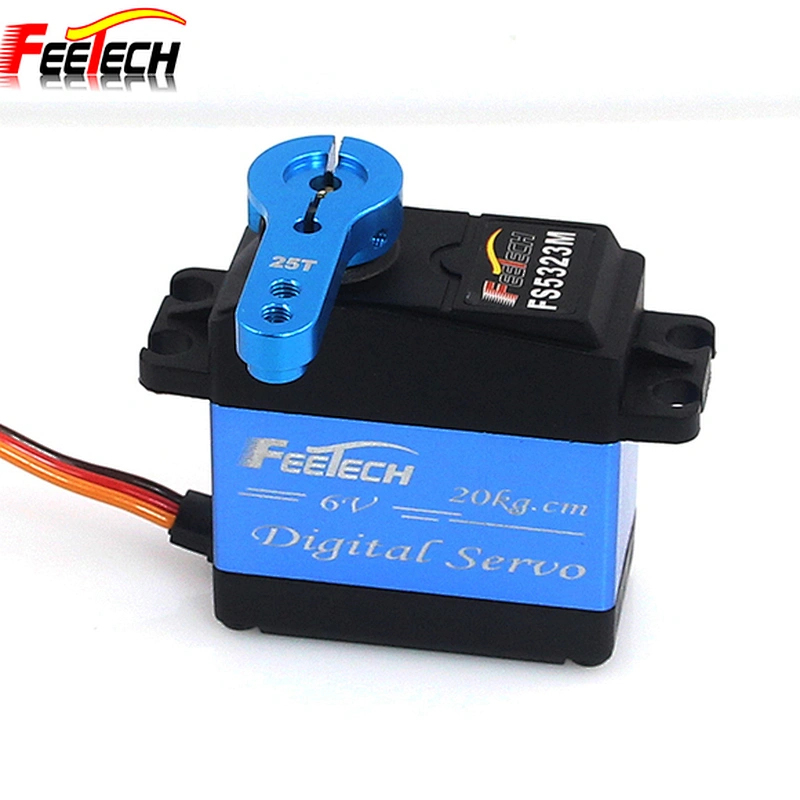

- Model Number:FS5323M

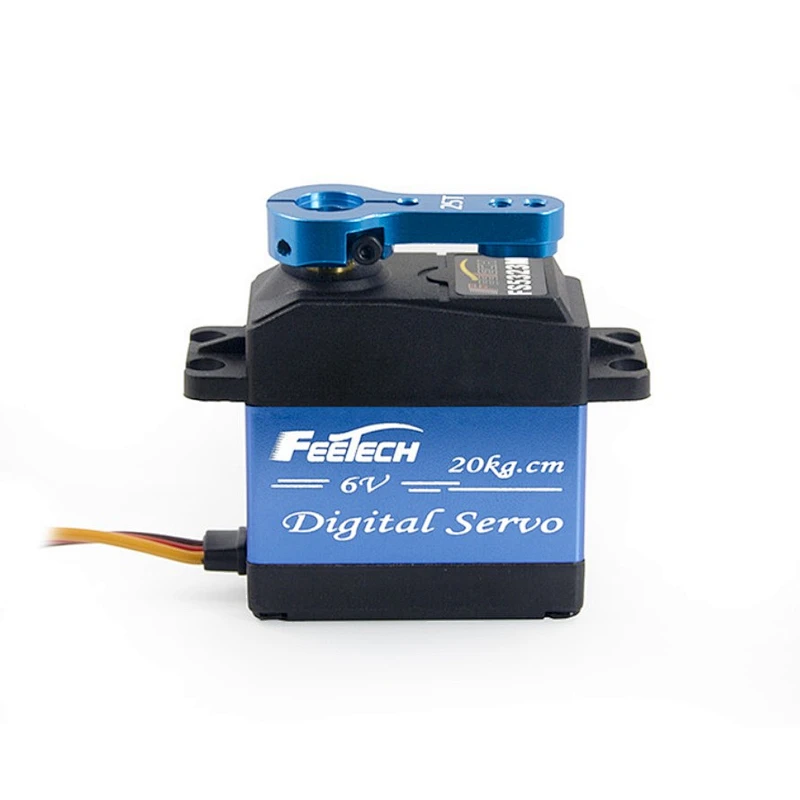

1.20KG Standard Size Servo Output 25 Tooth Futaba Type
2.Best choice for RC car 1/8
3.Accessories attached

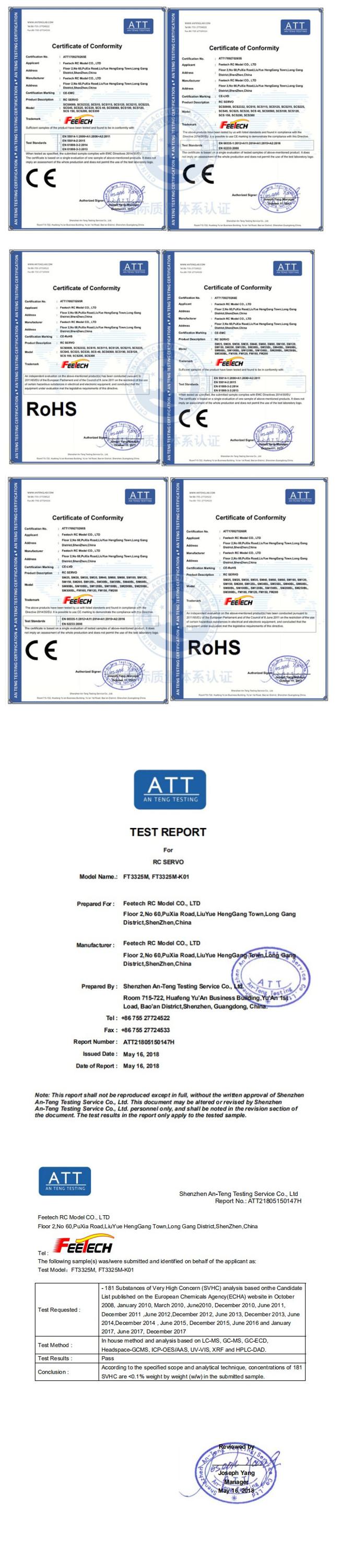

4.ROHS CE compliance
Features

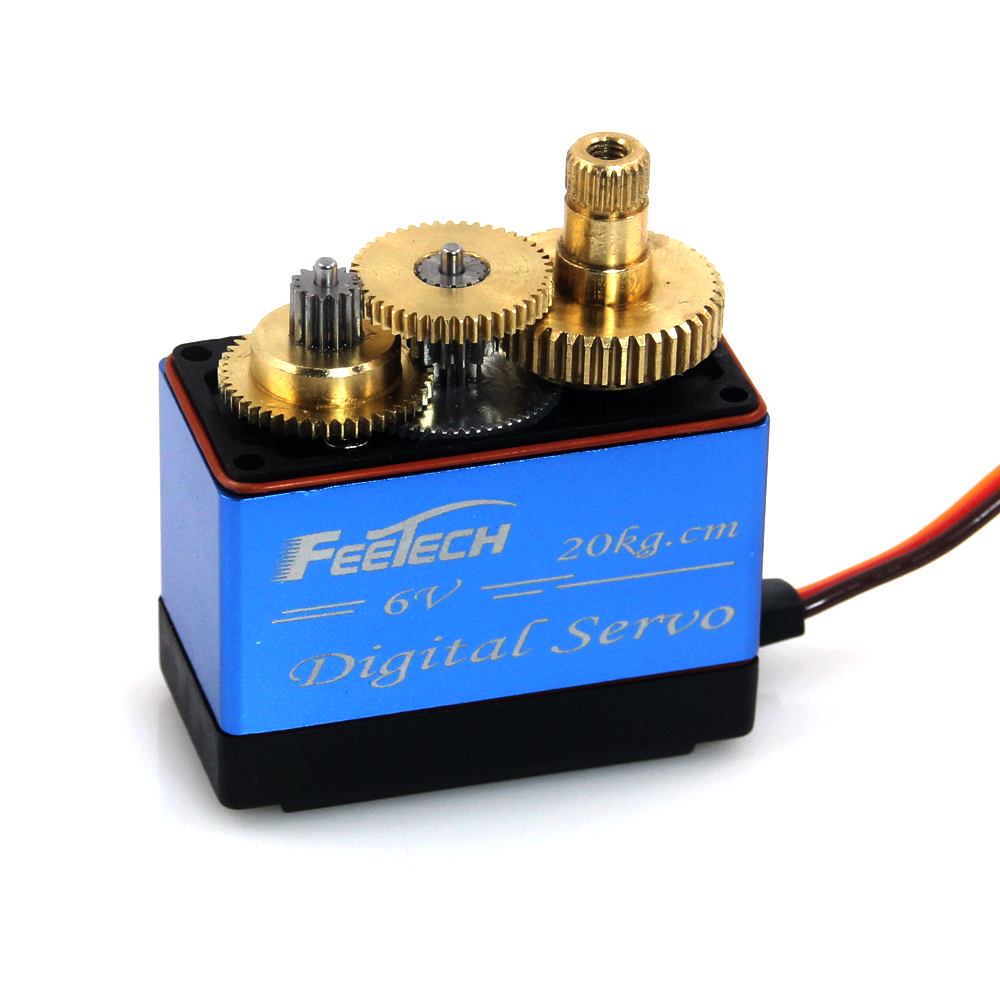

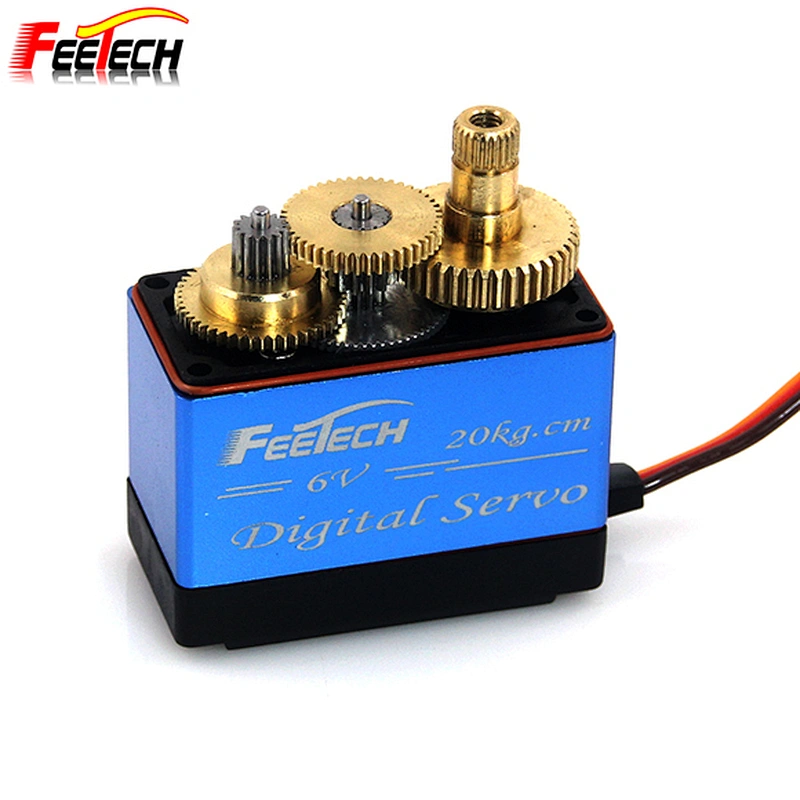

-Standard digital metal gears servo,2BB
-Metal brush motor,Aluminium middle hull
-Waterproof
-Operating Voltage: 4.8~6V
-Dead band width: 2usc
-Interface: (like JR)
-Wire length: 30cm
Specifications
Power 4.8V 6V
Speed 0.22sec/60° 0.16sec/60°
Torque 19kg.cm/ 263.8oz.in 21.5kg.cm/298.5 oz.in
Weight 56g (1.46oz)
Size 40*20.*40.4mm
Application Air plane,Car,boat
Notice:
-Refer to the figure when installing the servo accessories. Caution: For engine powered
airplanes, helicopter, vehicle model, must use rubber shock pad to fix.
-Please choose correct model for your application.
Caution: Torque over-loaded will damage the servo’s mechanism.
-The products use coreless motor; please choose the right power voltage of
servo according the specification. Please pay more attention that it may affect unnormal
working or damage of servo if using the servo oversteps the normal range of voltage.
-Keep the servo clean and away from dust, corrosive gas and humid air.
-Our company keeps the right of amendment, if there are some changes of parameter
and appearance, without notice.

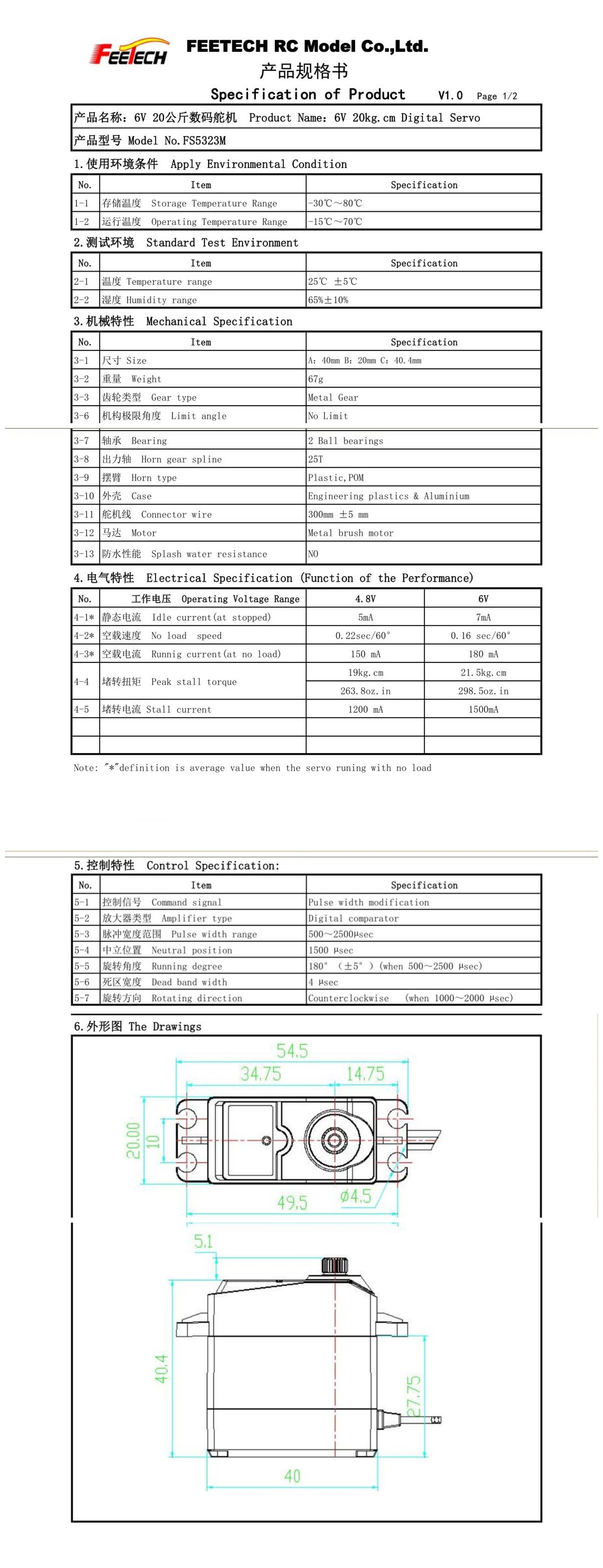

| Item | ||
| Specification | ||
| Size | A:40mm B:20mm C:40.4mm | |
| Weight | 67g | |
| Gear type | Metal Gear | |
| Limit angle | No Limit | |
| Bearing | 2 Ball bearings | |

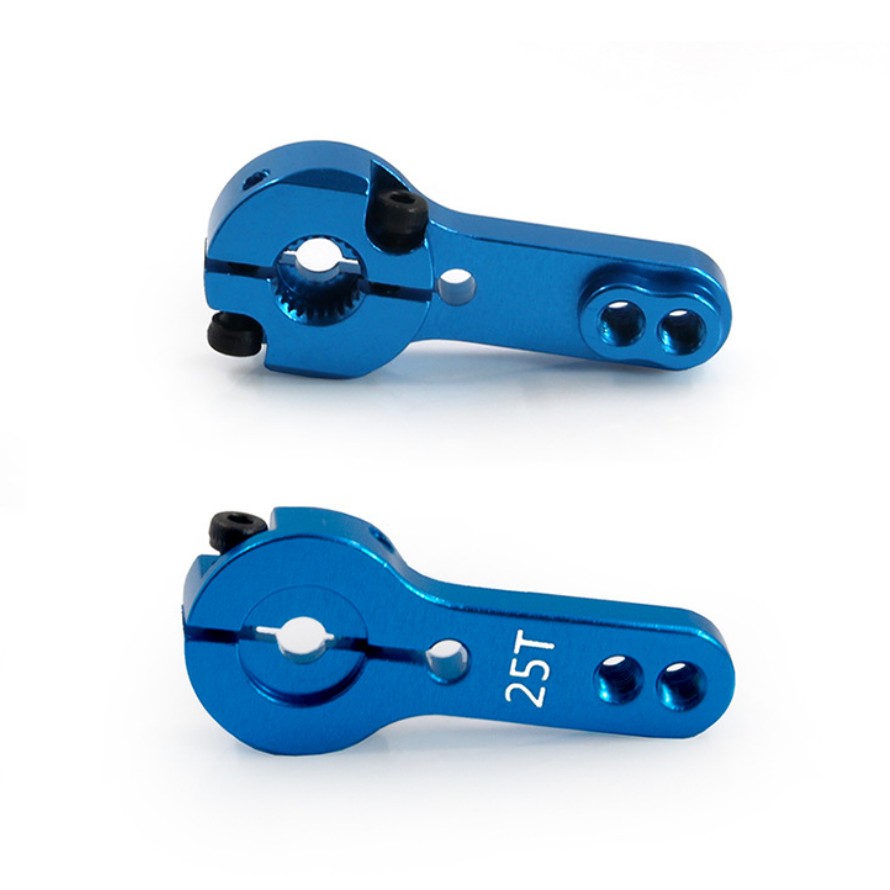

| Horn gear spline | 25T | |
| Horn type | Plastic,POM | |
| Case | Engineering plastics & Aluminium | |
| Connector wire | 300mm ±5 mm | |
| Motor | Metal brush motor | |
| Splash water resistance | NO | |
| Control Specification: | |||
| No. | Item | Specification | |
| 1 | Command signal | Pulse width modification | |
| 2 | Amplifier type | Digital comparator | |
| 3 | Pulse width range | 500~2500µsec | |
| 4 | Neutral position | 1500 µsec | |
| 5 | Running degree | 180°(±5°)(when 500~2500 µsec) | |
| 6 | Dead band width | 4 µsec | |
| 7 | Rotating direction | Counterclockwise (when 1000~2000 µsec) | |
1. What's the packing of Feetech Products?

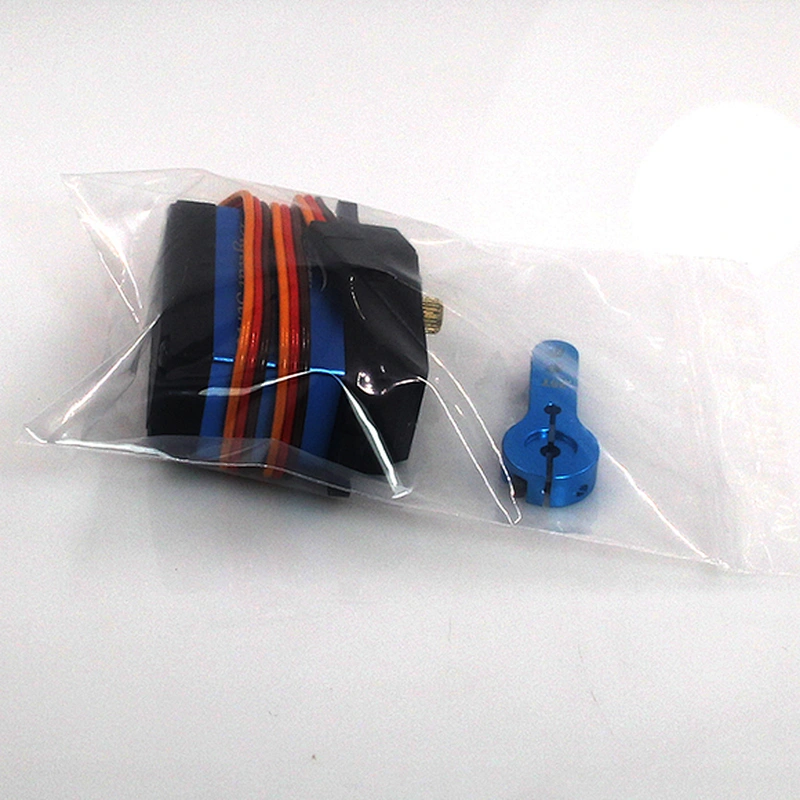

-Gift box or PE bag in standard exporter carton
2. What's the Shipping Meathod?
It is according to your requirements.
1) Generally, shipping by air express(such as DHL,EMS, TNT and so on)
2) Freight Collect
3) The cheapest China Post is also available
3. When will customer get the parcel?
Feetech handling time is 3-7 working days.
And then ship out by air. The tracking no. will be forwarded to you within 48hours after ship out.
Our Top-5 Advantages:

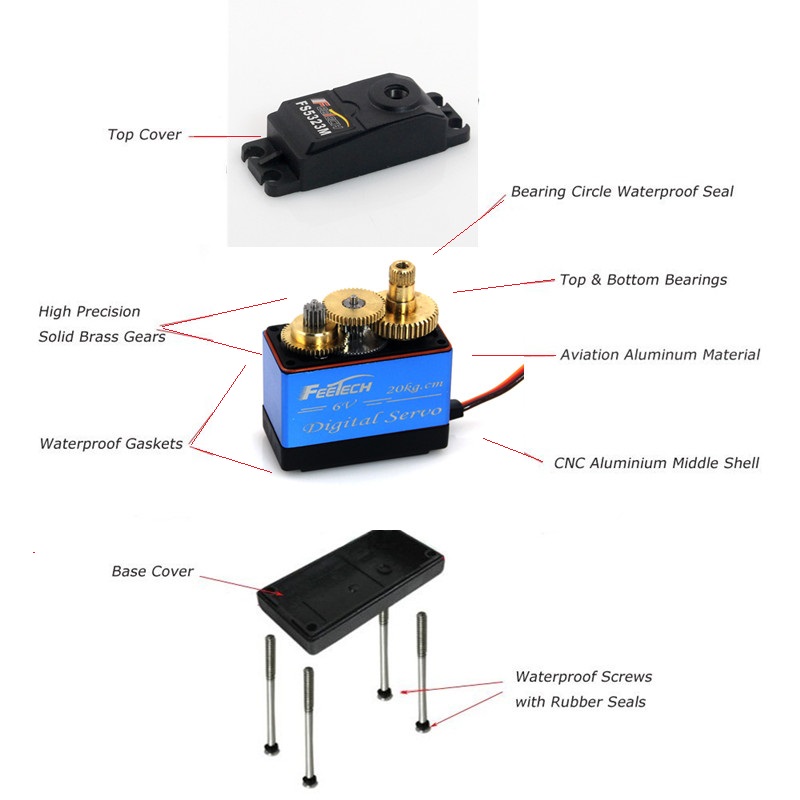

1. Quality: Quality is Feetech's Culture!Material: titanium gear, aluminum middle case, dual ball bearing and so on.
