- Servo type:Standard digital servo
- Gear materials:metal gears
- Motor type:Cored motor
- Dead band width:2usc
- Color:Blue
- Product name:Rc car servo
- Function:Forward
- Certificate:ROHS
- Product size:40*20.*40.4mm
- Feature:Remote Control Model
- Type:Car
- Power:Battery
- Material:METAL
- Scale:1:10
- Radio Control Style:RC Model
- Place of Origin:CN;GUA
- Brand Name:fitec
- Model Number:FI7635
Product Description
Specification
Product Name: | Ultra Speed High Voltage Titanium Gear Digital Servo For 1/5 RC Car Plane for traxxas/HPI racing/Kyosho/Tamiya |
Stall Torque | 35 kg.cm |
No load Speed(RPM) | 72RPM |
Gear | Stainless Steel Gear |
Packing & Delivery

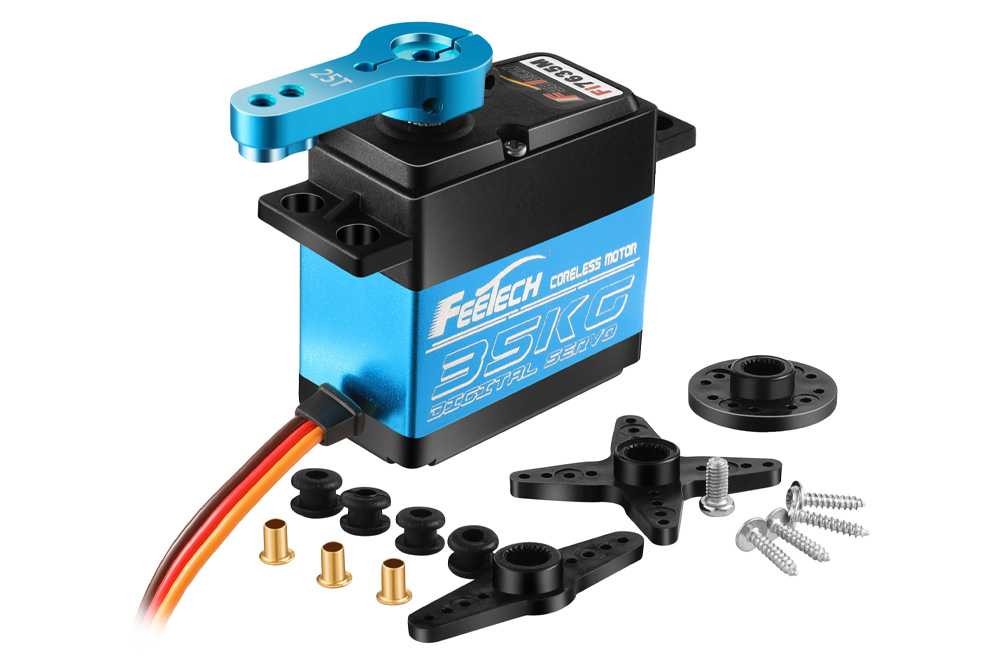

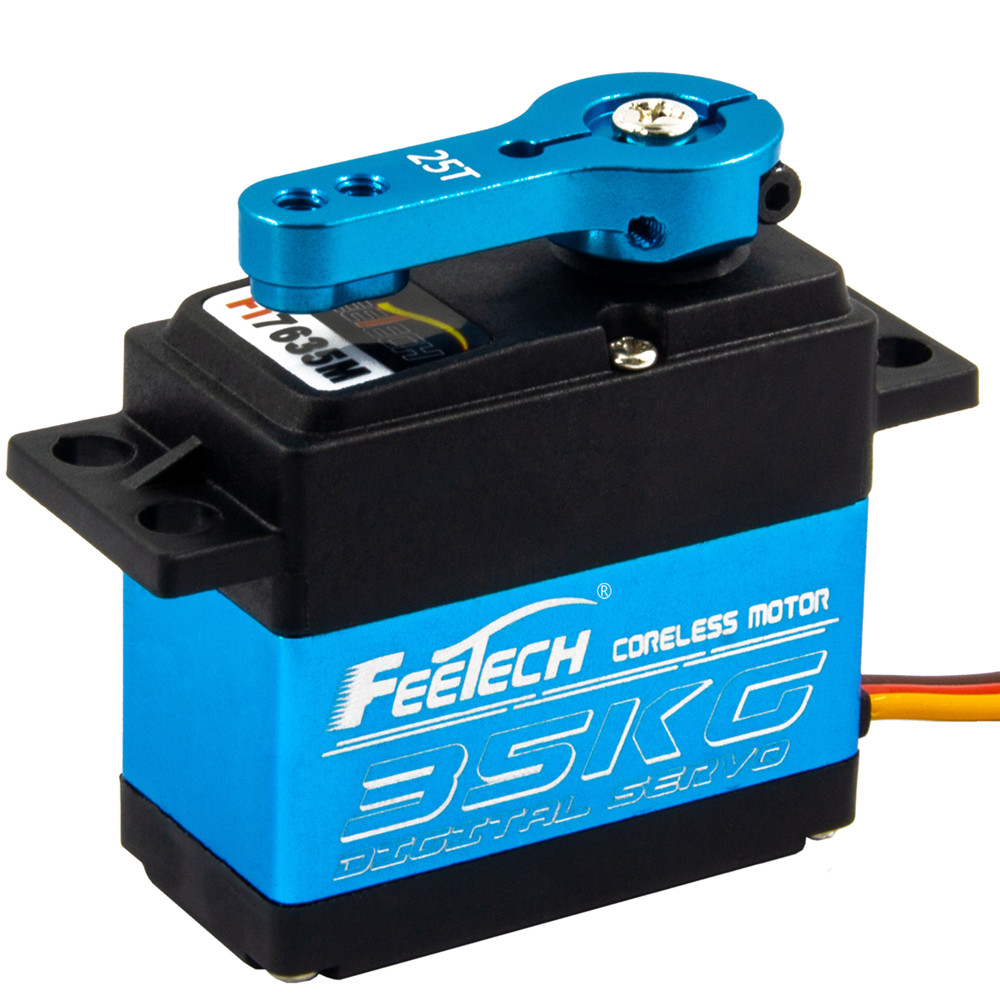

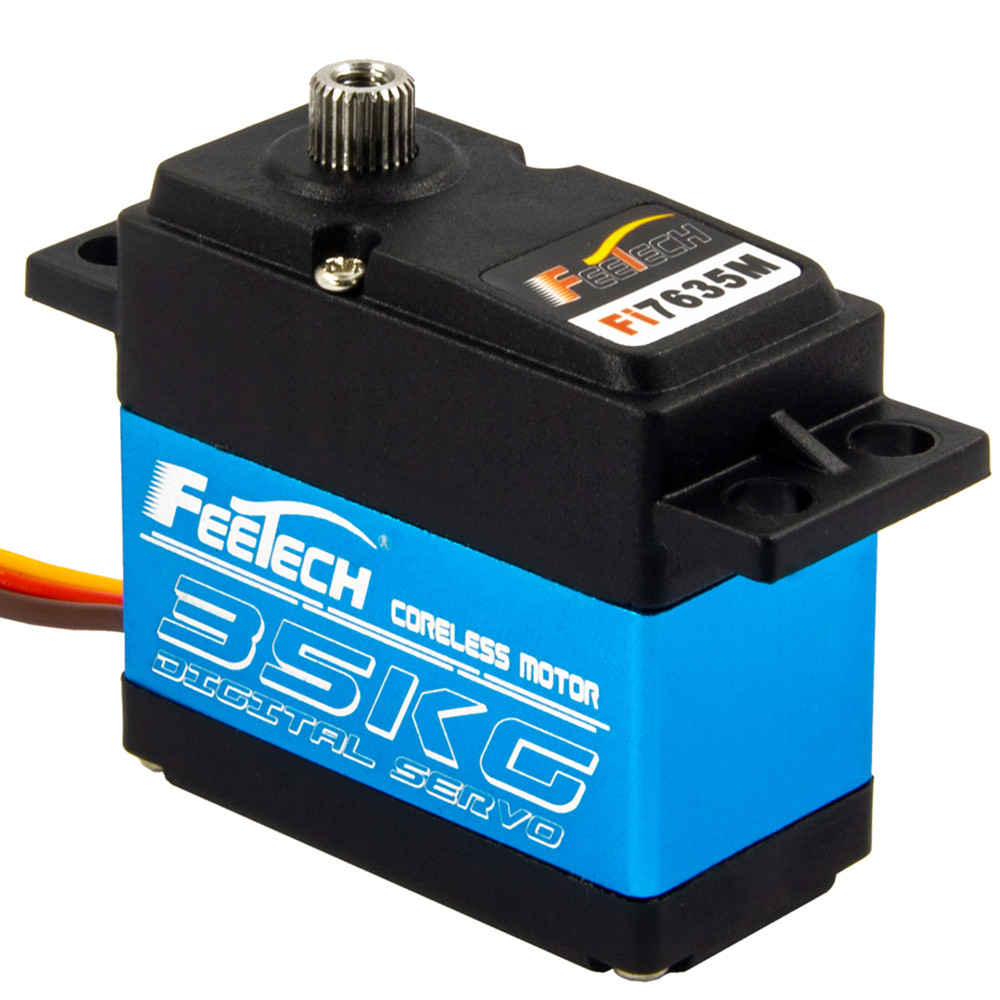

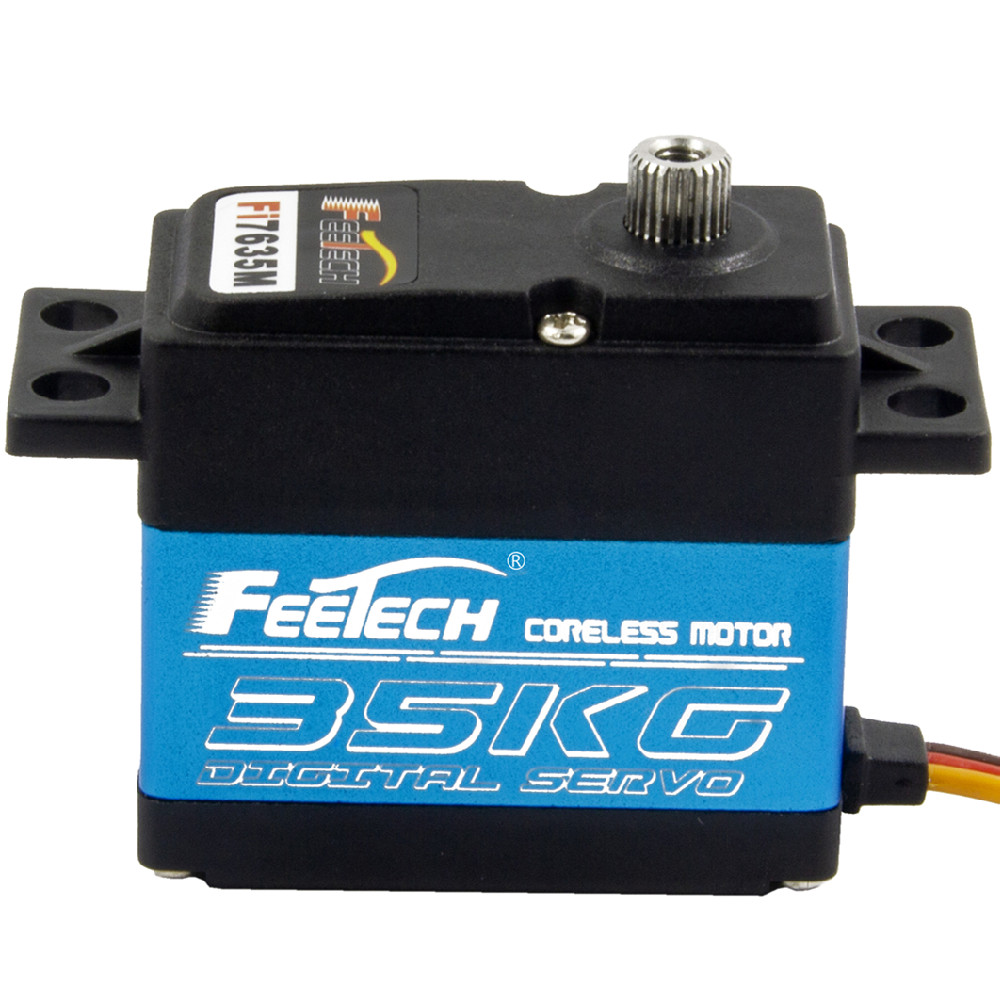

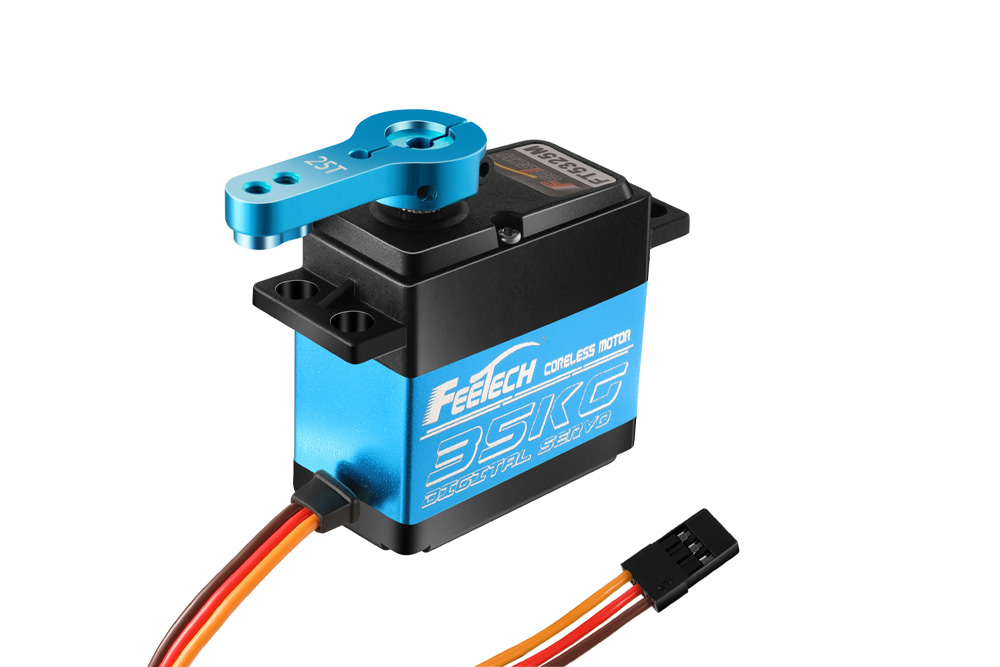

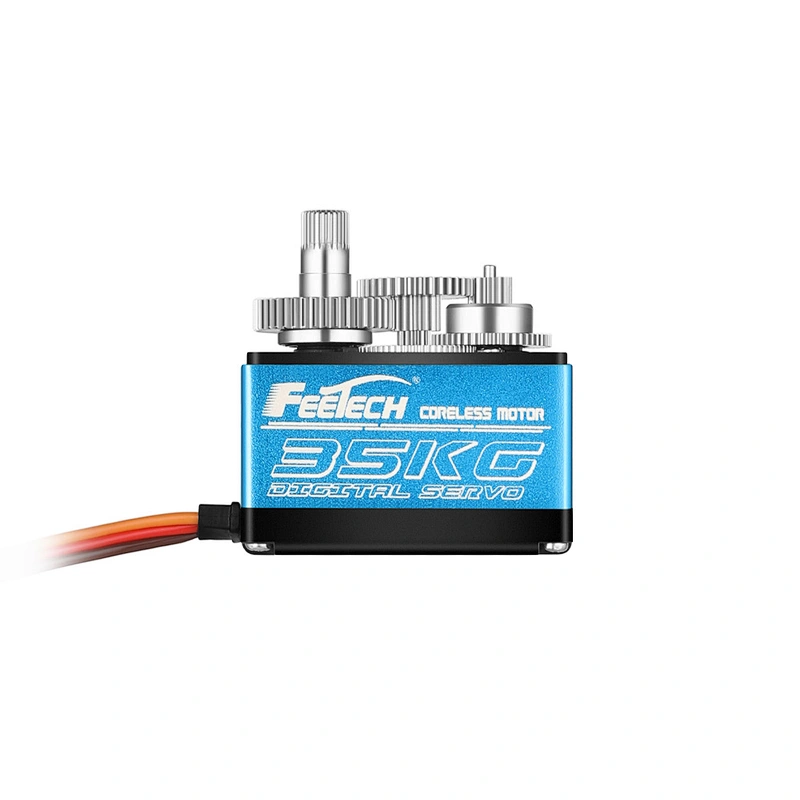

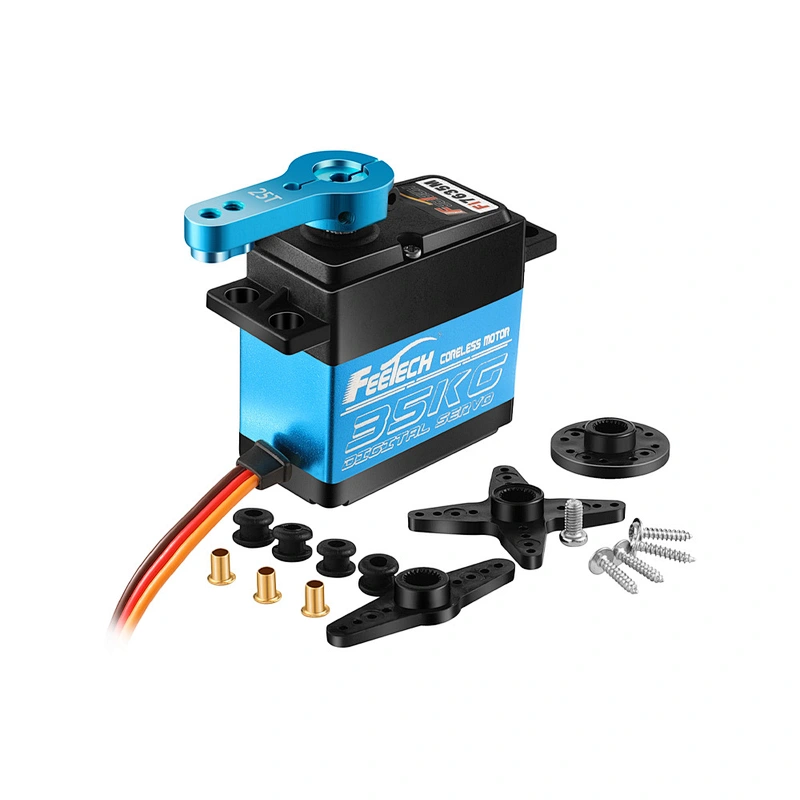

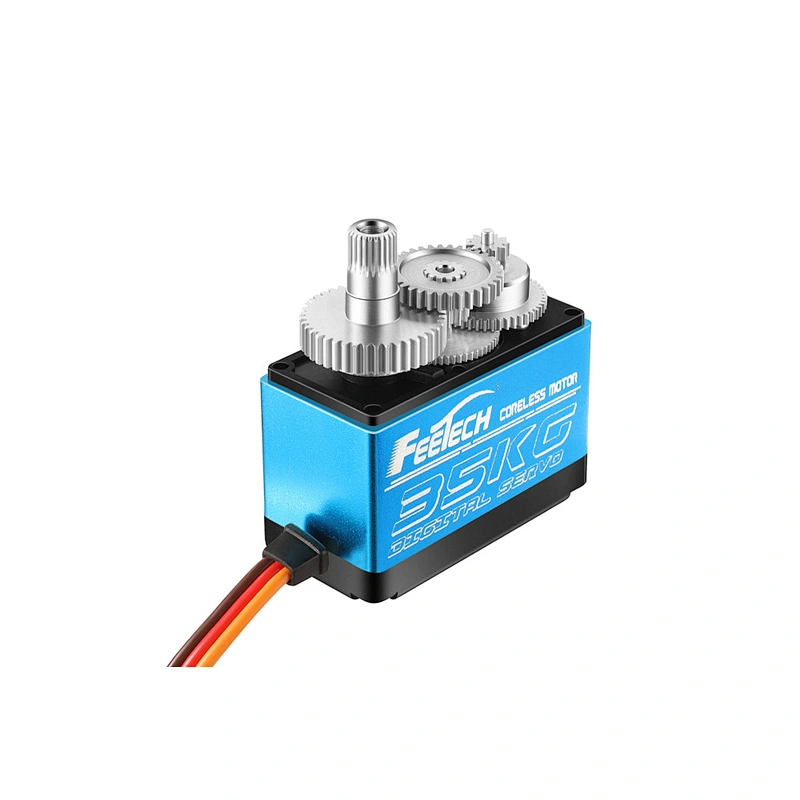

Feetech Waterproof 35KG 270 Degree High Torque Servo Steel Gear Digital and 25T Arm for Robotic RC Car Crawler DIY.
* Best RC servo upgrades, ideal for 1:10/1:8/1:5 robot or r/c crawlers.
* Operating speed:0.07sec/60°; Stall torque: 35kg-cm (at 7.4V).
* Core motor-driven provides high speed, incredible efficiency, and low power consumption

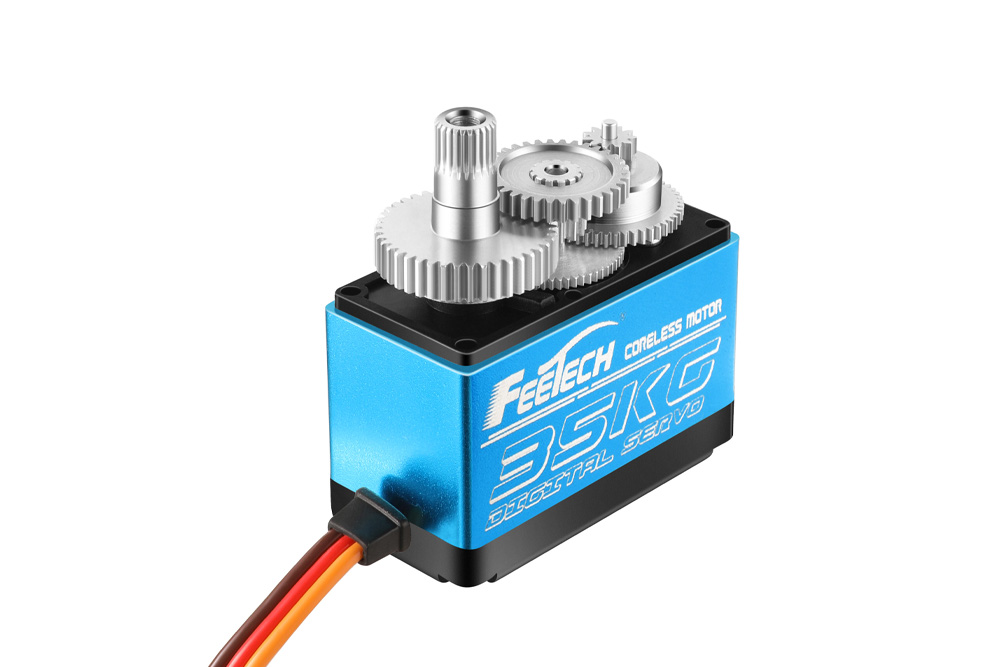

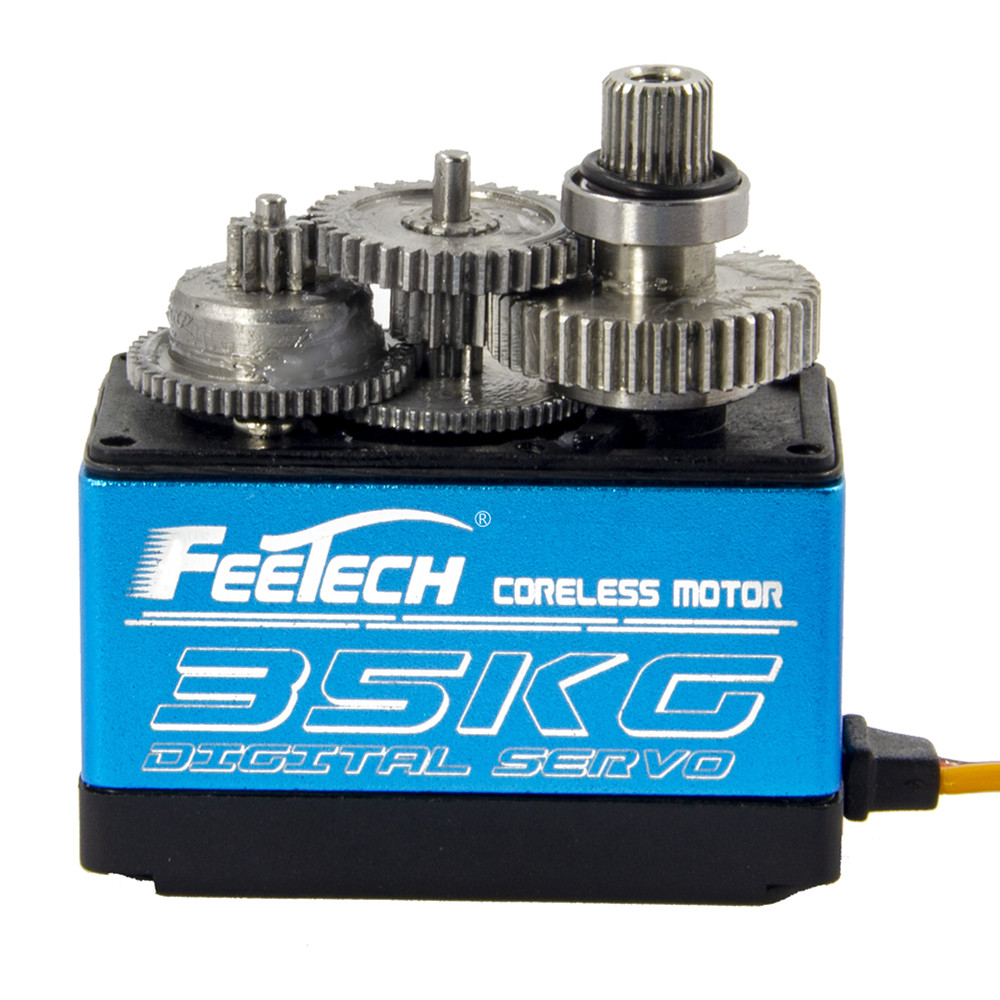

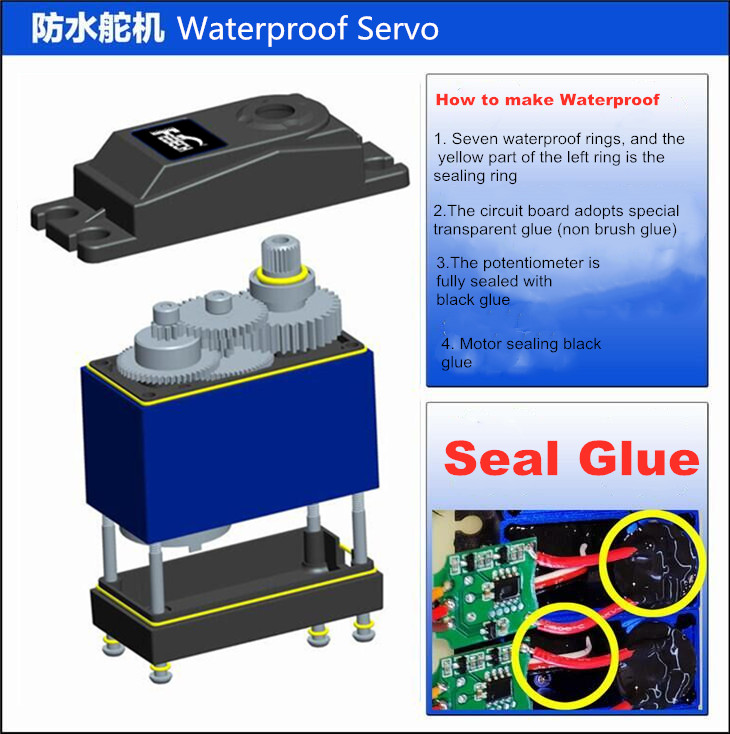

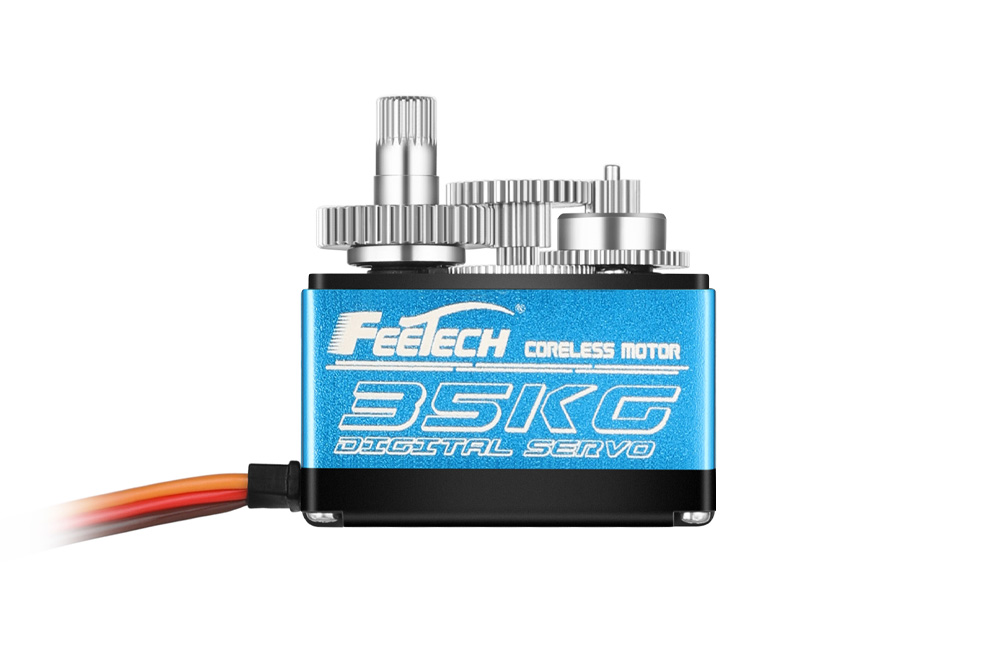

* IP66 waterproof performance for worry-free operation; extremely strong unique stainless steel & Aluminum gears ensure long life and durability.
* Super light-weight, small size but strong.Dimensions: 40x20x38.5mm, Weight: 60g

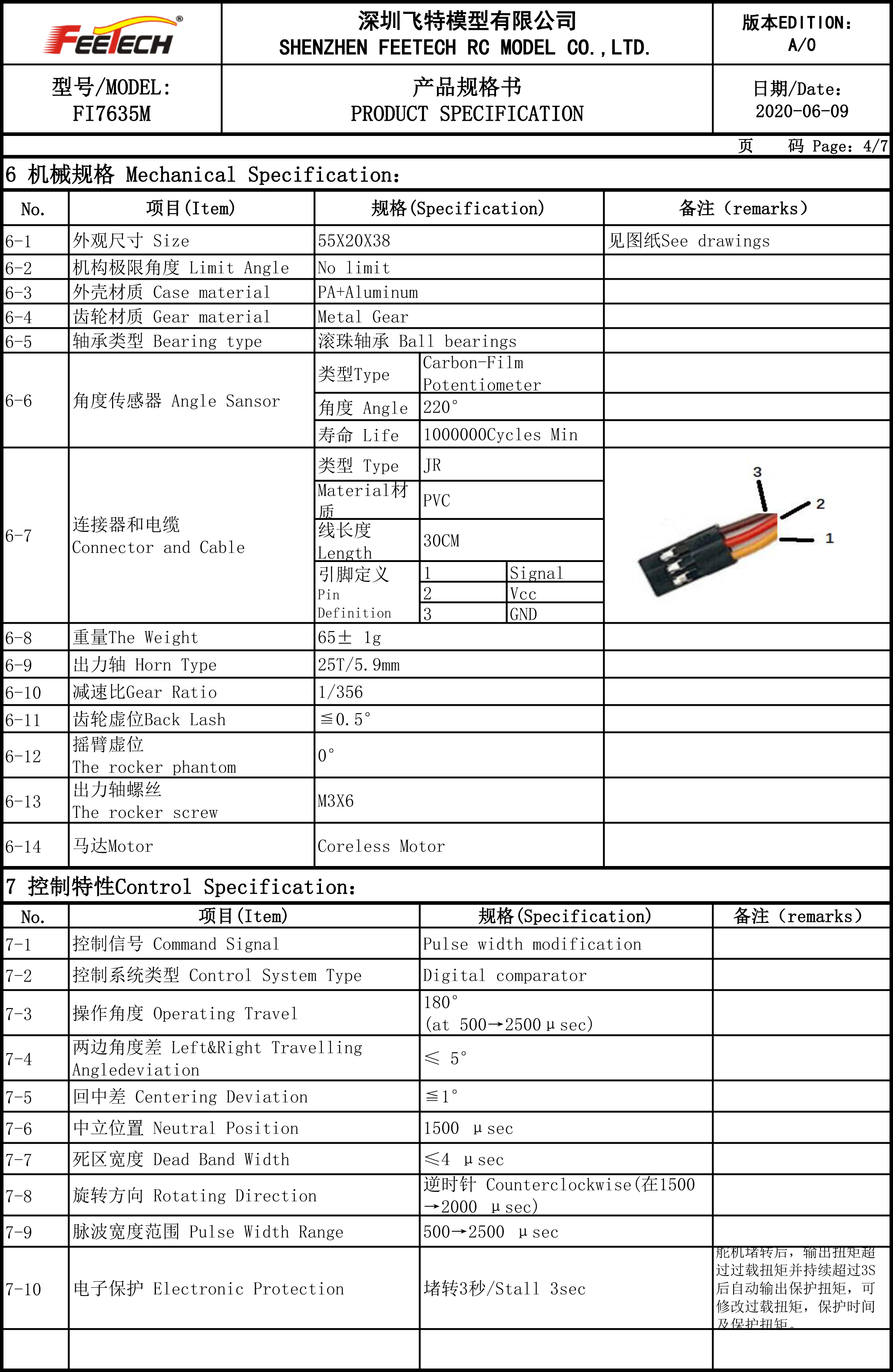

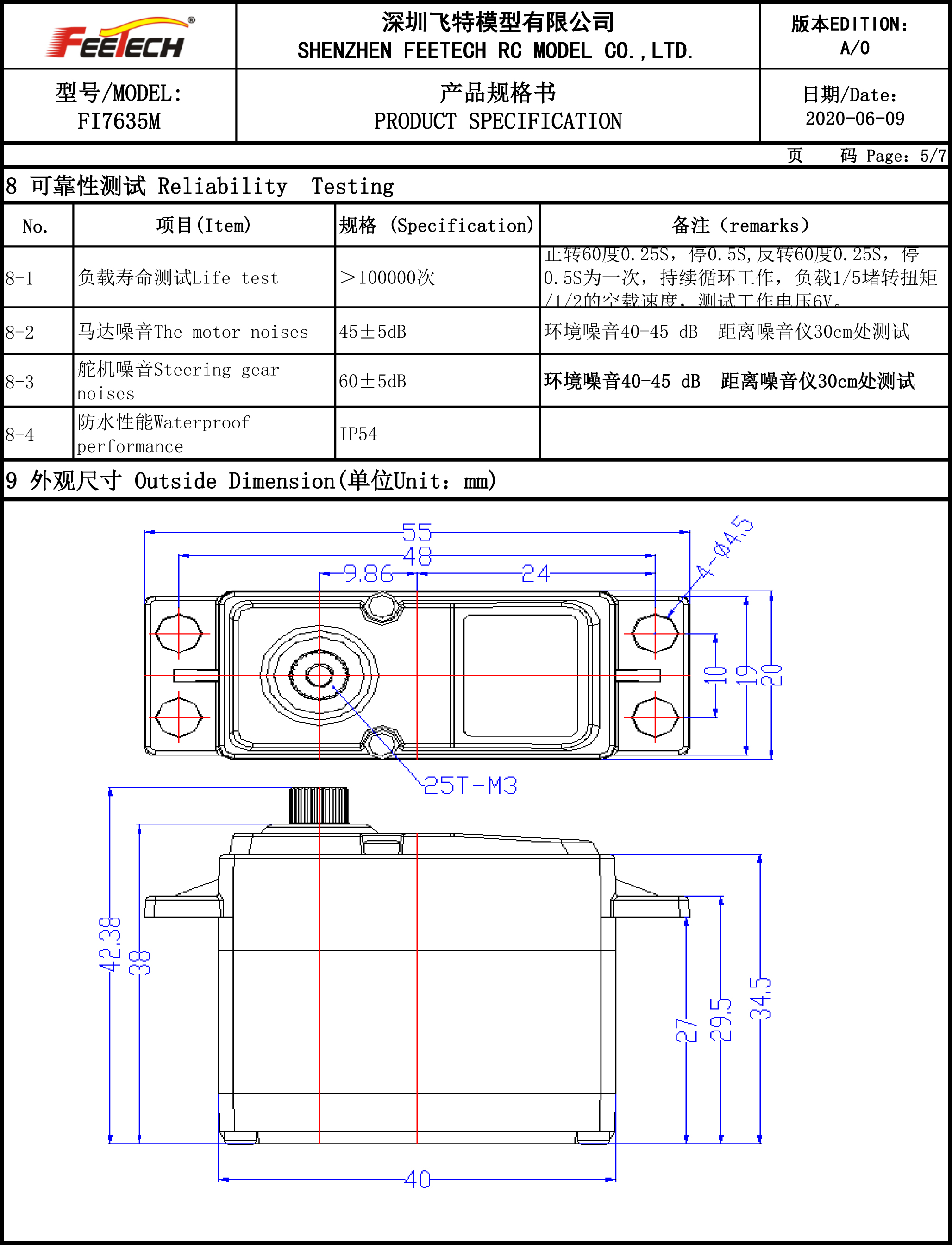

Storage Temperature Range -30℃～80℃ Operating Temperature Range: -20℃～60℃ Size:A：55mm B：20mm C:43mm Weight:67土1g Gear type:Steel
tooth Limit angle:NO limit Bearing: Ball bearings Horn gear spline:25T/5.9mm Horn type:Plastic,POM Case:PA+A lumi num Connector

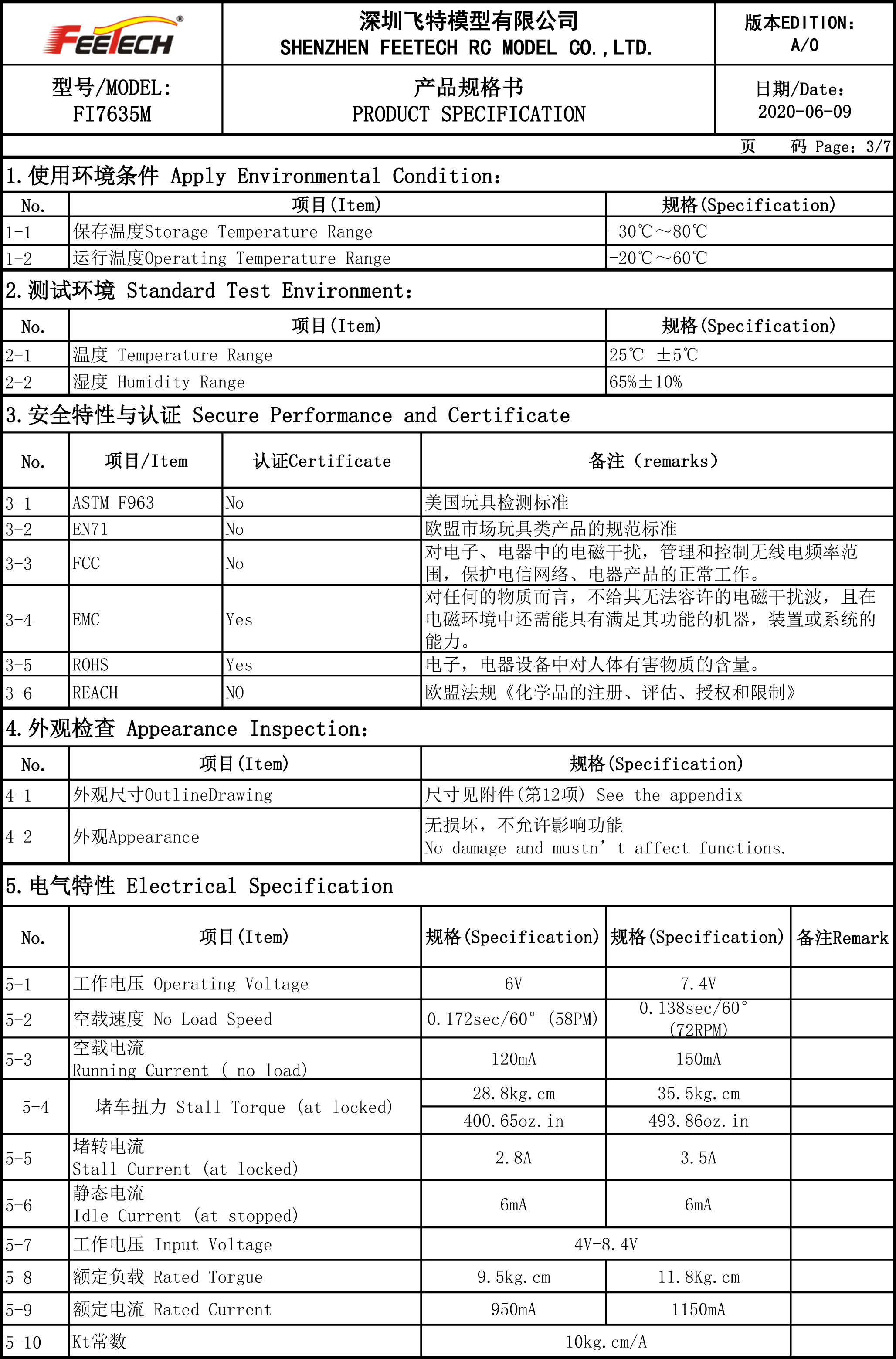

wire: 30CM Motor:Core Motor Splash water resistance: IP54. Operating Voltage Range:6V-7.4V Idle current (at stopped) . 6MA@6V No
load speed:0.238sec/60°@6V Runnig current(at no load) : 150mA@6V Peak stall torque:28.8kg.cm@6V Rated torque:9.6kg.cm@6V Stall
current: 3.2mA@6V Command si gnal Pulse width modification Amplifier type Digitalcompara tor Pulse width range 500~2500usec Stop

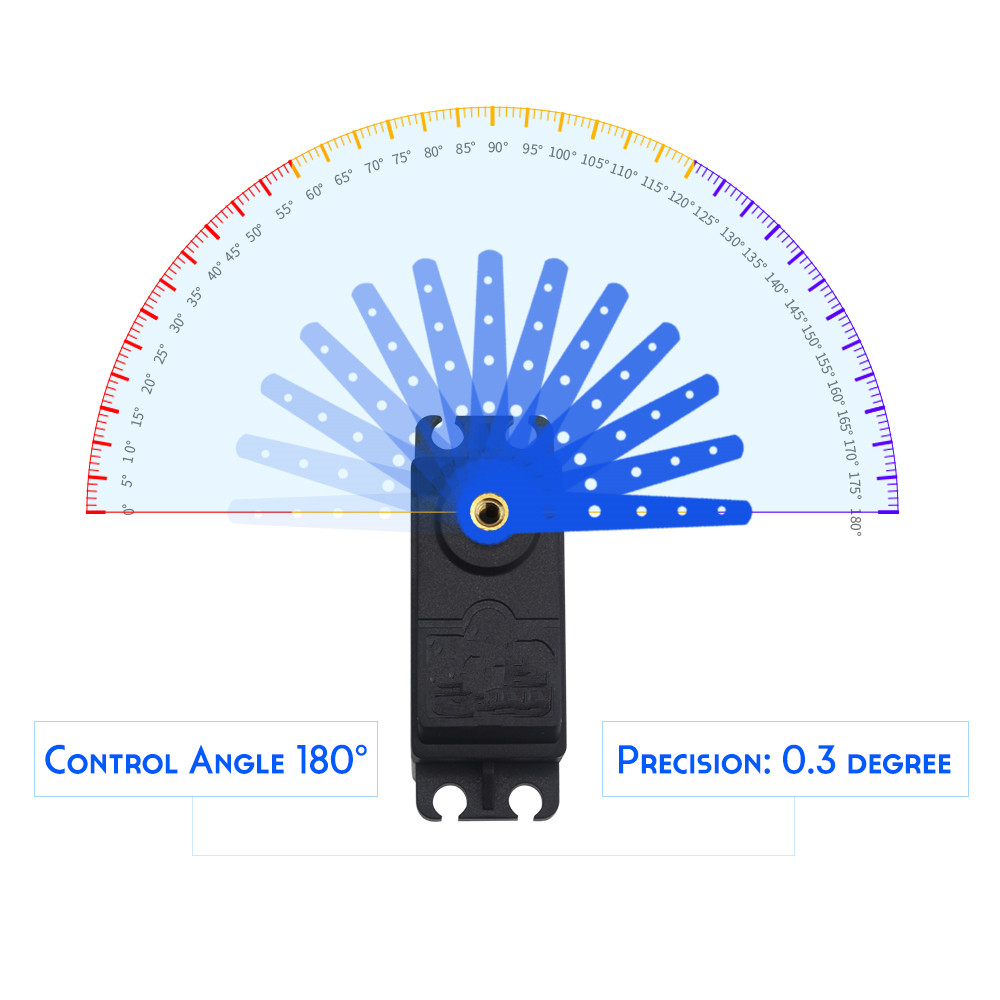

position 1500μ sec Running degree 360° .at500- > 2500 μ sec) Dead band width ≤4.μ sec Rotating direction Counterclockwi se (1500-2000μ sec)
* Best RC servo upgrades, ideal for 1:10/1:8/1:5 robot or r/c crawlers.
* Operating speed:0.07sec/60°; Stall torque: 35kg-cm (at 7.4V).
* Core motor-driven provides high speed, incredible efficiency, and low power consumption
* IP66 waterproof performance for worry-free operation; extremely strong unique stainless steel & Aluminum gears ensure long life and durability.
* Super light-weight, small size but strong.Dimensions: 40x20x38.5mm, Weight: 60g
Storage Temperature Range -30℃～80℃ Operating Temperature Range: -20℃～60℃ Size:A：55mm B：20mm C:43mm Weight:67土1g Gear type:Steel
tooth Limit angle:NO limit Bearing: Ball bearings Horn gear spline:25T/5.9mm Horn type:Plastic,POM Case:PA+A lumi num Connector
wire: 30CM Motor:Core Motor Splash water resistance: IP54. Operating Voltage Range:6V-7.4V Idle current (at stopped) . 6MA@6V No
load speed:0.238sec/60°@6V Runnig current(at no load) : 150mA@6V Peak stall torque:28.8kg.cm@6V Rated torque:9.6kg.cm@6V Stall
current: 3.2mA@6V Command si gnal Pulse width modification Amplifier type Digitalcompara tor Pulse width range 500~2500usec Stop
position 1500μ sec Running degree 360° .at500- > 2500 μ sec) Dead band width ≤4.μ sec Rotating direction Counterclockwi se (1500-2000μ sec)
If the servo does not match your requirements , please do not hesitate to contact with us, we have hundreds of servos for
optional, and we are professional servo manufacturer since 2005, customizing servo as per requirements is our advantage.
optional, and we are professional servo manufacturer since 2005, customizing servo as per requirements is our advantage.
Company Profile

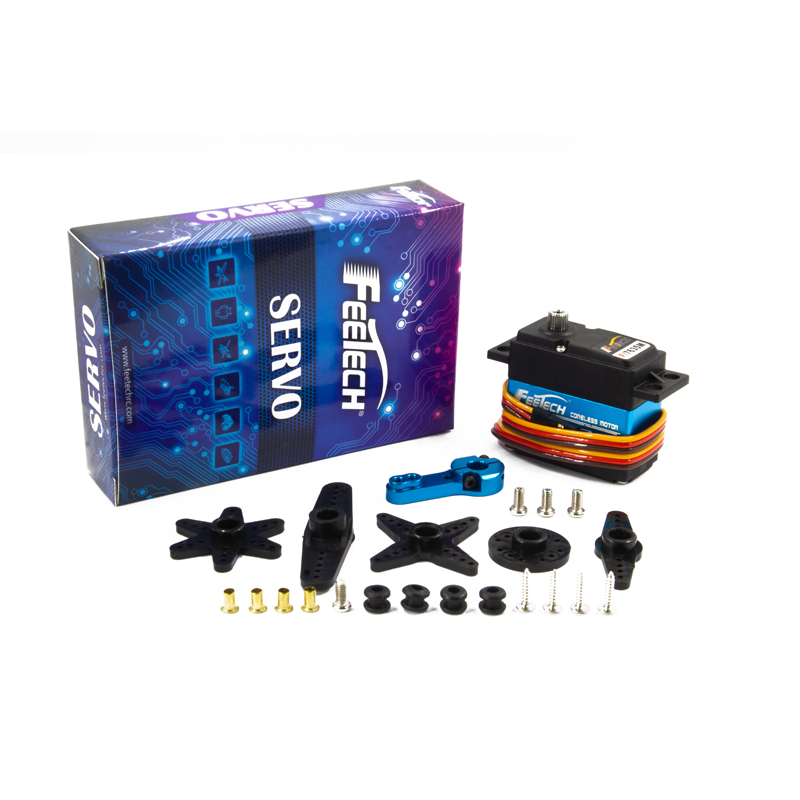

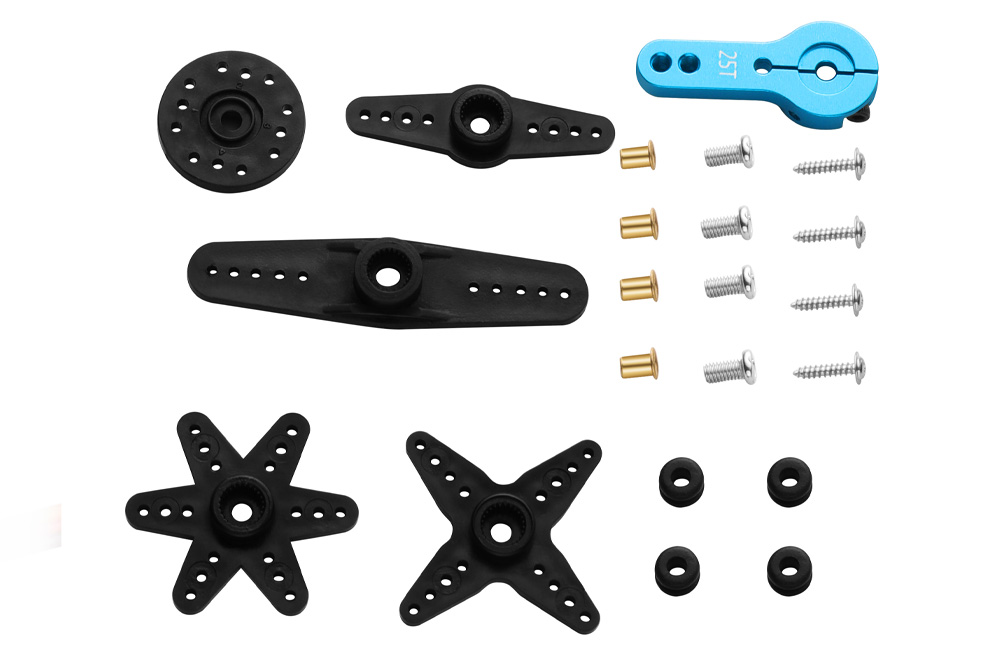

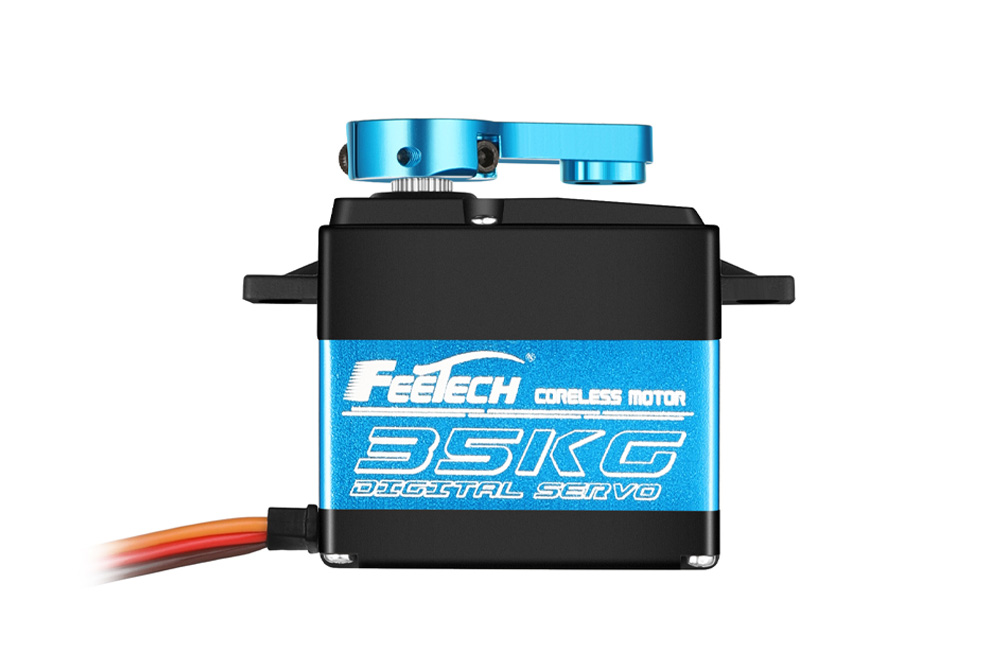

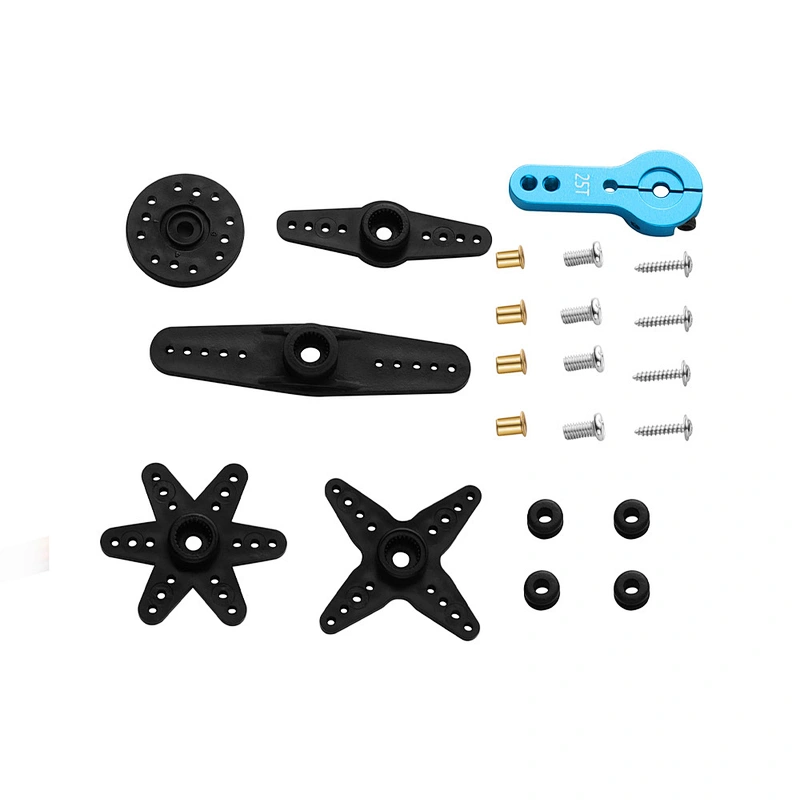

It include a aluminium servo horn,and it can reach 180 degree and if you like also can make 270 degree
