- Servo type:Standard digital servo
- Gear materials:metal gears
- Motor type:Cored motor
- Dead band width:2usc
- Color:Blue
- Product name:Rc car servo
- Function:Forward
- Certificate:ROHS
- Product size:40*20.*40.4mm
- Feature:Remote Control Model
- Type:Car
- Power:Battery
- Material:METAL
- Plastic Type:ABS
- Scale:1:10
- Radio Control Style:RC Model
- Place of Origin:CN;GUA
- Brand Name:fitec
- Model Number:FT6335

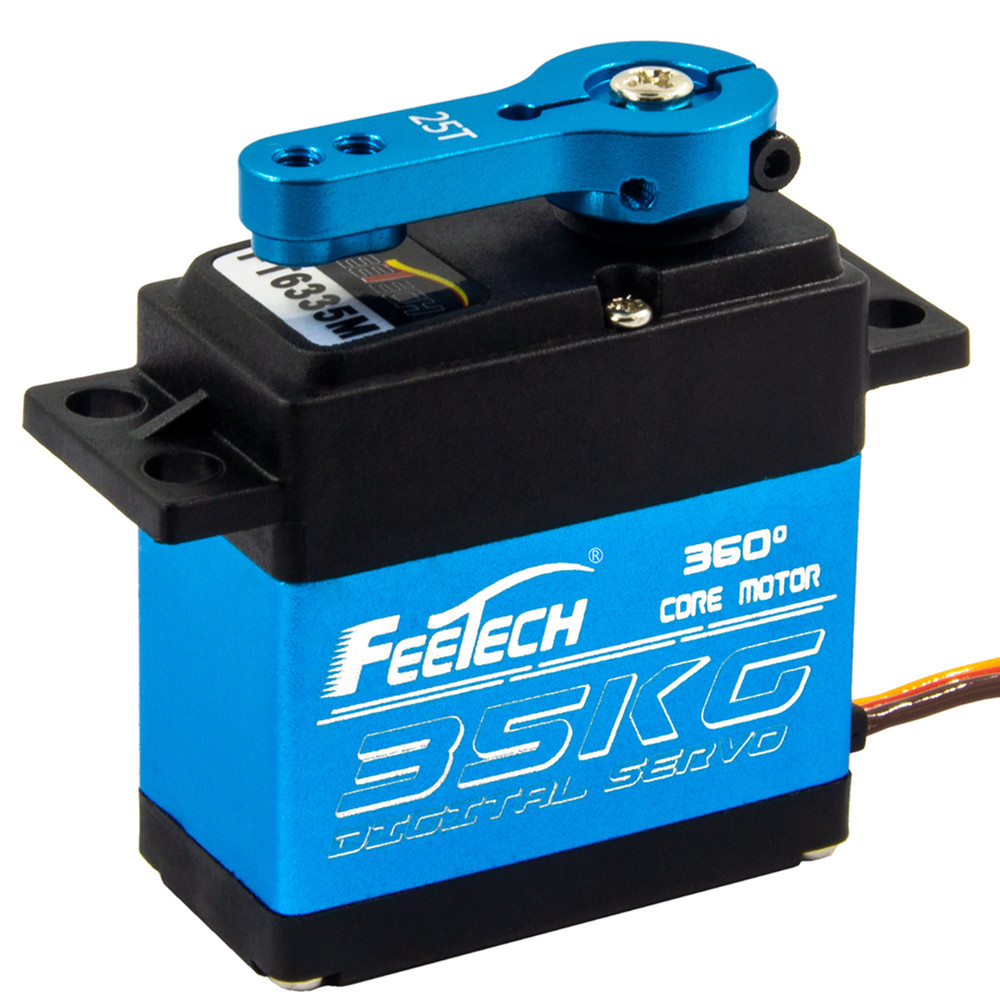

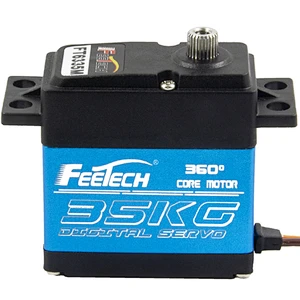

Waterproof 30KG Servo 180 Degree High Torque Metal Gear Digital Servo with 25T Arm for 1/8 1/10 Scale RC Cars
1.standard 35kg torque digital rc car steering servo
2.Best choice for RC BAJA RC TRUCK RC CAR1/8
3.Accessories attached
4.ROHS CE compliance
- Best rc servo upgrades,ideal for 1:10/1:8/1:12 robot or r/c crawlers
- Operating speed:0.07sec/60°;Stall torque:35kg-cm (at 7.4V)
- Coreless motor driven provides high speed, incredible efficiency, and low power consumption

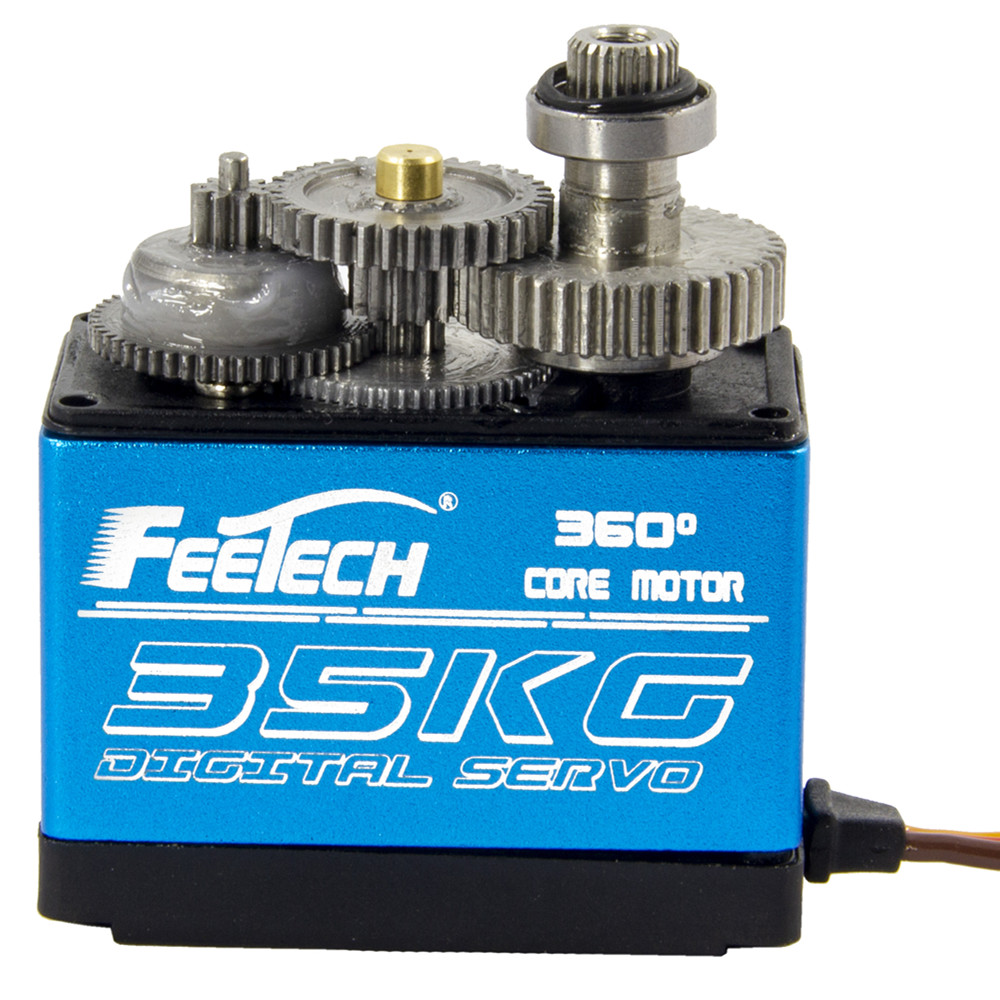

- IP66 waterproof performance for worry free operation;extremely strong unique stainless steel & Aluminum gears ensure long life and durability
- Super light-weight,small size but strong.Dimensions:40x20x38.5mm,weight: 60g
Features
-Standard digital metal gears servo,2BB
-Metal brush motor,Aluminium middle hull
-Waterproof
-Operating Voltage: 6V~~7.4V
-Dead band width: 2usc
-Interface: (like JR)
-Wire length: 30cm
Product description

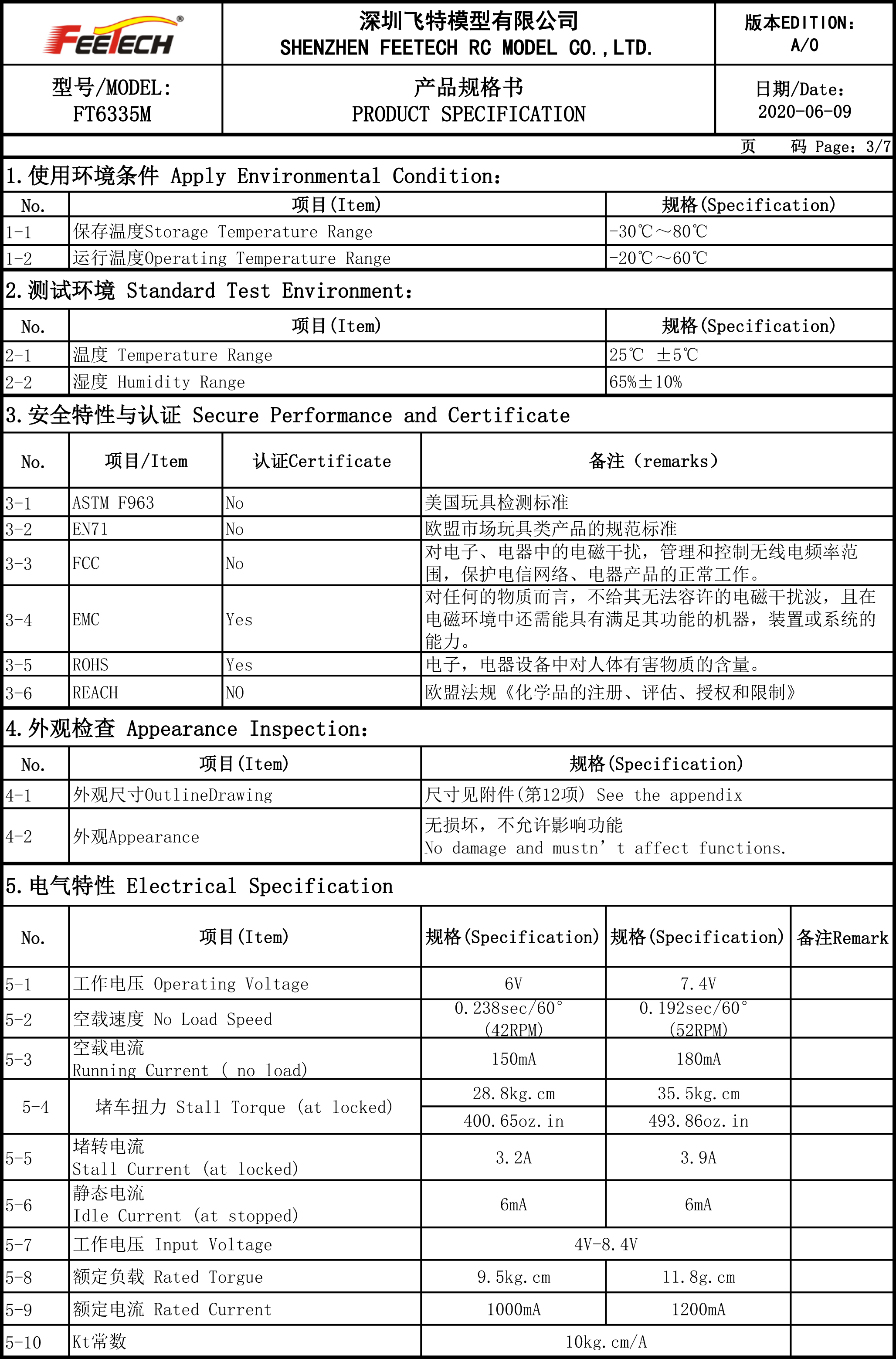

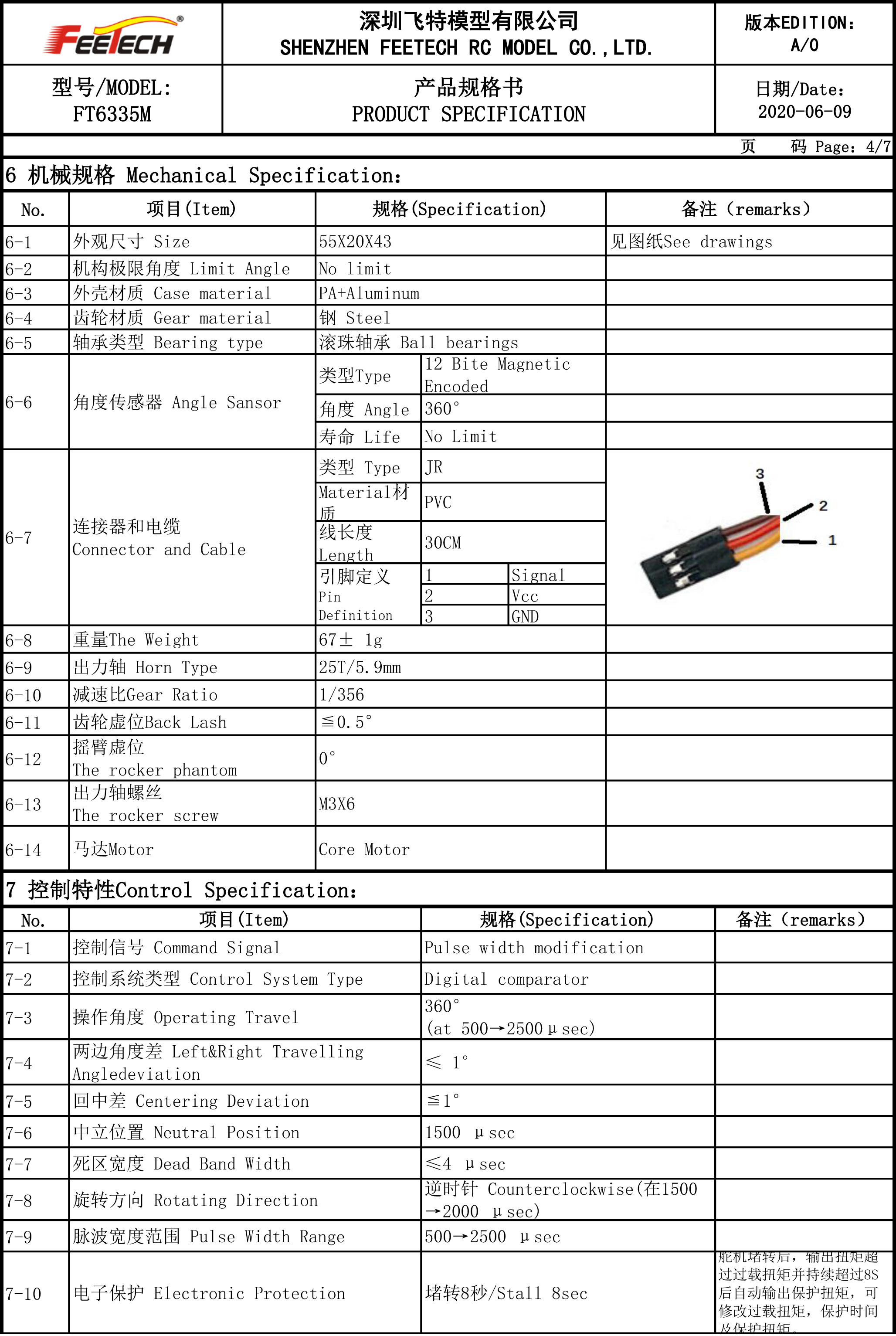

Electrical Specification:
Operating voltage range: 5-7.4V
Operating speed ( 5.0V ): 0.1 3sec/60 degree
Operating speed ( 6.0V ): 0.12 sec/60 degree
Operating speed ( 7.4V ): 0.11 sec/60 degree
Stall torque ( 5.0V ): 29kg/cm
Stall torque ( 6.0V ): 32kg/cm
Stall torque ( 7.4V ): 35kg/cm

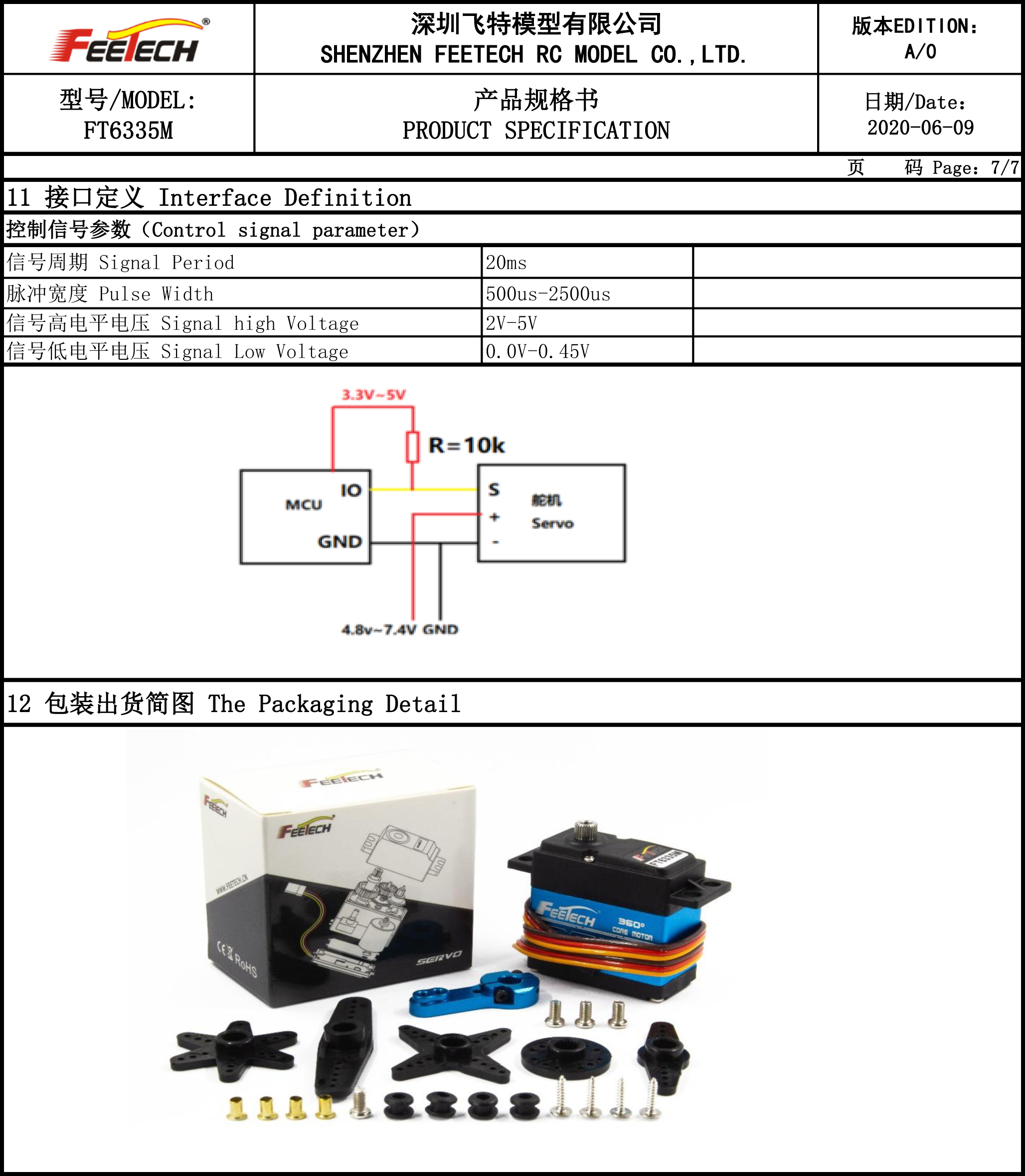

Control Specification:
Control System: PWM(Pulse width modification)
Pulse width range: 500~2500 μsec
Neutral position: 1500μsec
Running degree: 270° (when 500~2500 μsec)
Dead band width: 3 μsec
Operating frequency: 50-330Hz
Rotating direction: Counterclockwise (when 500~2500 μsec)
Mechanical Specification:
Gear ratio: 373
Bearing: Double bearing
Connector wire: 17.7inches(450mm)
Motor: 3-pole(s)
Waterproof performance: IP66

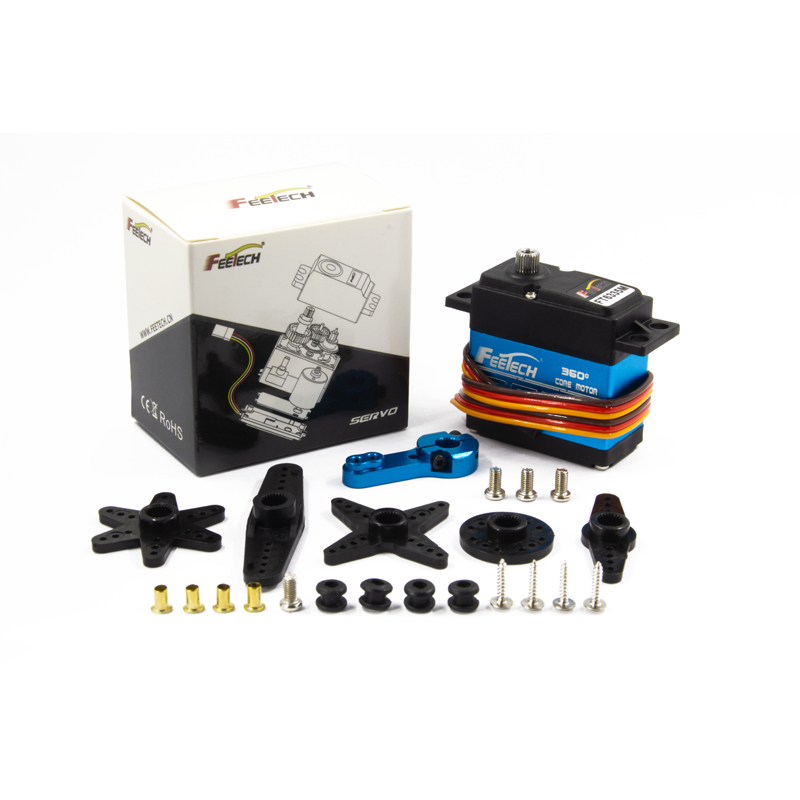

Package:

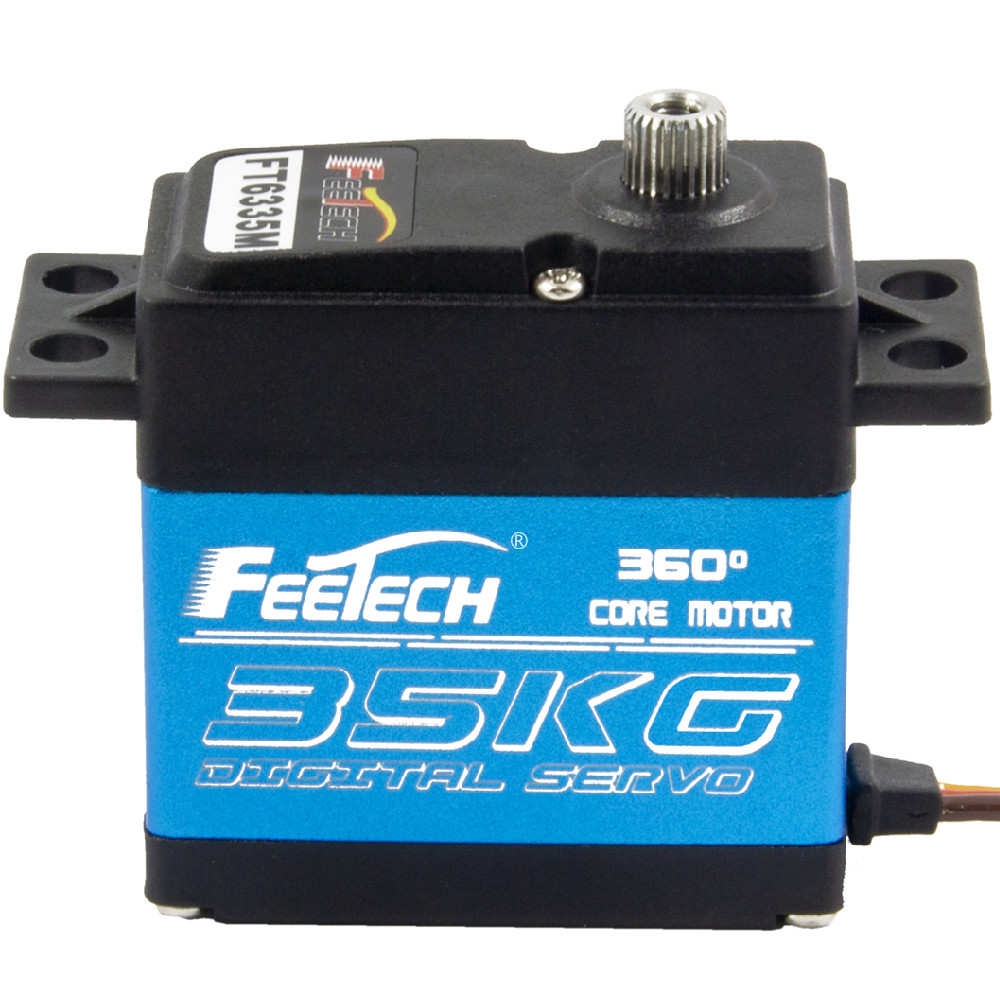

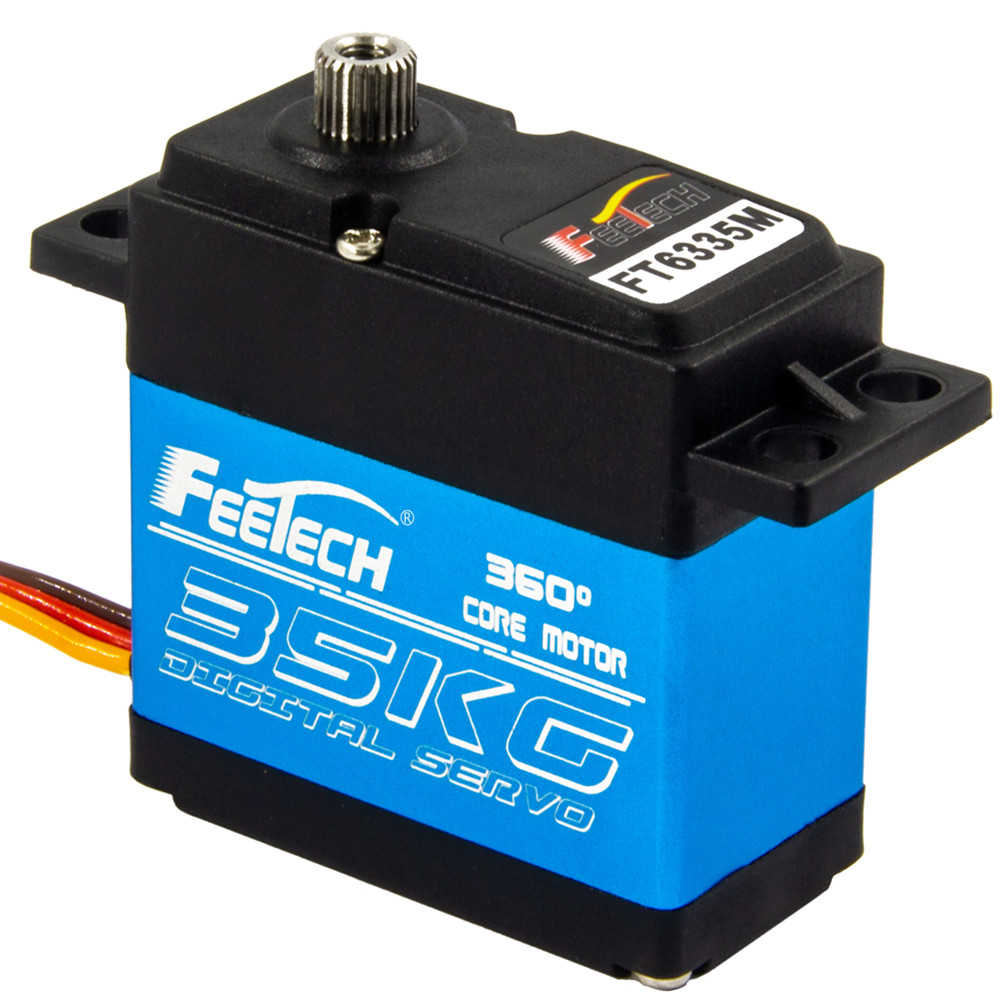

1 x FT6335 Core Servo
1 x 25T Adjustable metal servo arm
One set of accessories
