• Servo type:Standard digital servo
• Gear materials:metal gears
• Motor type:Cored motor
• Dead band width:2usc
• Color:RED
• Product name:Rc car servo
• Function:Forward
• Certificate:ROHS
• Product size:40*20.*40.4mm
• Feature:Remote Control Model
• Type:Car
• Power:Battery
• Material:METAL
• Scale:1:10
• Radio Control Style:RC Model
• Place of Origin:CN;GUA
• Brand Name:fitec
• Model Number:FT5320M

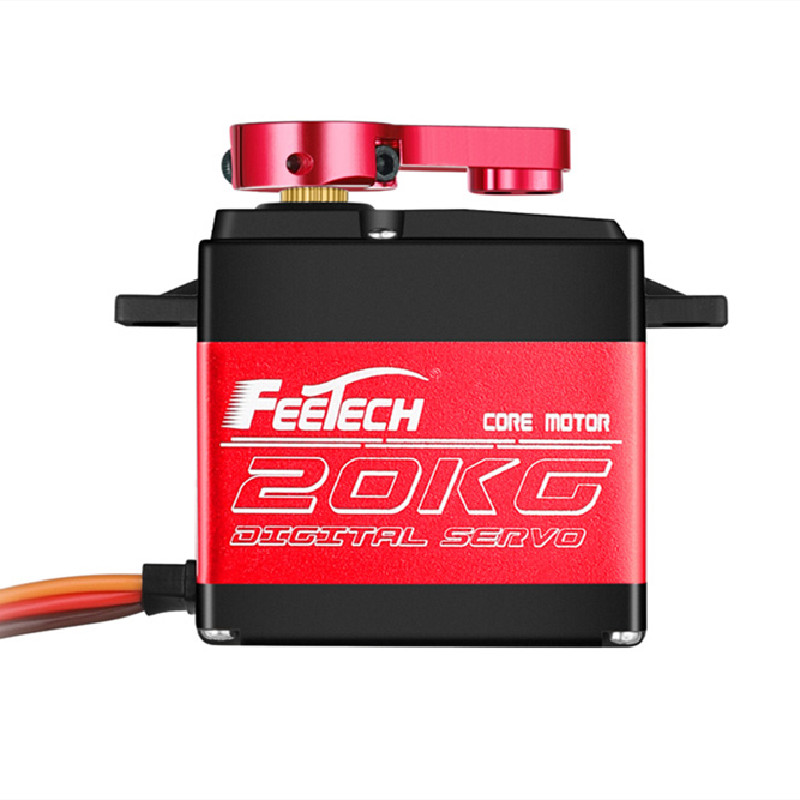

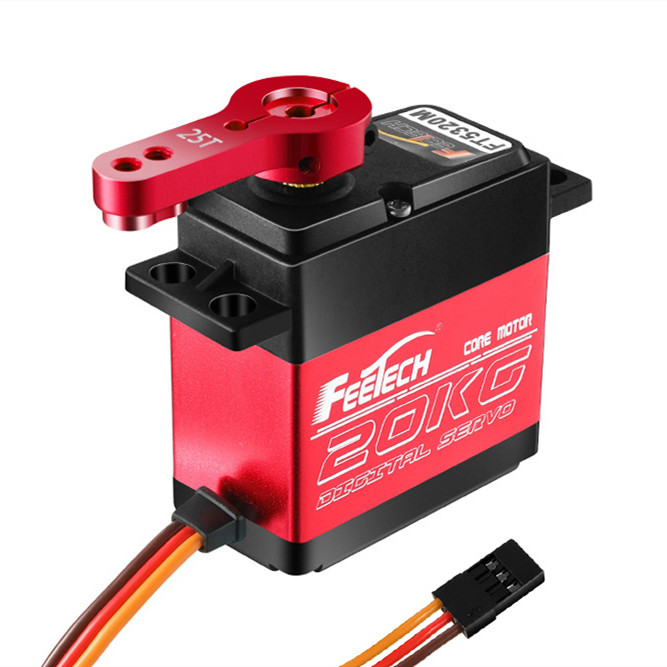

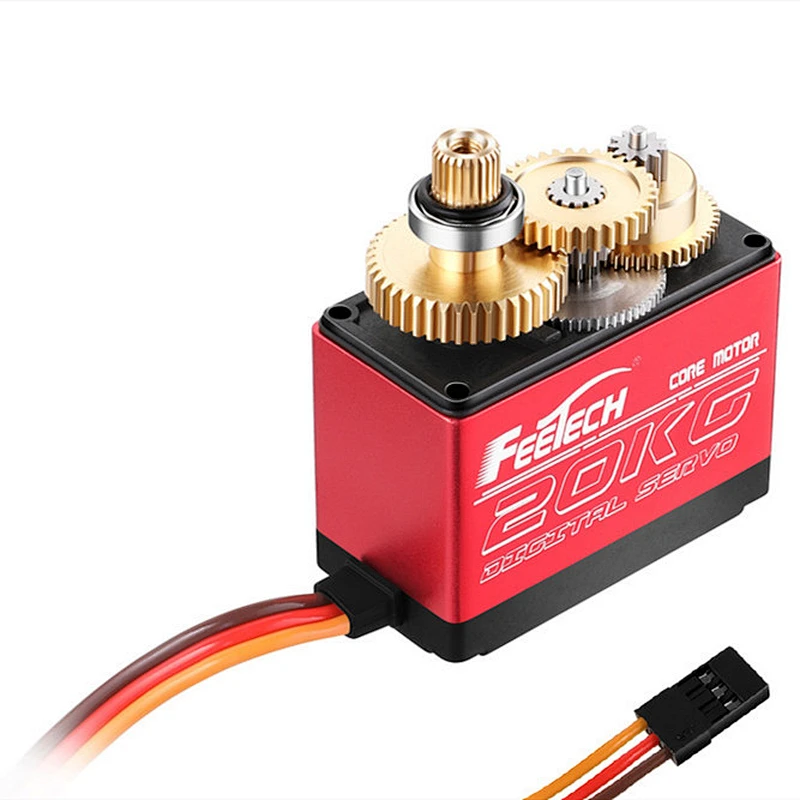

1.standard 20kg torque digital rc car steering servo
2.Best choice for RC car 1/8

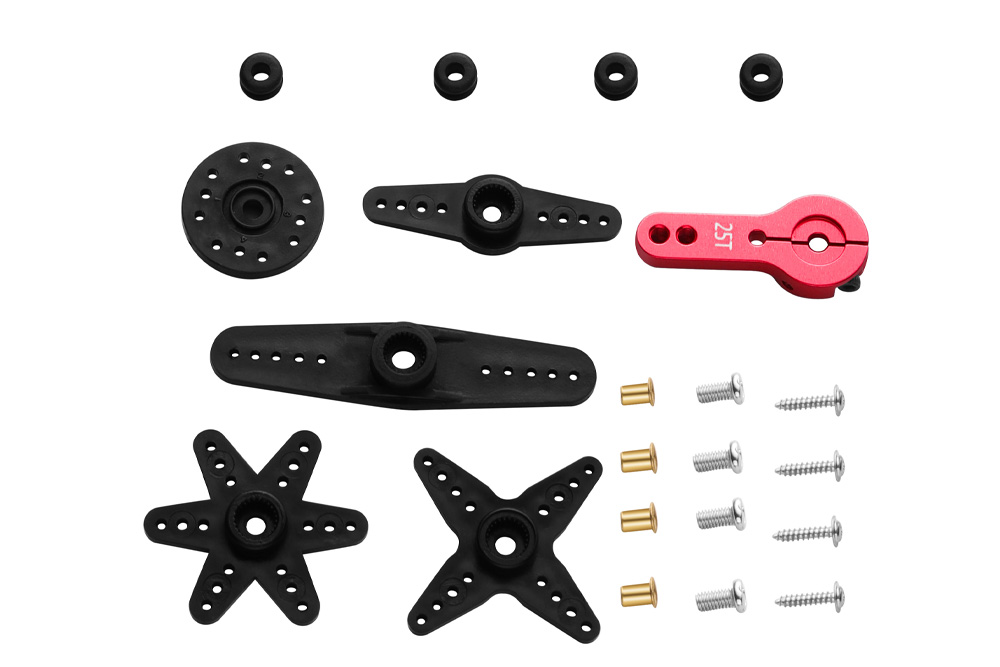

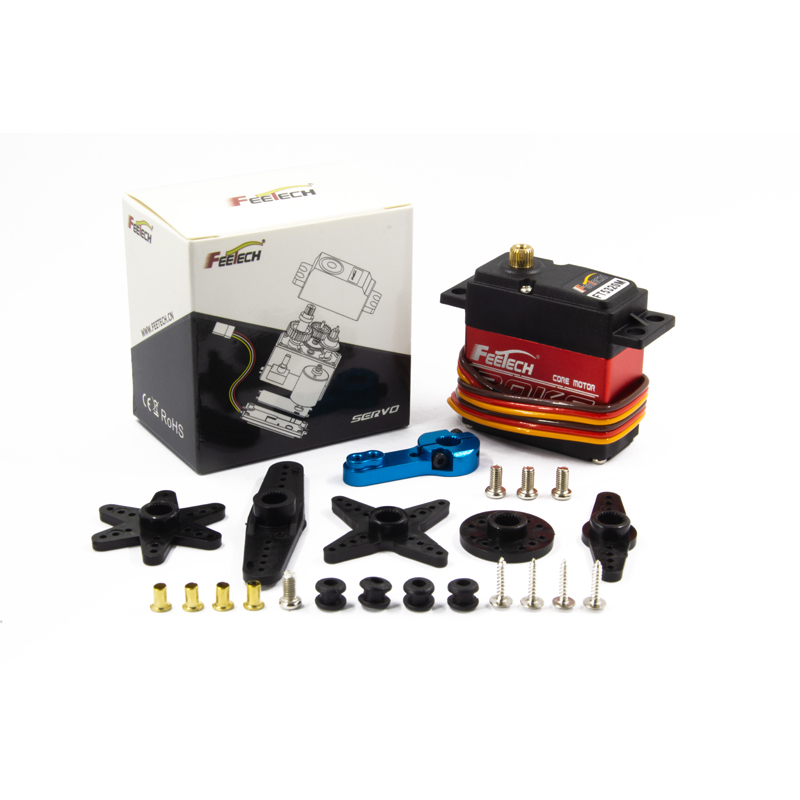

3.Accessories attached
4.ROHS CE compliance

5.Waterproof:Even it’s sink in the water but it will remain working.. can meet all your needs, because people in crawling industry, they crawl the truck everywhere.. even in deep water sometime,You will find this servo in 10 cm water depth, Although the servo running 20 minutes, all is in good condition.

Features

This Digital servo has metal housing around the middle which allows for heat to rapidly dissipate,
With double ball bearings you will have smooth movement,
and powerful torque with a limited budget.
It is suitable for 1/10, 1/8 scale cars, robot.

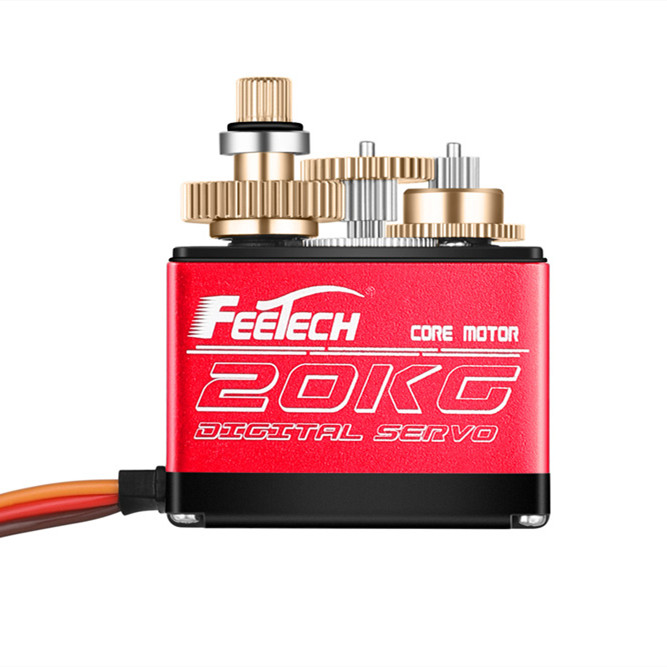

-Standard digital metal gears servo,2BB

-Metal brush motor,Aluminium middle hull

-Waterproof

-Operating Voltage: 4.8~6V

-Dead band width: 2usc

-Interface: (like JR)

-Wire length: 30cm

Specifications
Power 4.8V 6V
Speed 0.22sec/60° 0.16sec/60°
Torque 19kg.cm/ 263.8oz.in 21.5kg.cm/298.5 oz.in
Weight 56g (1.46oz)
Size 40*20.*40.4mm
Application Air plane,Car,boat



Notice:

-Refer to the figure when installing the servo accessories. Caution: For engine powered
airplanes, helicopter, vehicle model, must use rubber shock pad to fix.
-Please choose correct model for your application.
Caution: Torque over-loaded will damage the servo’s mechanism.
-The products use coreless motor; please choose the right power voltage of
servo according the specification. Please pay more attention that it may affect unnormal
working or damage of servo if using the servo oversteps the normal range of voltage.
-Keep the servo clean and away from dust, corrosive gas and humid air.
-Our company keeps the right of amendment, if there are some changes of parameter
and appearance, without notice.
