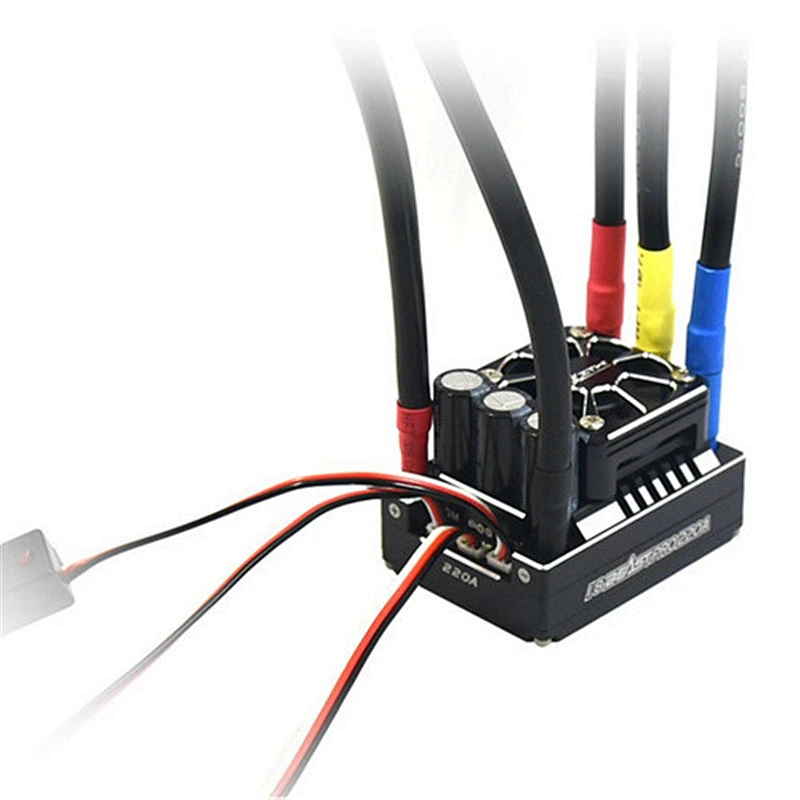

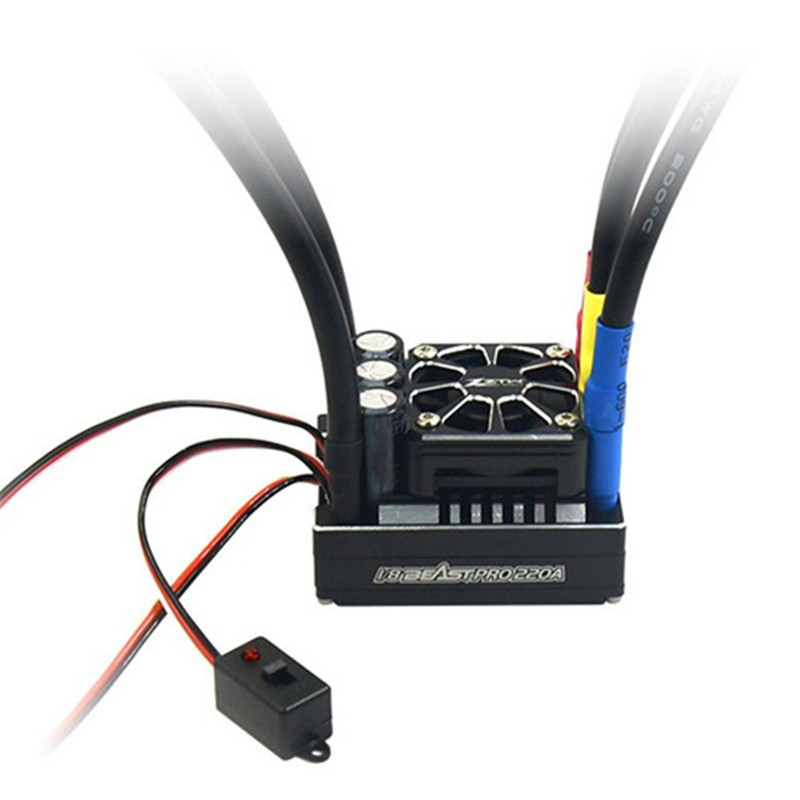

- Item Name:1/8 Beast Pro 220A Brushless ESC
- Continuous Current:220A
- Burst Current:1000A
- BEC:6.0V/7.4V Adujustable/8A
- Battery NiXX/Lipo:8-18NC/3-6Lipo
- Waterproof:YES
- Website:www.lxrcmodel.com
- Use:Vehicles & Remote Control Toys
- Place of Origin:CN;GUA
- Brand Name:ZTW
- Model Number:ZTW-220A
Product Description
Item Brand: | ZTW |

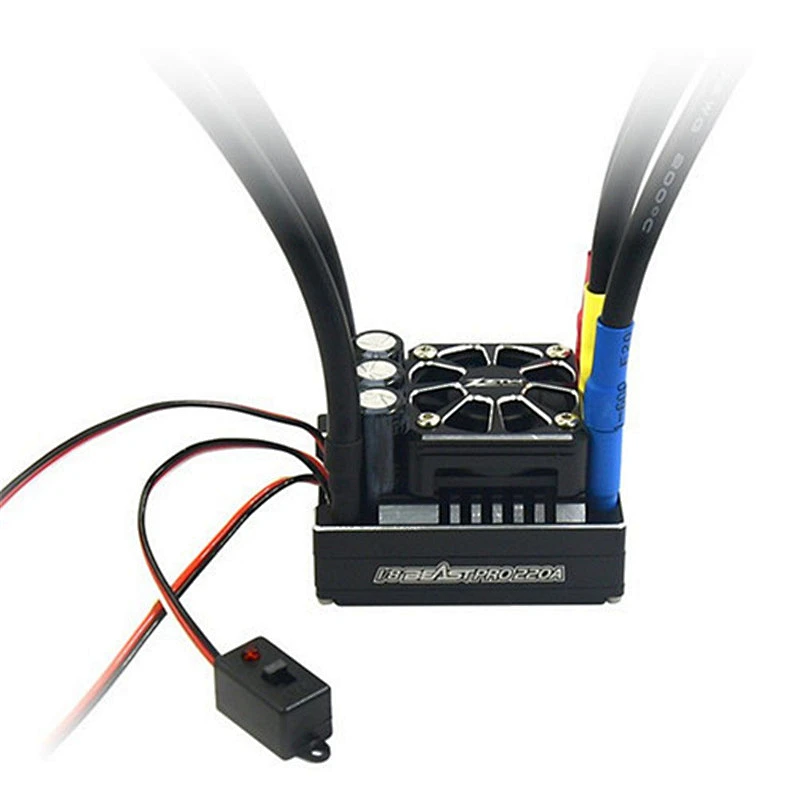

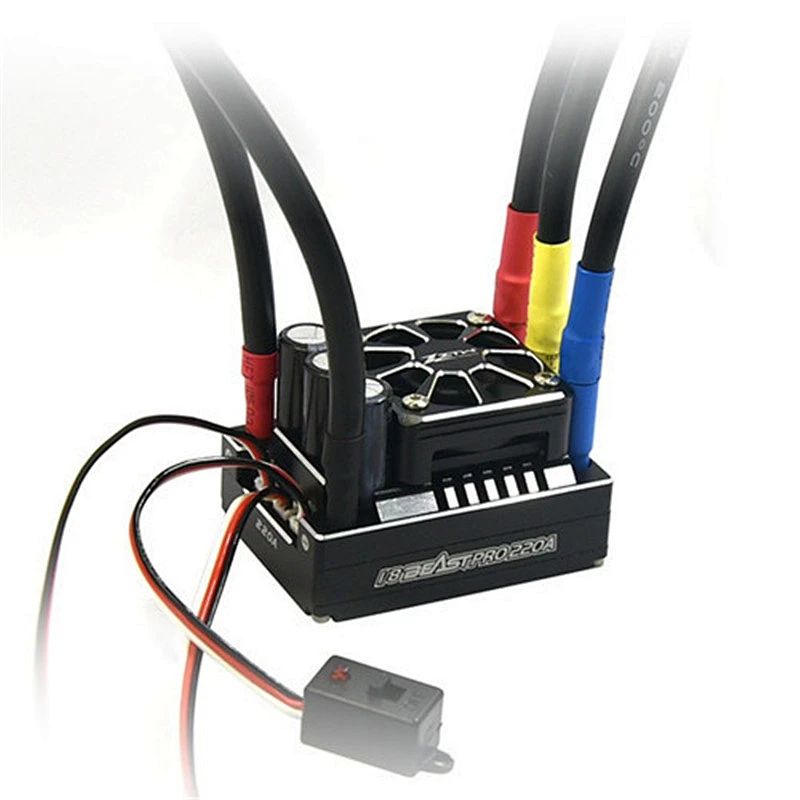

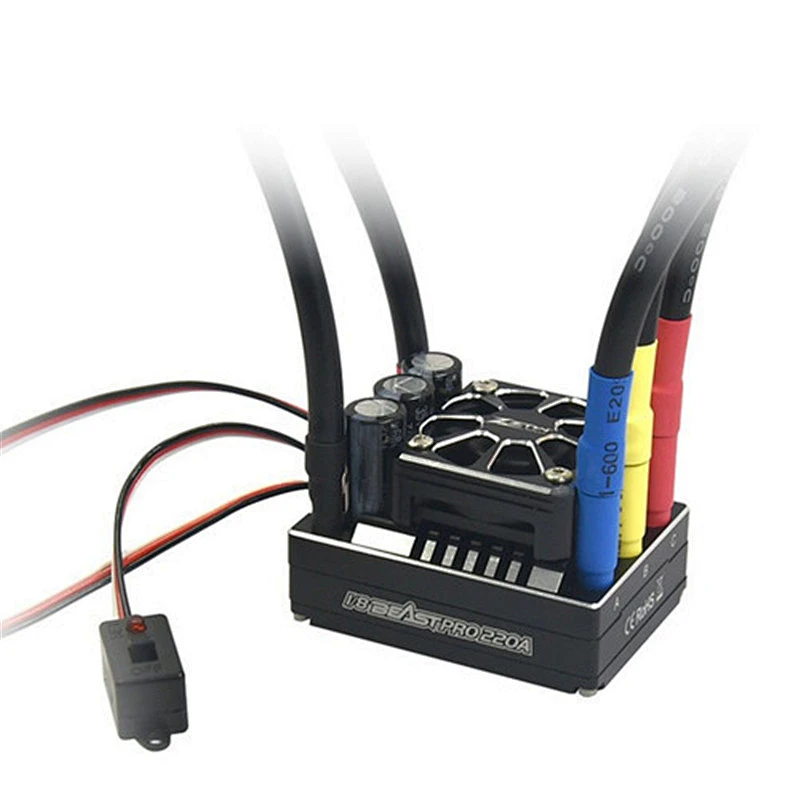

Item Name: | 1/8 Beast Pro 220A Brushless ESC |
Continuous Current: | 220A |
Burst Current: | 1000A |

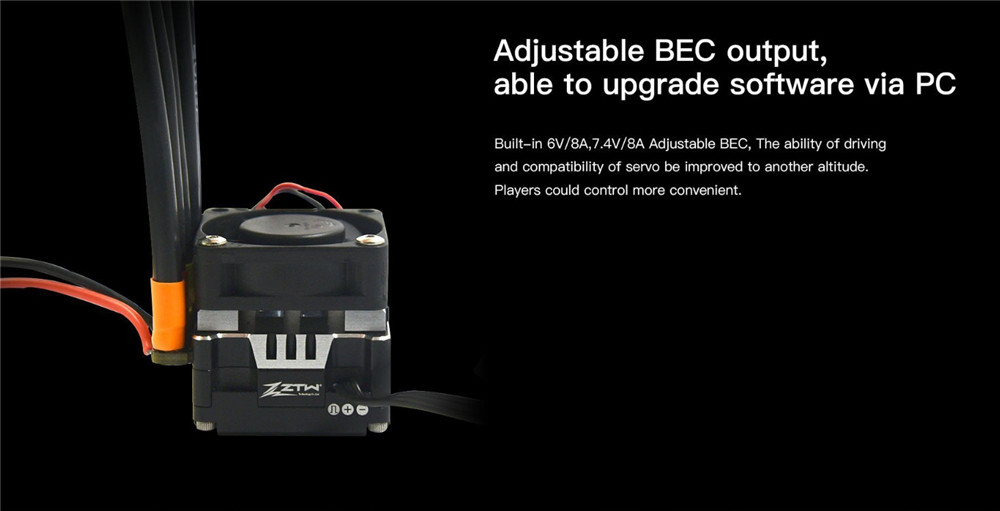

BEC: | 6.0V/7.4V Adujustable/8A |
Battery NiXX/Lipo: | 8-18NC/3-6Lipo |
Width: | 40mm |
Length: | 55mm |
Height: | 34mm |
Weight: | 140g |
Programmable: | YES |

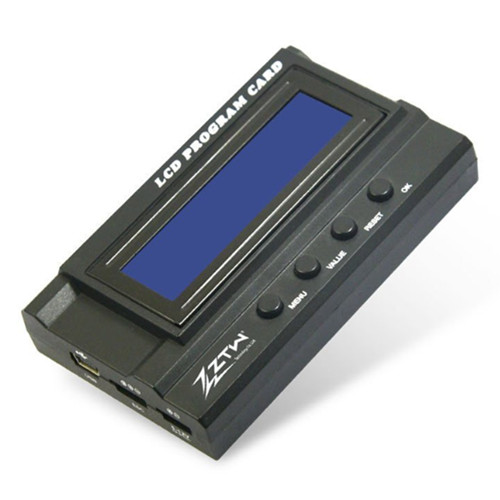

Software: | GECKO-LCD |
Power Wires: | 10#AWG,160mm-Red/black |
Motor Wires: | 5.0 Male 6*22 Gold |
Signal Wire: | (Black/Red/White)30C,300mm/PH1.5 3P to JR3P |
Signal Wires2: | (Black/Red/White)30C,200mm/PH1.5 3P to JR3P |
Switch Wire: | (Black/Red/White)30C,90mm |
Motor Wire: | (random distribution) 10#AWG,with 5.0mm Gold Connector,160mm-Black |
Features

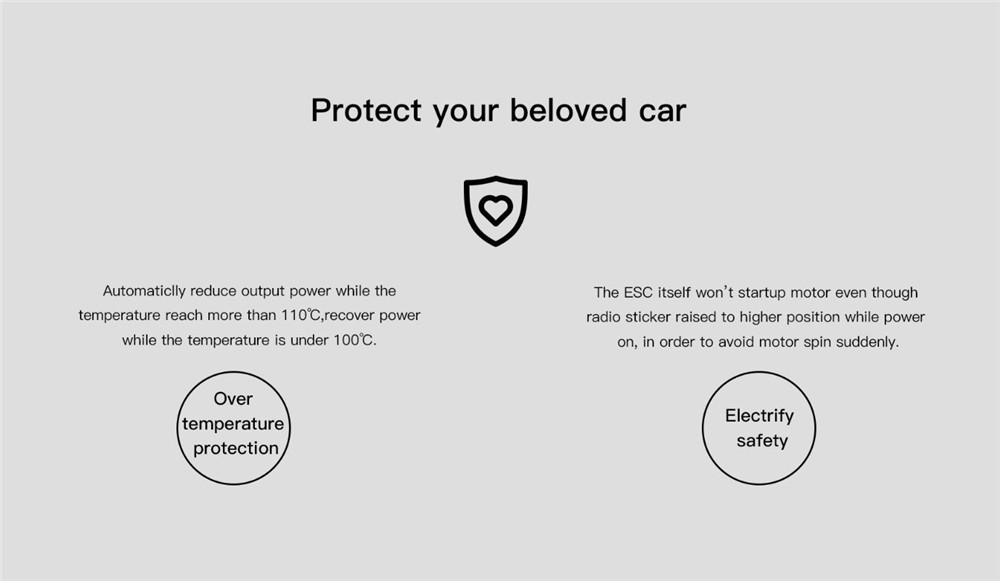

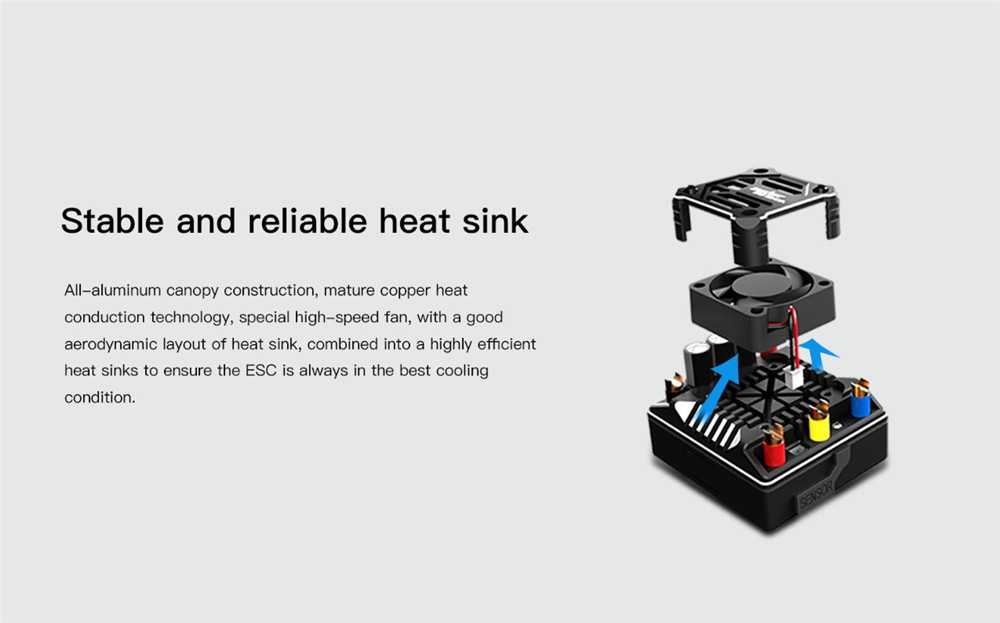

1.220A continuous current designing ,specialy for 1/8th scale.2.Programmable by LCD program card. 3.Advanced PC interface to set up or update the firmware.4.Adjustable BEC Output which is up to 7.4V.5.Full aluminum top case , better for heat sinking.6.Multiple protection : Low voltage cut-off protection.7.Over-heat protection and throttle signal loss protection.
Product Usage
Violent output, invincible
Import military grade electronic components, stable and sustained power output, strong instantaneous power, so that even with violently startup, straight high-speed. Across barrier, The esc provide enough power to let you invincible through the various terrain.
Data memoryESC would record data of highest temperature of esc itself and motor, highest rotate speed etc.customer could read them with LCD program card or wifi module.
Related Products
Packing&Shipping
ZTW 1/8 Beast Pro 220A Brushless ESC x 1
Company Introduction

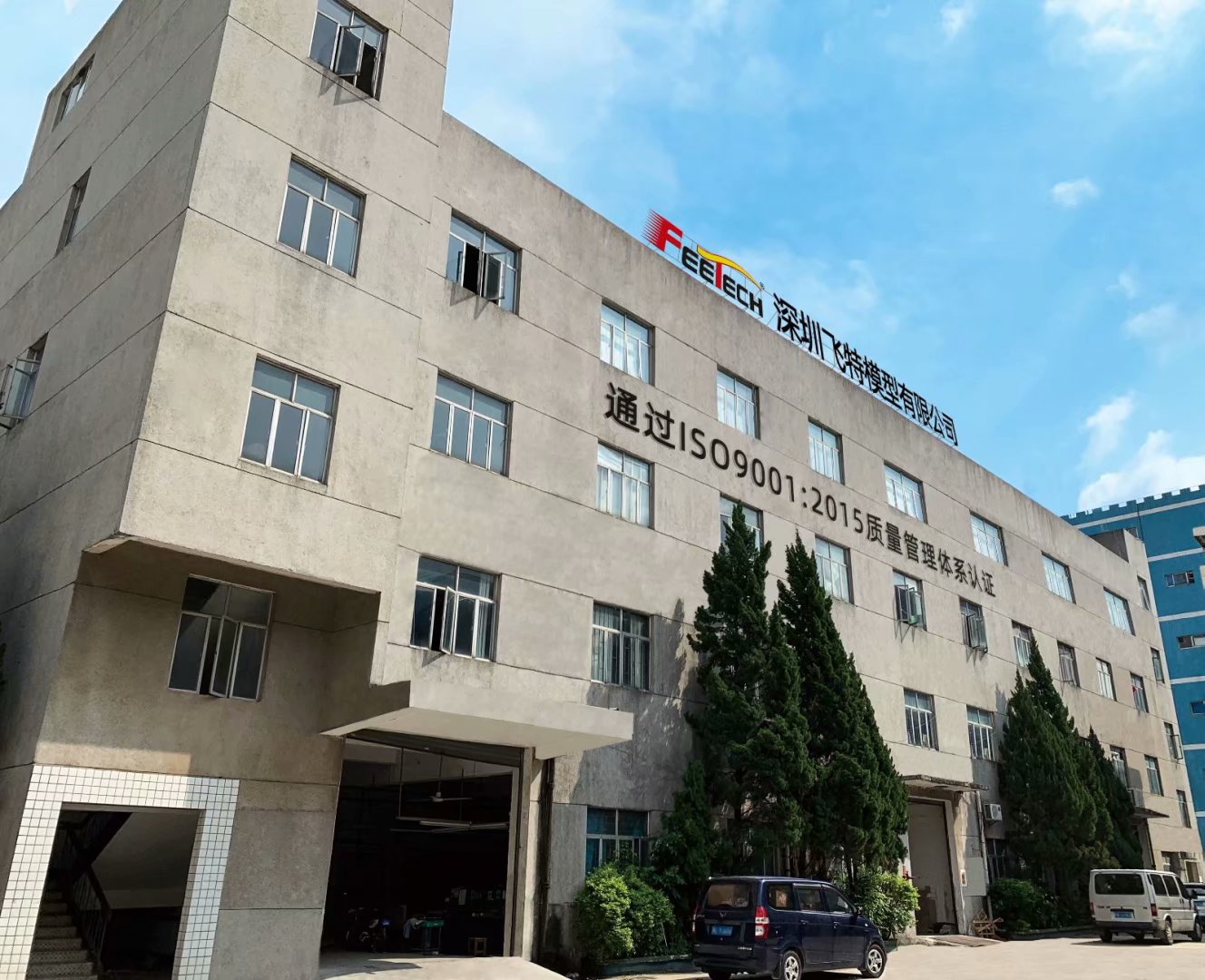

Shenzhen Feixiang Model Co, Ltd. Was established in 2003, We deal with various kinds of R/C hobbies and R/C toys. Such as R/CMulticopter, R/C Drone, R/C Airplane, Gas Airplane, R/C car, R/C boat, R/C Robot, RC accessories, etc. We export to all over theworld. Now we enjoy a very good credit in the overseas market. Our dealing brand contain most famous brand rc drone rc charger andlipoly battery brand, such as:DJI,Tarot, Hobbywing, DLE, Flysky, Frsky,Zhiyu, T-motor, SKYRC,ISDT,ACE etc. We supply the mostcompetitive products with lower price and higher quality. We do business based on a simple formula: Give our customers the productthey want at a fair price, ship those.Welcome to visit our www.lxrcmodel.com wholesale website.
