- Scale:1/8th
- Cont./Peak Current:150A/950A
- LiPo:2-6S
- Brushed/Brushless:BL
- Sensored/Sensorless:SD
- Website:www.lxrcmodel.com
- Use:Vehicles & Remote Control Toys
- Place of Origin:CN;GUA
- Brand Name:Hobbywing
- Model Number:XERUN-XR8

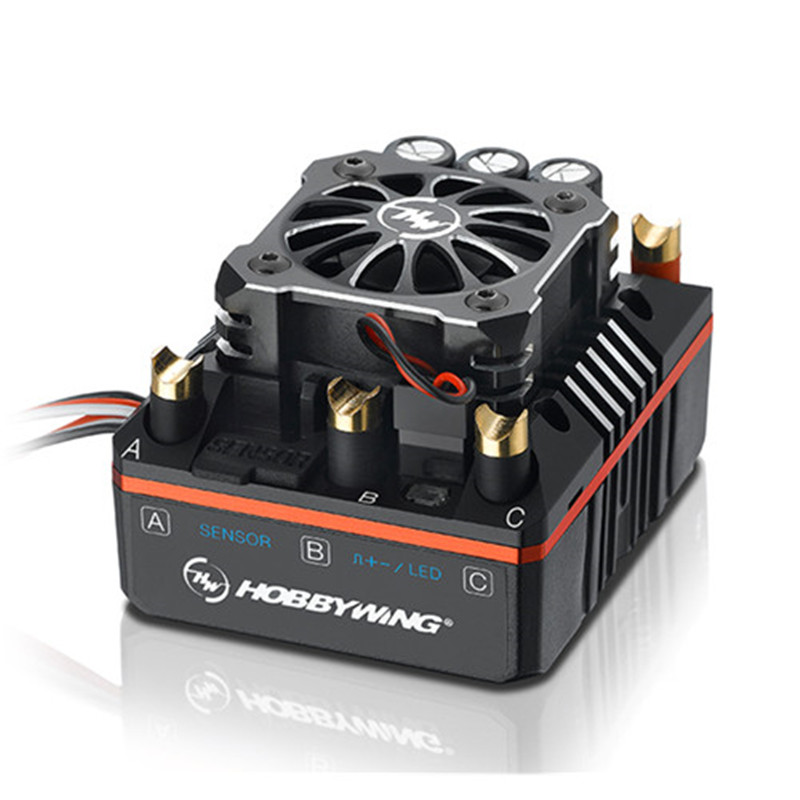

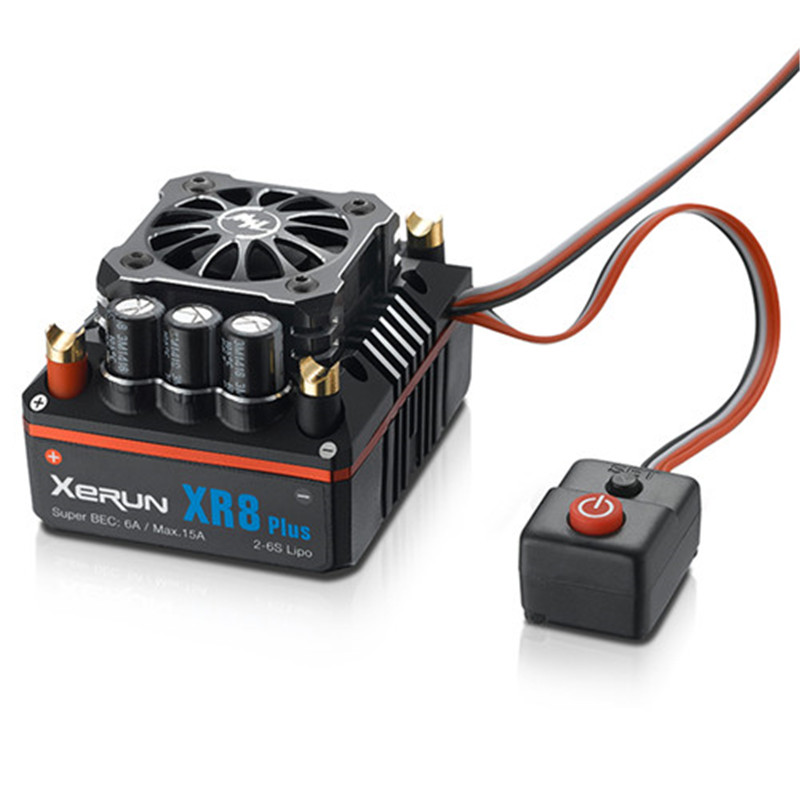

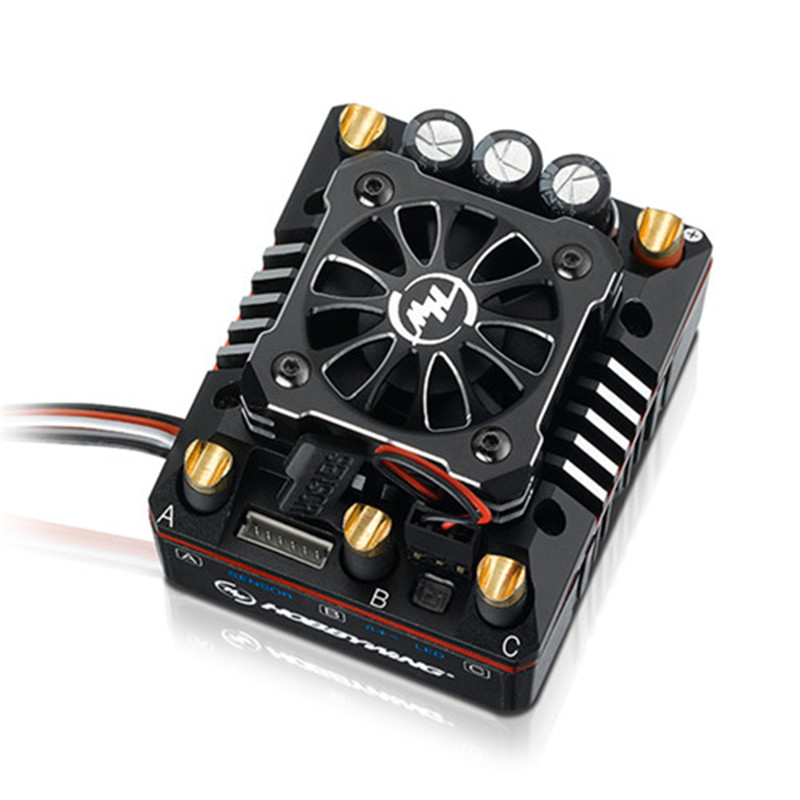

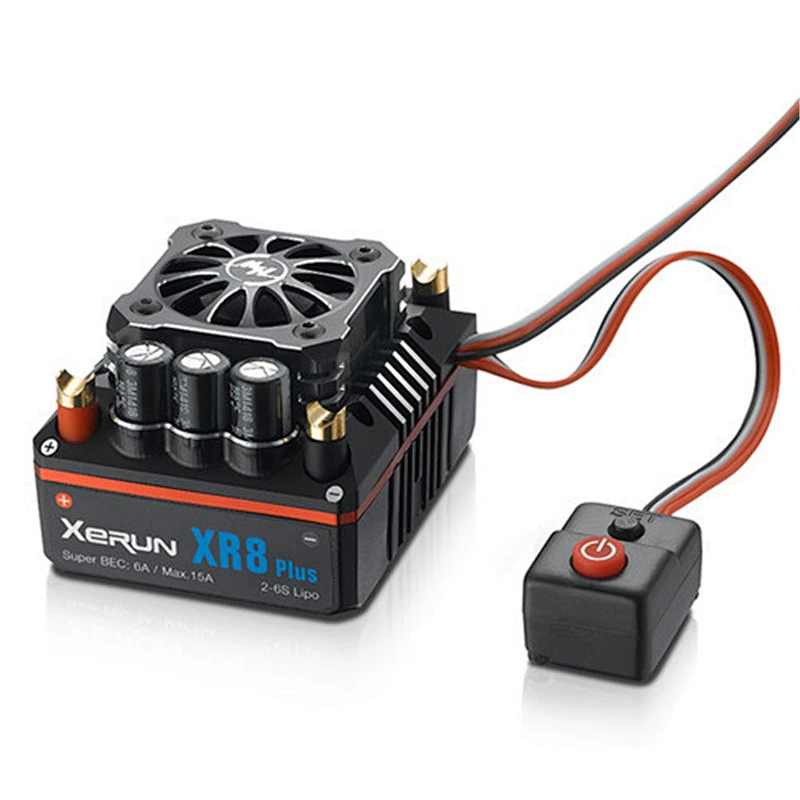

HobbyWing XeRun XR8 Plus 150A brushless sensored ESC For 1/8th Touring Car/Buggy/Truck Competitions 4S LiPo

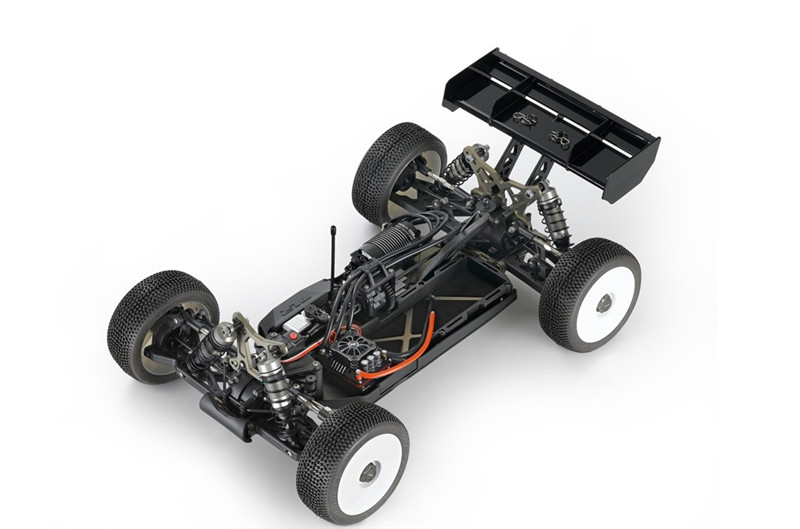

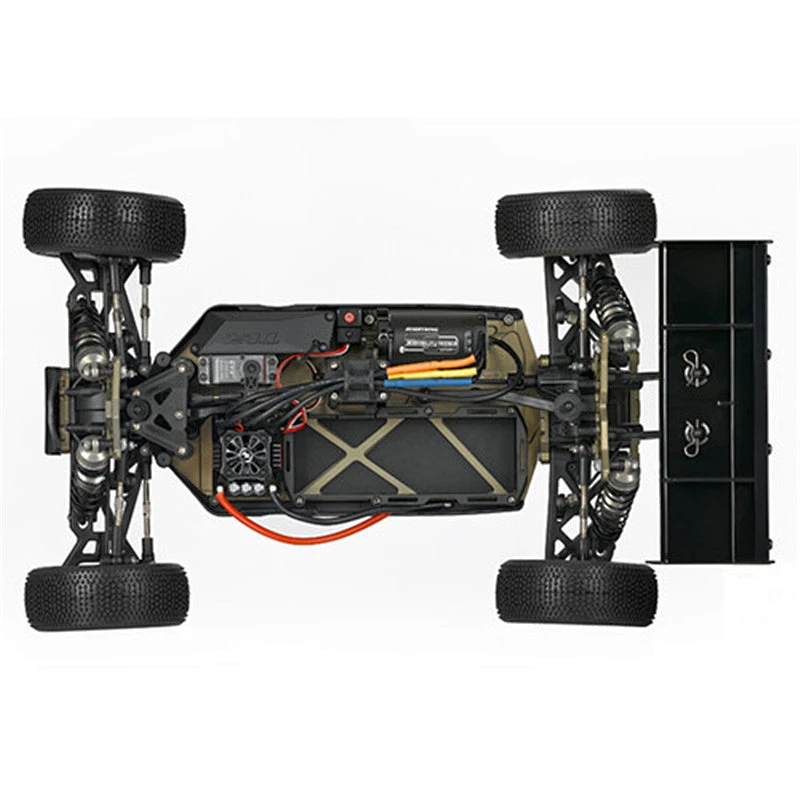

Product Pictures
What is the Details of our Product?
Features
High Reliability & Durability
Built with the most rugged and high-quality components and coupled with cutting-edge
firmware, the XR8 PLUS is able to deliver unmatched power and performance for even
the most hardcore of racing applications, but is also responsive enough to protect itself
from damage due to overloading due to physical abuse, overuse or even human error.
Great Flexibility & Versatility
With strong torque and excellent output, the XR8 PLUS can definitely cater for all
the power hungry requirements that professional drivers need. The highly
adjustable parameters of the ESC will allow drivers to enjoy smooth throttle
response when the throttle/brake linearity is utmost required.
High Voltage Built-in BEC
The XR8 PLUS is the world’s first 1/8th ESC that integrates a HV built-in BEC with an output
current of up to 15 Amp and a switchable output voltage of 6V-7.4V. The high voltage BEC is
designed to handle today’s high voltage servos on demand used by 1/8th scale vehicles.

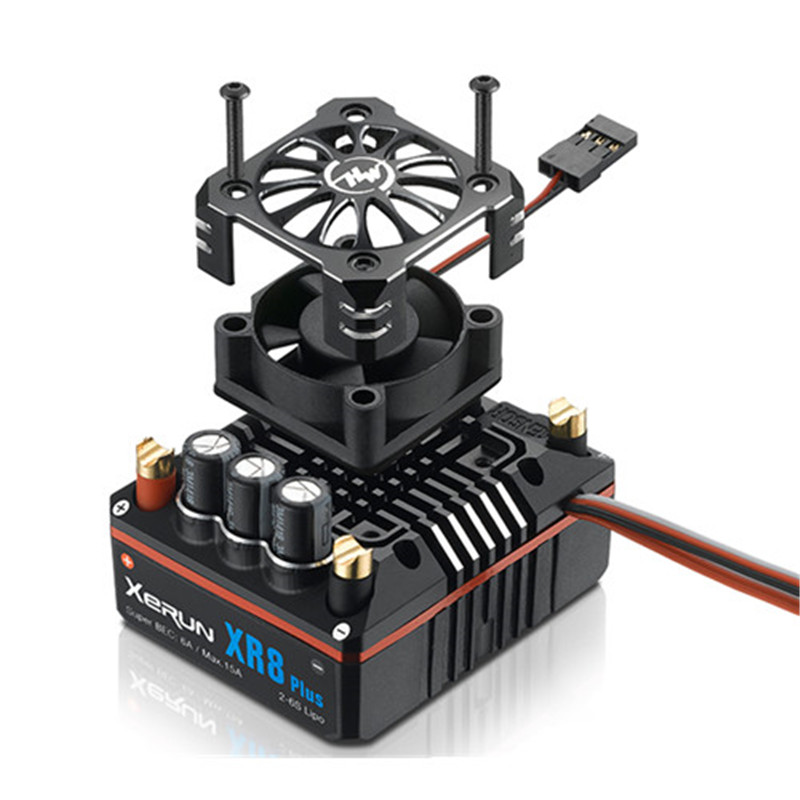

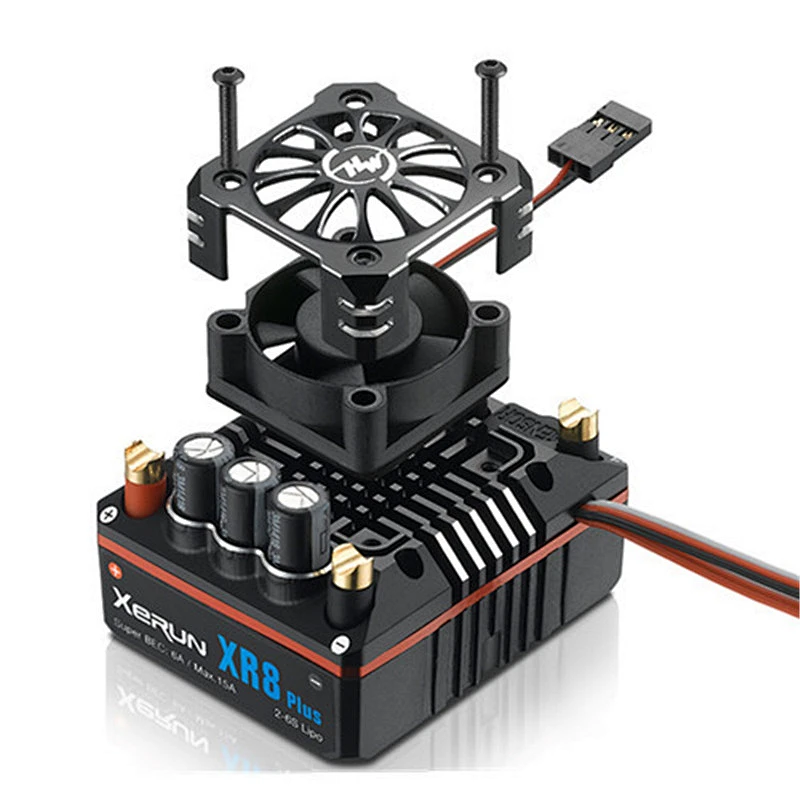

Ultra-Reliable Cooling System
HOBBYWING’s patented cooling technology utilizes
proprietary heat-conductive copper bars to rapidly and
effectively transfer all internal heat from the MOSFET board
to the integrated CNC machined billet aluminum heatsink
housing. The cooling fan adopts a shockproof mounting
which effectively reduces the possibility of fan damage due
to vehicle’s frequent jumps.
Product Details
| ESC | |
| Model: | XERUN XR8 1/8 ESC |
| Scale: | 1/8th |
| Cont./Peak Current: | 150A/950A |
| Input: | 2-6S LiPo/6-18 Cells NiMH |
| BEC Output : | 6V/7.4V,6A(Switch Mode) |
| Input Wires: | Red-10AWG-200mm*1/Red-10AWG-150mm*1/Black-10AWG-150mm*1 |
| Output Wires: | Black-12AWG-200mm*3 |
| Fan Size: | 30.0x30.0x10.0mm |
| Fan Voltage Range: | 5-7.4V |
| Size: | 58.7x48.0x36.9mm |
| Weight: | 127g |
Item Packing
XERUN XR8 Plus 150A ESC x1
