- Micro servo:for 250 Helicopter
- metal gears:digital
- Bearring:2BB
- Color:Red
- Product name:Rc Aircraft Parrot Bebop Drone
- Certificate:CE ROHS
- Function:Hovering
- Feature:Remote Control Model
- Battery:LI-BATTERY
- Product size:23*12*27.50mm
- Type:Helicopter
- Power:Battery
- Material:METAL
- Scale:250
- Radio Control Style:RC Model
- Place of Origin:CN;GUA
- Brand Name:feetech
- Model Number:FT2331M
1.rc walkera helicopter servo
2.Operating Voltage,4.8-6Volts
3.Interface: (like JR)

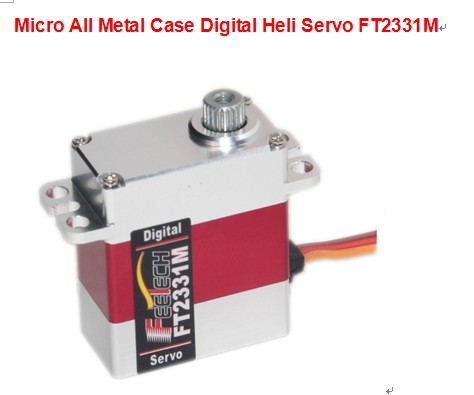

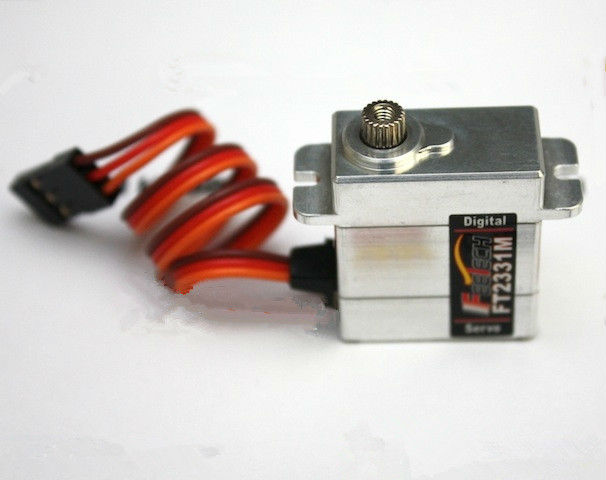

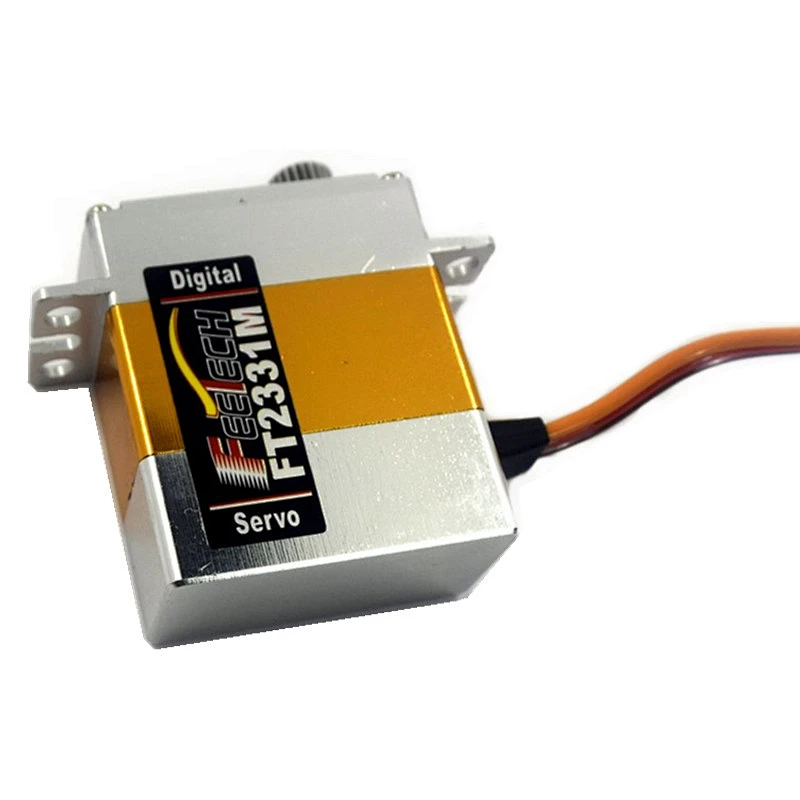

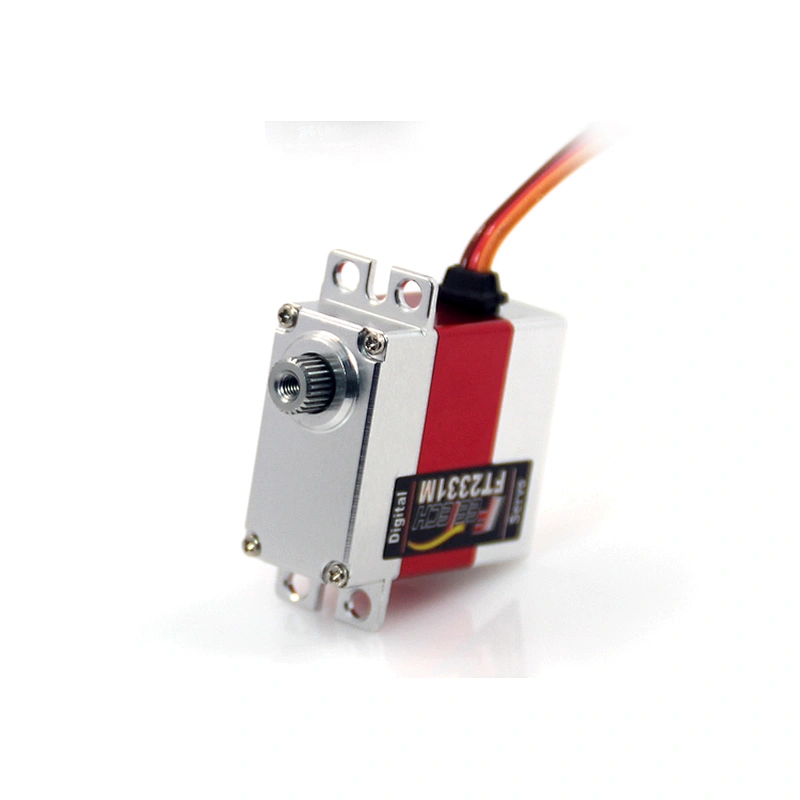

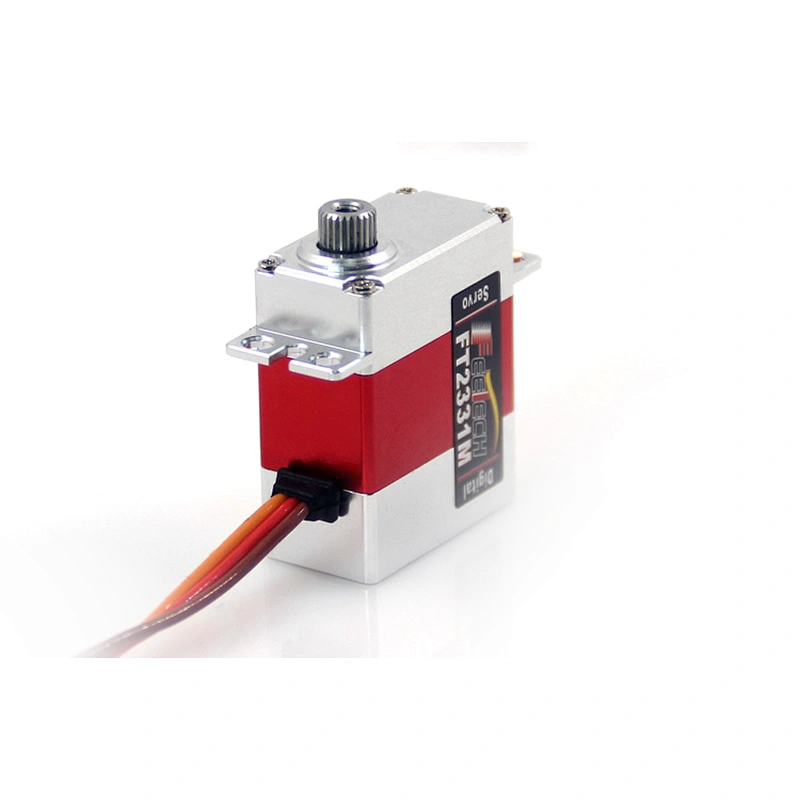

FT2331M HV Coreless Servo 3kg Torque Micro Digital Servo
Product description
This FT2331M servo is made by Feetech, it used a lot of high end material, like the Coreless Motor, it responds much faster and smoother than ordinary motor, also thanks to the quality IC Chip to control the motor movement, the FT2331M feels like no others, it moves Lightning Fast and still have Pin Point Accuracy! Even at 4.8V, it got 0.07 sec / 60 degrees and 2.5kg / cm performance, We tested it, this servo really delivers!
Specifiations:
- Full CNC Metal Gears Coreless DC Motor CNC Aluminum casing
- Dual Ball Bearings.
- Made for the high demanding Flybarless Helicopters
- Use on both Cyclic or Rudder
- Operating Voltage:DC4.8V-6V
- Size:23*12*27.50mm
- Torque: 3.50Kg.cm/7.4V. 3.10Kg.cm/6.0V
- Speed: 0.07sec/60 degree/6V. 0.08sec/60degree/4.8V
- Weight:20g
- Working Frequence:1520us/333Hz, 800us-2200us
- Ball Bearing: 2BB
- 12mm Coreless Motor
SKU:FT2331M
Bearing Type :2BB
Connector Wire Length :20 cm
Control System :Digital
Direction :CCW
Gear Type :Metal
Motor Type :Coreless
Operating Angle :120degree
Operating Speed :0.09sec/60degree (4.8V)0sec/60degree (6V)
Operating Voltage :4.8V~6V
Required Pulse :900us-2100us
Stall Torque :3kg.cm/41.74oz.in(4.8V)3.5kg.cm/48.69oz.in(6V)
Weight:20 g
Dimensions:23.2 × 12.1 × 26.5 mm
We also specialized in ODM and OEM
Payment
We adopt T/T,west union,paypal payment methods. After we receive your payment, we will arrange shipment. All banking charges and interest are charged to purchasers.
Warranty Procedure
As long as you choose to use FEETECH products, you can enjoy the warranty service that we provide. Please print our Repair Request Form (.PDF, .DOC) and fill it out in its entirety, being as comprehensive as possible, in order to receive the best possible service.
Warranty Period
All FEETECH products are warranted against defects for a period of one (1) years from the date of purchase. During this period we will repair or replace (at our discretion) any defective products. You should always retain your original receipt as proof of the date of purchase.
We can provide Customized service:
1.Customized Various of wide working voltage servo (4.8-12V)
2. Customized Dual working mode servo
(1.continuous rotation motor mode 2.Rc servo work mode)
3.Customized large angle servo(0-360°& 360* n °multi circles
and any angle controllable servo)
4.Customized Various of special function servo
5.Customized Various of Communication level Serial Bus servo(TTL,RS485)
We have a strong R&D team,Perfect matching supply system,
we can finish R&D for various of special customized needs in short time
We expect to creat new value with clients together.
Service:
1."Reasonable price,delivery on time,good services"is our business principle
2.We have own factory,specialized in this field many years, warmly welcome your design
3.Small order and mixed items are available
4.Fast delivery as most of products we have in stock
5.Competetive price and good quality.
6.samples and products according to customers' requirement.
FAQ:
Q: How can I get a sample?
A: As custom item,you need to pay for the shipping cost and sample cost,
or you can provide us your dhl, ups, fedex or tnt acount to us for samples' shipment.
Customized size of sample should be charged.
Q:How long for the delivery once we place order?
A:The lead time is declded the item you ordered and the quantity.
For normal order,the lead time is about in 5-7 days,
If big quantity or OEM,the lead time will be some days more.
Q:The price you are offering is with shipping costs included?
A:The price does not include the shipping cost.We offer several
shipping solutions,make sure customers choose the most economical one.
Q:Do you have After-Sales Service?
A:Of course,We have special department to do it,and if you have any technology
problem,our eingeer will give your answer.
