- Servo type:Standard digital servo
- Gear materials:metal gears
- Motor type:Cored motor
- Dead band width:2usc
- Color:Blue
- Product name:Rc car servo
- Certificate:ROHS
- Product size:40*20.*40.4mm
- Feature:Remote Control Model
- Torque:30kg
- Type:Car
- Power:Battery
- Material:METAL
- Scale:1:10
- Radio Control Style:RC Model
- Place of Origin:CN;GUA
- Brand Name:fitec
- Model Number:FT6335M
1.Low Cost Digital RC Servo 35KG for traxxas/HPI racing/Kyosho/Tamiya 1/5 scale rc cars rc nitro gas 4x4 rc trucks RTR
2.Best choice for RC car 1/5

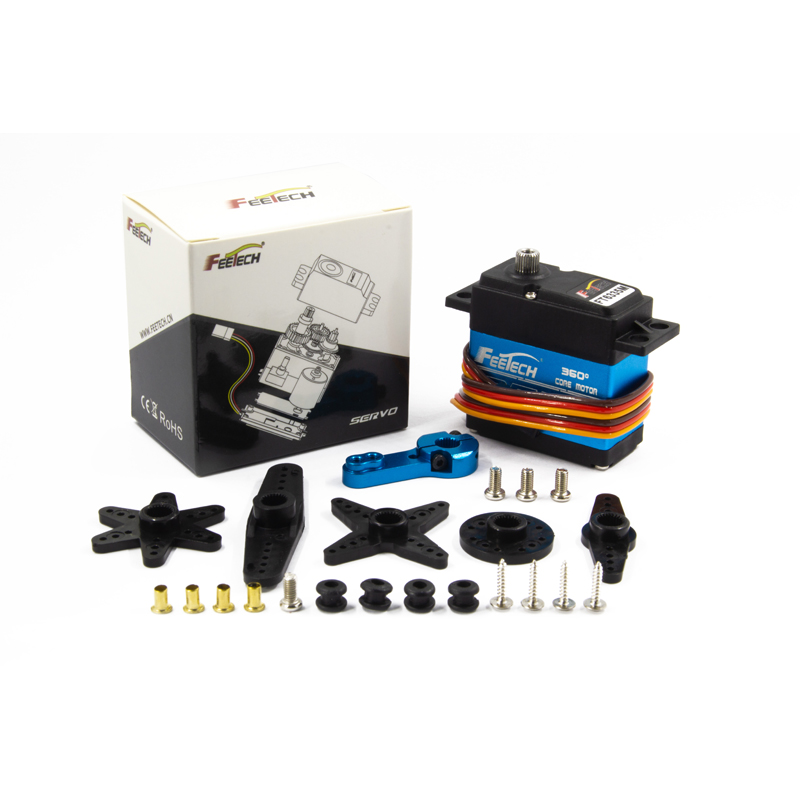

3.Accessories attached
4.ROHS CE compliance
Features
Feetech FT6335M is a full steel gear standard digital servo, with 35.5kg.cm ,High torque more powerfull, Full steel gears,improve servo's accuracy and extend its service time. Internal Hall effect position sensor, Controllable angle range from 0 to 360 degrees, for Robotic, RC,Industry and others large angle control requirements. Aluminum Case enhances heat dissipation and ensures servo motor work properly Excellent linearity, precision control, It is also a Multi Turn servo,5 turns*360 °(500-2500us) No need to manually “center” the servo, PWM Command Signal.
-Standard digital metal gears servo,2BB
-Metal brush motor,Aluminium middle hull
-Waterproof

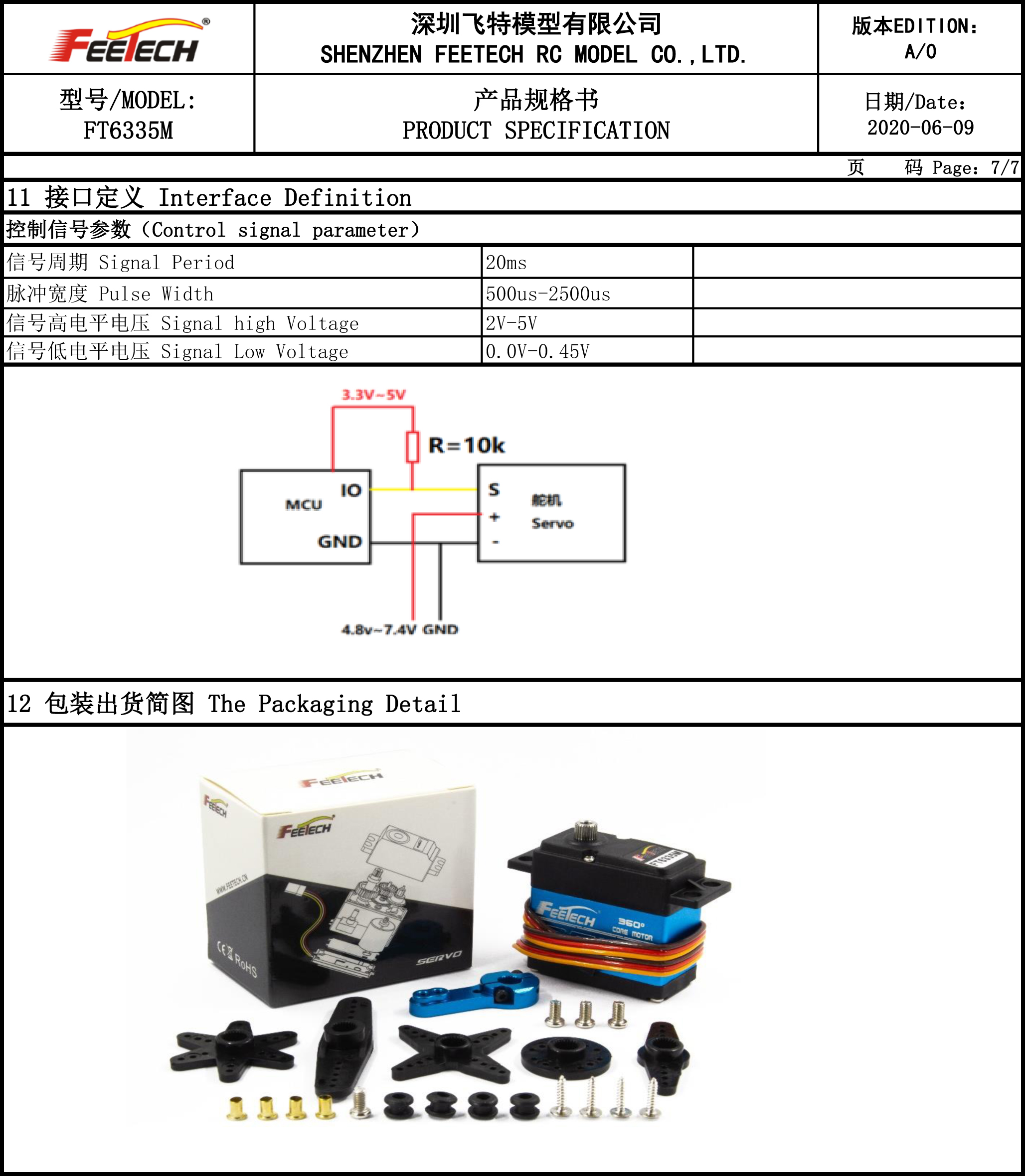

-Operating Voltage: 4.8~7.4V
-Dead band width: 2usc
-Interface: (like JR)
-Wire length: 30cm

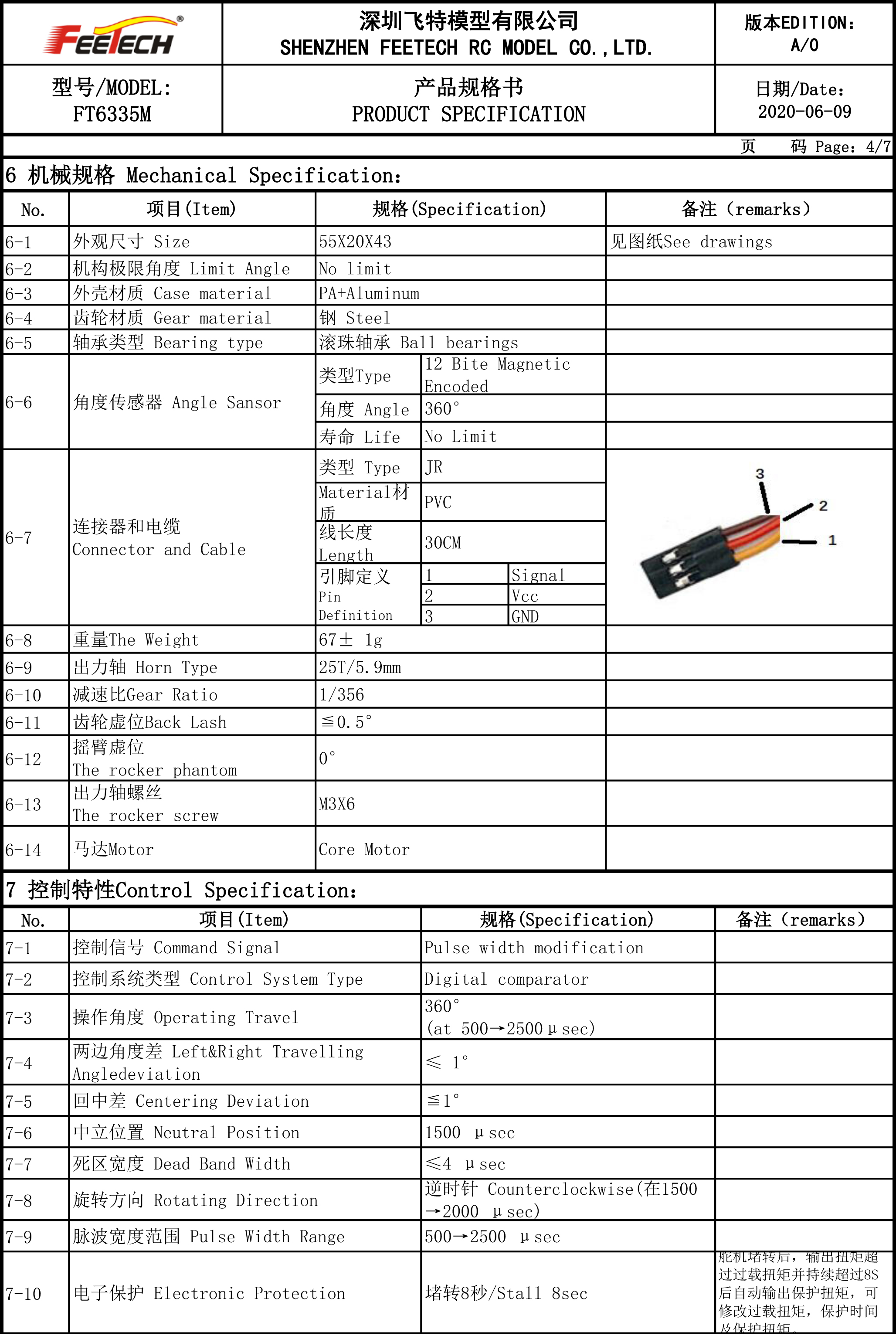

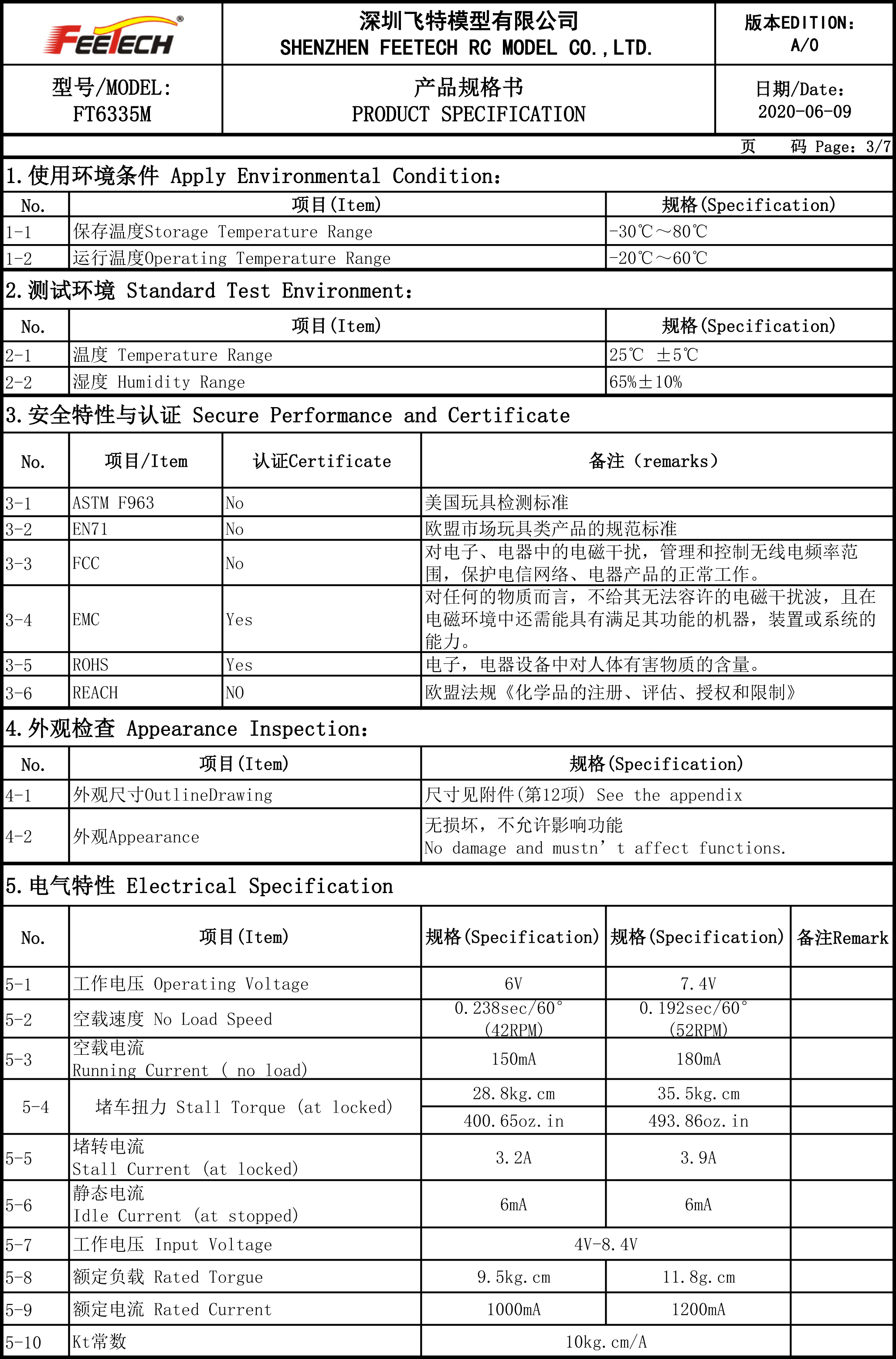

Specifications
Power 4.8V 6V 7.4V
Torque 35.5kg.cm/
Weight 66g

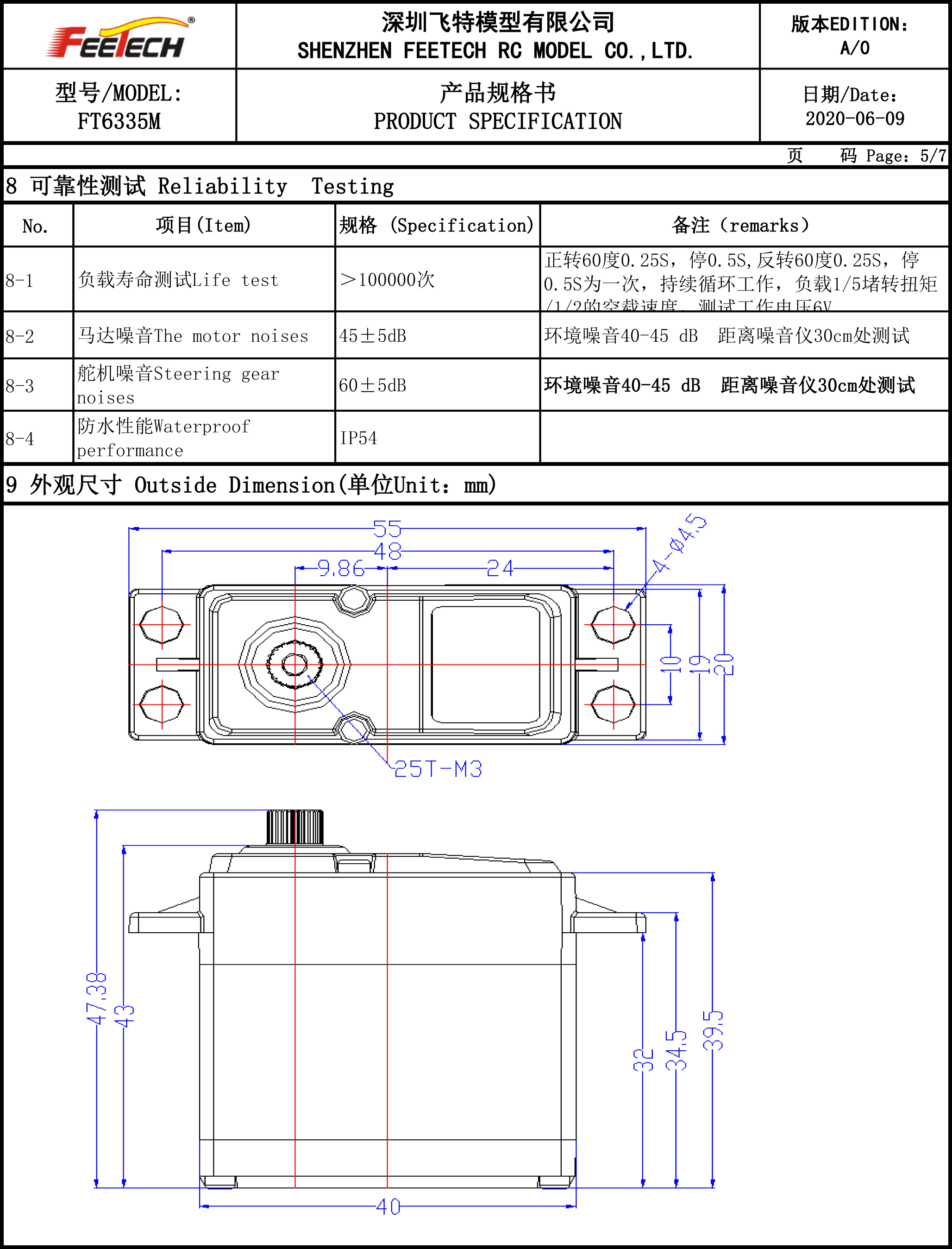

Size 40*20.*40.4mm

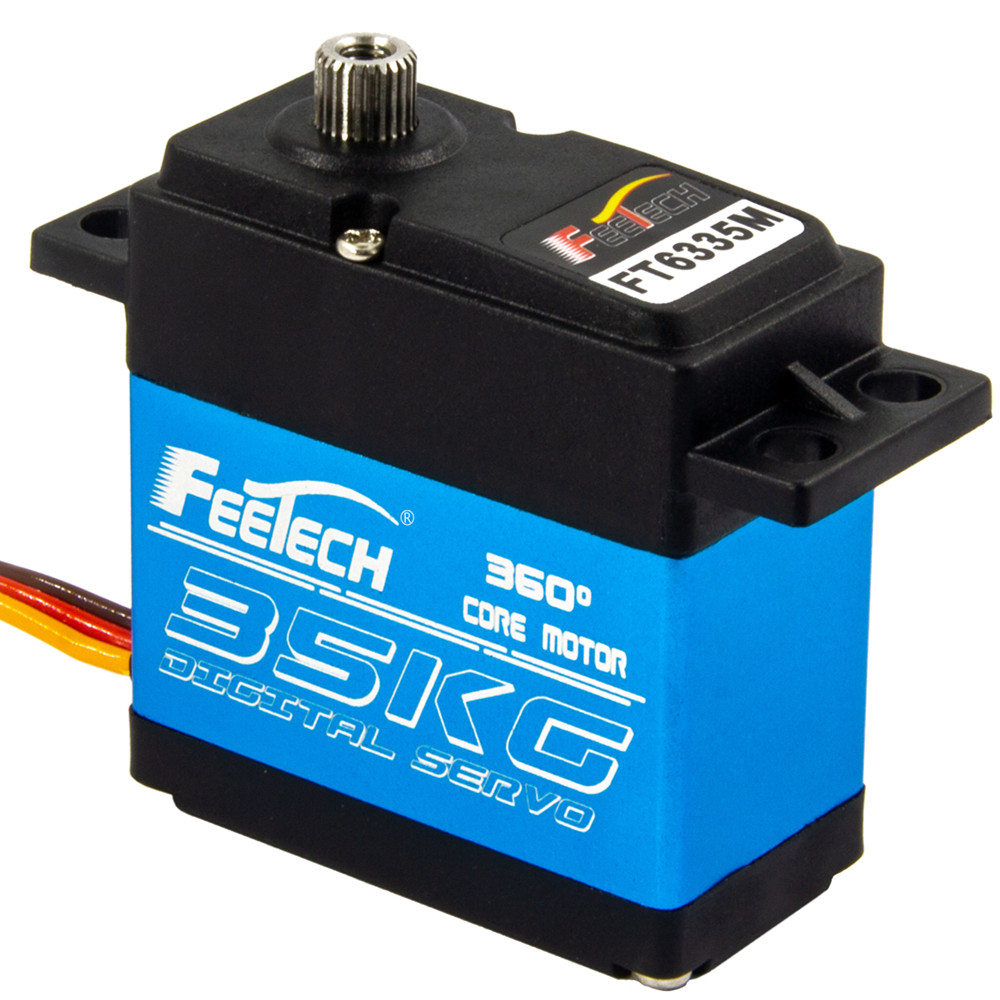

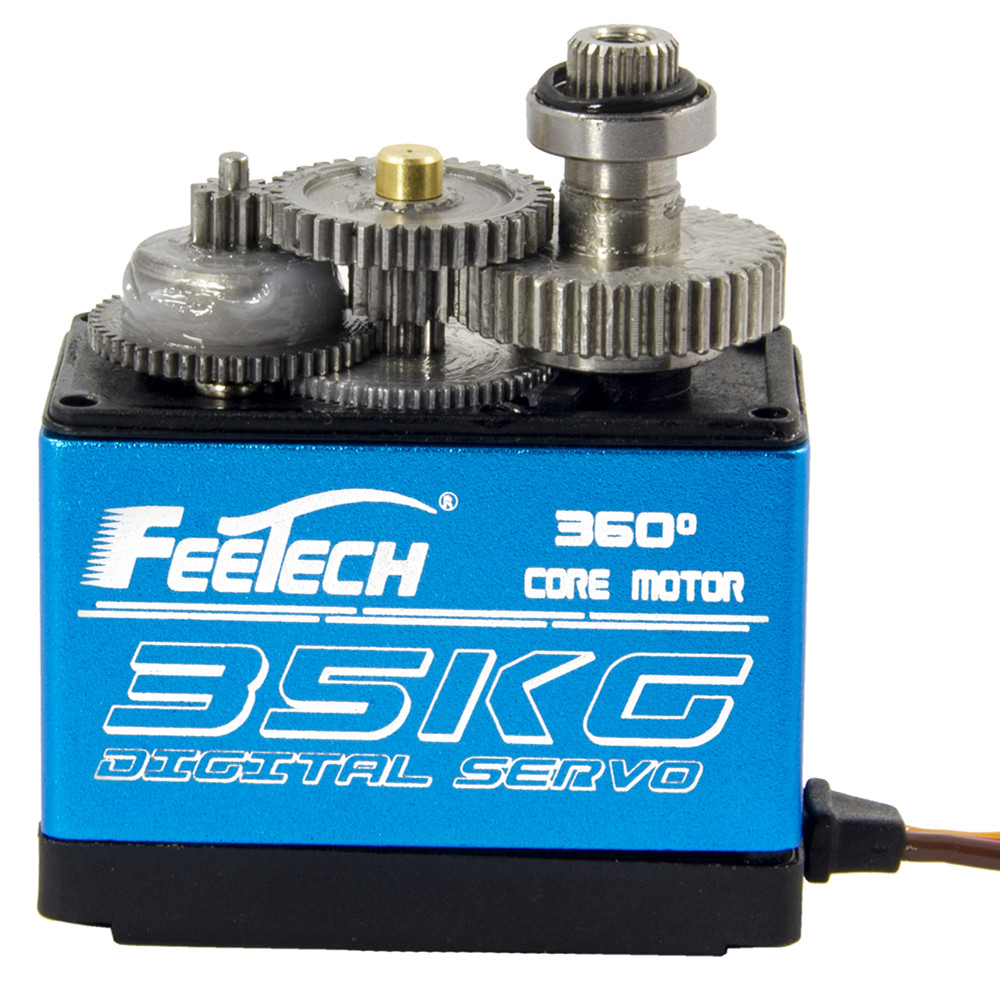

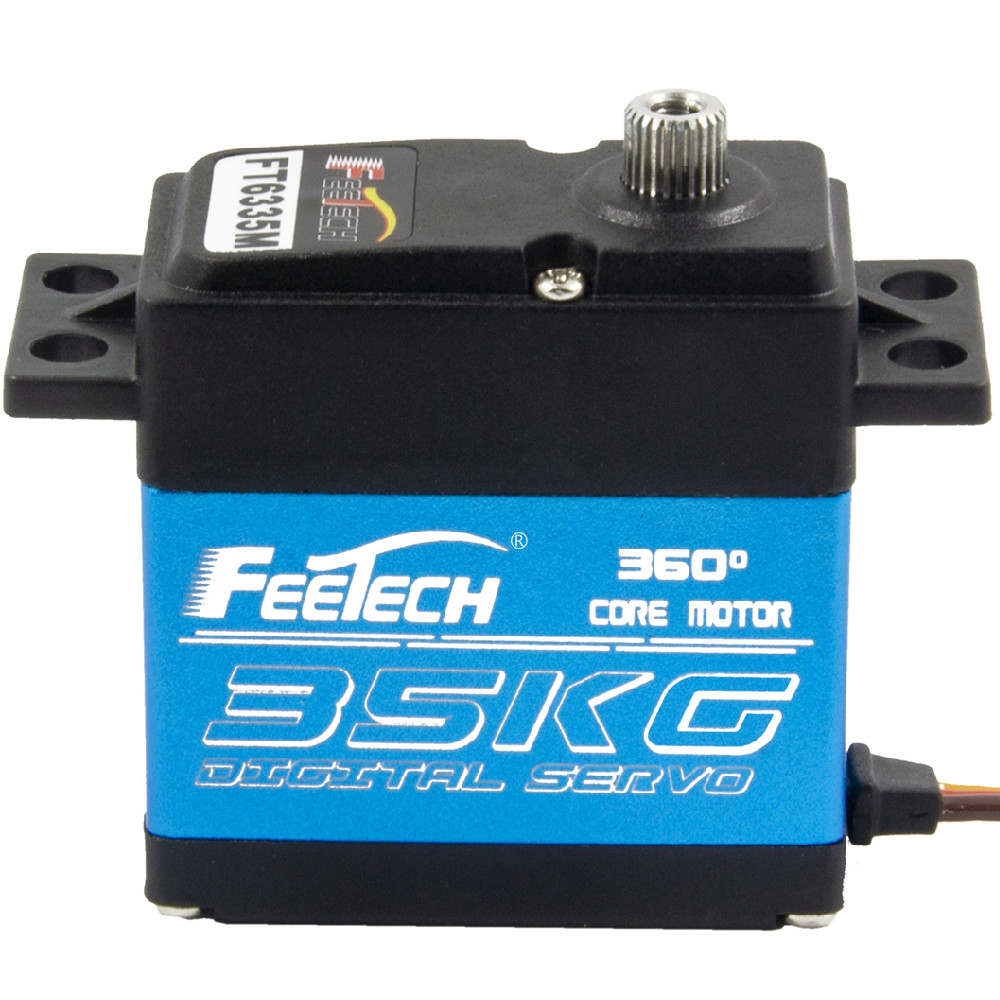

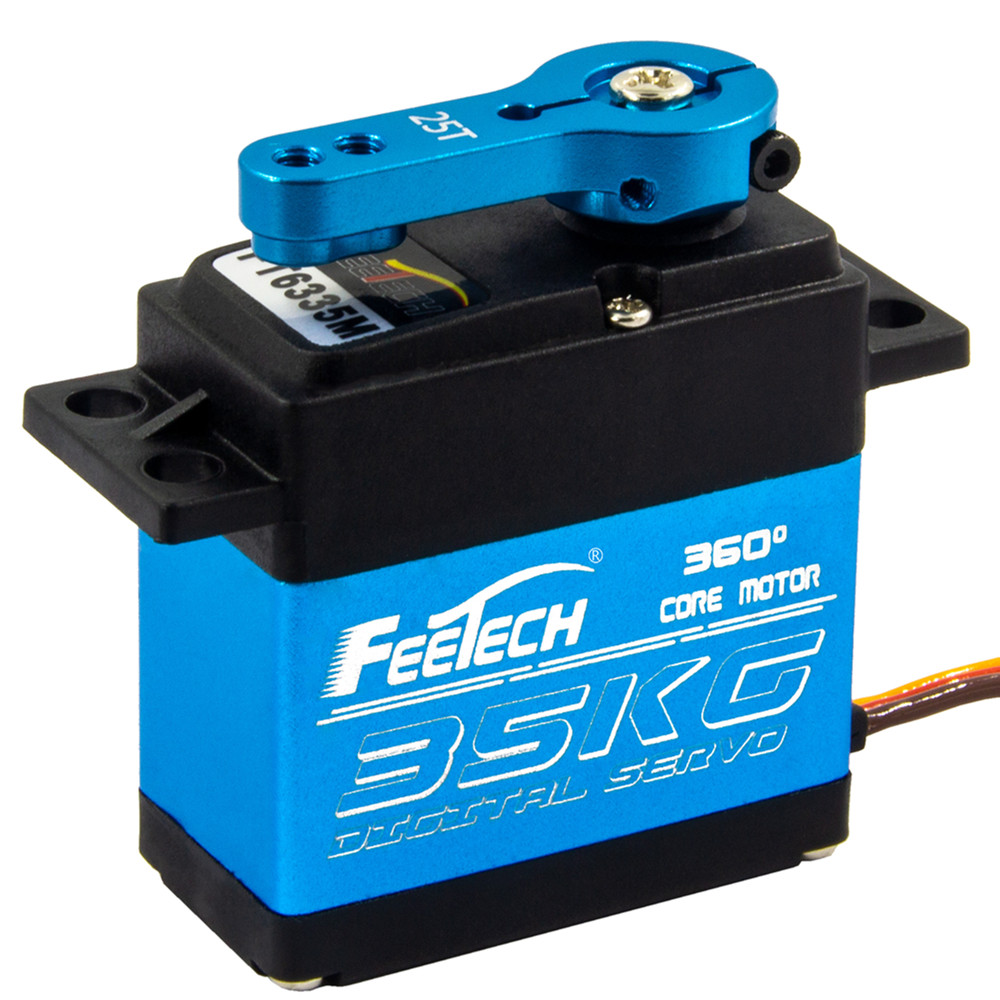

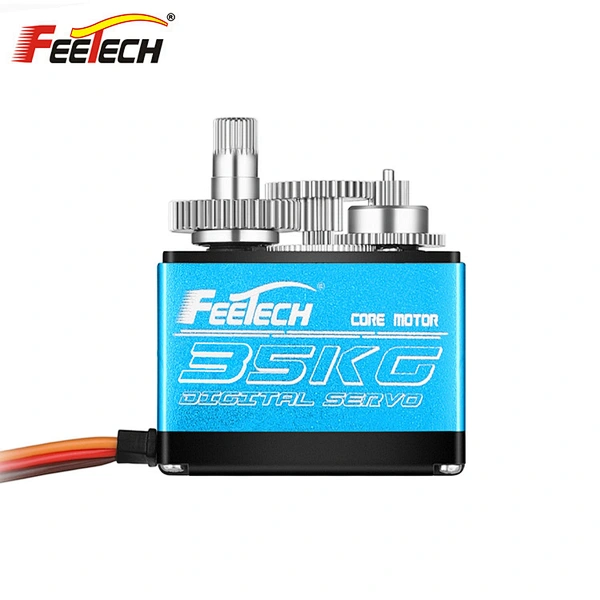

Servo Picture:
Servo Potential Applications
Notice:
-Refer to the figure when installing the servo accessories. Caution: For engine powered
airplanes, helicopter, vehicle model, must use rubber shock pad to fix.
-Please choose correct model for your application.
Caution: Torque over-loaded will damage the servo’s mechanism.
-The products use coreless motor; please choose the right power voltage of
servo according the specification. Please pay more attention that it may affect unnormal
working or damage of servo if using the servo oversteps the normal range of voltage.
-Keep the servo clean and away from dust, corrosive gas and humid air.
-Our company keeps the right of amendment, if there are some changes of parameter
and appearance, without notice.
