- Color:Black
- Operating Voltage Range:6-7.4V
- Peak stall torque:17.5kg.cm/6V
- Rated torque:6kg.cm/6V
- Stall current:1800mA/6V

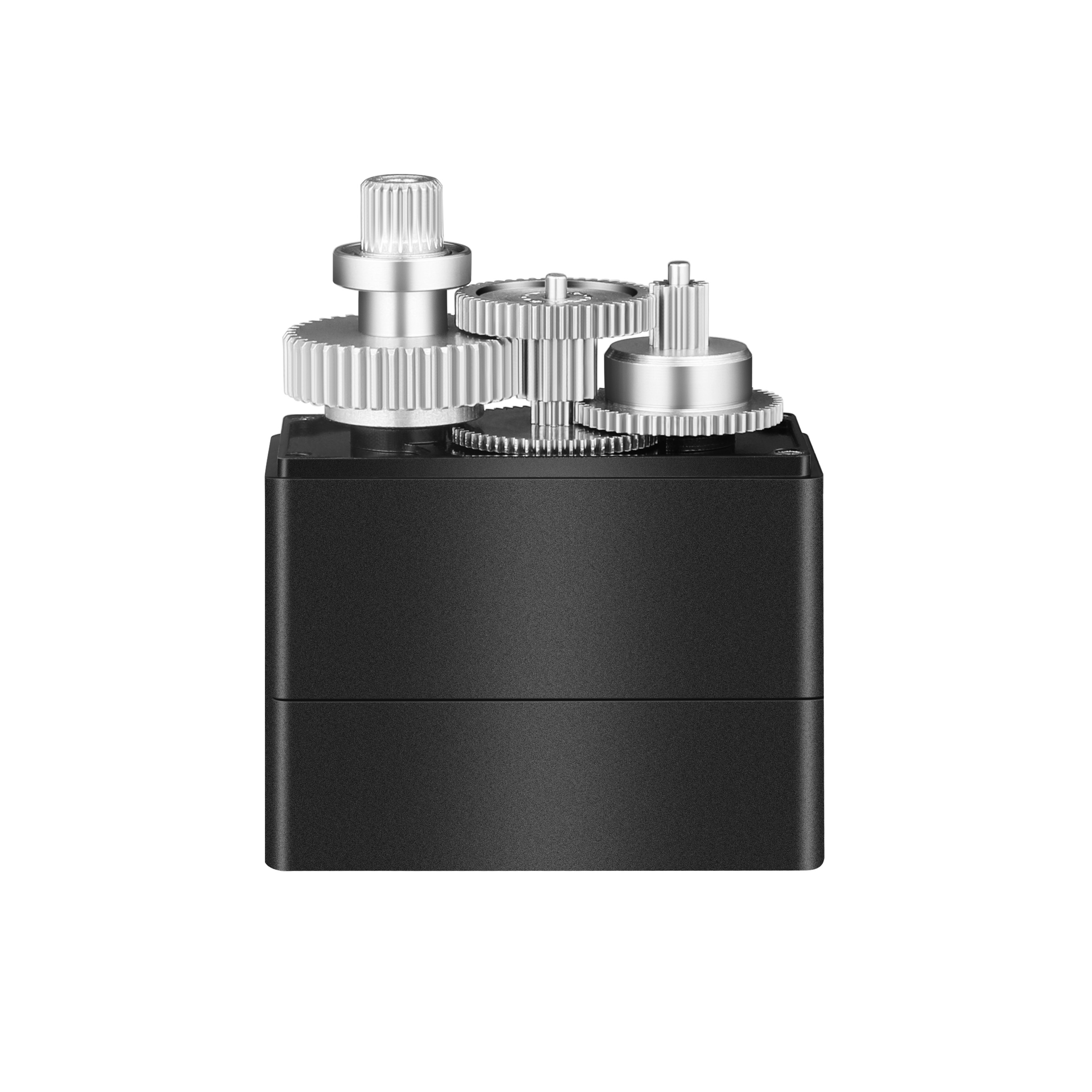

- Gear type:Steel Gear
- Limit angle:No limit

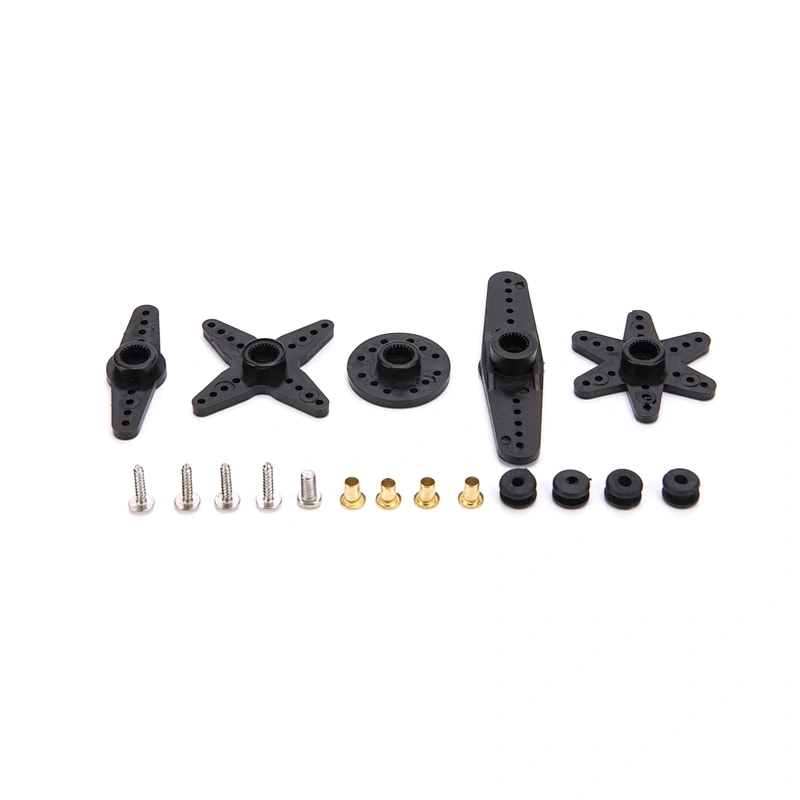

- Horn type:Plastic,POM
- Motor:Metal brush motor
- Connector wire:300mm ±5 mm
- Type:Car
- Power:Battery
- Material:plastic
- Plastic Type:ABS
- Scale:1:10
- Radio Control Style:RC Hobby
- Place of Origin:CN;GUA
- Brand Name:Feetech
- Model Number:FB5118M
Product Description

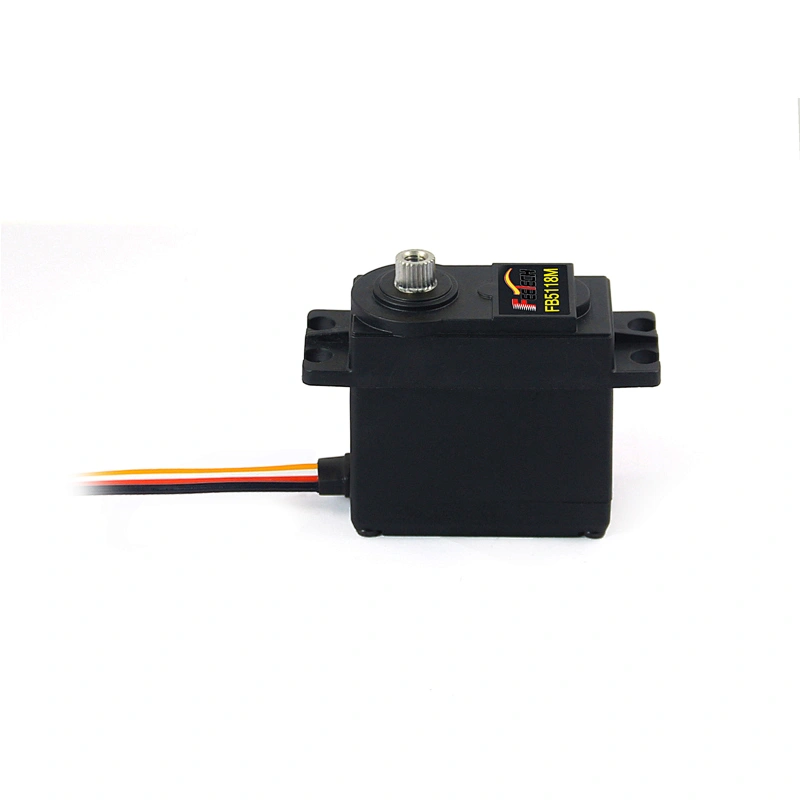

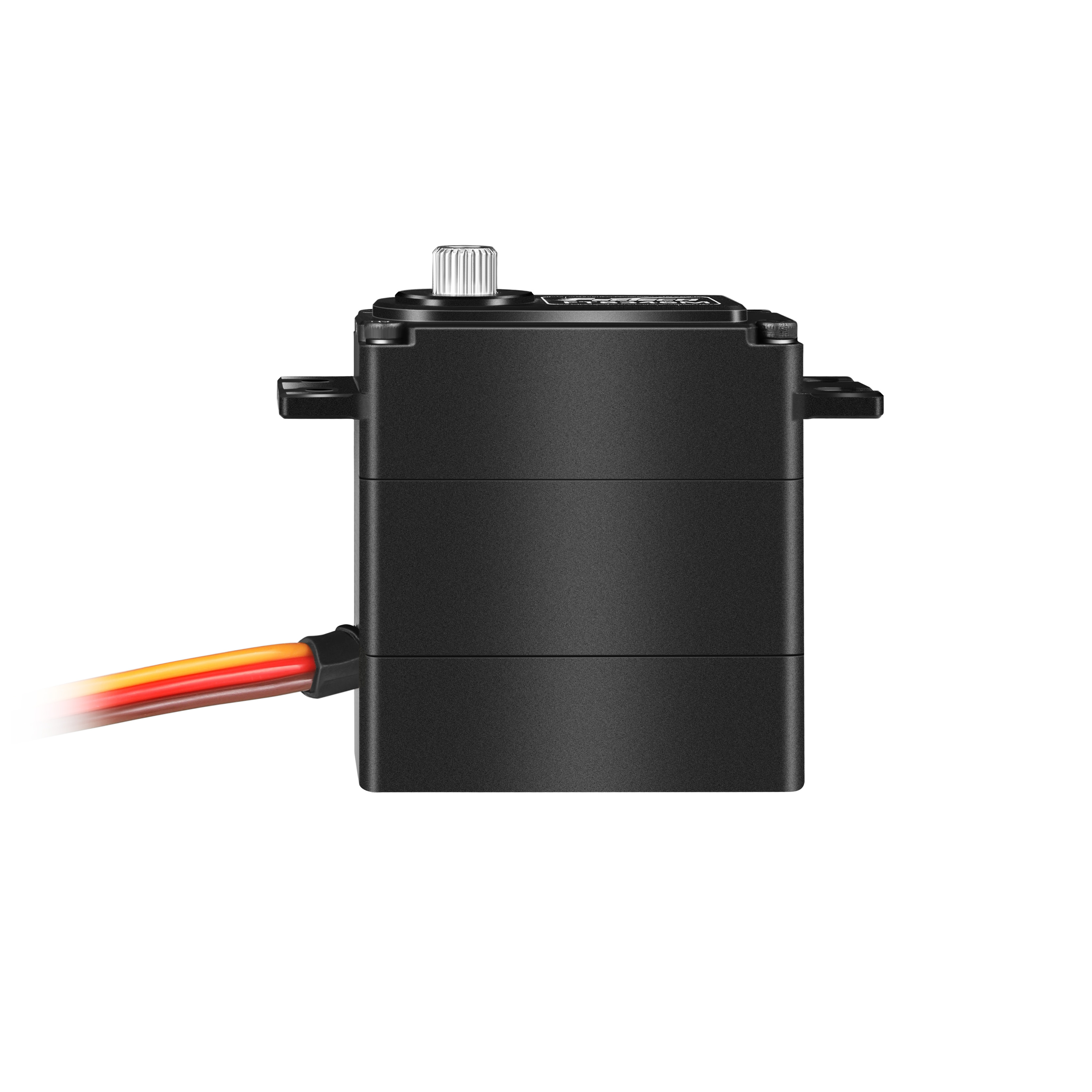

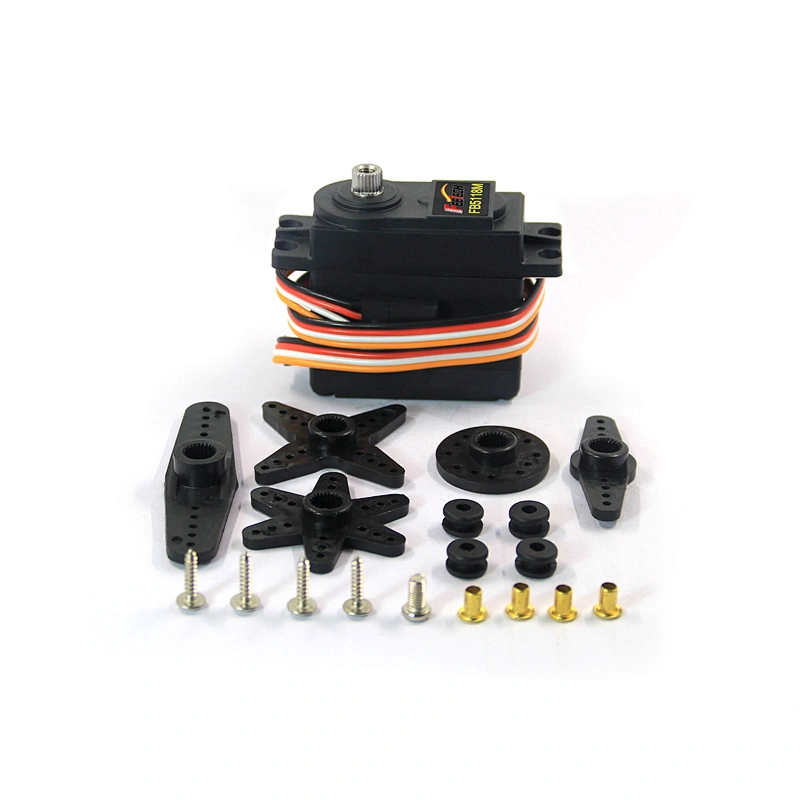

1.rc servo motor with position feedback2.Standard digital metal gears servo 2BB3.servo torque can add feedback :3KG/6KG/9KG/15KG/21KG4.Constant current protectionFeetech FB5118M 18kg Digital Servo 4 pin wire Position Feedback ServoSKU:FB5118MDimensions:40.8 × 20.1 × 38 mmWeight:56 gOperating Speed :0.2sec/60degree (6V)0.16sec/60degree (7.4V)Stall Torque :15kg.cm/208.6oz.in(6V)17.5kg.cm/243.5oz.in(7.4V)Operating Voltage :6V~7.4VDirection :CCWModel No.FB5118MApply Environmental ConditionStorage Temperature Range:-30℃~80℃Operating Temperature Range:-15℃~70℃Standard Test EnvironmentTemperature range:25℃ ±5℃Humidity range:65%±10%Mechanical SpecificationSize:A:40mm B:20.1mm C:38.3mm D:54mmWeight:64gGear type:Copper GearLimit angle:No limitBearing:2 Ball bearingsHorn gear spline:25T(5.9mm)Horn type:Plastic,POMCase:Nylon & FiberglassConnector wire:300mm ±5 mm(Black ,Red,white and Yellow)Motor:Metal brush motorSplash water resistance:NOElectrical Specification (Function of the Performance)Operating Voltage Range:4.8V/6VIdle current(at stopped):5mA/7mANo load speed:0.25sec/60°0.2 sec/60°Runnig current(at no load):130 mA/150 mAPeak stall torque:15kg.cm/17.5kg.cm208.6oz.in 243.5oz.inStall current:1500 mA 1800mANote:"*"definition is average value when the servo runing with no loadAmplifier type Digital comparatorPulse width range:500~2500µsecNeutral position:1500 µsecFeedback Voltage:900usec-0.86V/1500usec-1.65V/2100us-2.45VRunning degree:300°(±5°)(when 500~2500 µsec)Dead band width:4 µsecRotating direction:Counterclockwise(when 1000~2000 µsec)
Features
1: Large angle control (300 degrees: 500-2500us) 2: With out-of-control protection (out-of-signal unable to output) 3: Overheat
protection (unable to output when exceeding a certain temperature, temperature control degree can be set in the range of 10-80
degrees according to the customer's needs when leaving the factory) 4: Overload protection (over 80% of blocking torque, lasts for
8 seconds, and the torque decreases) 5: High Servo Update Rate (250Hz) 6: Dual-mode operation (programmable switching servo mode
and motor mode) 7: With analog feedback (0.1V-3.2V corresponds to 0-300 degrees)
protection (unable to output when exceeding a certain temperature, temperature control degree can be set in the range of 10-80
degrees according to the customer's needs when leaving the factory) 4: Overload protection (over 80% of blocking torque, lasts for
8 seconds, and the torque decreases) 5: High Servo Update Rate (250Hz) 6: Dual-mode operation (programmable switching servo mode
and motor mode) 7: With analog feedback (0.1V-3.2V corresponds to 0-300 degrees)
