- Servo type:Standard digital servo
- Gear materials:Metal gears
- Motor type:cored motor
- rotation degree:360 degree continuous rotation
- control system:digital
- Product name:Rc robot servo
- torque:10kg.cm
- Certificate:ROHS
- Product size:40*20.*40.4mm
- Feature:Remote Control Model
- Type:Car
- Power:Battery
- Material:METAL
- Scale:1:10
- Radio Control Style:RC Model
- Place of Origin:CN;GUA
- Brand Name:fitec
- Model Number:FT5309R
Product Description

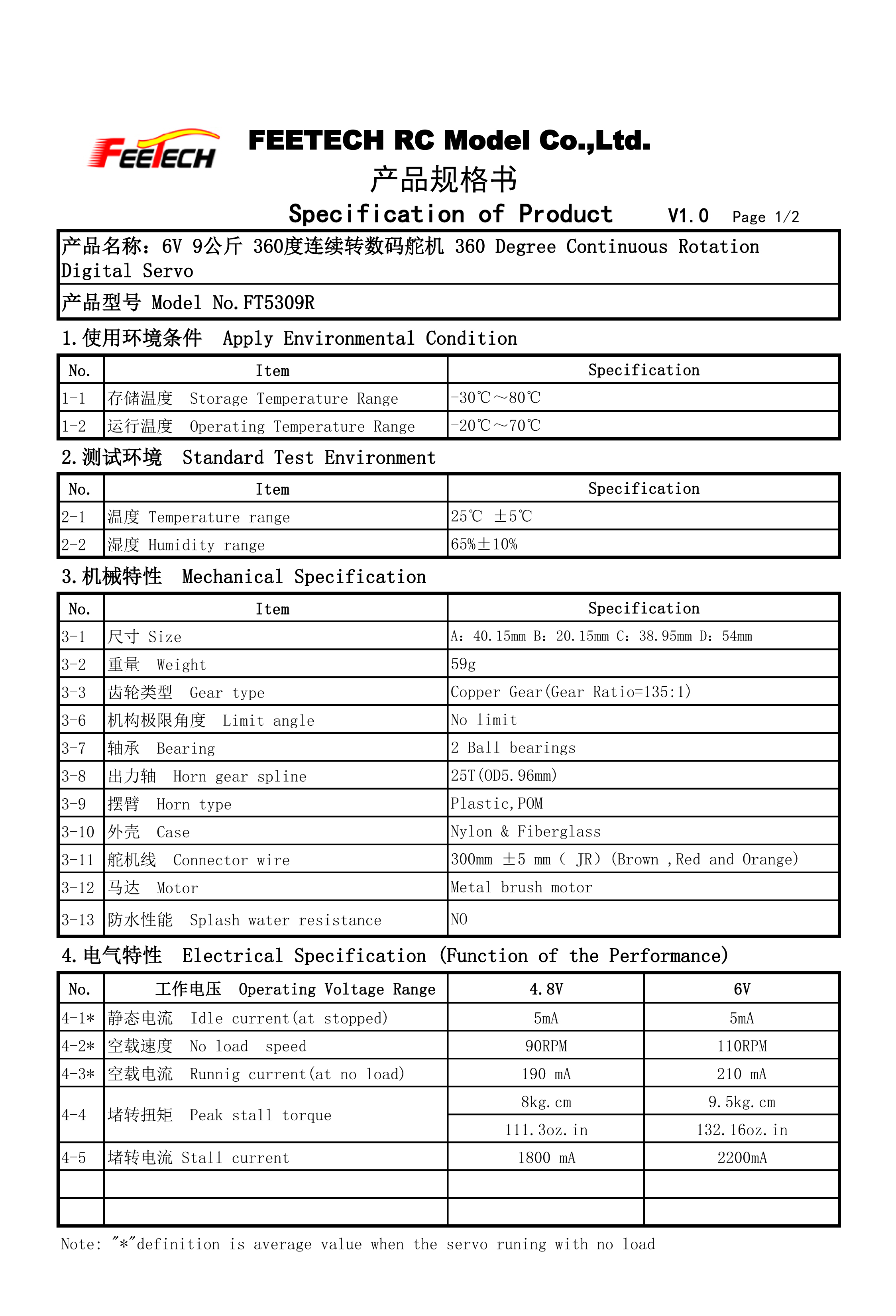

Specification

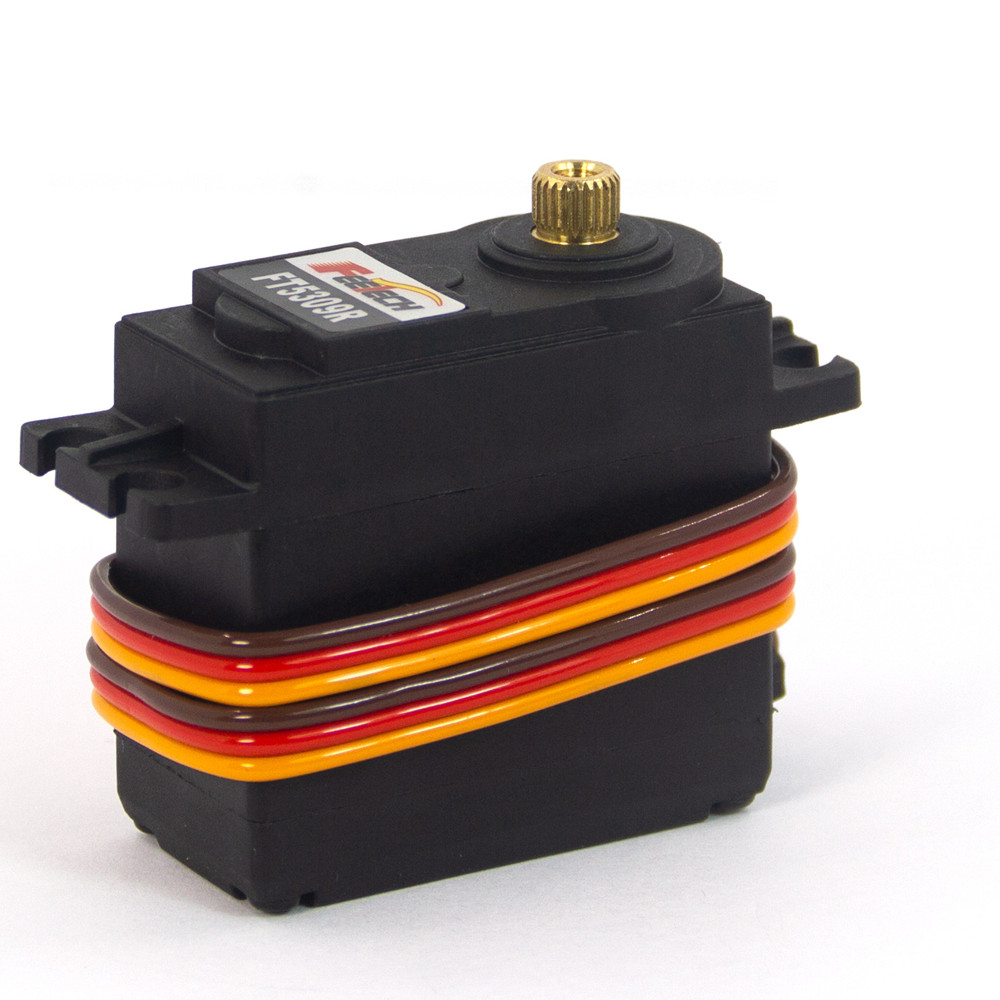

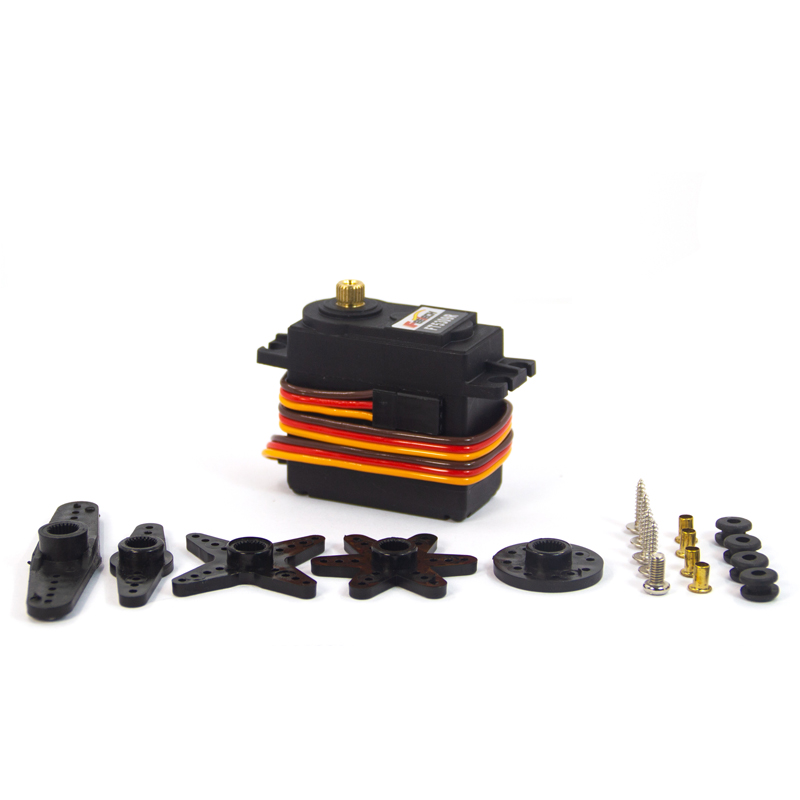

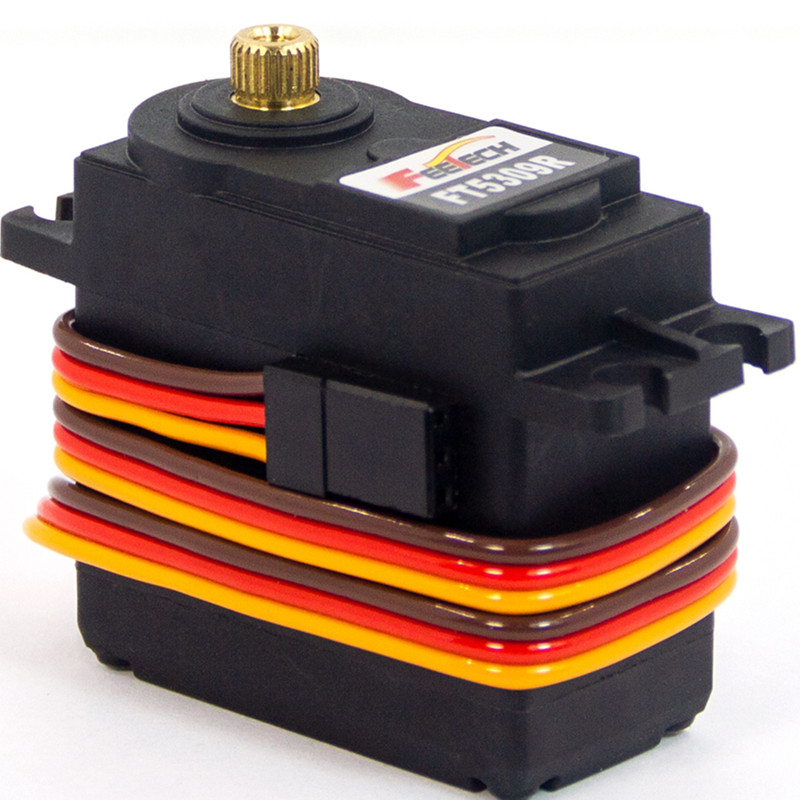

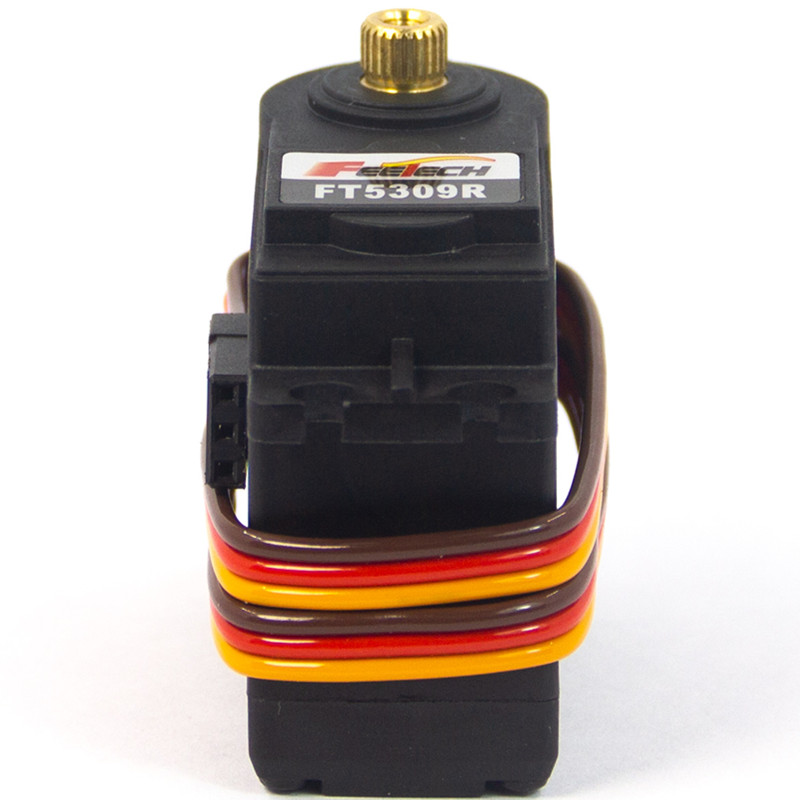

Product Name: | FEETECH FT5309R 6V 9 kg Torque Arduinos control 360 Degree Continuous Rotation Digital Servo |
Stall Torque | 10kg.cm |
No load Speed(RPM) | 160RPM |
Gear | Wheel is available to fit on the servo |

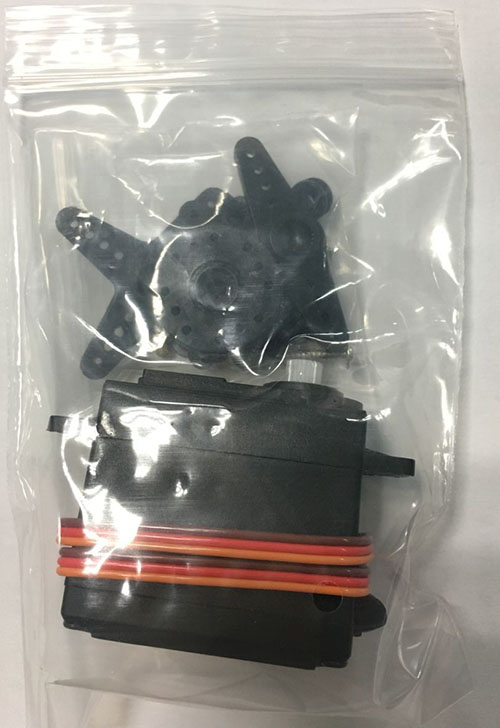

Packing & Delivery
FEETECHLowest price servo! 9kg torque Digital metal gear 360 Degree servo FT5309R Servo
Feature:
1. Same servo with FS5109R, but without potentiometer.
2. It use new digital pcb,there is no hole on the shell,no need use potentiometer to adjust the rest point.more convenient for users.
3. Fast and Large Torque of 6V-9kg-110RPM Standard Digital servo.
9kg.cm/25T copper gear without gear point/speed ratio 135:1/HRK-130SH-2663-28.3
Feature:
1. Same servo with FS5109R, but without potentiometer.
2. It use new digital pcb,there is no hole on the shell,no need use potentiometer to adjust the rest point.more convenient for users.
3. Fast and Large Torque of 6V-9kg-110RPM Standard Digital servo.
9kg.cm/25T copper gear without gear point/speed ratio 135:1/HRK-130SH-2663-28.3
4.metal brush motor + copper gear (shared FS5109R case)/110RPM/6V

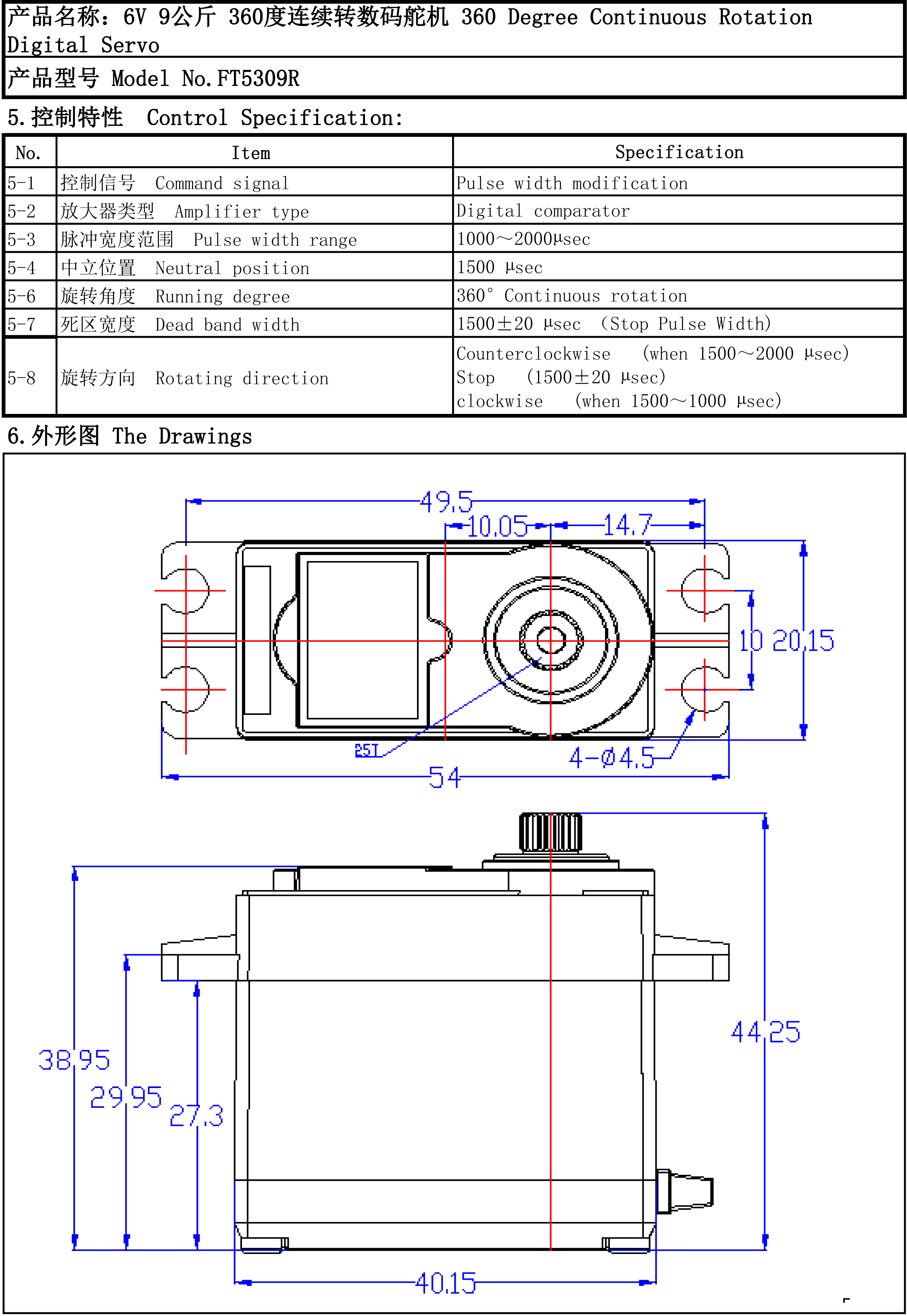

5. 100-2000 control pulse width speed regulation/rotation direction CCW counterclockwise.
6. Compared with FS5109R, the speed is about two times faster and the torque does not change.
An application environment requiring torque and fast rotation is required.
6. Compared with FS5109R, the speed is about two times faster and the torque does not change.
An application environment requiring torque and fast rotation is required.
If the servo does not match your requirements , please do not hesitate to contact with us, we have hundreds of servos for
optional, and we are professional servo manufacturer since 2005, customizing servo as per requirements is our advantage.
optional, and we are professional servo manufacturer since 2005, customizing servo as per requirements is our advantage.
Company Profile

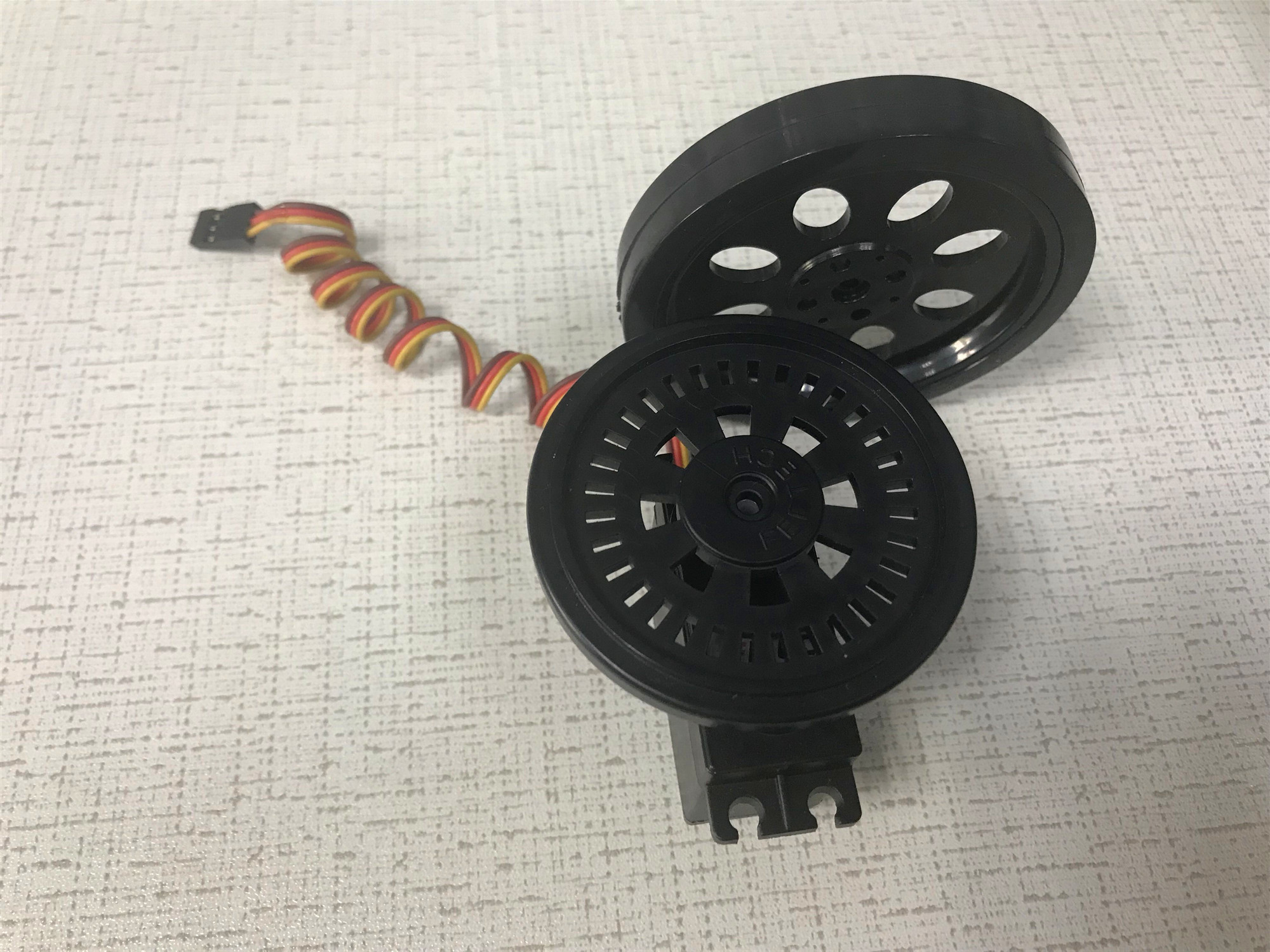

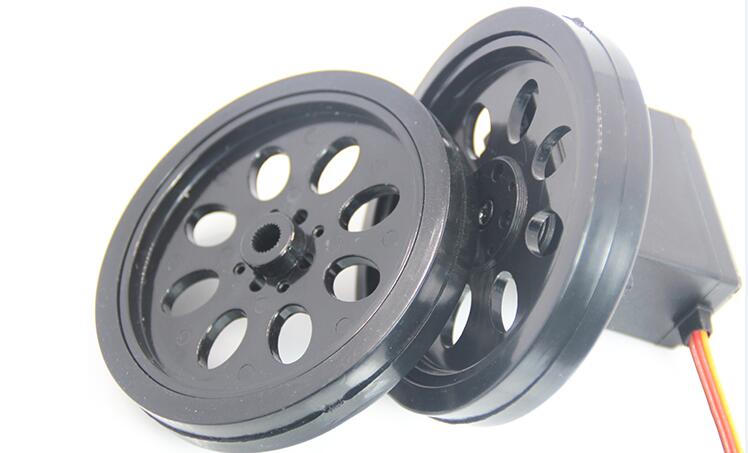

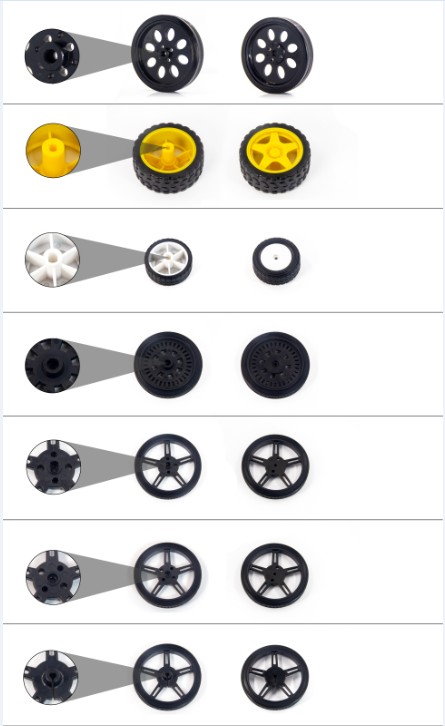

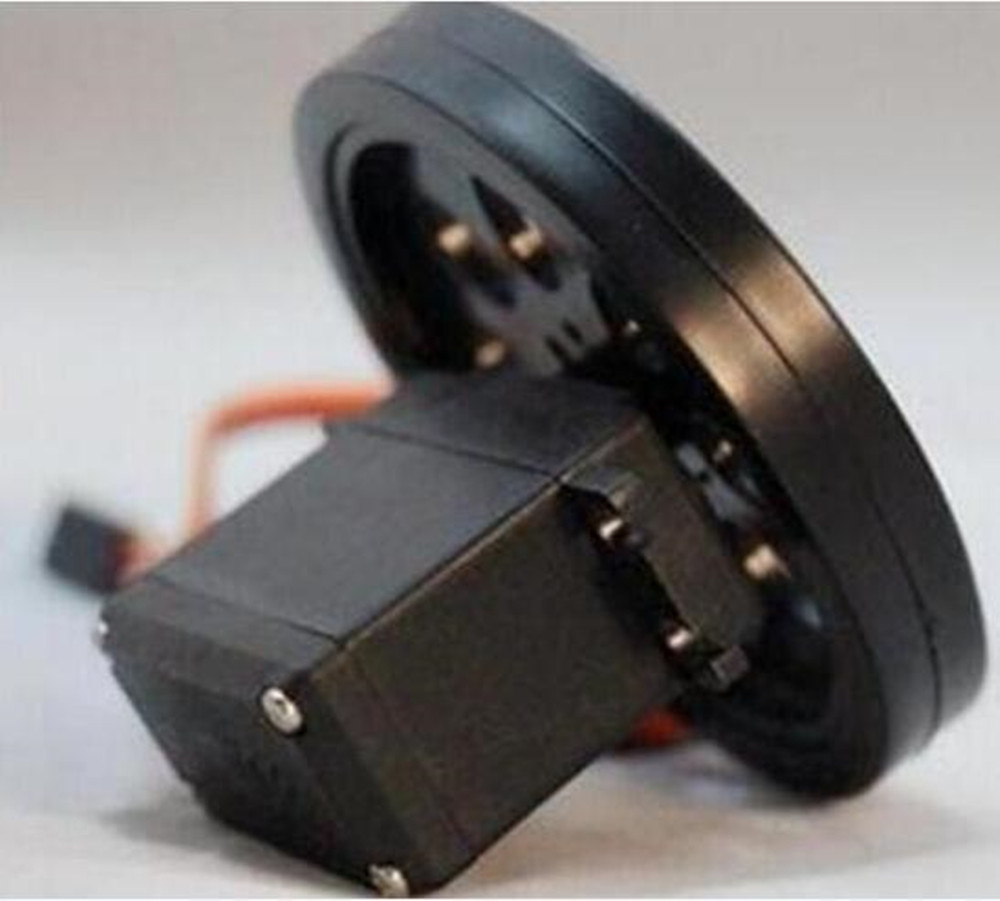

It has two type wheels fit on well,just throw a pair of wheel,and your robot is ready to roll,it is very good for Stem education robot kits!
