- Frequency Range:5.3-6.0GHz
- Voltage:5.0V nominal
- Display:96"Monochrome OLED
- Company website:www.lxrcmodel.com
- Gender:Unisex
- Age Range:14 Years & up
- Use:Vehicles & Remote Control Toys
- Place of Origin:CN;GUA
- Type:goggles parts
- Certification:Other
- Brand Name:feixiang
- Model Number:RapidFIRE

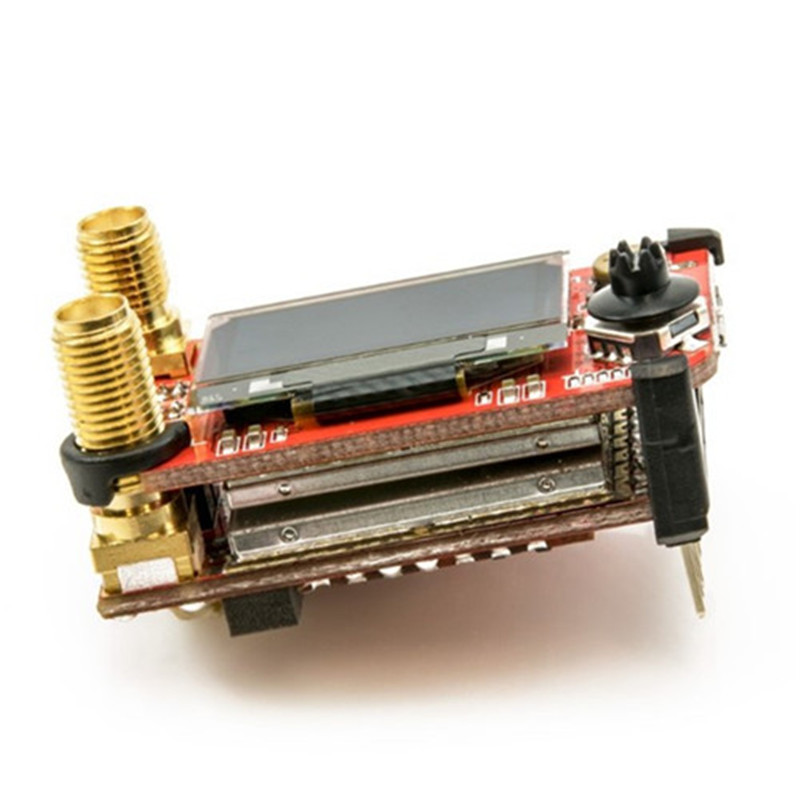

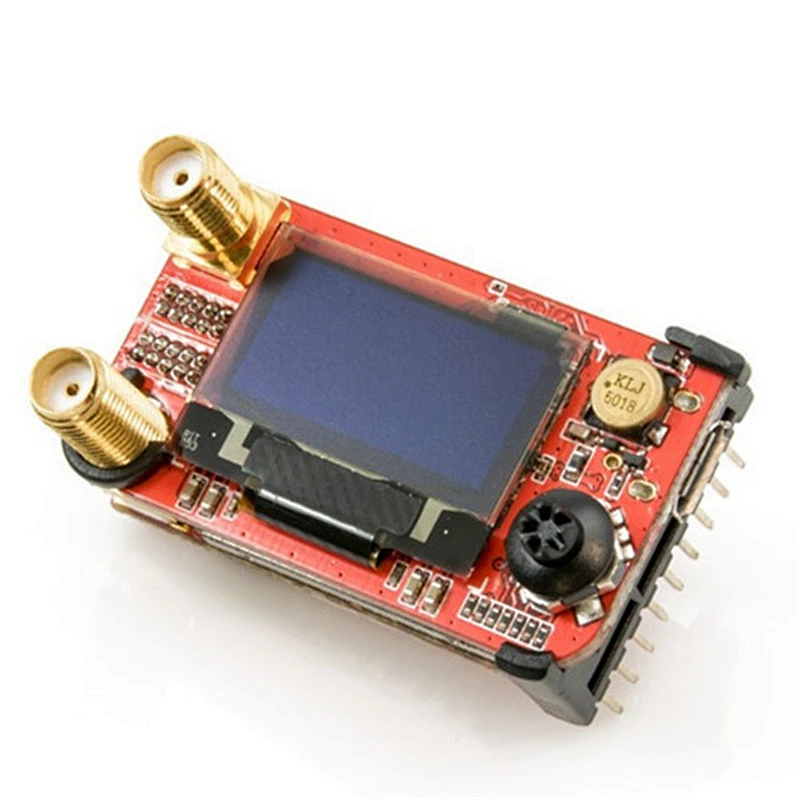

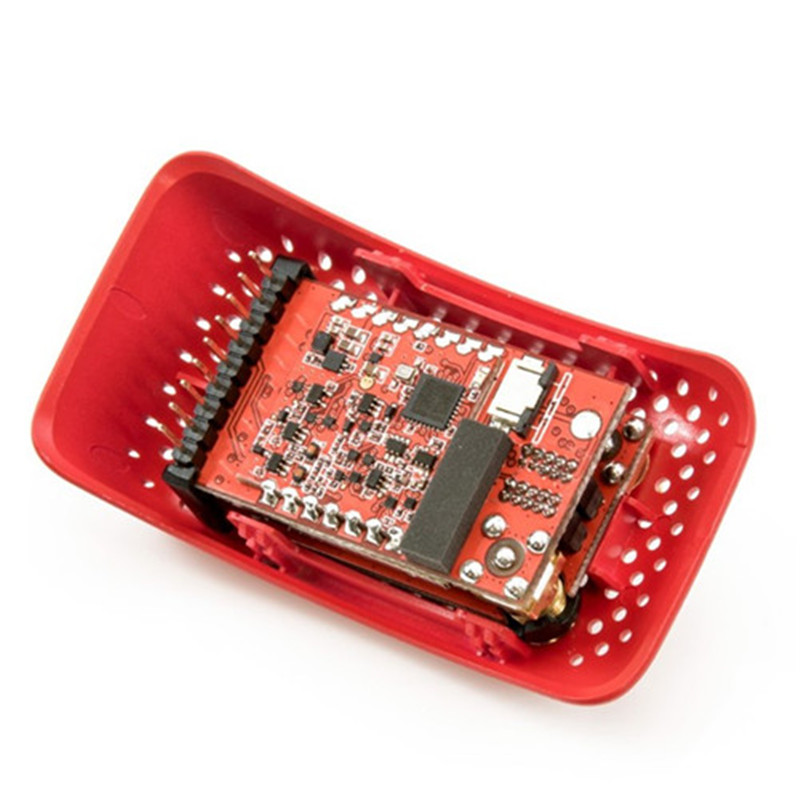

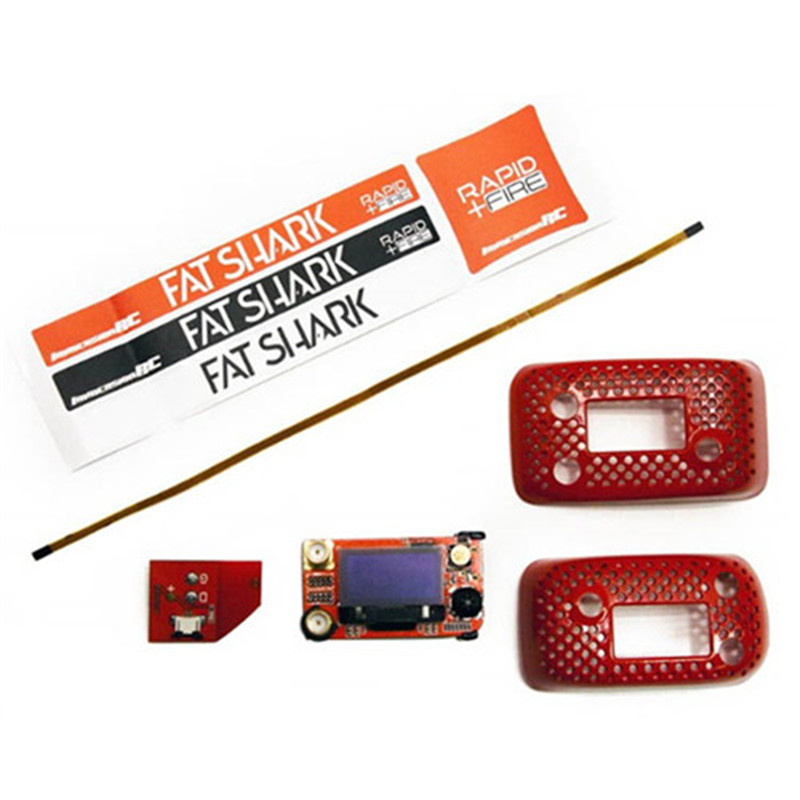

FeaturesThe ImmersionRC rapidFIRE w/ Analog PLUS Goggle Receiver Module is more than a diversity receiver.By using advanced algorithms it takes the best signal from each antenna and blends them into the clearest FPV picture possible.Compatible with Fat Shark Dominator style goggles with a Receiver Module Bay.The rapidFIRE technology 'fuses' together the images from two 5.8GHz A/V receiver modules into one beautiful, interference-free image.Tearing and rolling are eliminated. Optimized for use in environments with multipathing interference (indoor racing, bandos, etc. ) but with superb sensitivity for long range use. - Compatible with all Dominator LCD goggles including v1, v2, v3, SE, HD1, HD2, HD3, HDO, and Attitude v3/v4. - Injected and beautifully painted module bay doors for Dominator and Attitude included. - For Attitude and HDO goggles, the module is plug and play. For others, an included headtracker-bay aux power board, with flat-flex cable is included. - Future-proof with USB port, allowing future firmware updates. - Easy menu navigation... no 'single button user interface here', a 5-way joystick is used to scroll around the responsive OLED display, with feedback of critical parameters displayed on the OSD. - Built-in spectrum analyzer, favorites channels with live single-channel spectrum display for manual tuning, and band scanning. -When used to time races, the rapidFIRE technology eliminates dropped frames from the FatShark DVR. Finally DVR footage can be compared for photo-finishes.
Product Description
Specification
item | value |
Frequency Range: | 5.3-6.0GHz |
Sensitivity: | Best In Class (stable image at close to -100dBm) |
Bands: | IRC/FatShark, RaceBand, LowRace, Band A, B, E, Favorites |
Channels: | All of the standard ones, plus favorites (custom frequencies) |
Antenna Connectors: | 2x Standard SMA (not RP-SMA) |
Weight: | 80g |
Voltage: | 5.0V nominal |
Consumption: | 350mA @ 5V with both modules enabled, less than 300mA in low-power mode |
Cabling: | Plug and Play for Attitude, Dom HDO. Included Aux Power cable for others |
Display: | 96” Monochrome OLED |
Input: | 5-way Joystick + Integration with FatShark Channel Buttons |
Sound: | Audible Beeper to indicate marginal reception |
Modes: | rapidFIRE, classic Diversity, power-saving single module modes |
Compatible Headsets: | Dominator V1, V2, V3, SE, HD1, HD2, HD3, HDO, Attitude V3, V4 |
Updates: | Integrated USB port, Windows application for updates |
Module Doors: | Dominator and Attitude module doors (Gloss Ferrari™ Red) |
Aux Power: | Auxiliary (HT) power board + self-adhesive flat-flex cable |
Packing & Delivery
Our Services & Strength We provide customers with procurement services, we have not any MOQ for our customers. Shipping We adopt EXW term. Generally, wechoose, DHL, FedEx, EMS or UPS as our forwarder. Of course, you can choose your own most favorable forwarder, and we would providethe freight bill according to the quantity and weight of the total products, Freight Collect can also be acceptable. Payment Weadopt T/T payment methods. After we receive your payment, we will arrange shipment. All banking charges and interest are chargedto purchasers. Warranty Procedure As long as you have a friendly business relationship with us, you can enjoy the warranty servicethat we provide. Please print our Repair Request Form (.PDF, .DOC) and fill it out in its entirety, being as comprehensive aspossible, in order to receive the best possible service. Warranty Period All products are warranted against defects for a periodof one (1) years from the date of purchase. During this period we will repair or replace (at our discretion) any defectiveproducts. You should always retain your original receipt as proof of the date of purchase.
