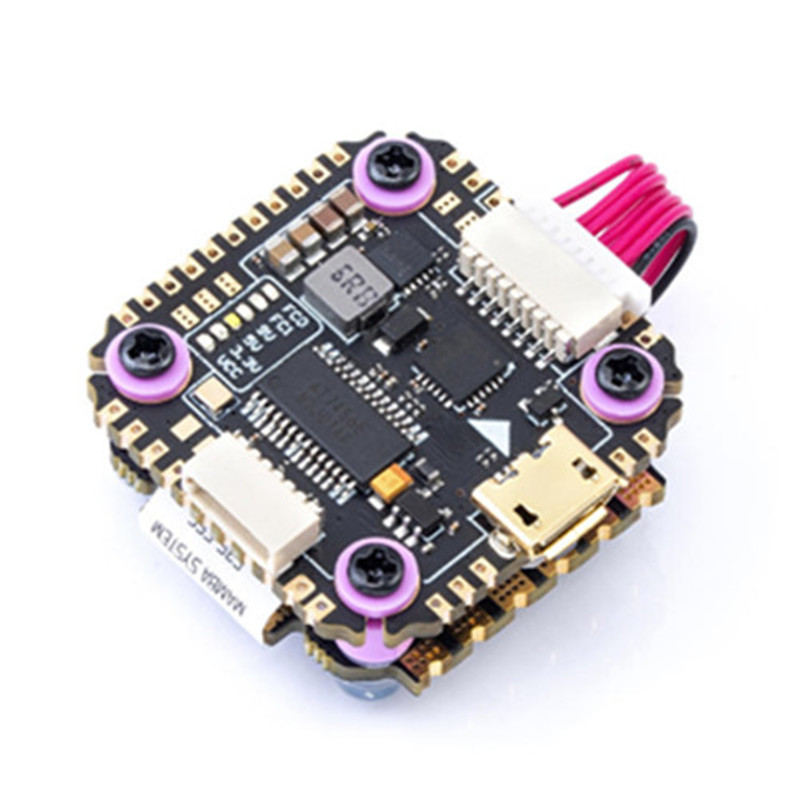

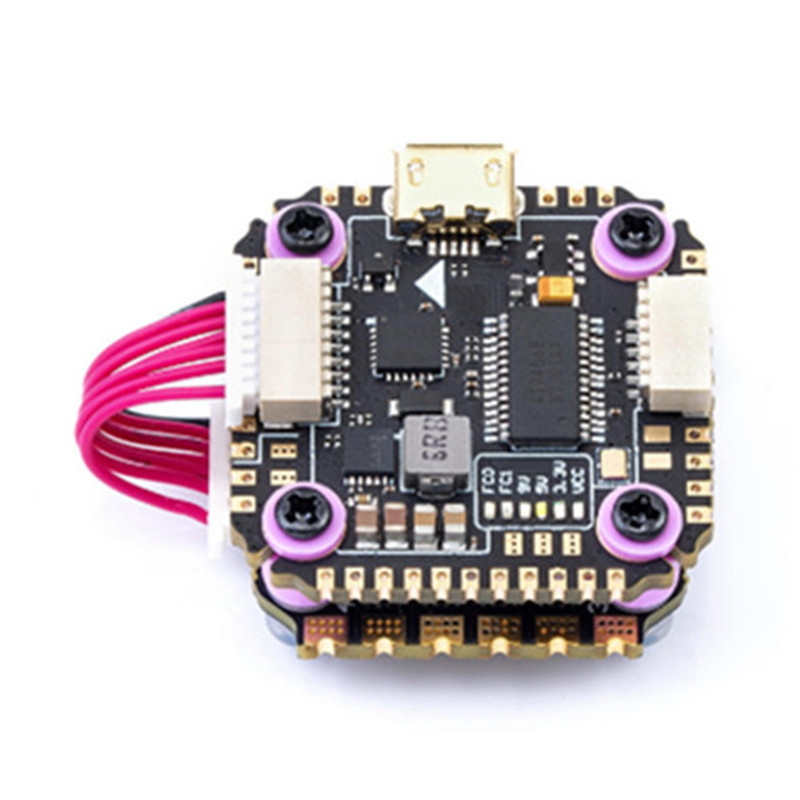

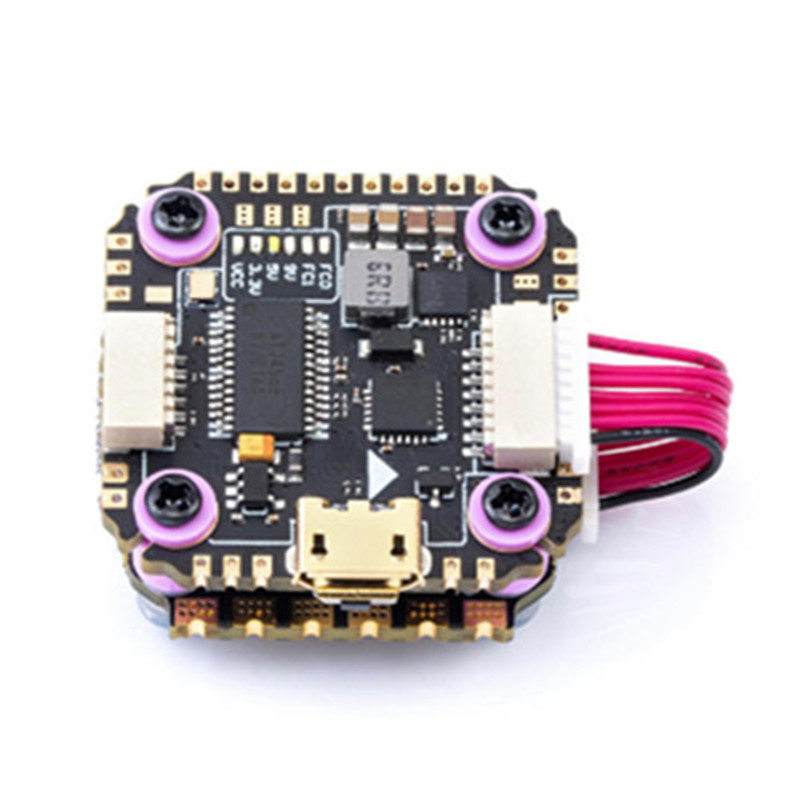

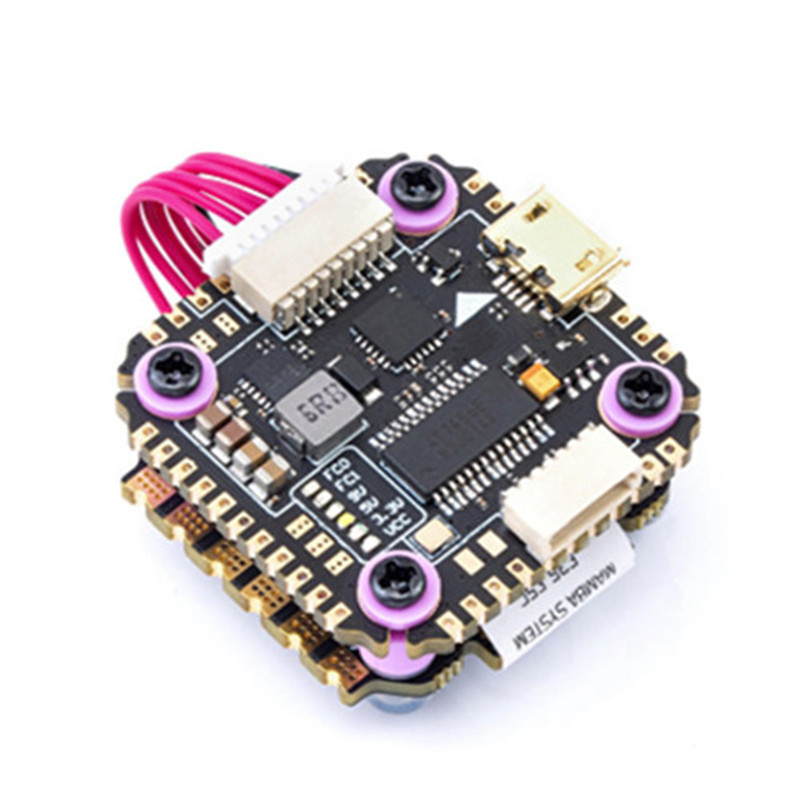

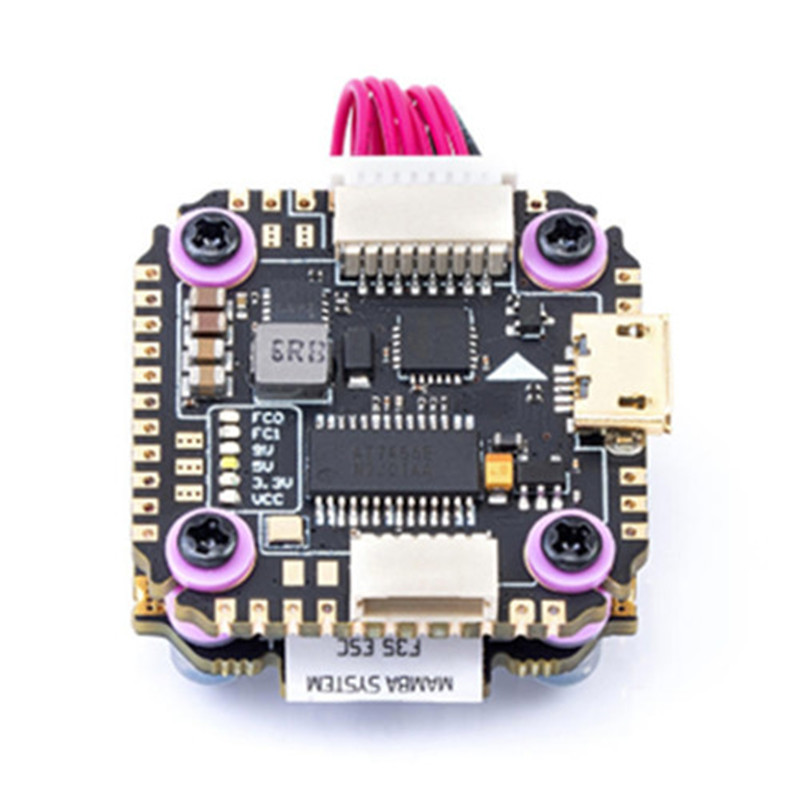

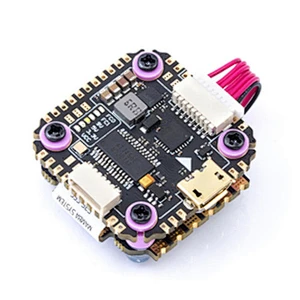

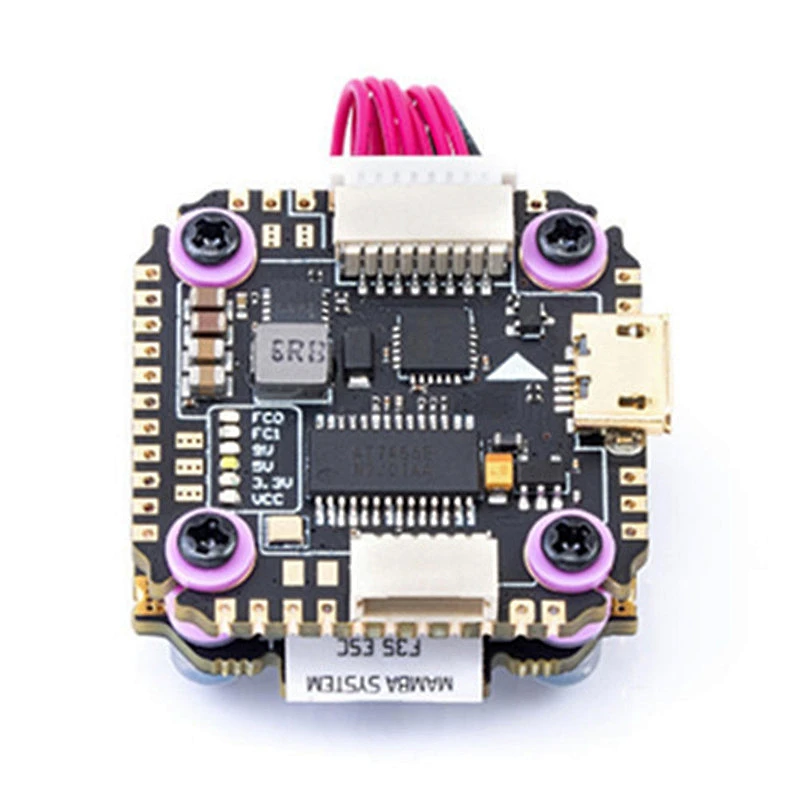

Another flight controller/ESC option from Diatone for your builds with DJI air Unit or Caddx Vista Digital HD sytem, This one comes in the form of 20*20mm mounting with F405 processor and industry standard MPU6000 Gyro.
- IMU:MPU6000
- OSD:BF OSD
- ESC Soft:Dshot300/600
- Input:2~6S Lipo (8.4~25V)
- Mounting:20x20mm
- Input voltage:3-6S LIPO (12.5- 25V)
- Burst Curr:200A
- Website:www.lxrcmodel.com
- Use:Vehicles & Remote Control Toys
- Model Number:MB-F405-35A
- Brand Name:feixiang
- Place of Origin:CN;GUA
Product Description
FC Specifications | ||
MCU: | STM32F405 | |
IMU: | MPU6000 | |
Baro: | No | |
OSD: | BF OSD | |
Uarts: | 6Set | |
ESC Soft: | Dshot300/600 | |
LED: | Blue&Orange for FC Status,, White 5V, Red 3.3V | |
WS2812 LED Control: | BF LED Control | |
Smart audio: | Yes | |
Input: | 2~6S Lipo (8.4~25V) | |
UARTS: | 6 Ports | |
DJI PORT SUPPORT | ||
BEC: | 5V 2A&9V 1.5A | |
FC Firmware | BetaFlight | |
Target: | MAMBA F405US | |
Mounting: | 20×20mm,Φ2 | |
Dimensions: | 30×36.5×13.5mm | |
Weight: | 3.9g | |
Mamba F35 35A ESC | ||
Item name: | Mamba F35HV ESC | |
Input voltage: | 3-6S LIPO (12.5- 25V) | |
Burst Curr : | 200A | |
MAX: | 45A(8S) | |
BEC: | NO | |
Mounting Size: | 20×20mm,⌀ 2 | |
Mounting Hole: | M2 | |
Weight: | 7g | |
Features:
Related Products
Packing&Shipping

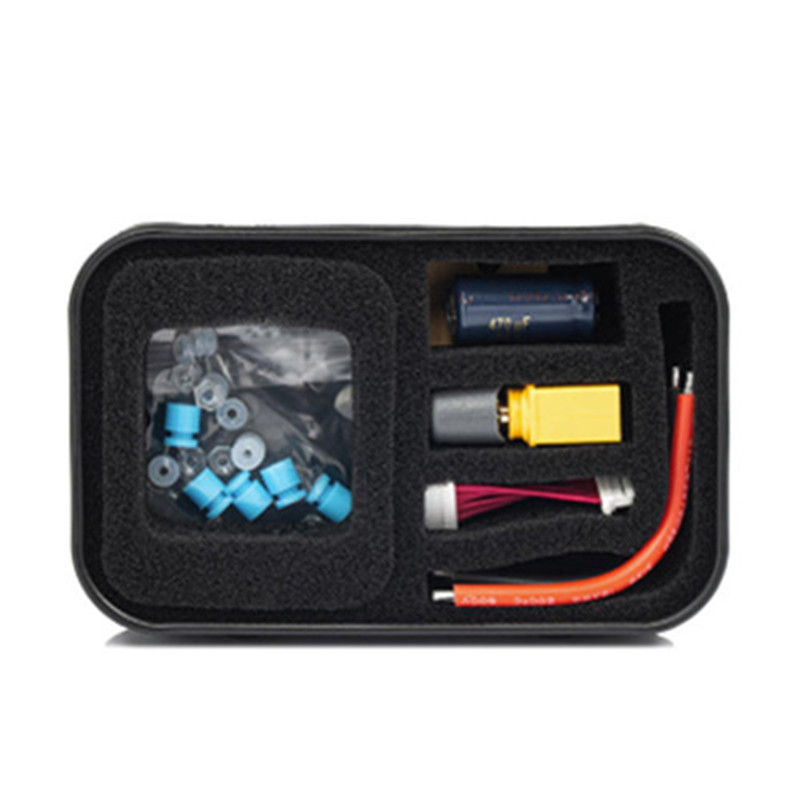

Mamba F405 Mini DJI Betaflight FC x 1Mamba F35 35A 6SHV ESC x 1
Company Introduction

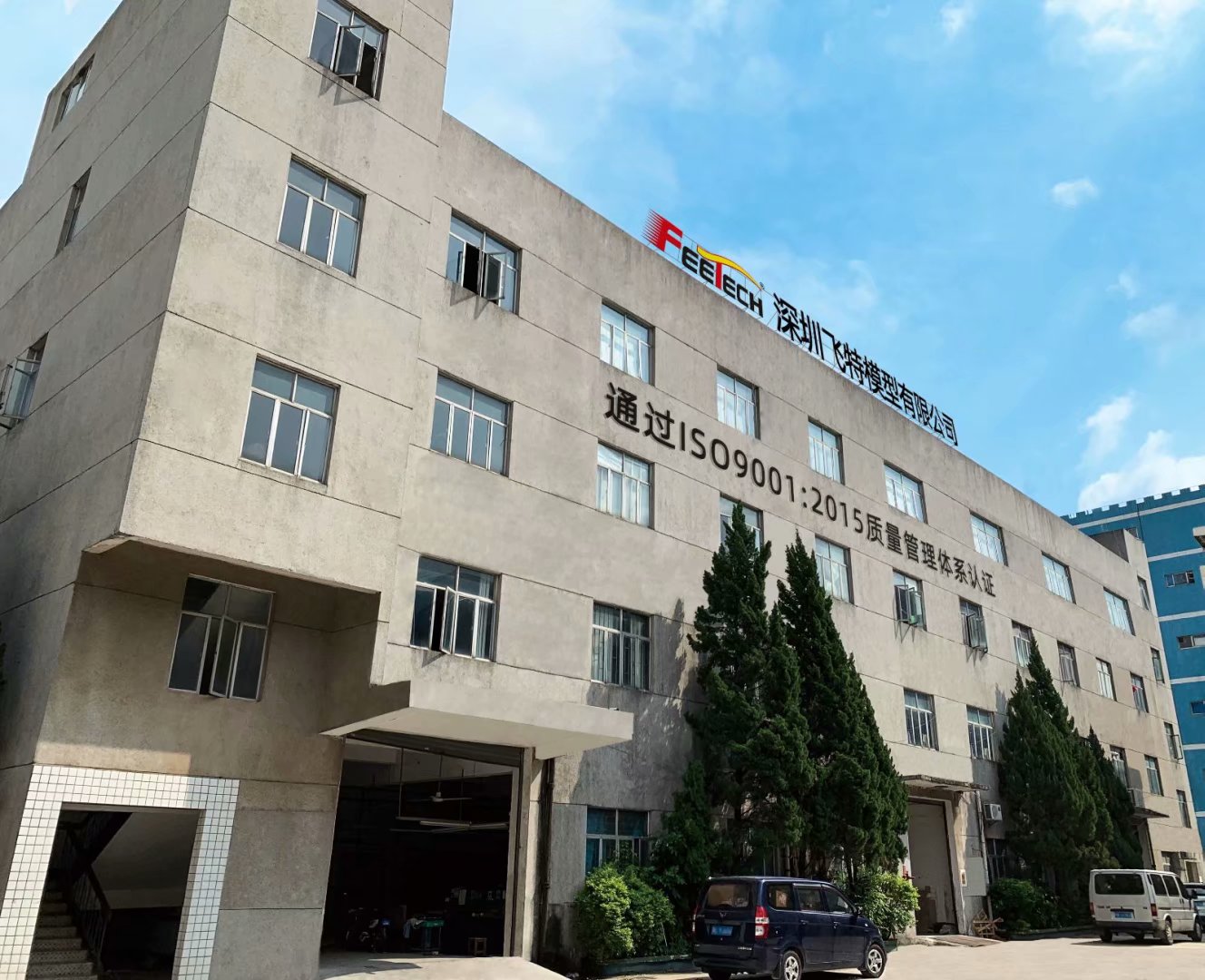

Shenzhen Feixiang Model Co, Ltd. Was established in 2003, We deal with various kinds of R/C hobbies and R/C toys. Such as R/C
