• Input:7-30V MAX18A
• Bal Current:800mA 2-8S
• Accuracy:±0.01V
• Charging Power:0.1-18A 400W
• Recycle Mode:0.1-5A 20W Normal Mode
• USB:2.1A 5.0V upgrade
• Size:98mm*68mm*35mm
• Weight:170g
• website:www.lxrcmodel.com
• Use:Vehicles & Remote Control Toys
• Brand Name:ToolkitRC
• Model Number:LC-M8S
• Place of Origin:CN

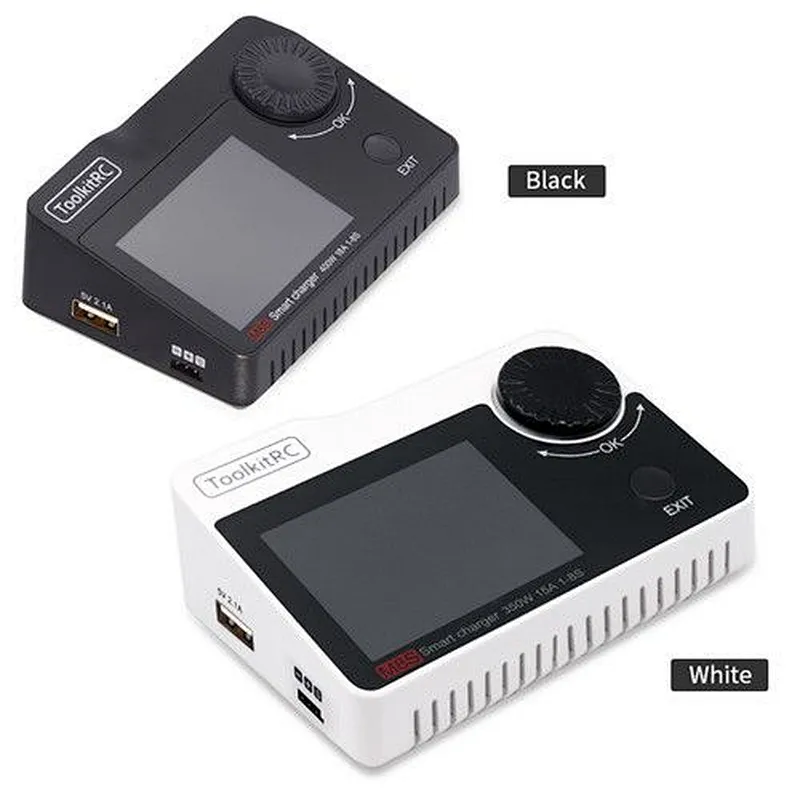

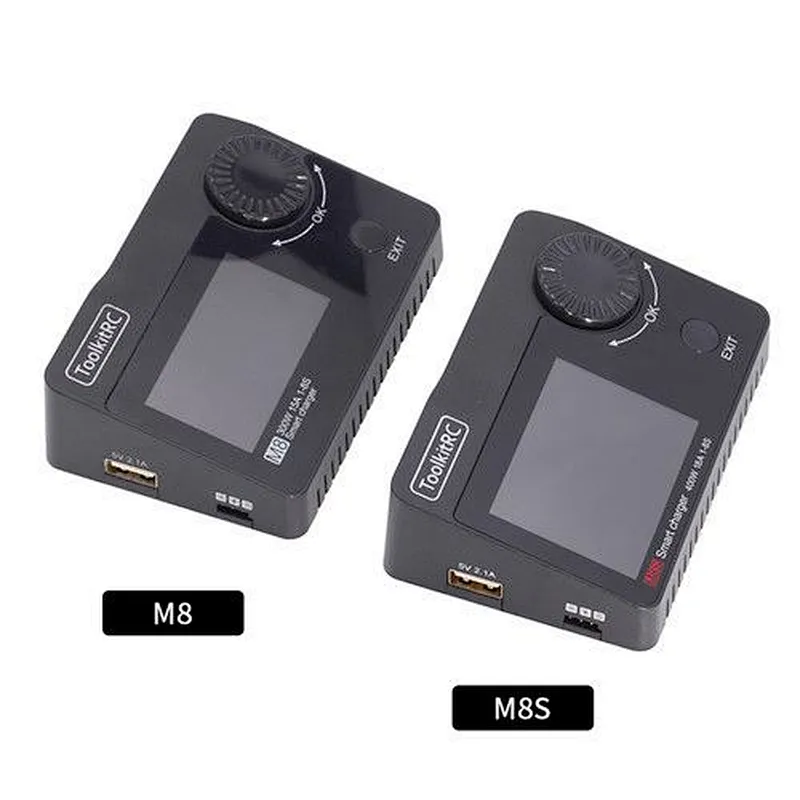

ToolkitRC M8S 400W 18A Color Screen Balance Charger Discharger for 1-8S Lipo LiHV Pb Battery

What is the Details of our Servo?

Features

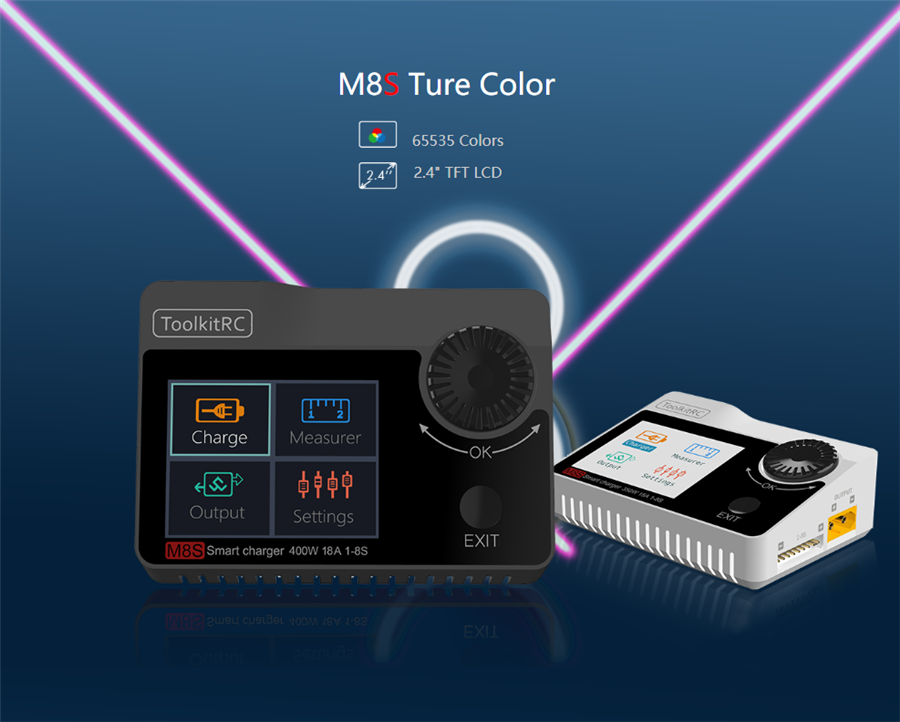

2.4"Color Screen
Battery Charger
Cell Checker
Servo Tester
PWM,PPM.SBUS Input/output Receiver & Flight control tester
Viable AMp/volt DC Power supply (Required external DC input)

Product Details
Input: 7-30V @MAX18A
Battery Type: LiPo LiHV LiFe Lion @ 1-8S NiMh @1-20S Pb @1-12S
Bal Current: 800mA @2-8S
Accuracy: ±0.01V

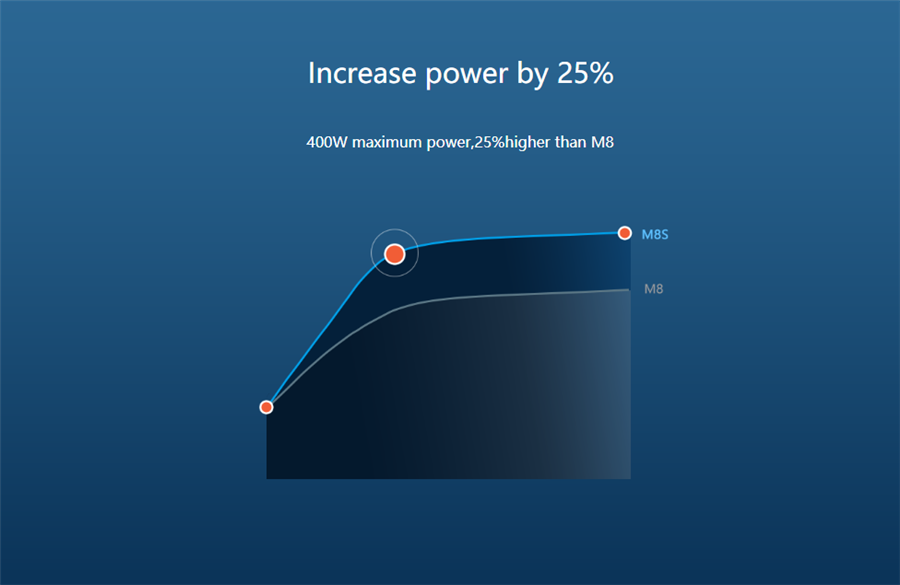

Charging Power: 0.1-18A @ 400W
Discharging Power: 0.1-18A @ 400W
Recycle Mode: 0.1-5A @ 20W Normal Mode
USB: 2.1A @ 5.0V upgrade

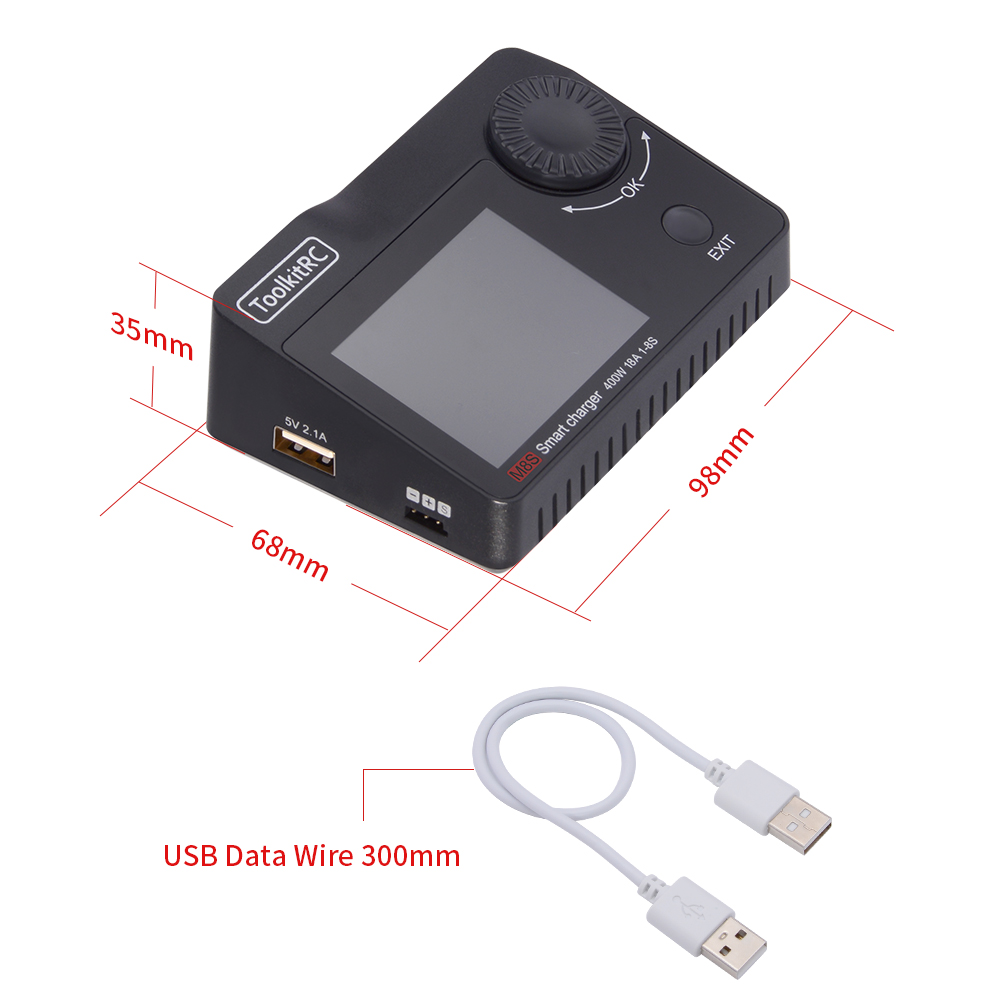

Size: 98mm*68mm*35mm
Weight: 170g

Measuring:
PWM 880us-2200us @20-400Hz
PPM 880us-2200us*8Ch @20-50hz
SBUS 880us-2200us*16ch @20-100Hz
Voltage 1.0V-5.0V @1-8S
IR 1-100mR @1-8S

Output:
PWM 500us-2500us @20-1000Hz
PPM 880us-2200us*8ch @50hz
SBUS 880us-2200us*16ch @74Hz
Power 1-18A @ 1-30V Mode: CC+CV

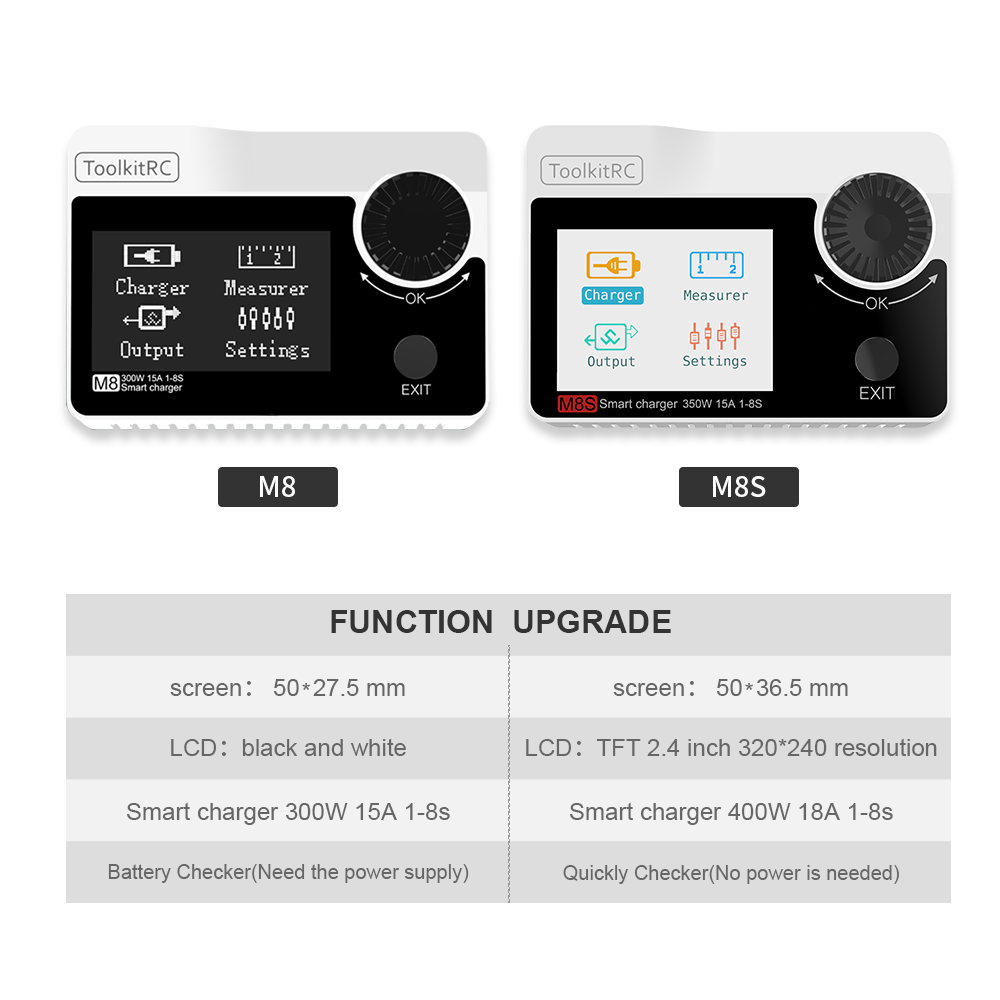

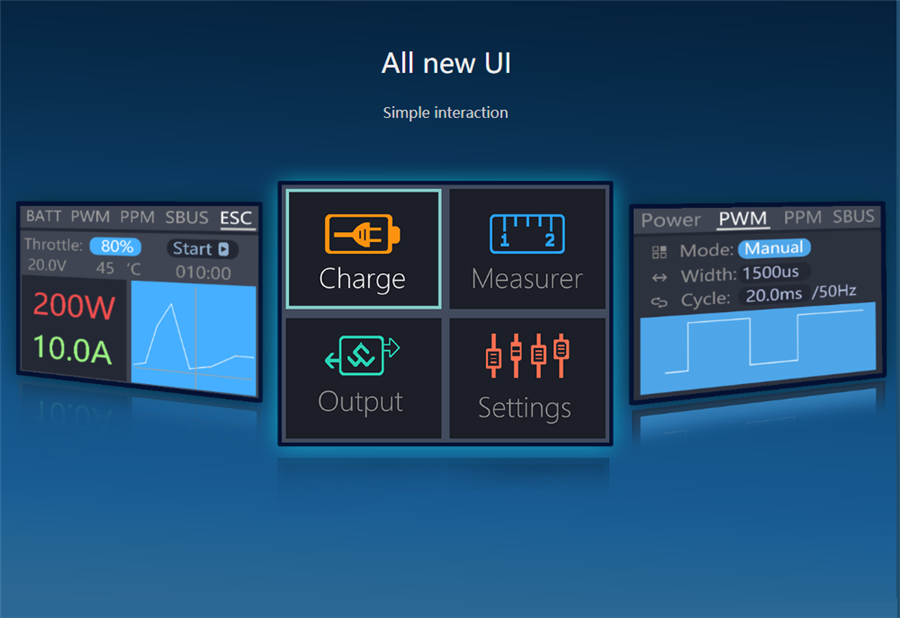

Display:LCD TFT 2.4 inch 320*240 resolution

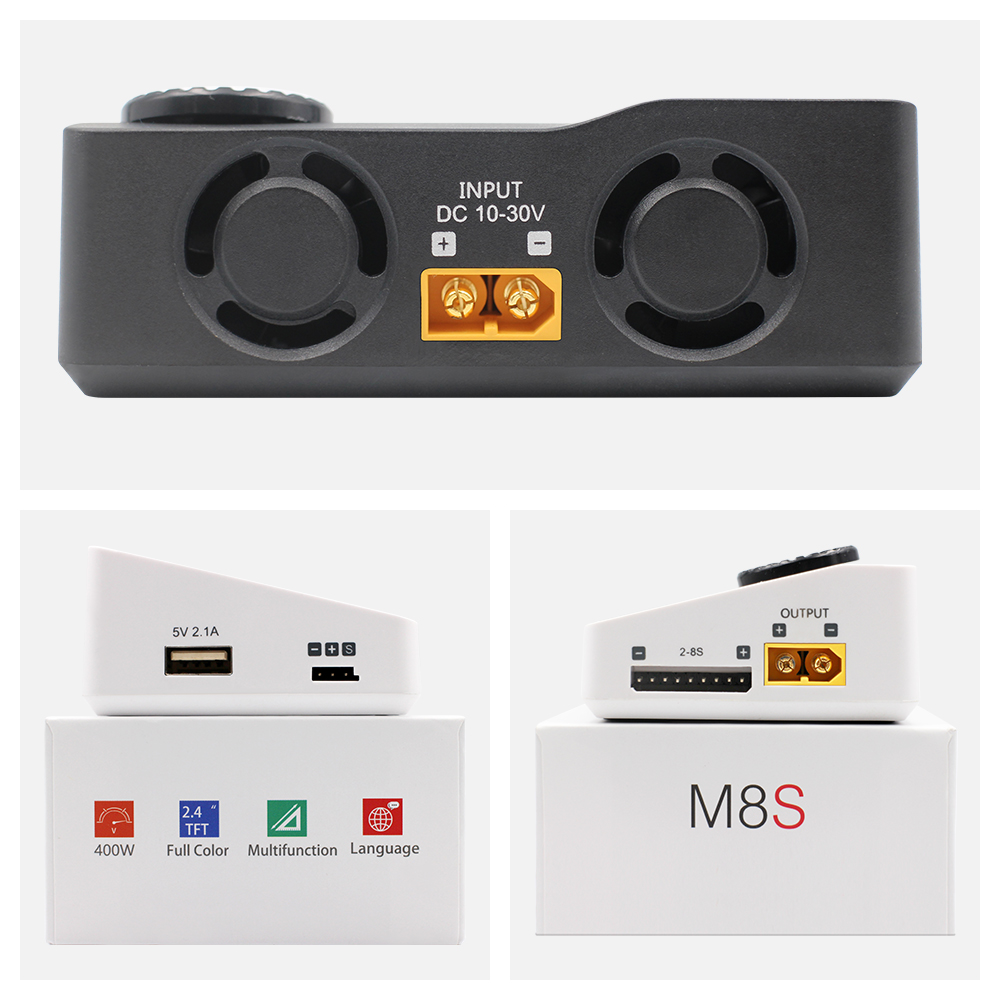

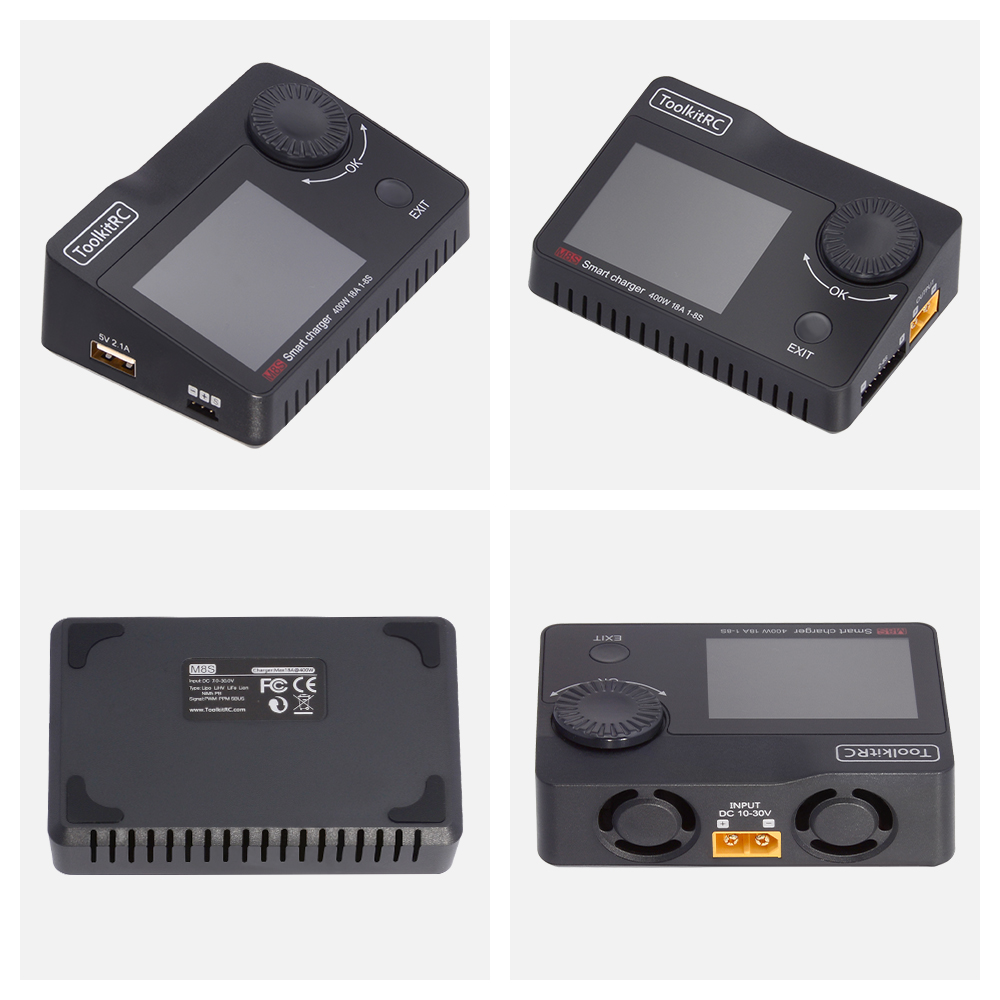

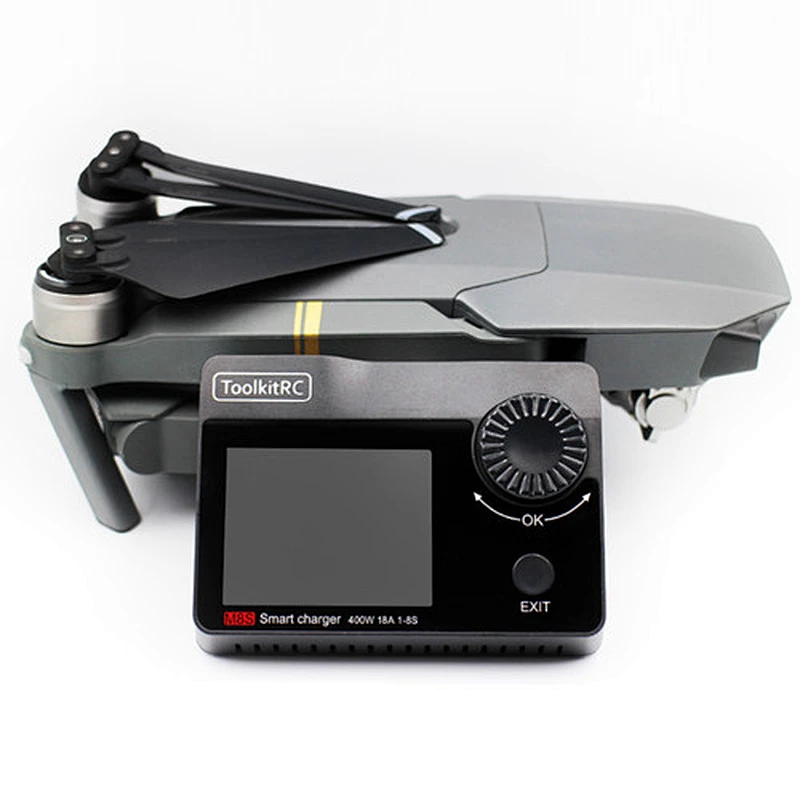

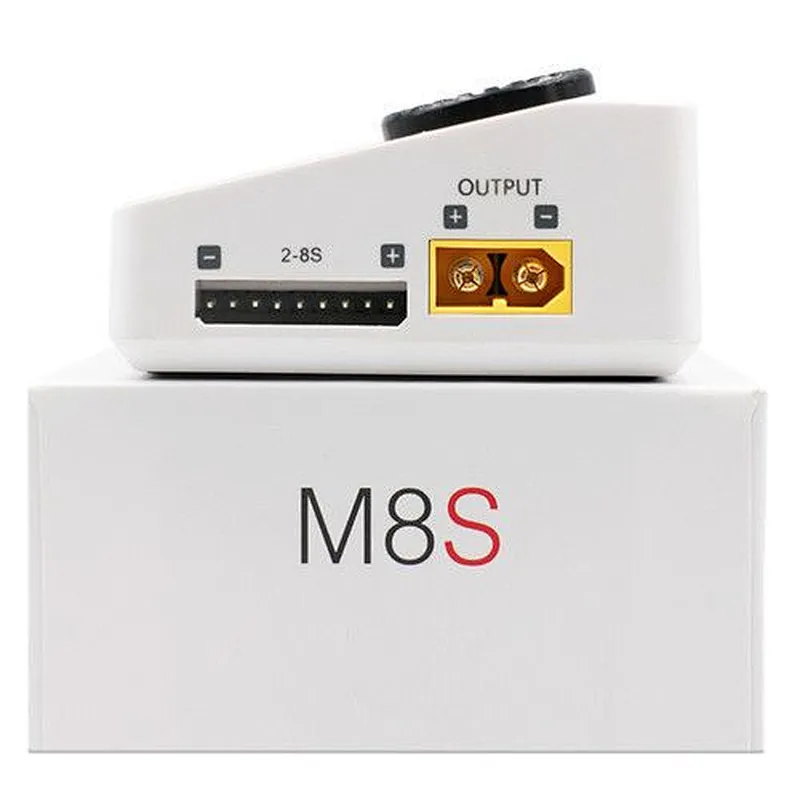

Product Picture

Product Pictures

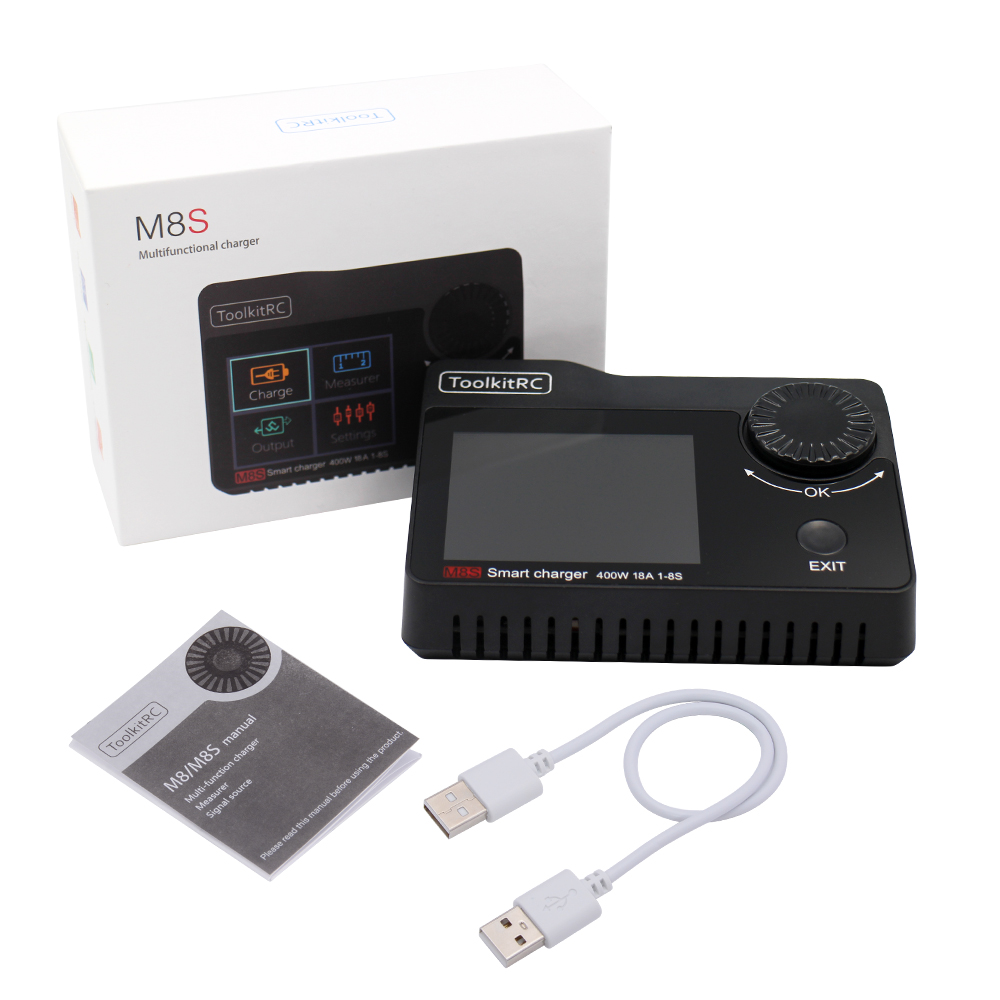

Item Packing

ToolkitRC M8S x 1





You can visit our wholesale online shop: www.lxrcmodel.com.



Regarding to the shipment, We can ship by EMS, Fedex, DHL, UPS, Air Mail, Sea.



Regarding to the payment, We can accept pay by Paypal, Western Union, Bank Transfer



We have not any MOQ for our customers

If there is any problem, you can tell me that I would be happy to answer it for you.
