- Website:www.lxrcmodel.com
- Use:Vehicles & Remote Control Toys
- Place of Origin:CN;GUA
- Brand Name:ToolkitRC
- Model Number:LC-M6WH
Product Description
Charger | ||

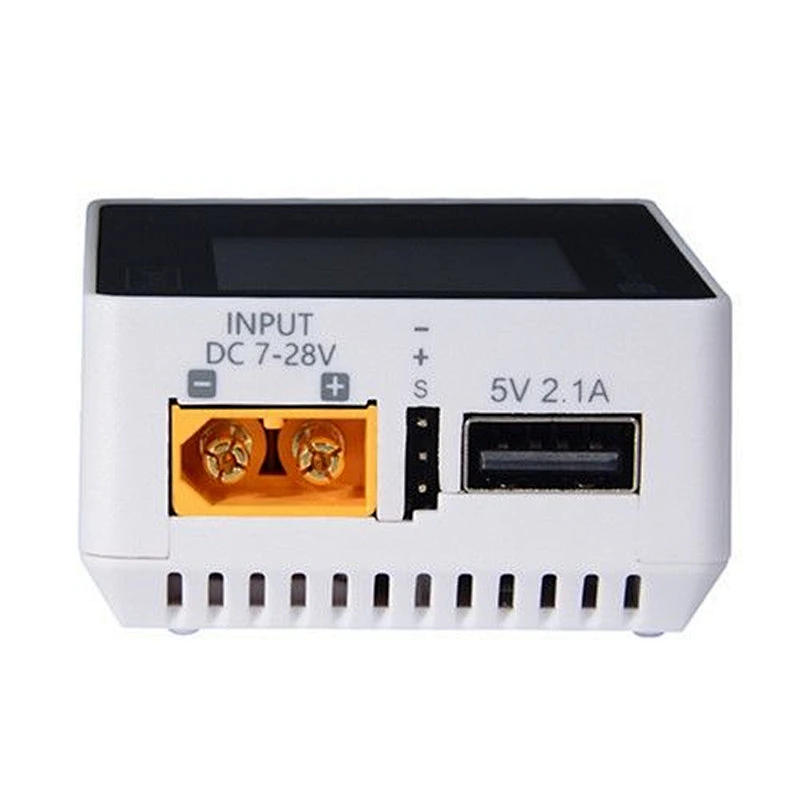

Input voltage： | 7.0-28.0V @MAX 12A | |
Type of battery： | Lipo LiHV LiFe @1-6S NiMh @1-16S Pb @1-10S | |
Balance current： | 400mA @2-6S | |
Charger power： | 150W @MAX 10A | |
Discharge power： | 150W @MAX 10A Recycle mode 8W@2A Normal mode | |
USB： | 2.1A @5.0V or Upgrade | |
Measurer | ||
PWM： | 880-2200us @20-400Hz | |
PPM： | 880-2200us*8CH @20-50Hz | |
SBUS： | 880-2200us*16CH @20-100Hz | |
Voltage： | 1.0-5.0V @1-6S | |
Internal resistance： | 10-100mR @1-6S | |
Output | ||
PWM： | 500-2500us @20-1000Hz | |
PPM： | 880-2200us*8CH @20-50Hz | |
SBUS： | 880-2200us*16CH @20-100Hz | |
Power supply： | 1.0-28.0V @1.0-10A mode:CC+CV | |
OverCurrent Cutoff time： | 50ms | |
General | ||
Dimensions： | 70*50*26 mm | |
Weight： | 80g | |
LCD： | TFT 1.8inch LCD 160*128 Pixel | |

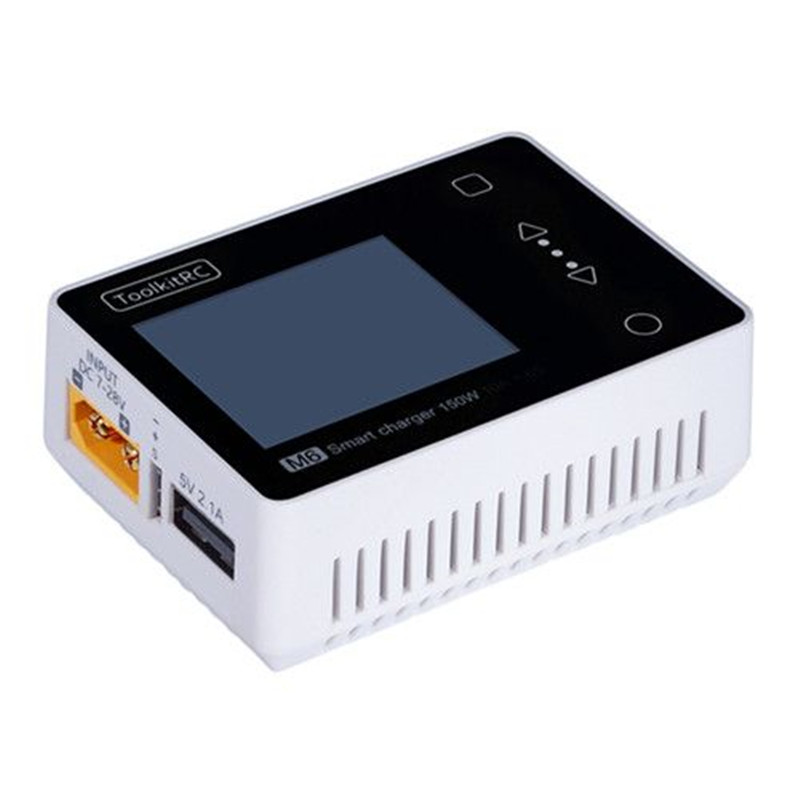

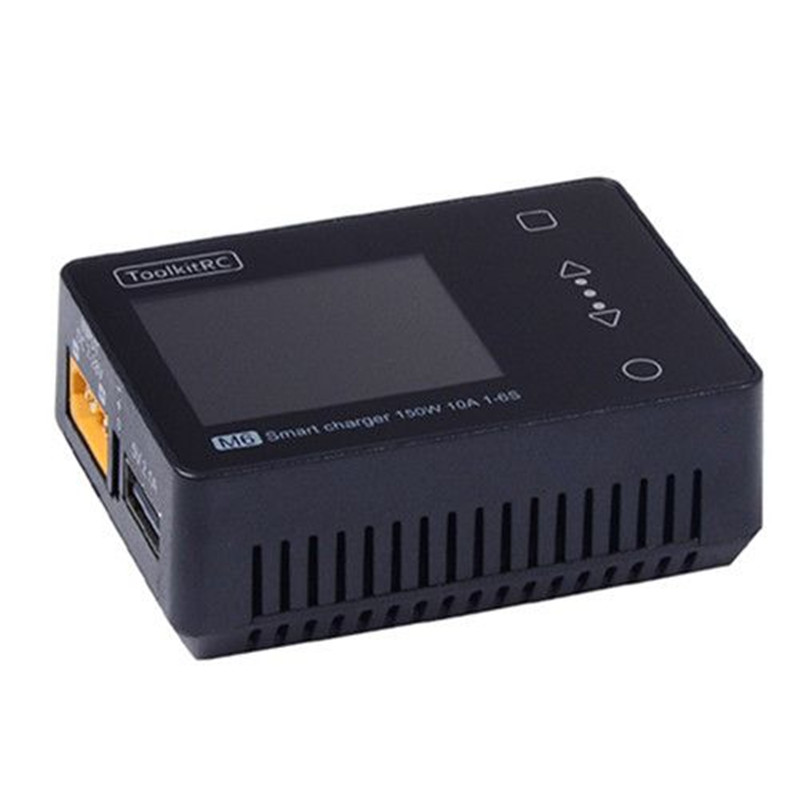

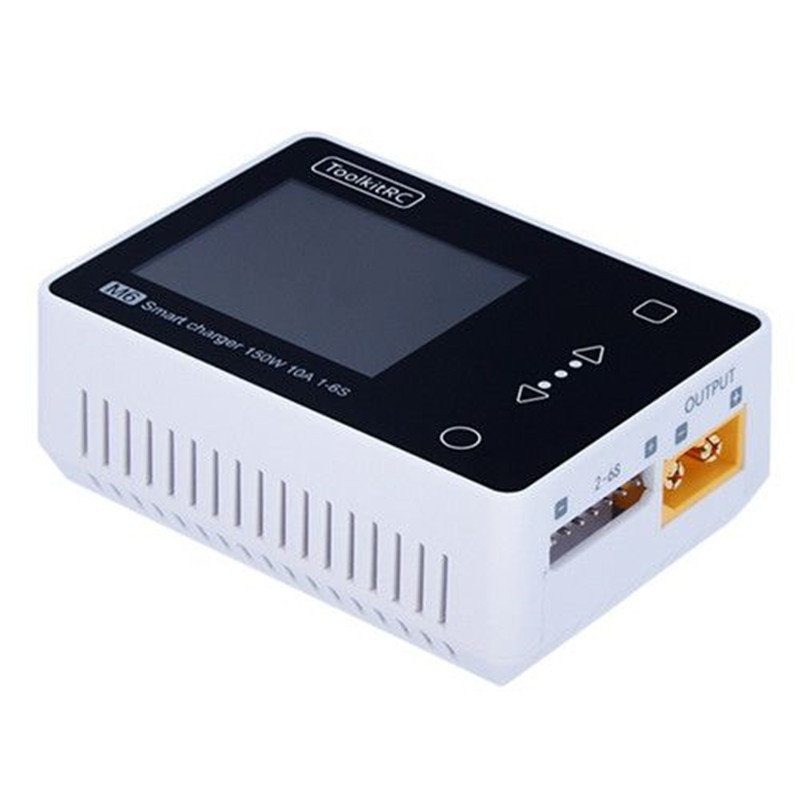

M6 Smaller, SmarterThe M6 is a newly designed highly integrated RC Toolkit that is small and easy to carry.
Details Images

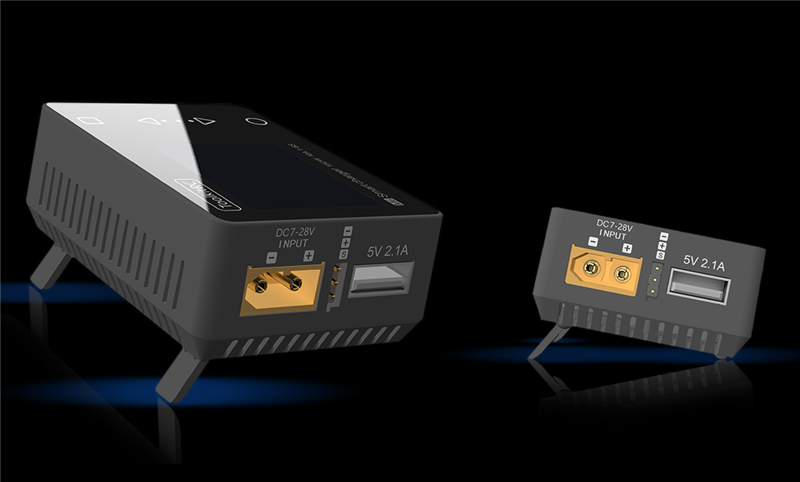

M6D Dual ChargerDual channel,small size high power density

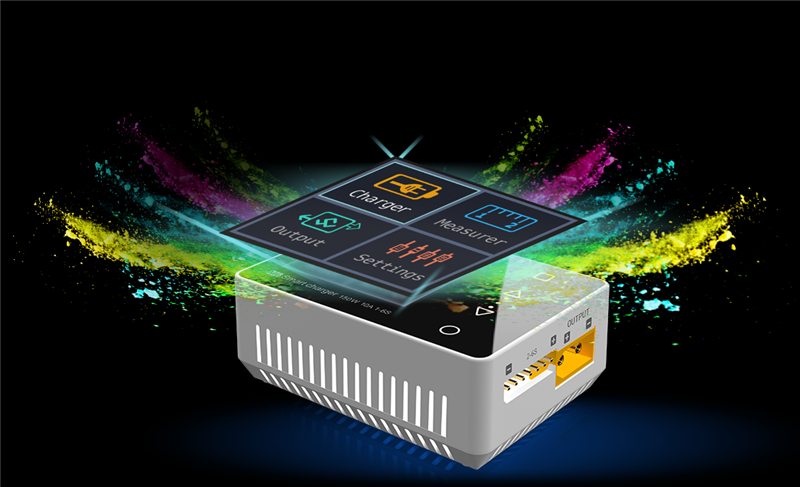

True color,More brilliant650,000 colors, TFT displayFor excellent you

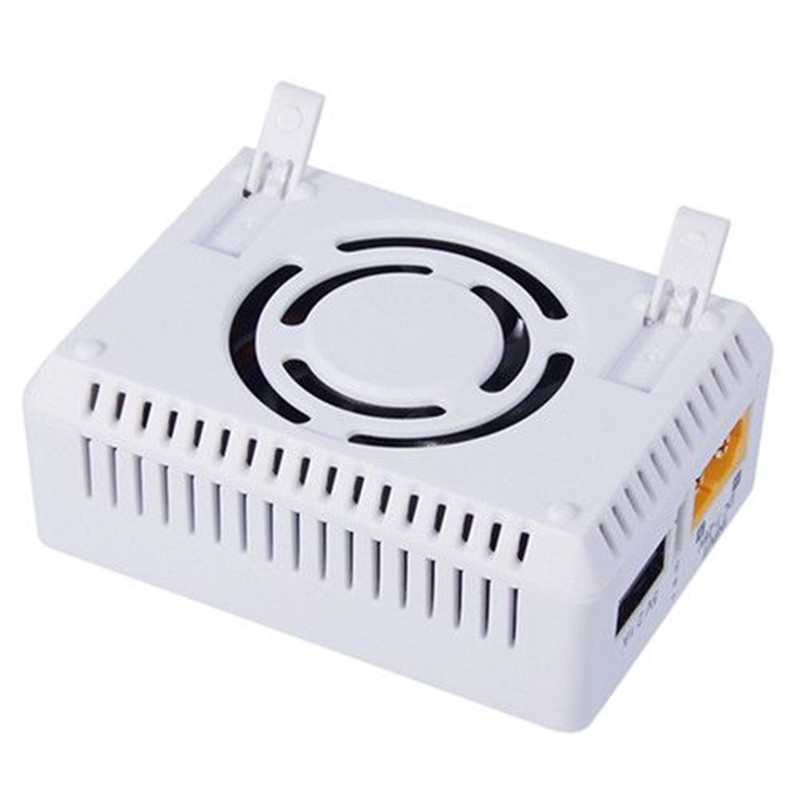

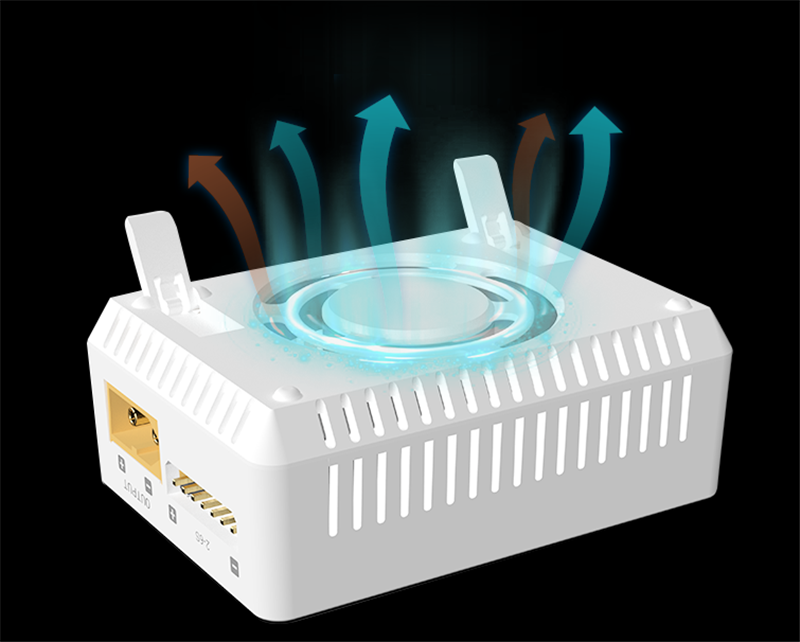

Keep Cool
New cooling system ensures cool and efficient operation
Product Usage

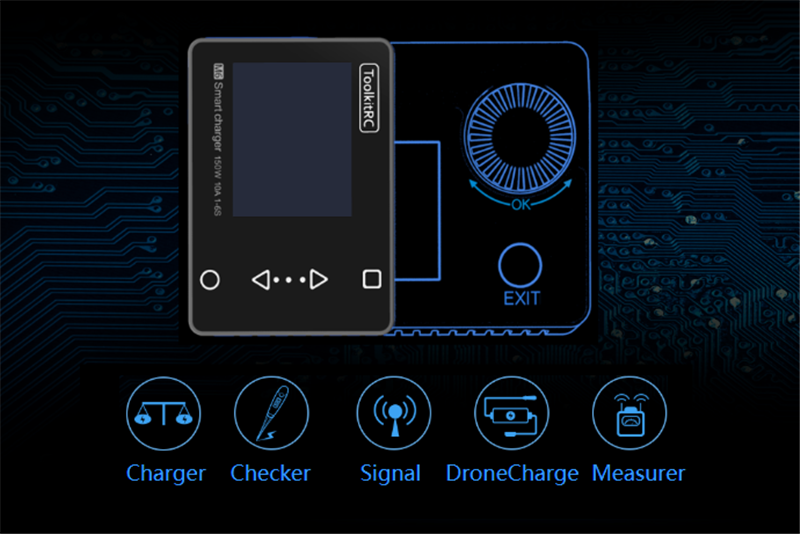

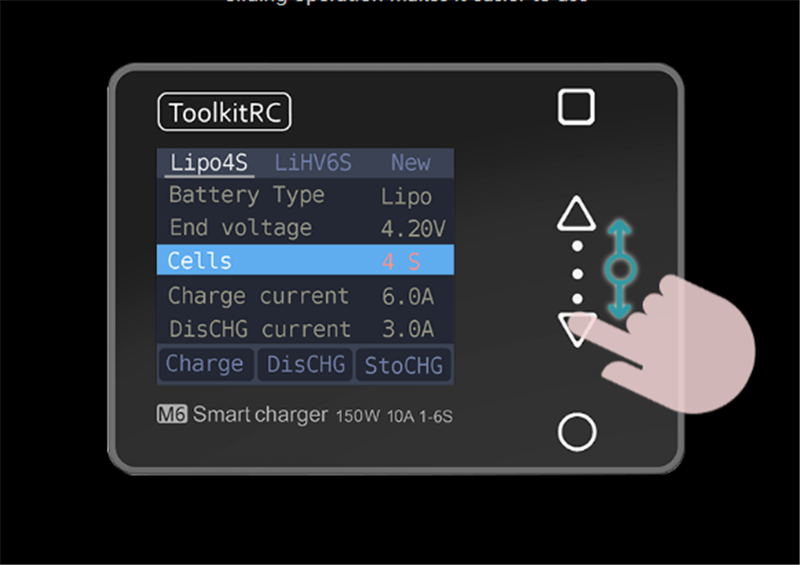

Smooth touchCapacitive touch keys for longer life Sliding operation makes it easier to use

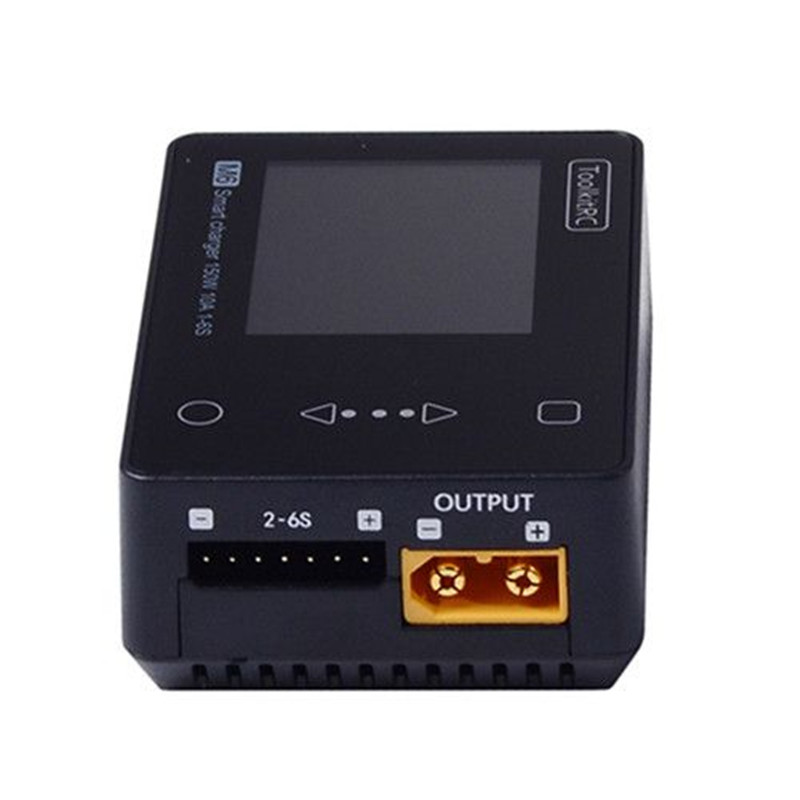

Small design, easy to useExtreme space saving compact design. Adjustable viewing angle for easy use
Related Products
Packing&Shipping

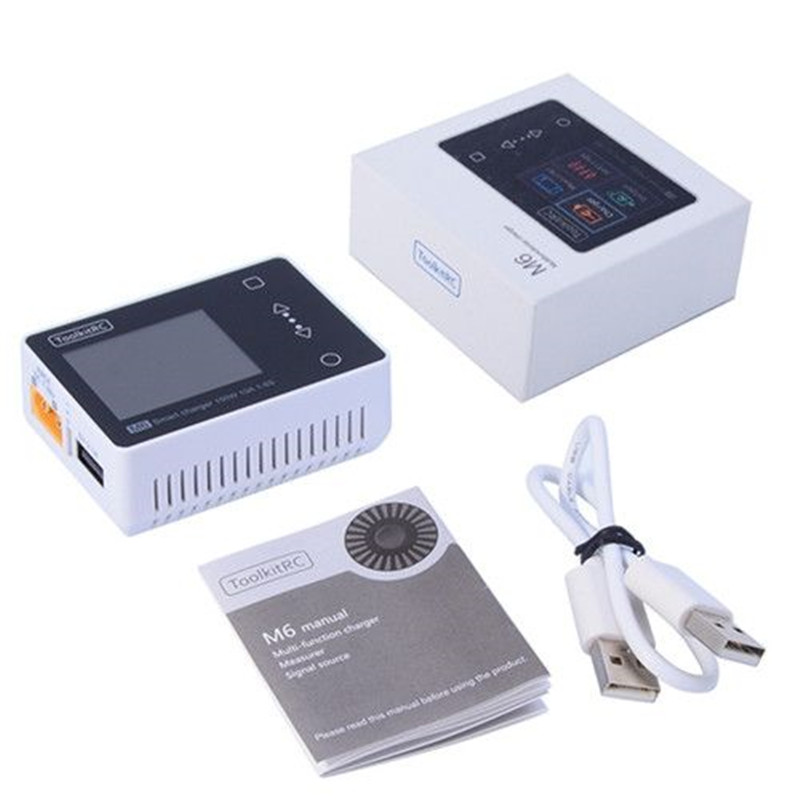

1 X ToolkitRC M6 Charger1 X USB Cable1 X Manual
