- Brand name:T-MOTOR

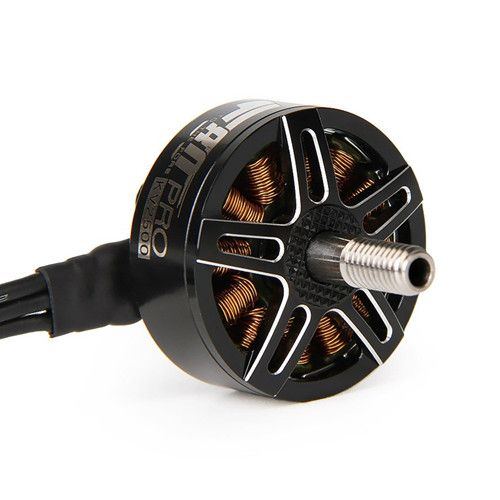

- Item name:F80 PRO Brushless Motor
- KV:2500KV
- Configuration:12N14P
- Internal Resistance:22mΩ
- Motor Dimensions (Dia.Len):29*33.6mm
- Shaft Diameter:4mm
- Motor Cable:20#, 150mm
- Motor weight (Incl. Cable):39.7g
- Motor weight (Excl. Cable):36.4g
- Use:Vehicles & Remote Control Toys
- Place of Origin:CN
- Brand Name:T-MOTOR
- Model Number:F80PRO-25
Features
Only 36.4g
The max trust 2kg+
Perfect for big frame as 300MM
KV1900/KV2200 high efficient for long range ,KV2500 for Freestyle&Racing
The max trust 2kg+
Perfect for big frame as 300MM
KV1900/KV2200 high efficient for long range ,KV2500 for Freestyle&Racing
Product Detail
Brand name: T-MOTOR
Item name: F80 PRO Brushless Motor
KV: 2500KV
Configuration: 12N14P
Internal Resistance: 22mΩ
Motor Dimensions (Dia.Len): Ф29*33.6mm
Shaft Diameter: 4mm
Motor Cable: 20#, 150mm
Motor weight (Incl. Cable): 39.7g
Motor weight (Excl. Cable): 36.4g
Rated Voltage (Lipo): 3-6S
Idle Current (10V): 2.5A
Max. Power (60s): 706W
Peak Current (60s): 47.6A
Item name: F80 PRO Brushless Motor
KV: 2500KV
Configuration: 12N14P
Internal Resistance: 22mΩ
Motor Dimensions (Dia.Len): Ф29*33.6mm
Shaft Diameter: 4mm
Motor Cable: 20#, 150mm
Motor weight (Incl. Cable): 39.7g
Motor weight (Excl. Cable): 36.4g
Rated Voltage (Lipo): 3-6S
Idle Current (10V): 2.5A
Max. Power (60s): 706W
Peak Current (60s): 47.6A

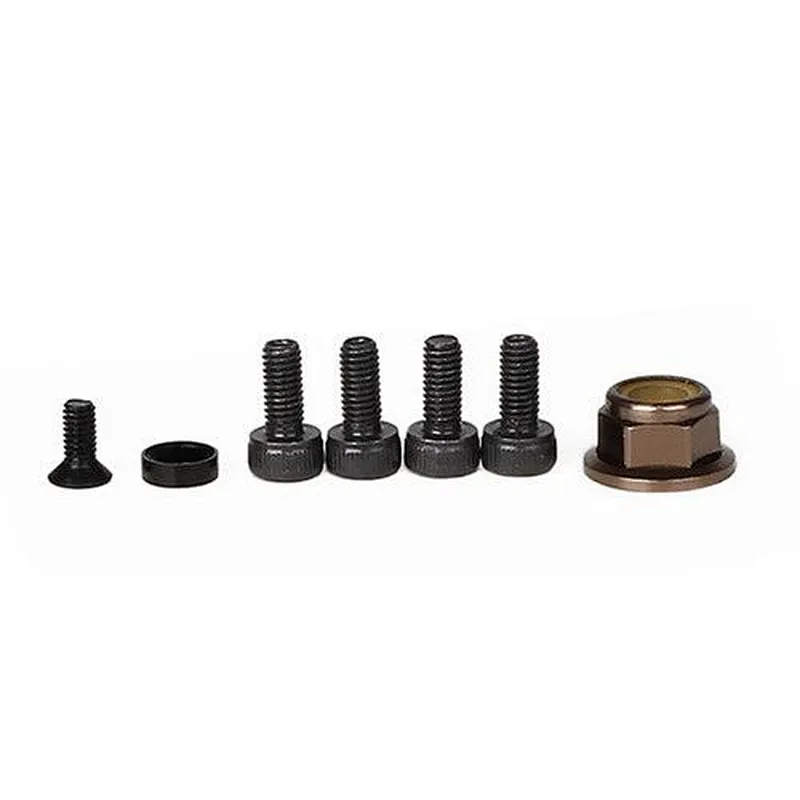

Item Packing
F80 PRO 2500kv Brushless Motor x 1
M2.5*6mm Black sink hexangular screw x 1
Black washer x 1
M3*7 Black cap head hexangular screw x 4
Aluminum flange self-locking nut x 1
M2.5*6mm Black sink hexangular screw x 1
Black washer x 1
M3*7 Black cap head hexangular screw x 4
Aluminum flange self-locking nut x 1
Detailed Images
