- Item Name:Mobula6 1S 65mm Brushless whoop drone BNF version
- Wheelbase:65mm
- Motor:SE0802
- Propellers:Gemfan 1219-3
- camera:Runcam Nano3
- Lipo Battery:300mAh
- Website:www.lxrcmodel.com
- Use:Vehicles & Remote Control Toys
- Place of Origin:CN;GUA
- Brand Name:Happymodel
- Model Number:Mobula6

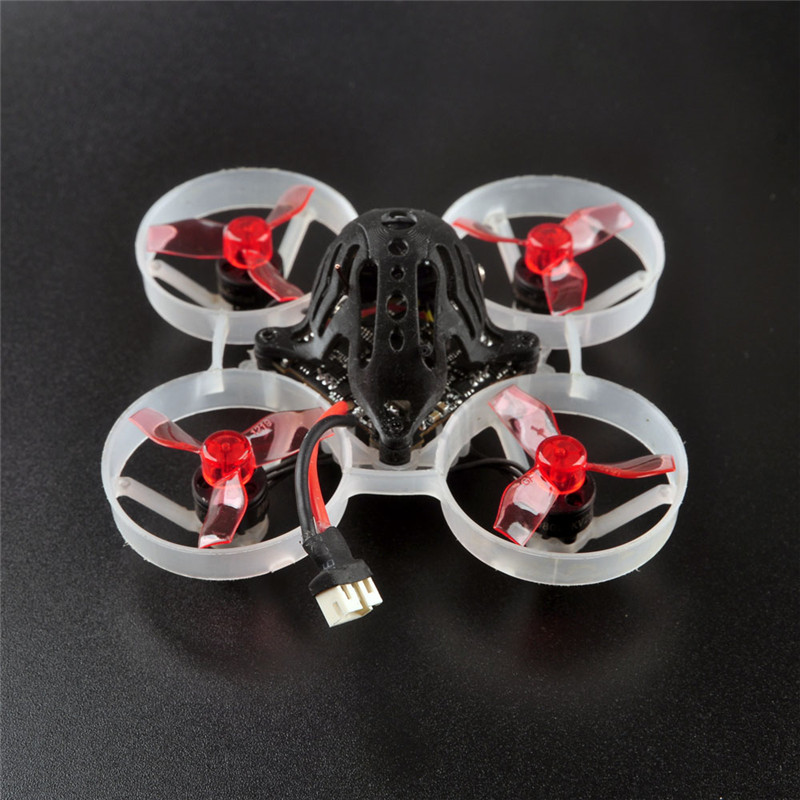

Only 20g Happymodel Mobula6 65mm Crazybee F4 Lite 1S Whoop FPV Racing Drone BNF w/ Runcam Nano 3 Camera
Product Images
What is the Details of our Product?

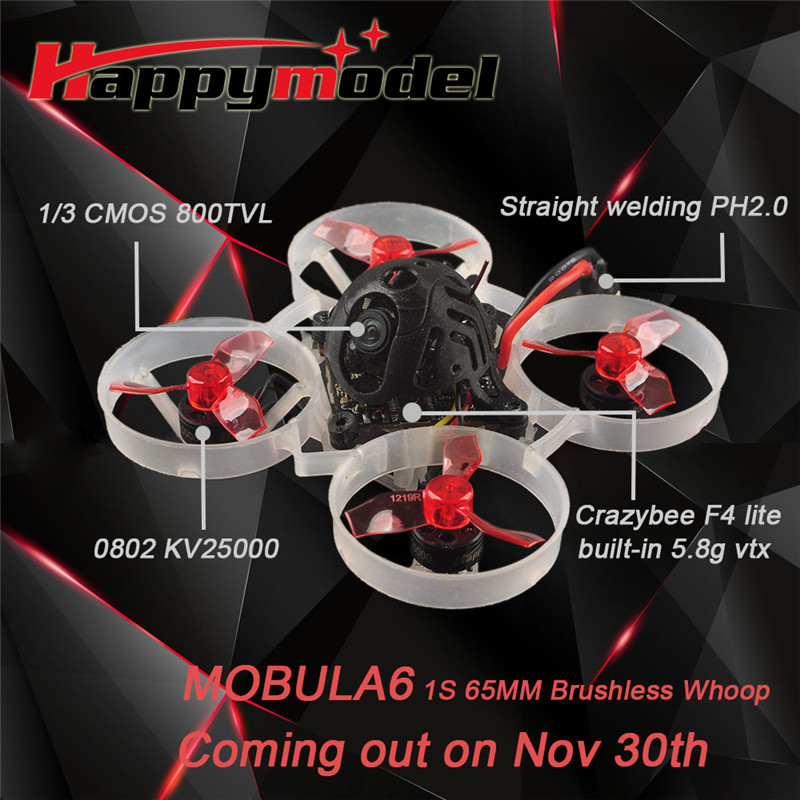

Features
AIO 4IN1 Crazybee F4 Lite flight controller built-in 5.8G VTX

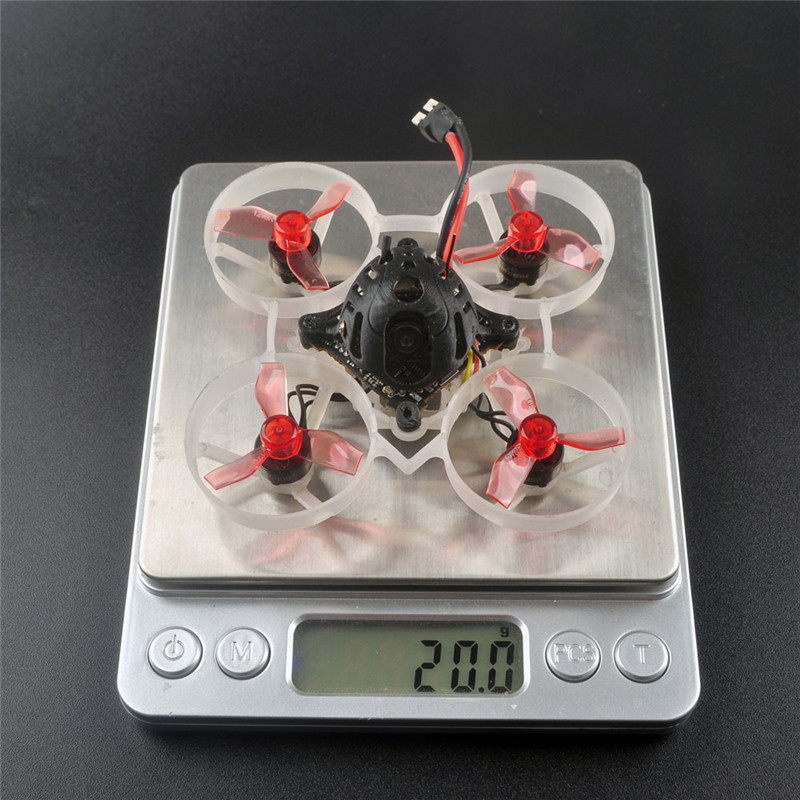

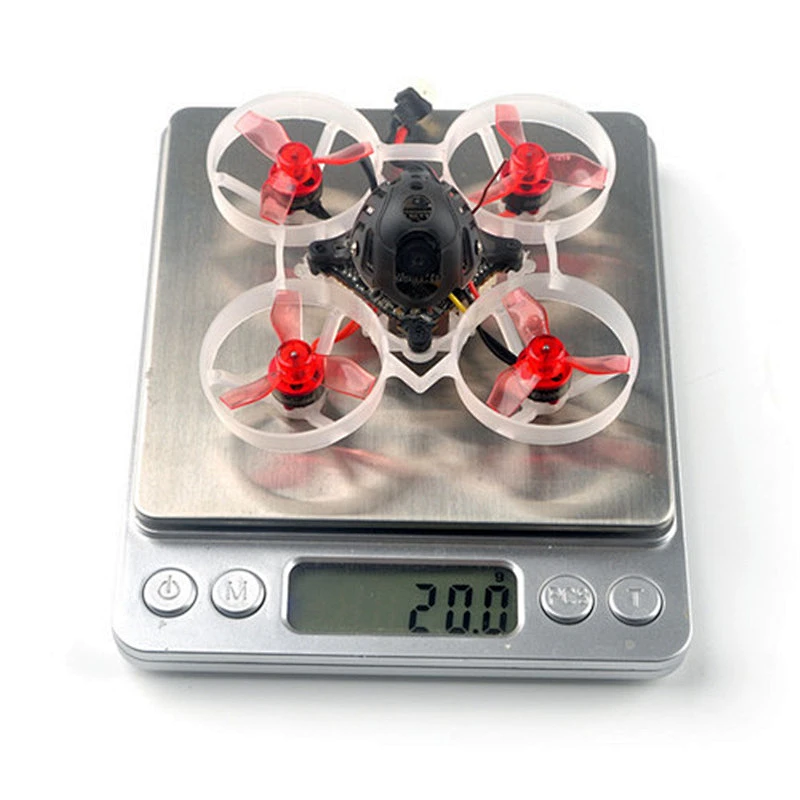

Extreme light 1S 65mm Brushless whoop only 20g
Runcam Nano3 The lightest 1/3 CMOS 800TVL Camera
Smooth and powerful
Compatible for 1S Lipo/LIHV
Camera Angle adjustable
Specifications
Brand Name: Happymodel
Item Name: Mobula6 1S 65mm Brushless whoop drone BNF version
Wheelbase: 65mm
Size: 80mm*80mm*37mm
Weight: 20g
Receiver option:
Internal SPI Frsky version (Compatible with ACCST D8/D16, Recommend D8 mode)
Internal SPI Flysky version(Compatible with AFHDS and AFHDS-2A Flysky transmitter)
Motor speed option:
SE0802 KV25000(Race Edition)
SE0802 KV19000(Regular Edition)
Spare parts specifications:
| Motor | Mode: SE0802 19000KV or KV25000 Configu-ration:9N12P Stator Diamter:8mm Stator Length:2mm Shaft Diameter:Φ1mm Motor Dimension(Dia.*Len):Φ10.5mm*14.9mm Weight(g):1.9g No.of Cells(Lipo):1S only |
| Propellers | Gemfan 1219-3 Center Thickness:5mm Prop Disk Diameter:31mm Center Hole Inner diameter:1.0mm Weight:0.28g |

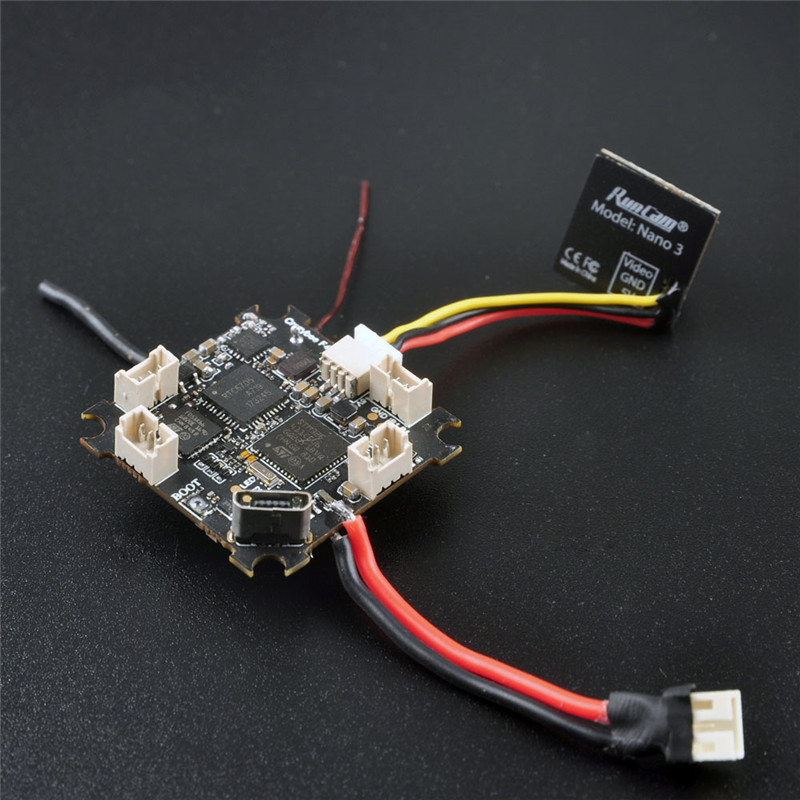

| Flight controller | (Frsky SPI RX version) CRAZYBEE F4 Lite Frsky version Firmware target: CrazybeeF4FR (Flysky SPI RX version) CRAZYBEE F4 Lite Flysky version Firmware target: CrazybeeF4FS MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000(SPI connection) Board size: 28.5 * 28.5MM Power supply: 1S battery input (DC 2.9V-4.35V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Betaflight OSD(SPI Control) Built-in 5.8G VTX Built-in SPI Frsky/Flysky receiver Built-in 5V 1A BEC Built-in voltage detection |
| Onboard 4in1 ESC | MCU upgraded to EFM8BB21 Power supply: 1S LiPo/LiPo HV Current: 5A continuous peak 6A (3 seconds) Support BLHeliSuite programmable Factory firmware: O_H_5_REV16_7.HEX Default protocol: DSHOT600 |
| Onboard Frsky SPI D8 receiver Version | SPI BUS receiver Frsky D8 compatible Compatible Non EU transmitter D8 model Channels: 8ch Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m |
| Onboard Flysky SPI receiver Version | SPI BUS receiver Protocol: AFHDS and AFHDS-2A Switchable Channels: 8ch(AFHDS) or 14ch(AFHDS-2A) No ground interference ( Transmitter and receiver 1 m from the ground): 100~200m Failsafe support |
| Onboard 5.8g VTX | Output power: 25mw Frequency: 40CH Input voltage: 3.3V 5.5V Current consumption: 300mA(type) Frequency: 5.8GHz 5bands 40 channels With Race band Smartaudio ready |
| Runcam Nano3 | Model: RunCam Nano 3 Image Sensor: 1/3"CMOS Horizontal Resolution: 800TVL Lens : 2.1mm(M8) FOV 160° Signal System: PAL/NTSC Non Switchable S/N Ratio: >50dB Electronic Shutter Speed: Auto Auto Gain Control (AGC): Auto Min. Illumination: 0.01Lux 1.2F D-WDR: Auto Day/Night: Color Power:DC 3-5.5V Current: 110mA 5V 120mA 3.3V Housing Material: ABS Net Weight: 1.2g Dimensions: L14mm*W14mm*H9mm |
| Lipo Battery | Capacity:300mAh Voltage:3.8v Continuous Discharge Rate: 30C Size: 57mmx12mmx7mm Weight: 8g Connector: PH2.0 |

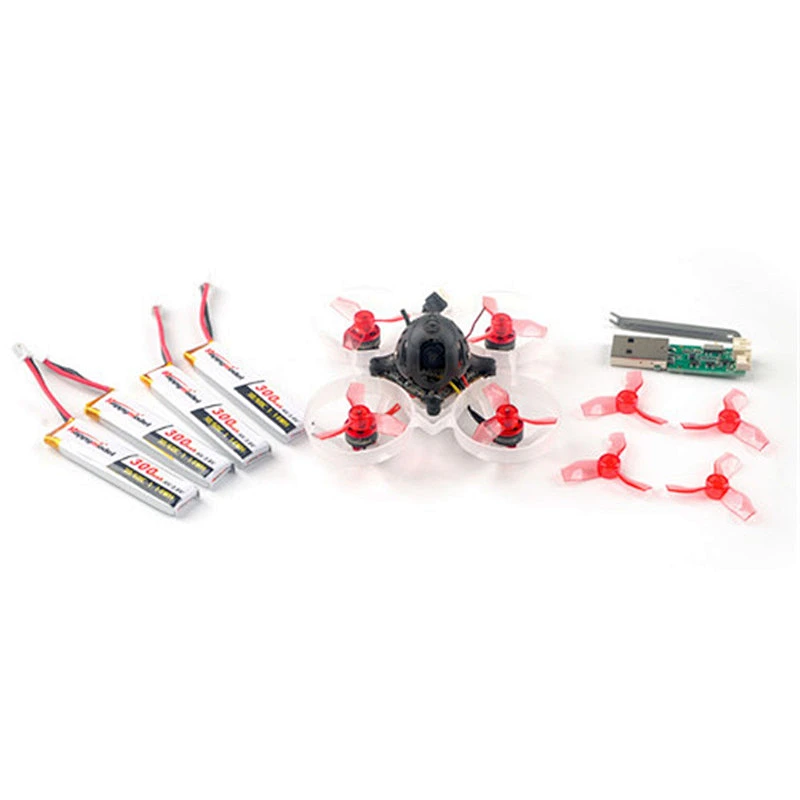

Item Packing
Mobula6 1S 65mm whoop Drone Frame x 1
Crazybee F4 Lite FC (built-in Frsky or Flysky receiver) x 1
SE0802 brushless motor x 4
Gemfan 1219-3 Propellers(4cw+4ccw) x 1
Runcam Nano3 1/3 CMOS 800TVL camera x 1
5.8G 25mw 40ch vtx (Flight controller built-in) x 1
1S 300mah 30C LiHV Battery x 4
1S Lipo/LIHV USB Charger x 1
Propeller disassemble tool x 1
