- Style:Radio Control Toy
- Standard servo for:Robot
- Gears material:plastic
- Bearring:2 bearings
- Type:robot
- Power:Battery
- Material:METAL
- Scale:Other
- Radio Control Style:RC Model
- Place of Origin:CN;GUA
- Brand Name:fitec
- Model Number:FK-UB-001

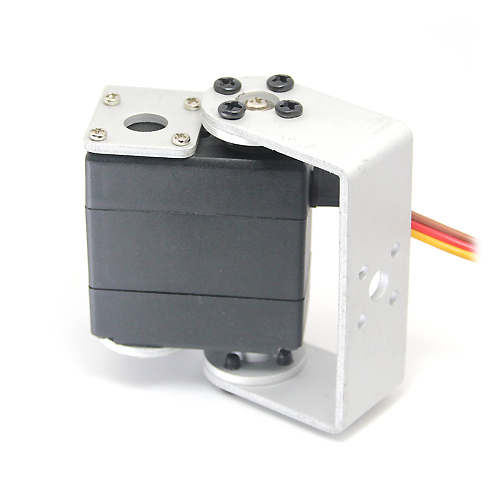

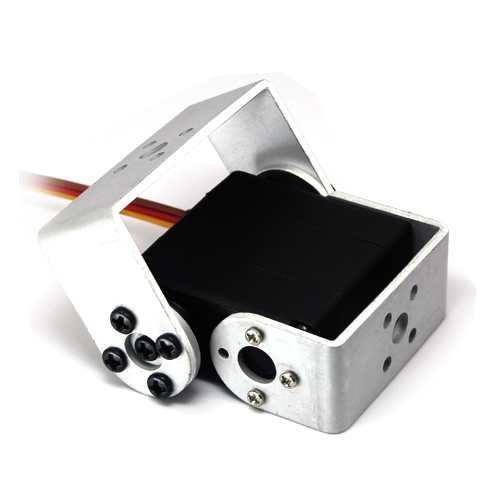

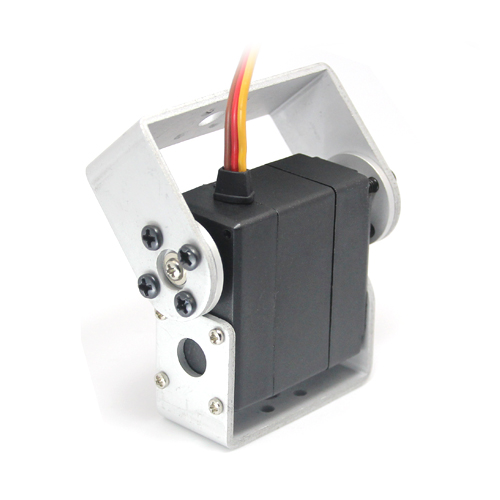

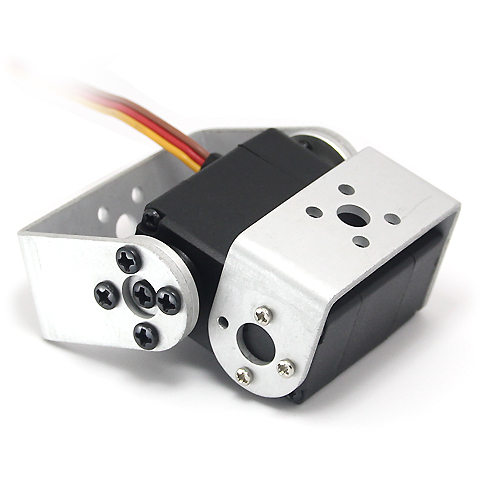

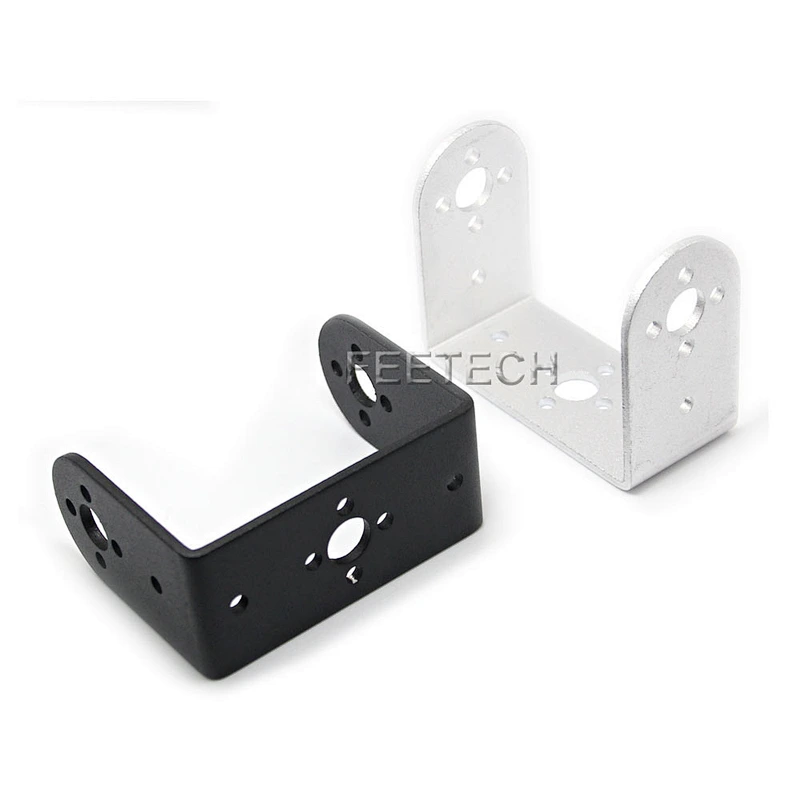

Aluminum U-shaped Bracket Robot Servo Bracket For DIY Robotic
1.9KG Metal Gear Digital Servo for Arduino DIY Robot
2.Standard analog metal gear servo 2BB
3.Operating Voltage:4.8-7.4V

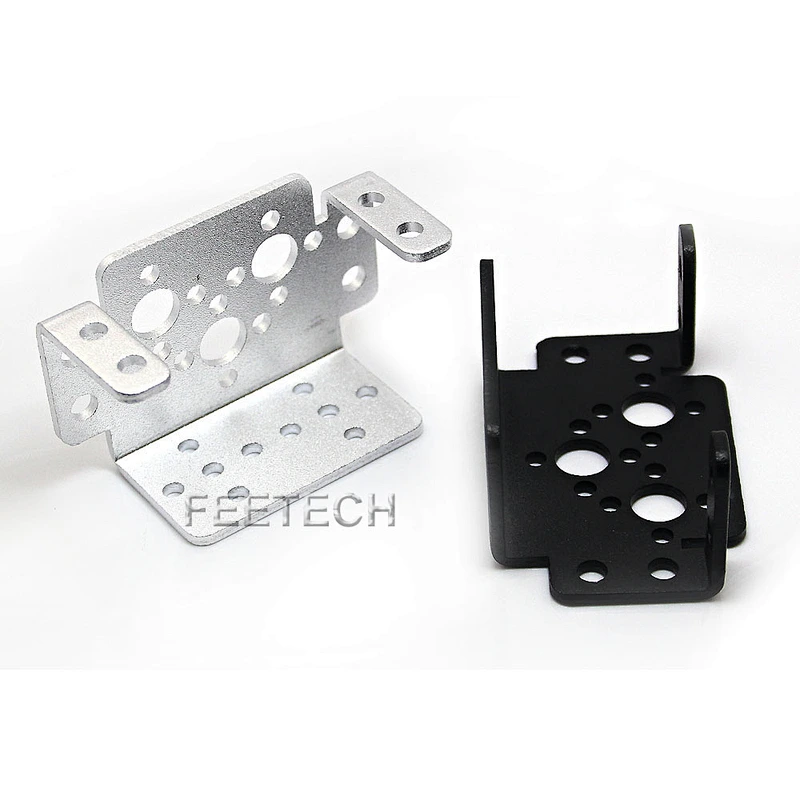

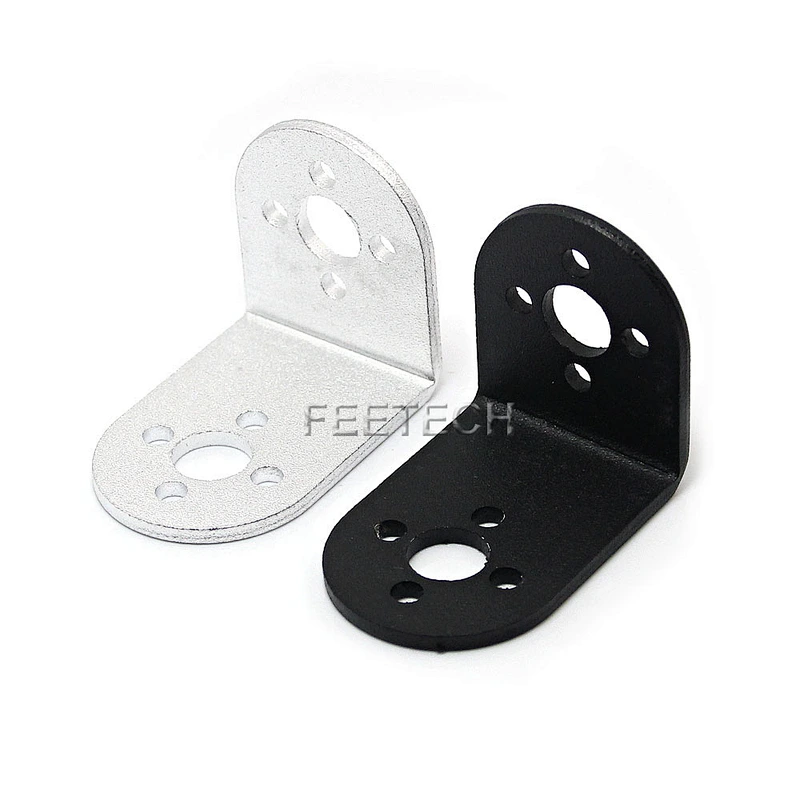

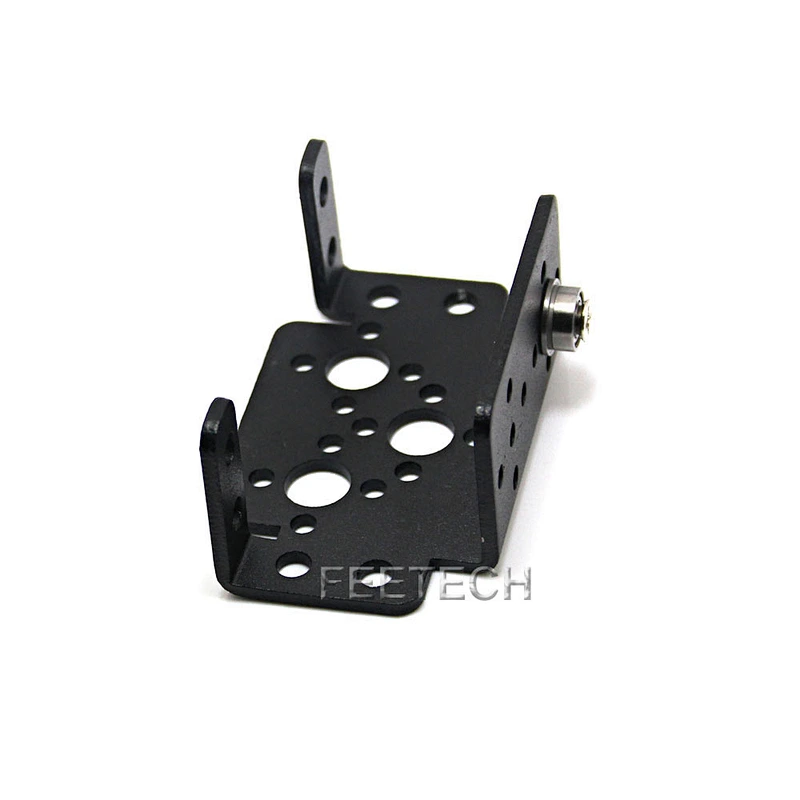

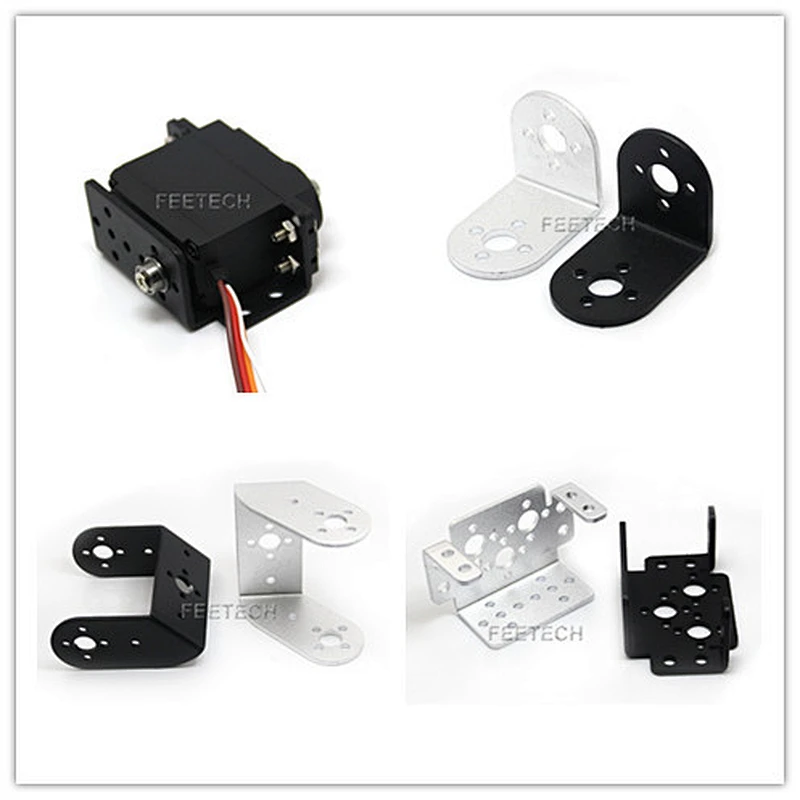

Part & Accessories DIY aluminum alloy black servo brackets Serial Bus Servo/Dual-axis digital servo for DIY bionic robot joint r

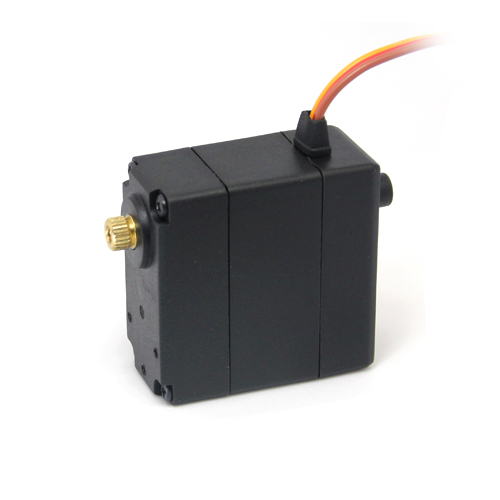

Metal Gear Digital Servo for Arduino DIY Robot FR0109M
SKU:FR0109M
Dimensions:40.0 × 20.0 × 40.5 mm
Weight:59 g
Operating Speed :0.14sec/60degree (4.8V)0.12sec/60degree (6V)
Stall Torque :9kg.cm/125.2oz.in(4.8V)10kg.cm/139.1oz.in(6V)
Operating Voltage :4.8V~7.4V
Control System :Digital
Direction :CCW
Operating Angle :180degree
Required Pulse :500~2500us
Bearing Type :2BB
Gear Type :Metal
Motor Type :Carbon
Connector Wire Length :30 cm
FR0109M is low price high quality digital robot servo.
This servo is used in robots or where standard servos are used.
This servo can produce high-current draw from your batteries. If using NiMH or LiPo batteries, make sure they are capable of delivering approximately 2A for each servo.
This servo also have different applications for DIY robot.

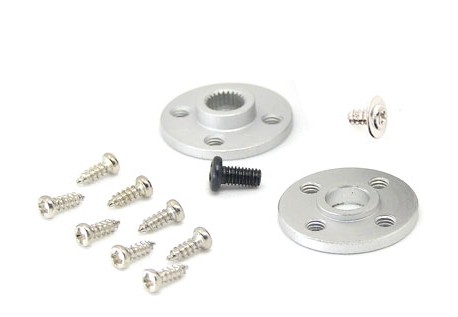

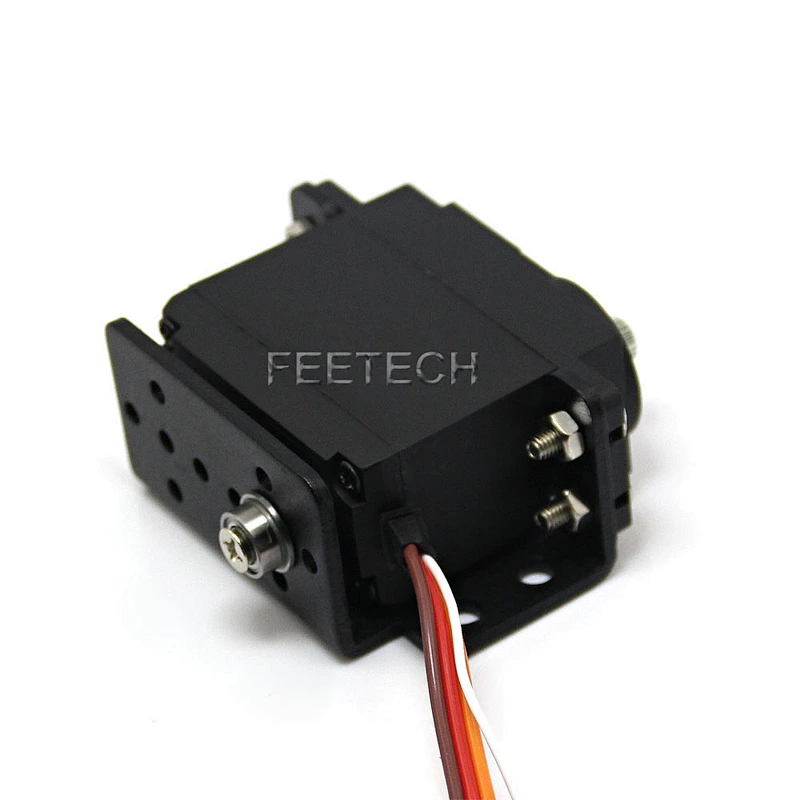

It can be combined with aluminum servo arm suite.
Full Packaged
-Servo×1PCS

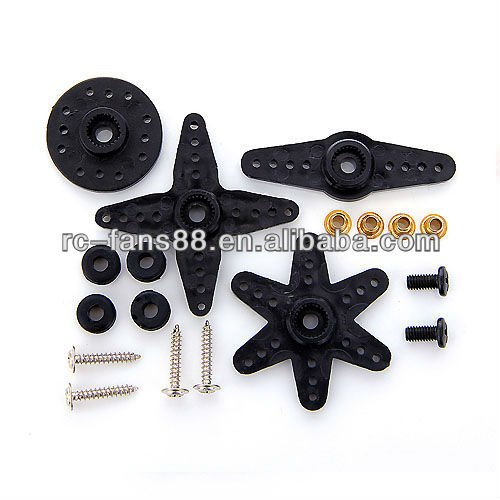

-Servo arm×1 bag
Shipping
We adopt EXW term. Generally, we choose, DHL, FedEx, EMS or UPS as our forwarder. Of course, you can choose your own most favorable forwarder, and we would provide the freight bill according to the quantity and weight of the total products, Freight Collect can also be acceptable.
Warranty Procedure
As long as you choose to use FEETECH products, you can enjoy the warranty service that we provide. Please print our Repair Request Form (.PDF, .DOC) and fill it out in its entirety, being as comprehensive as possible, in order to receive the best possible service.
Warranty Period
All FEETECH products are warranted against defects for a period of one (1) years from the date of purchase. During this period we will repair or replace (at our discretion) any defective products. You should always retain your original receipt as proof of the date of purchase.
