- Wheelbase:410mm
- Weight:213g (included landing gear)
- Height:175mm
- Flight duration:35min
- Flight Control:NAZA LITE / NAZA V2 / zero S4 / zero X4 / APM (with GPS)
- Motor:2216-800KV,3108 900KV
- Propeller:1045-1147
- ESC:20-30A
- Battery:4S 5200-5400 mAh
- Remote control:9 channels
- Use:Vehicles & Remote Control Toys
- Place of Origin:CN
- Brand Name:Feixiang
- Model Number:QA695
Features

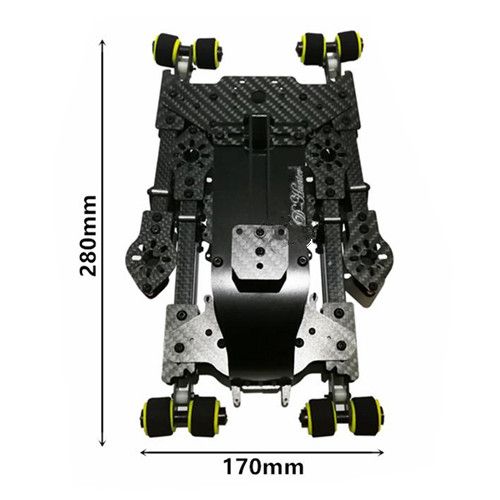

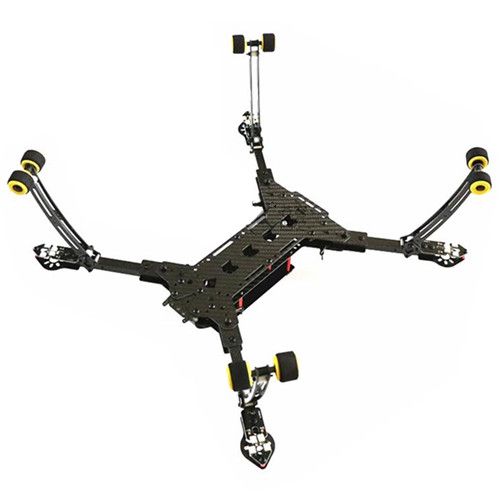

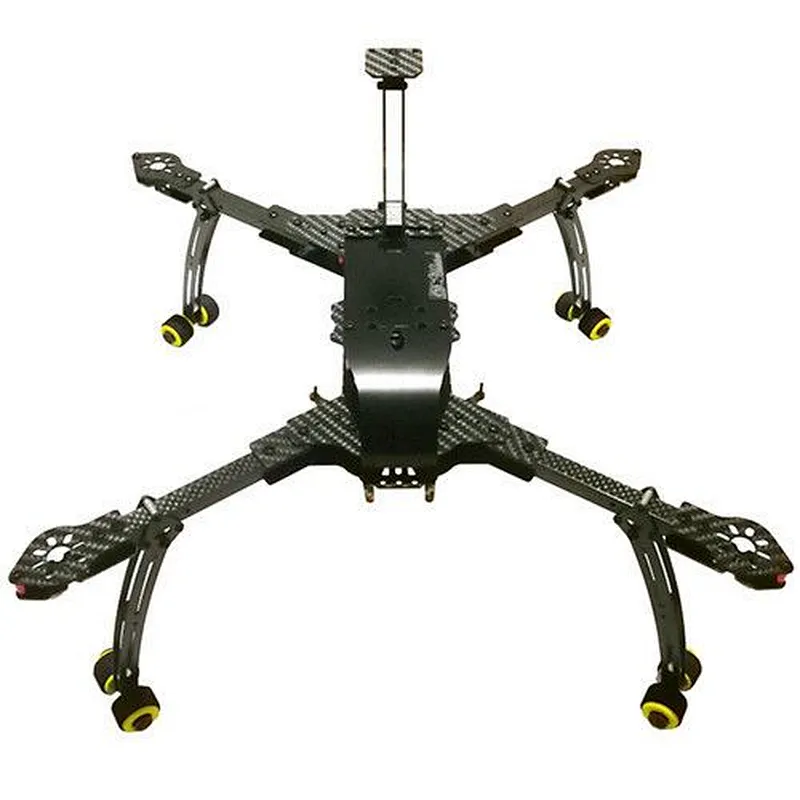

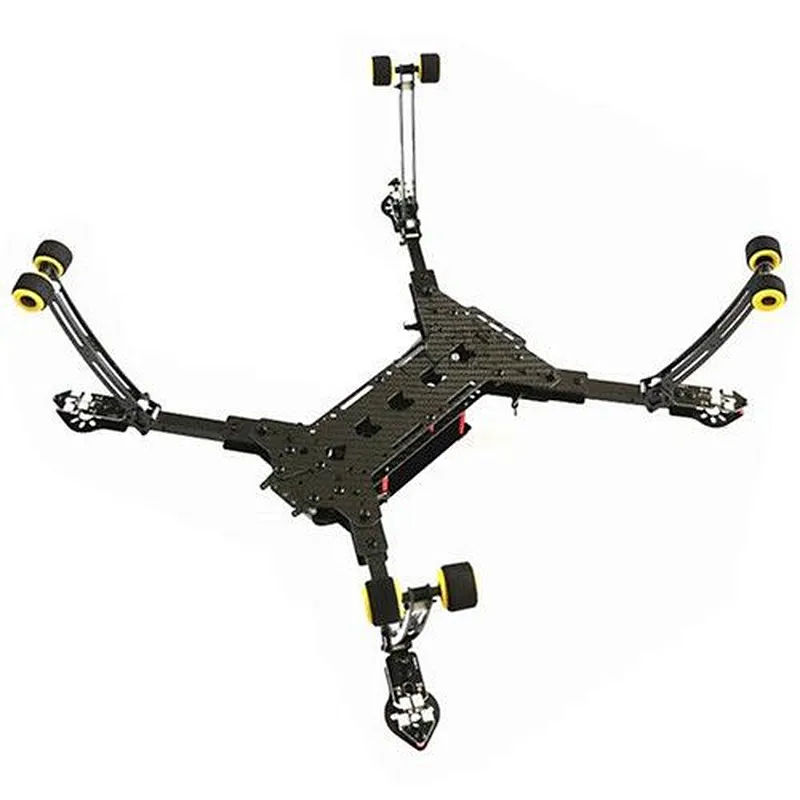

DIY DH410 pro FPV 3K pure carbon folding frame with landing gear
410mm wheelbase quadcopter drones
Product Detail
DH410 frame Parameters:
Wheelbase: 410mm
Weight:213g (included landing gear)
Height: 175mm
Recommended(note included):
Flight duration:35min
Flight Control: NAZA LITE / NAZA V2 / zero S4 / zero X4 / APM (with GPS)
Motor:2216-800KV,3108 900KV
Propeller: 1045-1147
ESC: 20-30A
Battery: 4S 5200-5400 mAh
Remote control:9 channels
VTX:5.8G 600MW
Camera:4K mini sport camera
Recommended power kit(not included):
1,T-motor air350 motor, T-motor 9545 prop, hobbywing xrotor 20A ESC, 4S 5400mAh 20C battery, Action time: without Aerial
equipment, 35-40 minutes / with Aerial equipment (2-axes gimbal, OSD, xiaomi camera, 600MW mini VTX , Ammeter), 18-22
minutes(built in the video)
2,Sunny X3108 900KV motor, 1147 prop, hobbywing xrotor 20A ESC, 4S 5400(6600)mAh 20C battery, Action time: without Aerial
equipment, over 35 minutes / with Aerial equipment (2-axes gimbal, OSD, xiaomi camera, 600MW mini VTX , Ammeter), over 20 minutes
3,JFRC U2216 900KV motor, 1045 or 1147 prop, hobbywing xrotor 20A ESC, 4S 5400mAh 20C battery, Action time: without Aerial
equipment, over 35 minutes / with Aerial equipment (2-axes gimbal, OSD, xiaomi camera, 600MW mini VTX , Ammeter), over 18 minutes
Wheelbase: 410mm
Weight:213g (included landing gear)
Height: 175mm
Recommended(note included):
Flight duration:35min
Flight Control: NAZA LITE / NAZA V2 / zero S4 / zero X4 / APM (with GPS)
Motor:2216-800KV,3108 900KV
Propeller: 1045-1147
ESC: 20-30A
Battery: 4S 5200-5400 mAh
Remote control:9 channels
VTX:5.8G 600MW
Camera:4K mini sport camera
Recommended power kit(not included):
1,T-motor air350 motor, T-motor 9545 prop, hobbywing xrotor 20A ESC, 4S 5400mAh 20C battery, Action time: without Aerial
equipment, 35-40 minutes / with Aerial equipment (2-axes gimbal, OSD, xiaomi camera, 600MW mini VTX , Ammeter), 18-22
minutes(built in the video)
2,Sunny X3108 900KV motor, 1147 prop, hobbywing xrotor 20A ESC, 4S 5400(6600)mAh 20C battery, Action time: without Aerial
equipment, over 35 minutes / with Aerial equipment (2-axes gimbal, OSD, xiaomi camera, 600MW mini VTX , Ammeter), over 20 minutes
3,JFRC U2216 900KV motor, 1045 or 1147 prop, hobbywing xrotor 20A ESC, 4S 5400mAh 20C battery, Action time: without Aerial
equipment, over 35 minutes / with Aerial equipment (2-axes gimbal, OSD, xiaomi camera, 600MW mini VTX , Ammeter), over 18 minutes
Item Packing
DH410 quadcopter empty frame with landing gear x 1 set
Detailed Images
