- Style:Radio Control Toy
- Standard servo for:Robot
- Gears material:metal
- Bearring:2 bearings
- Product name:Feetech FS5113R 13kg Robot Servo 360 Degree Rotation Servo
- Certificate:CE ROSH
- Torque:13kg.cm

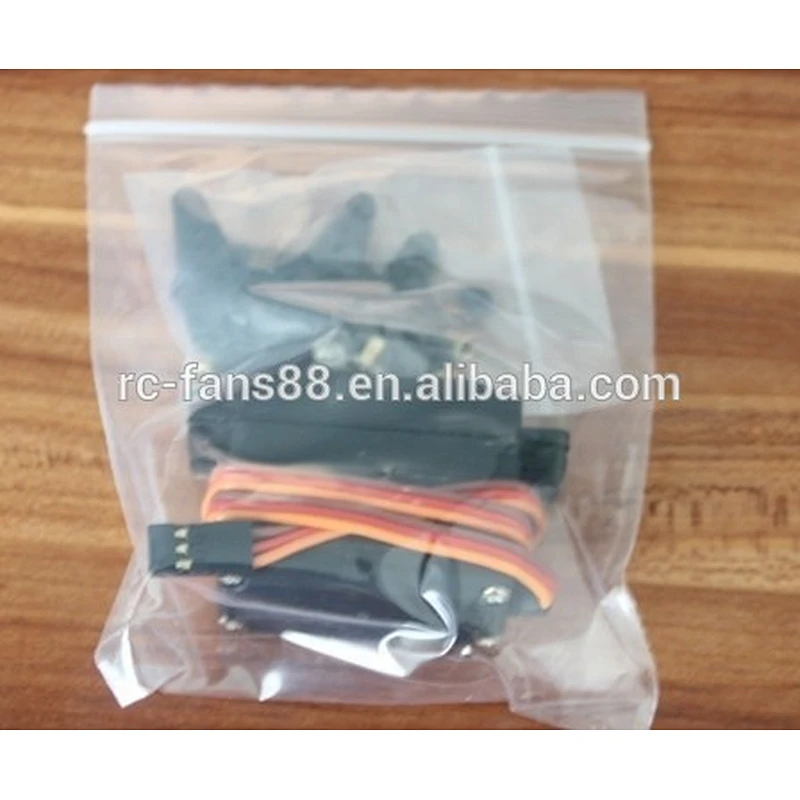

- Packing:PE BAG
- Rotation Degree:360 degree
- Application:STEAM education
- Type:robot
- Power:Battery
- Material:METAL
- Scale:for robot
- Radio Control Style:RC Model
- Place of Origin:CN;GUA
- Brand Name:fitec
- Model Number:FS5113R

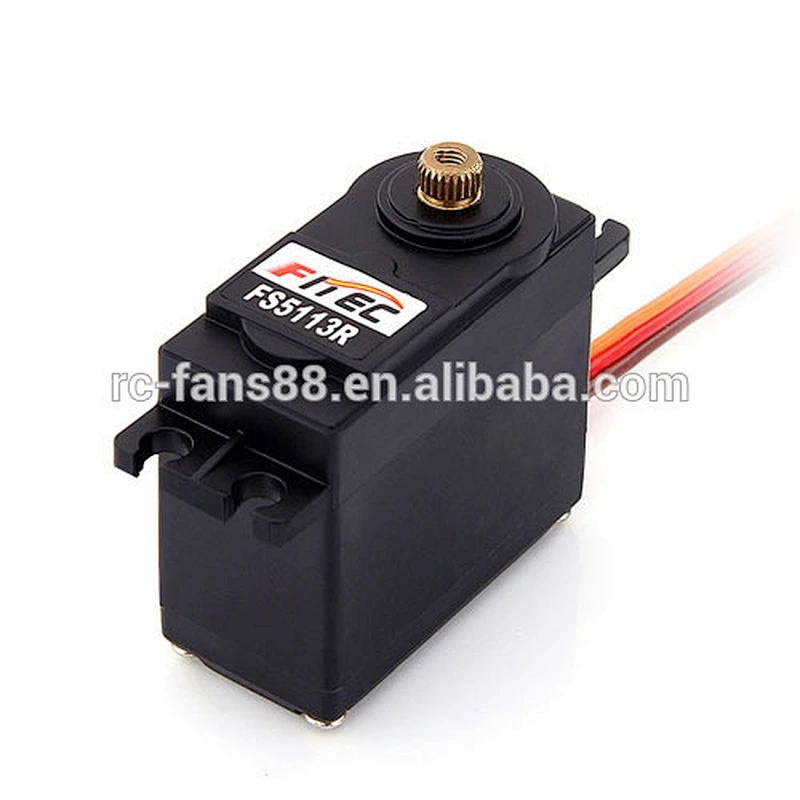

FS5113R rc standard robotic servo 360 degree for robot
SKU:FS5113R
Dimensions:40.8 × 20.1 × 38 mm
Weight:56 g
Operating Speed :0.18sec/60degree (4.8V)
0.16sec/60degree (6V)
Stall Torque :12.5kg.cm/173.9oz.in(4.8V)
14kg.cm/194.8oz.in(6V)
Operating Voltage :4.8V~6V
Control System :Analog
Direction :CCW

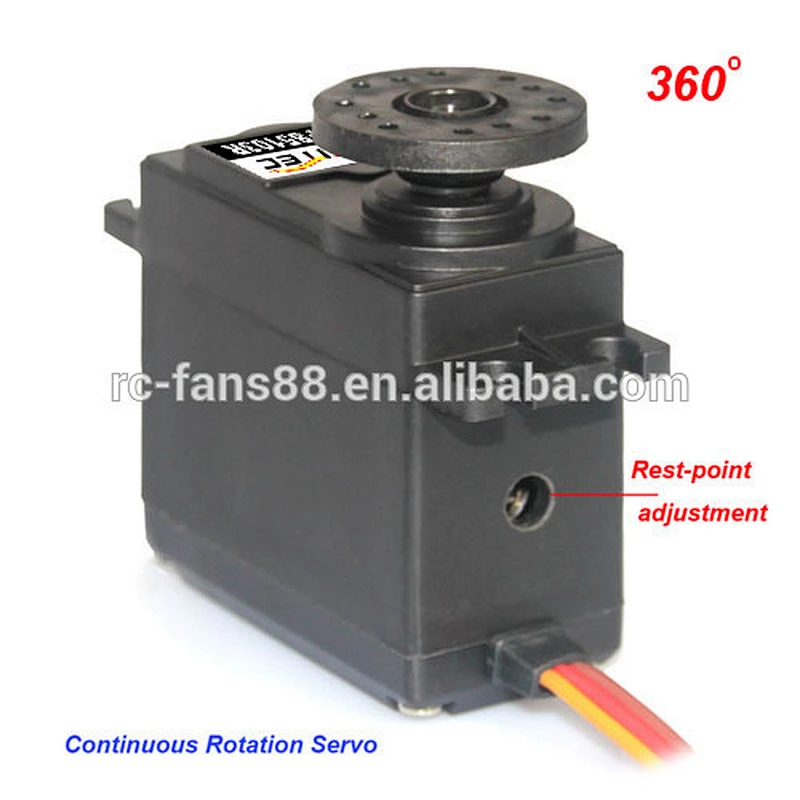

Operating Angle :360degree
Required Pulse :500us-2500us
Bearing Type :2BB

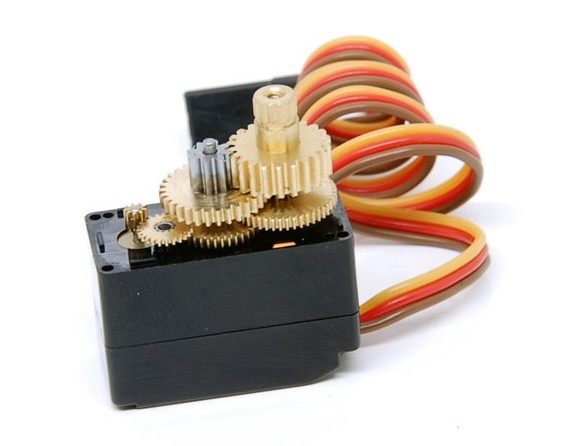

Gear Type :Metal
Motor Type :Carbon
Connector Wire Length :30 cm
Power | 4.8V | 6V |
Speed | 0.18sec/60degree(55RPM at4.8V) | 0.16sec/60degree(62RPM at6V) |
Torque | 12kg.cm/166.92oz.in | 13.2kg.cm/183.61oz.in |
Weight | 56g(1.98oz) |
Size | 40.8*20.1*38.0mm |
Application | Robot |

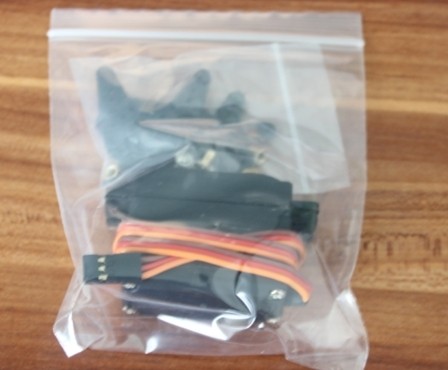

Full Packaged
-Servo×1PCS

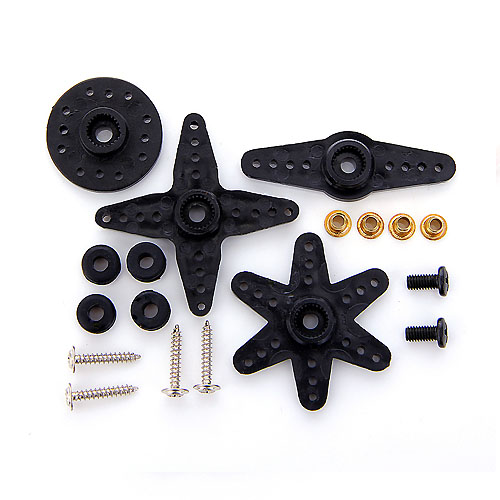

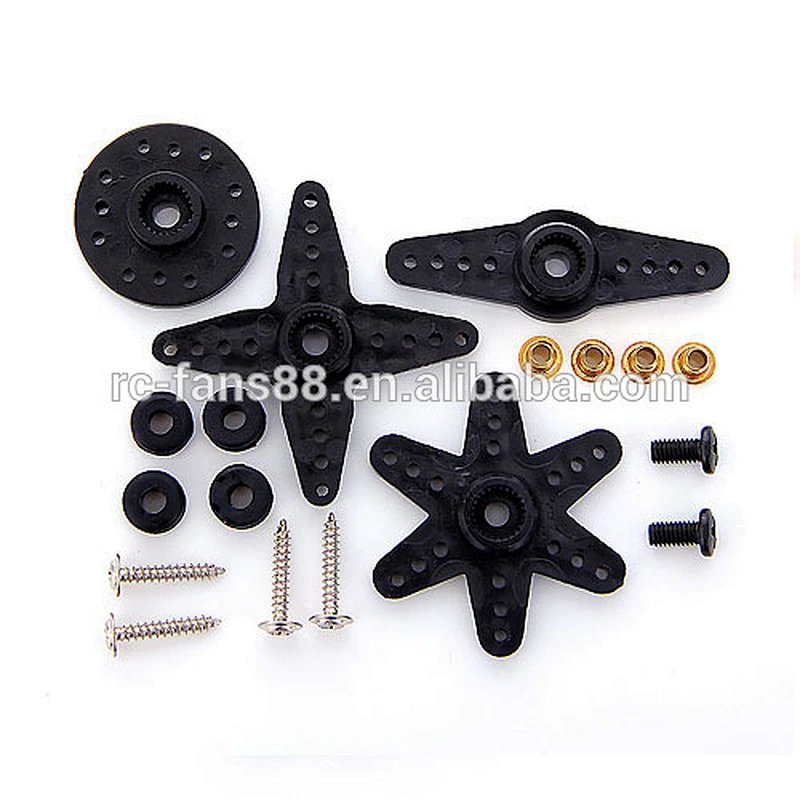

-Servo arm×1 bag
-GW: 49g
| Weight | 56g(1.98oz) |
| Size | 40.8*20.1*38.0mm |
| Application | Robot |
We also specialized in ODM and OEM
We adopt EXW term. Generally, we choose, DHL, FedEx, EMS or UPS as our forwarder. Of course, you can choose your own most favorable forwarder, and we would provide the freight bill according to the quantity and weight of the total products, Freight Collect can also be acceptable.
Payment
We adopt T/T,west union,paypal payment methods. After we receive your payment, we will arrange shipment. All banking charges and interest are charged to purchasers.
Warranty Procedure
As long as you choose to use FEETECH products, you can enjoy the warranty service that we provide. Please print our Repair Request Form (.PDF, .DOC) and fill it out in its entirety, being as comprehensive as possible, in order to receive the best possible service.
Warranty Period
All FEETECH products are warranted against defects for a period of one (1) years from the date of purchase. During this period we will repair or replace (at our discretion) any defective products. You should always retain your original receipt as proof of the date of purchase.
