- Style:Radio Control Toy
- large 30kg:robot
- metal gears:for robot wheel
- Bearring:2BB
- type:metal gears servo
- use:Small humanoid robot
- rotation range:0-360
- Certificate:ROHS
- control system:digital
- MOQ:1
- Type:Car
- Power:Battery
- Material:METAL
- Scale:1:5
- Radio Control Style:RC Model
- Place of Origin:CN;GUA
- Brand Name:feetech
- Model Number:SM30

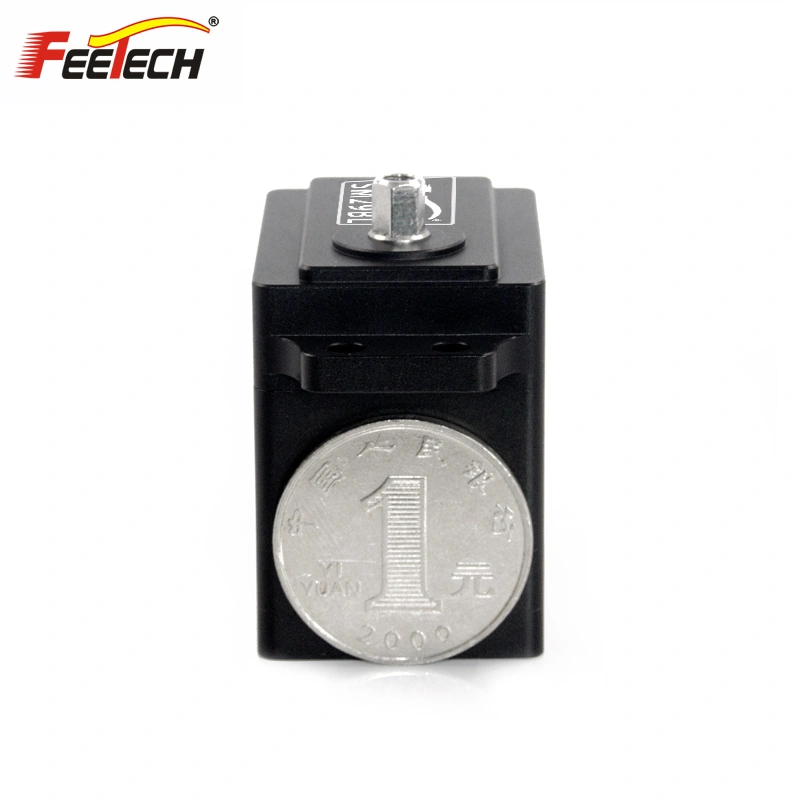

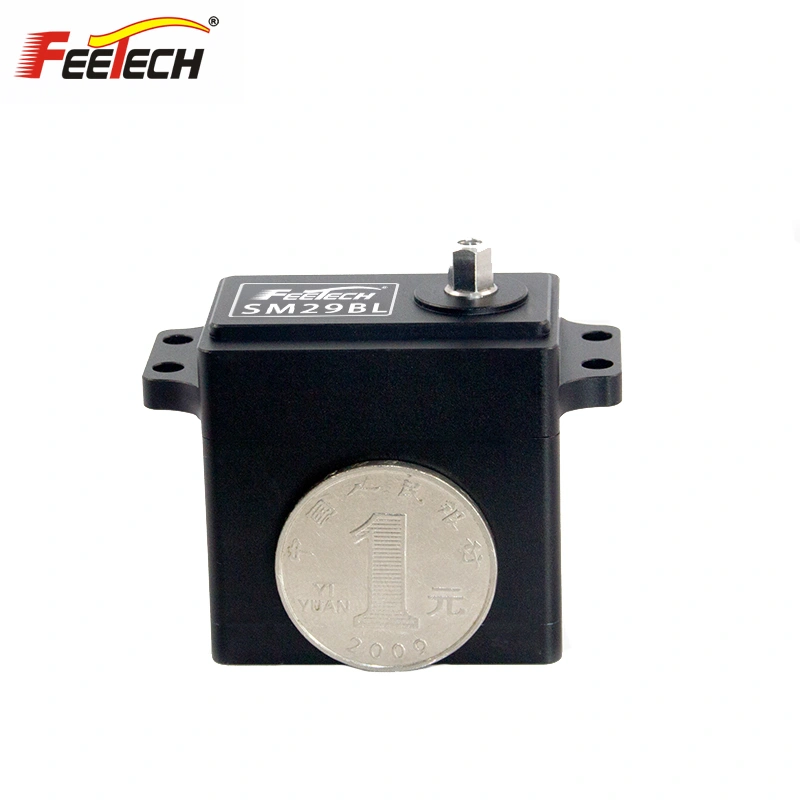

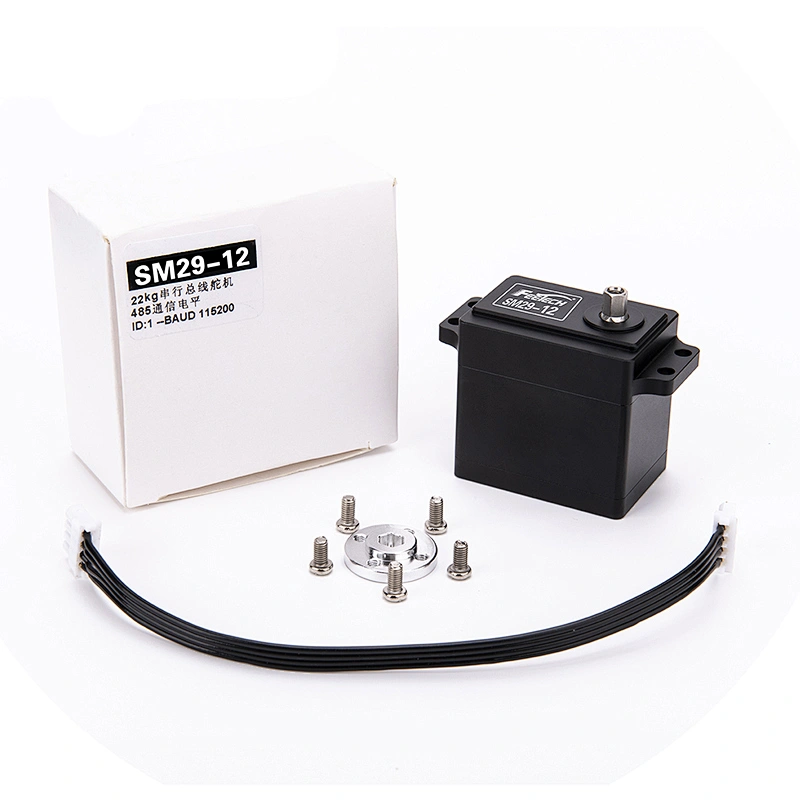

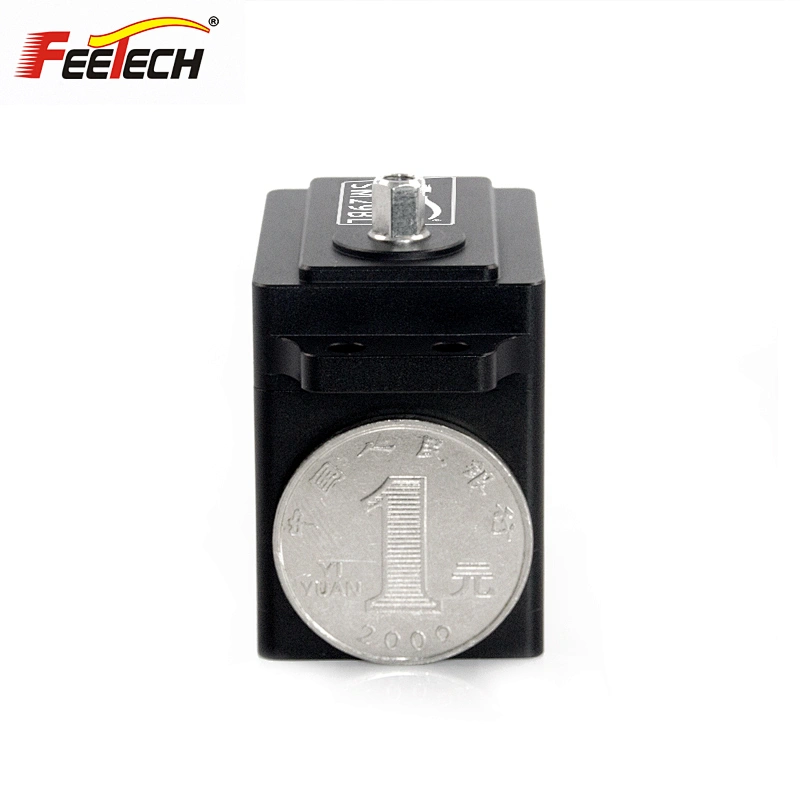

FEETECH SM29BL 12V 24V Robot servos for more than 30 kg in 180-360 degree RS485 PLC Control

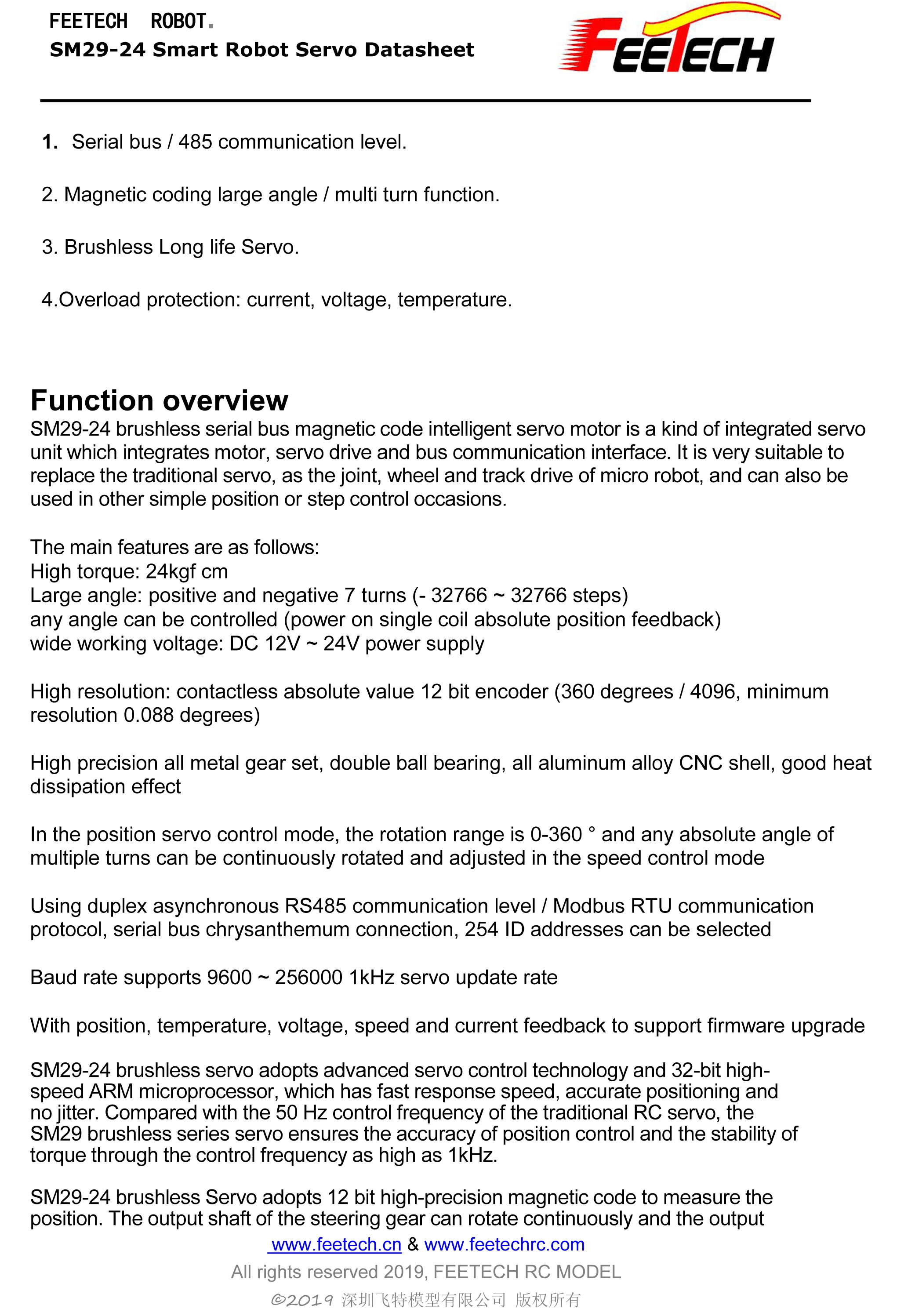

SM29BL Serial bus smart control servo fully integrated Motor, servo drive,
Serial bus communication interface and sensor together as one servo,Mainly used for micro robot joint, wheel, track drive,
Can also be used for other simple position control occasions.

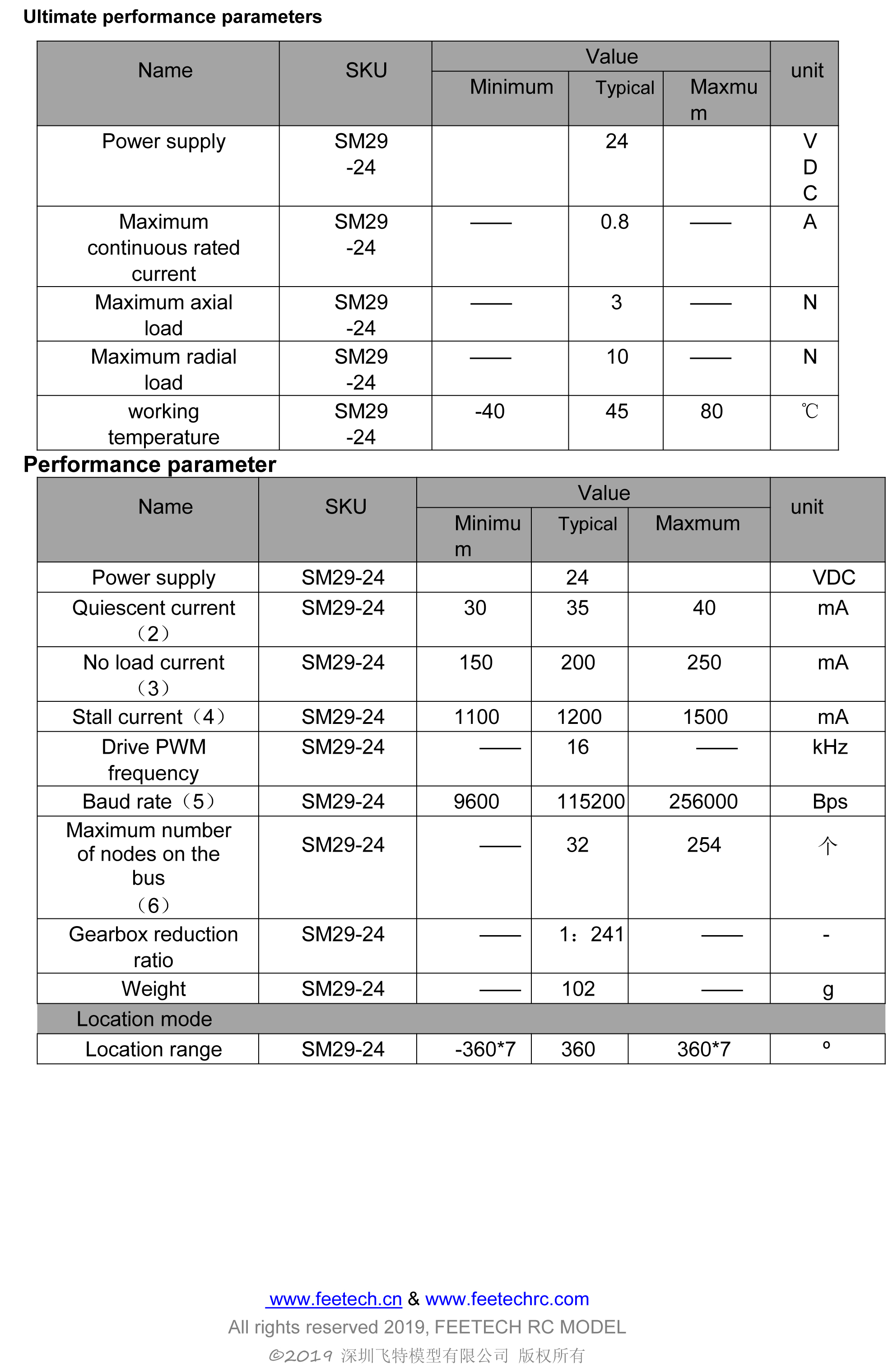

Feature:
Big Torque:24Kg. cm
Large Angle:+_30 thousand turns(Arbitrary absolute relative)
DC 12V~24V power supply
0.088 °Position resolution
Dual output shaftfit for robot joint
High precision all metal gear set,Double ball bearing
Full Aluminium alloyCNC case,Good cooling effect
Position servo control mode ,rotation range 0-360°and many turns Arbitrary absolute relative angle.
In the speed control mode ,can be continuous rotation,adjust speed

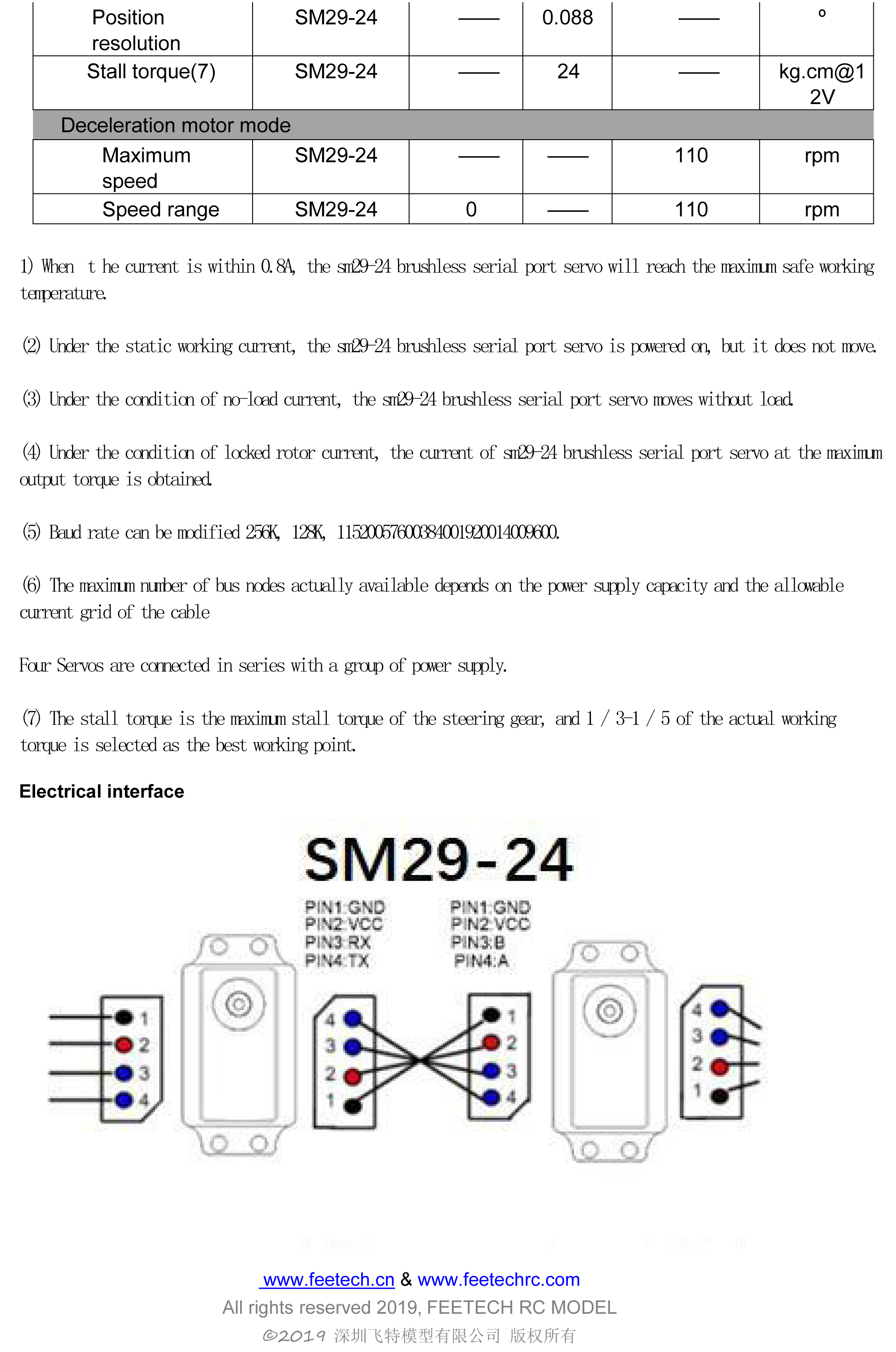

Duplex asynchronous T T L / 4 8 5 Communication level

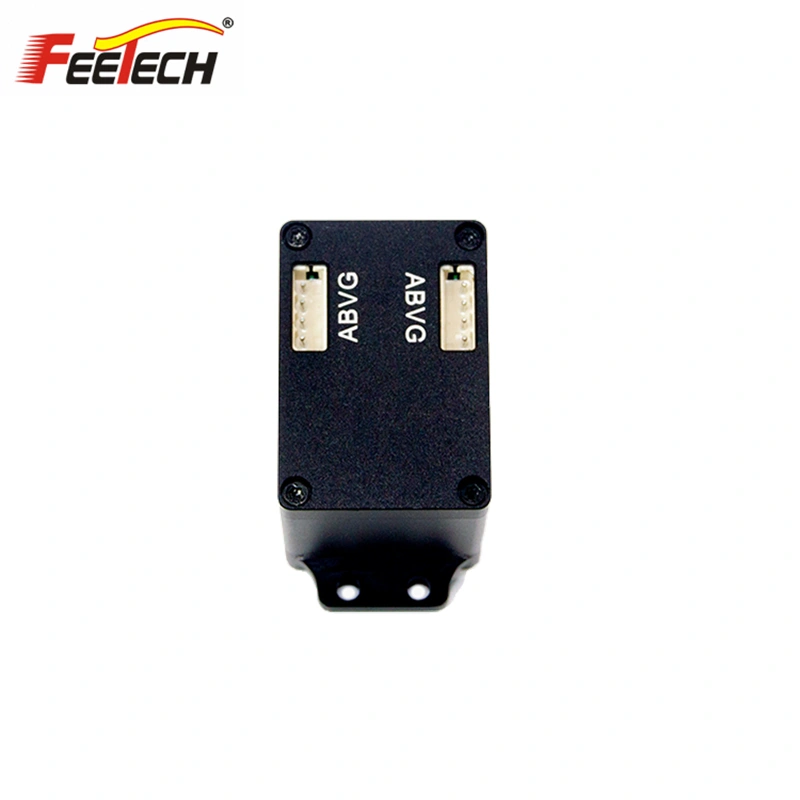

Daisy chain connection, 254 ID can choose
High reach 1M Baud rate
333Hz servo update rate
Can give feedback on position,temperature,voltage,speed and current load
Use open FT SCS Serial asynchronous communication protocol
SM29BL robot servo adopts advanced servo control technology and 32 bit high speed ARM microprocessor, fast response, accurate positioning without jitter. Compared to the traditional RC servo 50Hz control frequency, the SM29BL series robot servo through the control frequency of up to 333Hz, to ensure the accuracy of position control and maintain the stability of the moment.
TheSM29BLSM29BL0-360T/M robot servo uses 12 bits high precision magnetic encoder to measure the position, the servo output shaft may rotate continuously for a whole week, the movement torque output is as high as 30kgf.cm.
SM29BL M has serial bus interface, the 254 robot servo can form a chain through the bus. Each servo can be set with different node addresses, multiple servo wheels can be unified motion can also be a single independent control.
The communication instruction set of SM29BL is completely open, and the servo communicates with the host computer through the asynchronous serial interface. The SM30-360T/M can be set to either the motor mode or the position control mode by sending commands through the asynchronous serial interface.
In motor mode, SM29BL can be used as DC motor, speed adjustable; in position control mode, 0-360 degrees and multi circle arbitrary absolute and relative angle can be controlled within this range with accurate position control performance, speed control.
SM29BL robot servo and the founder of the multi - directional installation, user-friendly flexible model.
Packing
Gift packing
Shipping
Generally, shipping by air express(such as DHL, FedEx, EMS, UPS or TNT and so on) according to your requirements. Freight Collect is also available.
Tracking
We will keep you updated with the tracking no. as soon as possible.
Our Quality:
Quality is the life of Honesty. We use only the best quality (original) components to ensure the standard of our product range is of the highest caliber.
All products we sold out are strictly selected and tested by our QC department.
Warranty:
We provide 1-year warranty for all of our products.
Payment:
We accept payment via TT (Bank transfer), Paypal, Western Union and etc.
We accept bank transfer for large orders. For small order, you'd better pay Paypal.
Import taxes:
When you import products from another country, there is always the possibility of paying import taxes. We can help you reduce and avoid import taxes by declaring prices low, declaring the contents as"gift"or other items and shipping in simple packaging.
Do you have any question? Contact me now! We look forward to cooperating with you!
Advantages
| 1. | Large variety inventory |
| 2. | Small mini order Qty |
| 3. | OEM&ODM welcome |

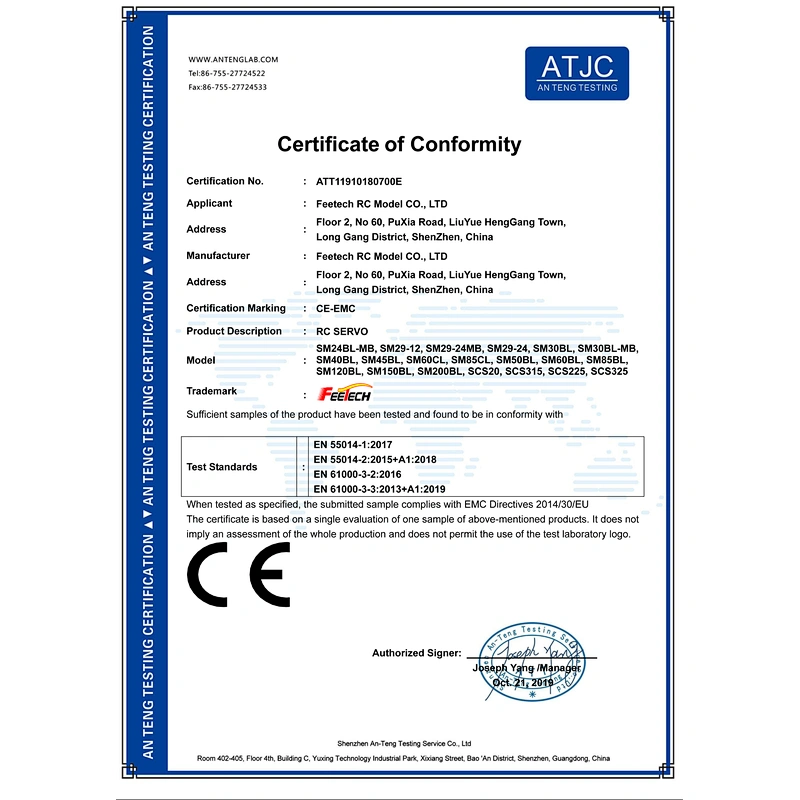

| 4. | CE&RoHS standard |
We can provide Customized service:
1.Customized Various of wide working voltage servo (4.8-12V)
2. Customized Dual working mode servo
(1.continuous rotation motor mode 2.Rc servo work mode)
3.Customized large angle servo(0-360°& 360* n °multi circles
and any angle controllable servo)
4.Customized Various of special function servo
5.Customized Various of Communication level Serial Bus servo(TTL,RS485)
We have a strong R&D team,Perfect matching supply system,
we can finish R&D for various of special customized needs in short time
We expect to creat new value with clients together.
Service:
1."Reasonable price,delivery on time,good services"is our business principle
2.We have own factory,specialized in this field many years, warmly welcome your design
3.Small order and mixed items are available
4.Fast delivery as most of products we have in stock
5.Competetive price and good quality.
6.samples and products according to customers' requirement.
FAQ:
Q: How can I get a sample?
A: As custom item,you need to pay for the shipping cost and sample cost,
or you can provide us your dhl, ups, fedex or tnt acount to us for samples' shipment.
Customized size of sample should be charged.
Q:How long for the delivery once we place order?
A:The lead time is declded the item you ordered and the quantity.
For normal order,the lead time is about in 5-7 days,
If big quantity or OEM,the lead time will be some days more.
Q:The price you are offering is with shipping costs included?
A:The price does not include the shipping cost.We offer several
shipping solutions,make sure customers choose the most economical one.
Q:Do you have After-Sales Service?
A:Of course,We have special department to do it,and if you have any technology
problem,our eingeer will give your answer.
