- Performance:17.5HP/7500rpm
- Idle speed:1100 rmp/min
- Static Thrust:35kg/100 meters Altitude
- Spark Plug Type:NGK CM6
- Displacement:170cm3
- Website:www.lxrcmodel.com
- Use:Vehicles & Remote Control Toys
- Brand Name:DLE
- Model Number:DLE170
- Place of Origin:CN

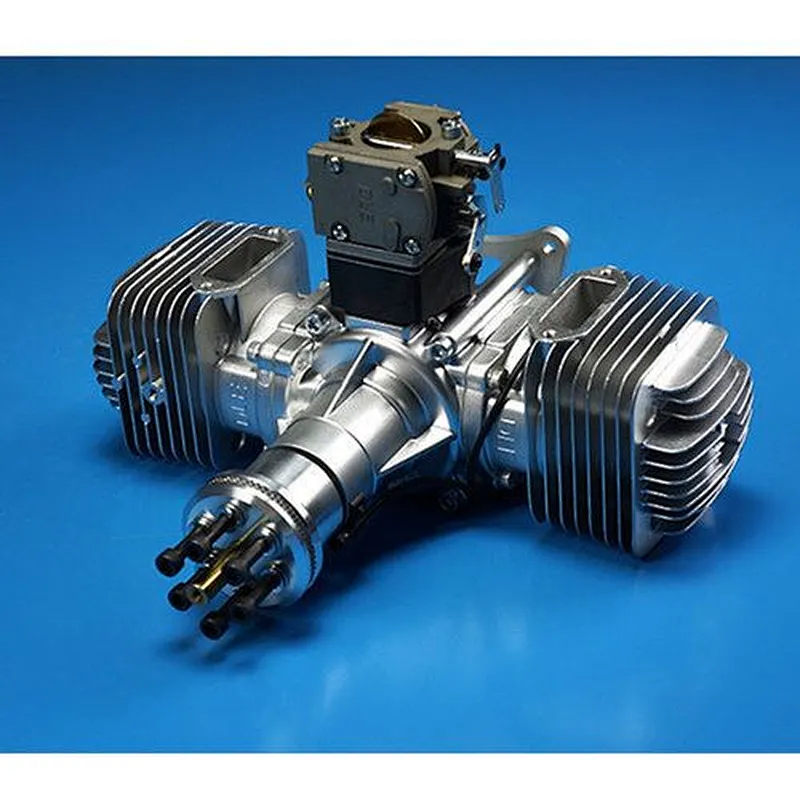

DLE170 170CC original GAS Engine For RC Airplane model hot sell
What is the Details of our Product?
Features
This engine is not a toy , before staring the engine ,read the operators manual carefully ,if failure to do so may result in personal injuries , DLE
refuses any liability;
Before each operation, check the engine mount ,propeller and airframe carefully to ensure all engine screws and nuts is tight . Loctite(242,243) is
strongly recommended during the installation.
CAUTION: During the break-in period, it is recommended that the engine be installed on the aircraft or a test stand with an appropriate shock
absorber.
Otherwise it is probable that vibration could rebound back to the engine and serious damages may occur during the break-in period. For your
safety and the safety of others, please do not stand in front or in line with the propeller when the engine is running.
Product Details
Performance : 17.5HP/7500rpm
Idle Speed : 1100 rmp/min
Static Thrust : 35kg/100 meters Altitude
Static Thrust : 31.5kg/1800 meters Altitude
Recommended Propeller : 30×12 ; 32×10 ;
Spark Plug Type : NGK CM6
Displacement : 170cm3
Diameter × Stroke : 52mm×40mm
Compression Ratio : 9.5:1
Lubrication Ratio : 30:1
Weight of Main Engine : 3620g
Weight of Exhaust : 470g
Weight of Ignition : 190g
Ignition voltage : 4.8V-8.4V
This engine is not a toy , before staring the engine ,read the operators manual carefully ,if failure to do so may result in personal injuries , DLE
refuses any liability;
Before each operation, check the engine mount ,propeller and airframe carefully to ensure all engine screws and nuts is tight . Loctite(242,243) is
strongly recommended during the installation.
CAUTION: During the break-in period, it is recommended that the engine be installed on the aircraft or a test stand with an appropriate shock
absorber.
Otherwise it is probable that vibration could rebound back to the engine and serious damages may occur during the break-in period. For your
safety and the safety of others, please do not stand in front or in line with the propeller when the engine is running.
Product Details
Performance : 17.5HP/7500rpm
Idle Speed : 1100 rmp/min
Static Thrust : 35kg/100 meters Altitude
Static Thrust : 31.5kg/1800 meters Altitude
Recommended Propeller : 30×12 ; 32×10 ;
Spark Plug Type : NGK CM6
Displacement : 170cm3
Diameter × Stroke : 52mm×40mm
Compression Ratio : 9.5:1
Lubrication Ratio : 30:1
Weight of Main Engine : 3620g
Weight of Exhaust : 470g
Weight of Ignition : 190g
Ignition voltage : 4.8V-8.4V

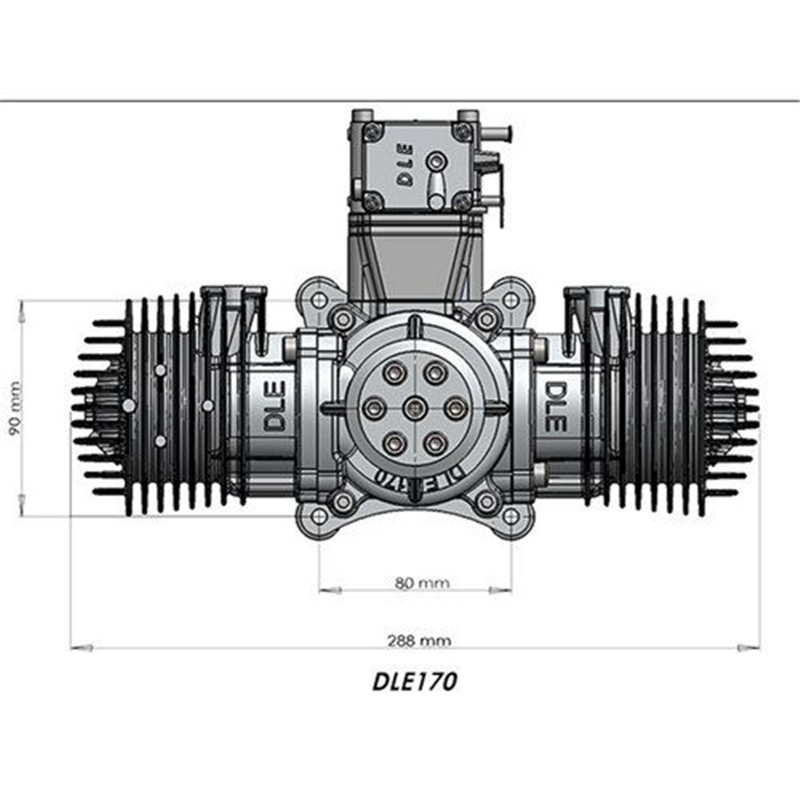

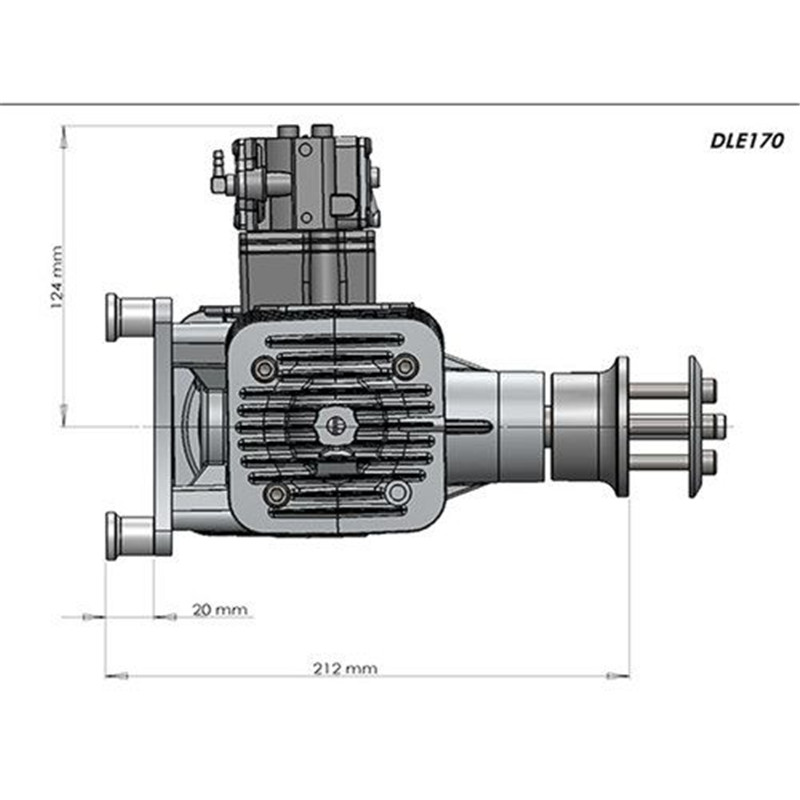

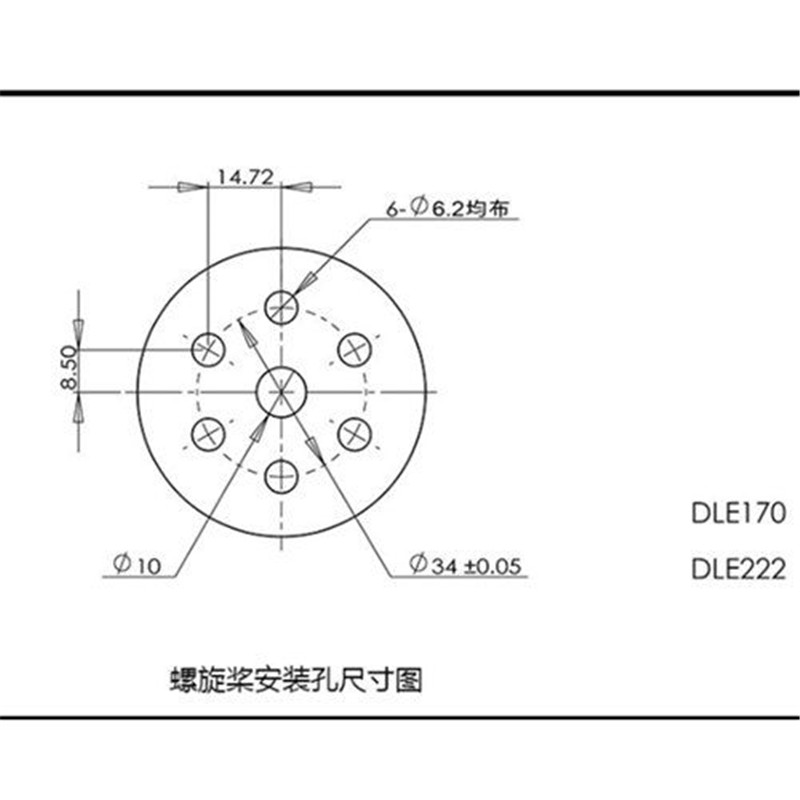

Detailed Images

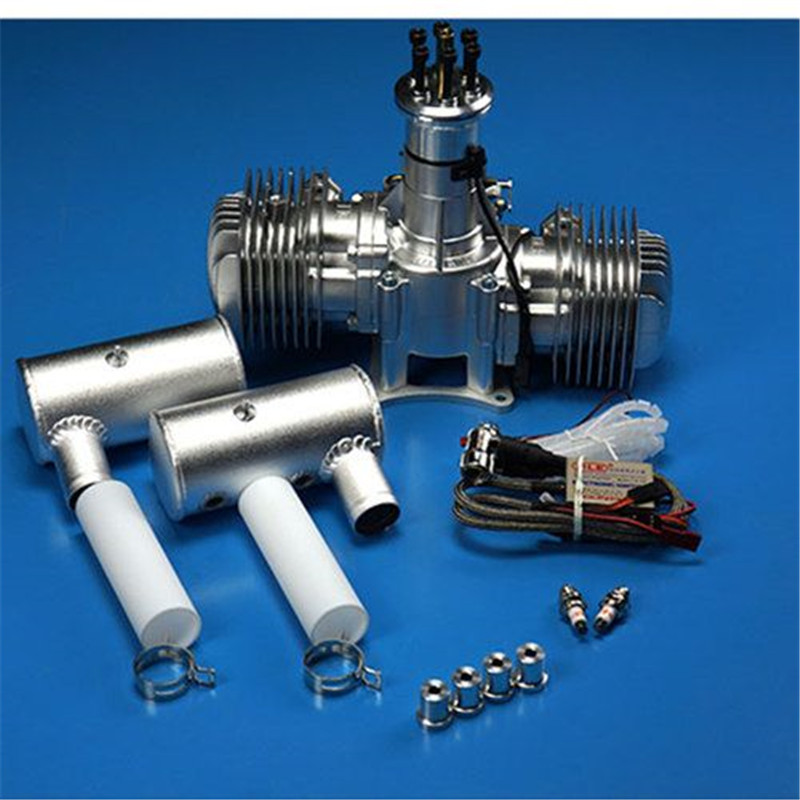

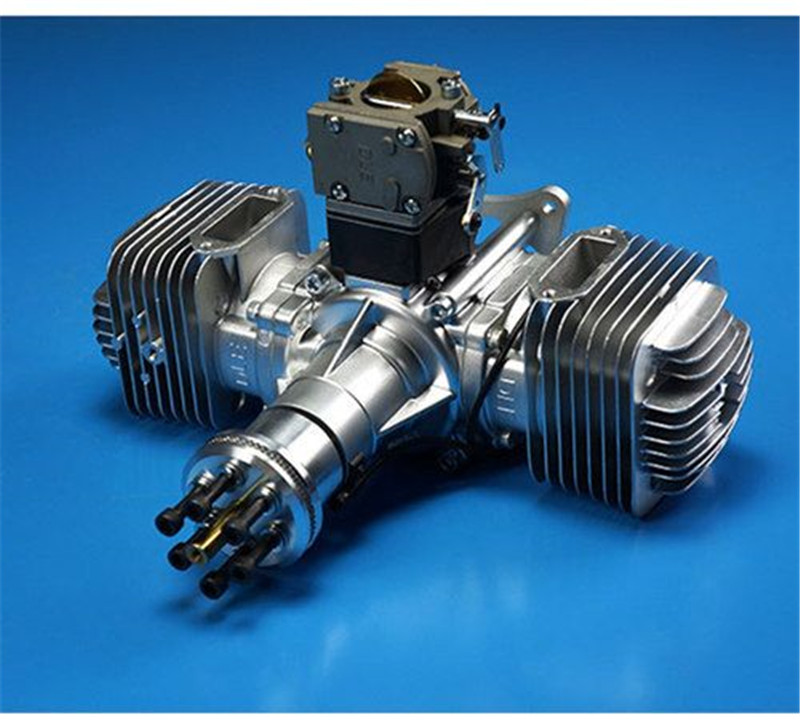

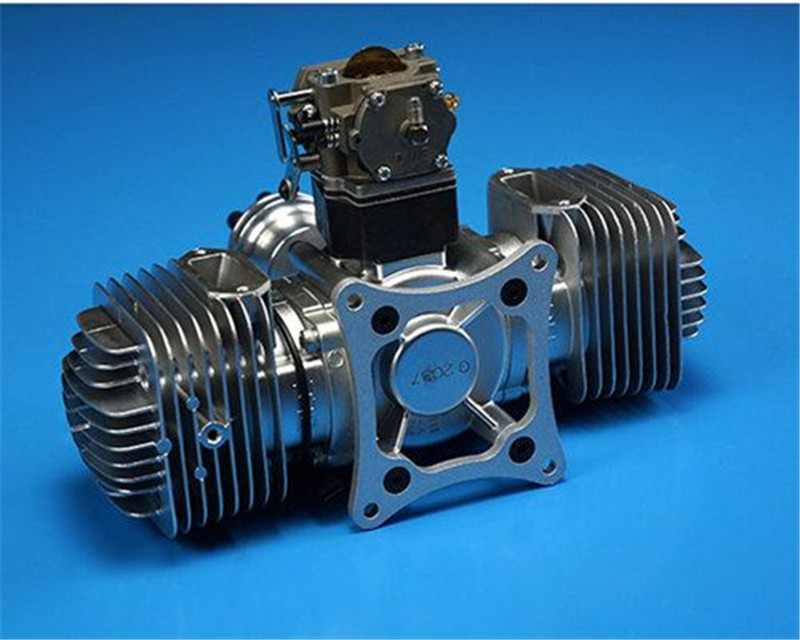

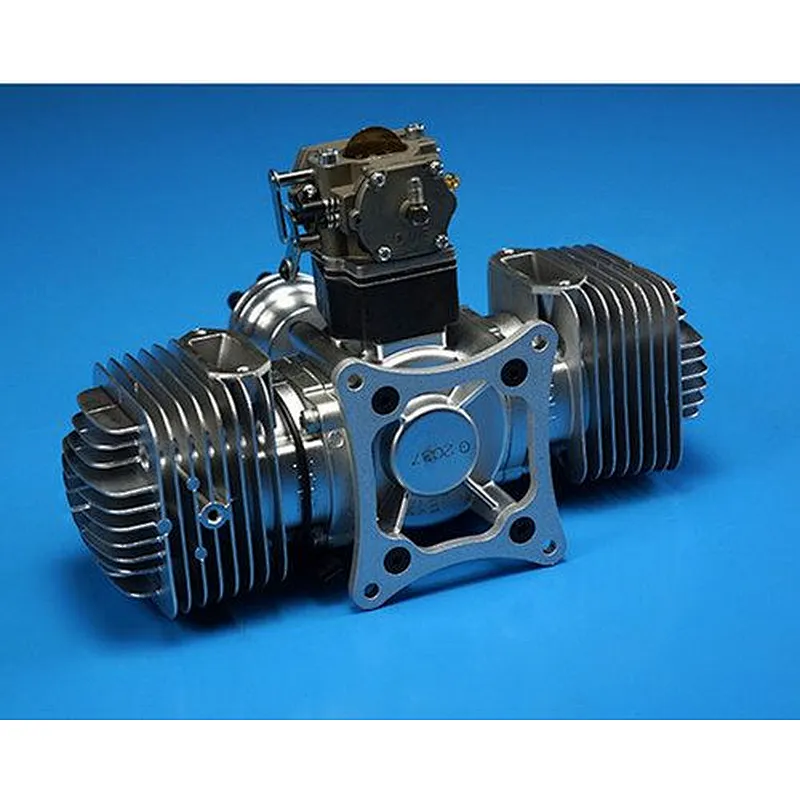

Product Picture
Item Packing
DLE170 170cc engine x 1
