- PWM channels:3
- Wireless frequency:2.4GHz
- Wireless protocol:AFHDS
- Range:100 ~ 200m (ground)
- Antenna type:single antenna (150mm)
- Power:4.0-6.5V
- RSSI:Not supported
- Data port:PWM
- Website:www.lxrcmoel.com
- Use:Vehicles & Remote Control Toys
- Place of Origin:CN;GUA
- Brand Name:Flysky
- Model Number:FS-GR3E

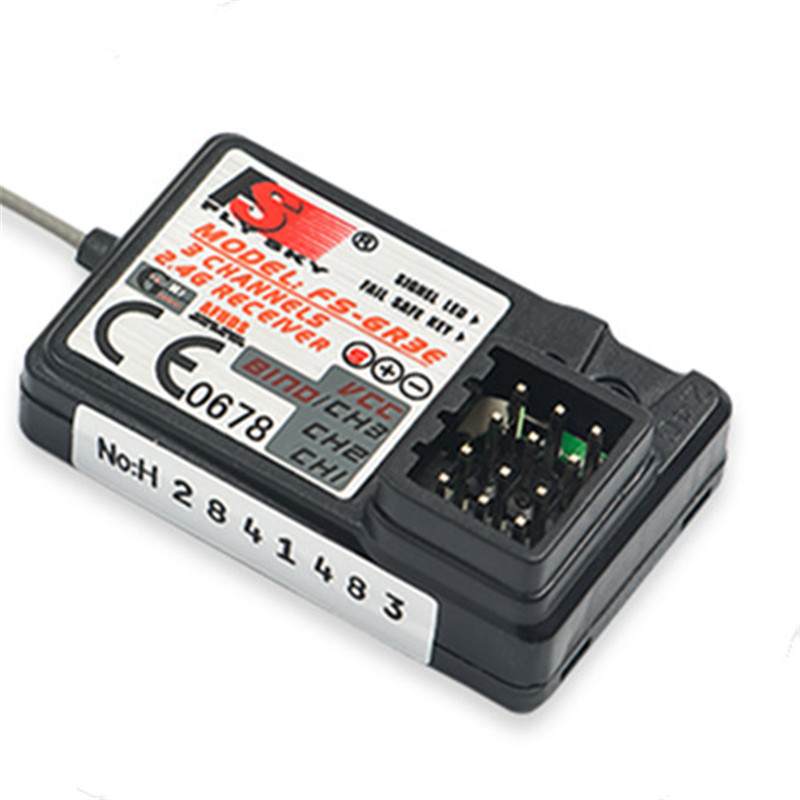

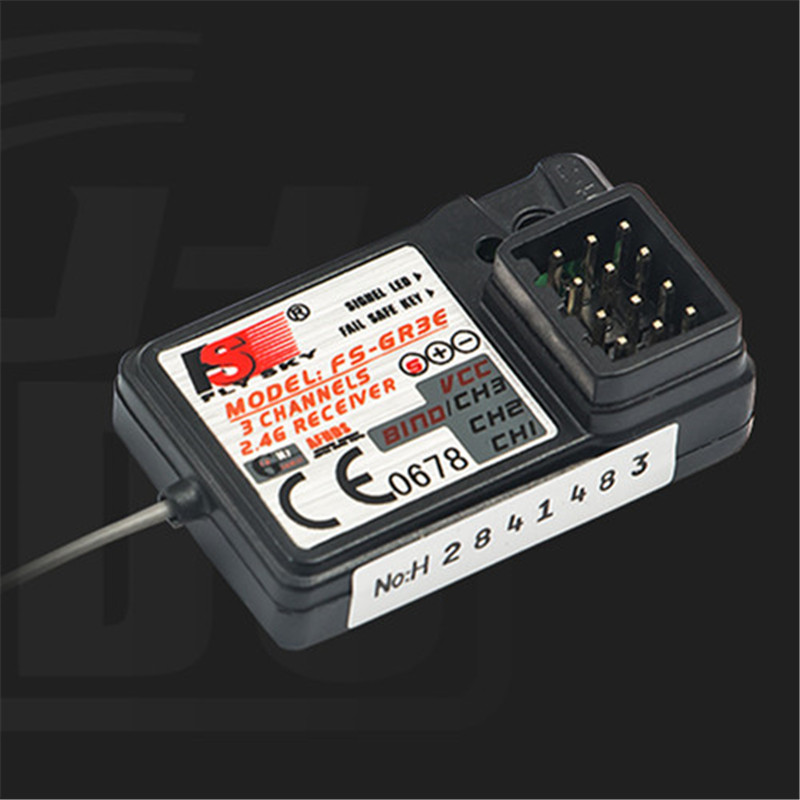

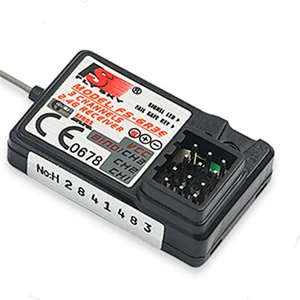

Flysky FS-GR3E 3 Channel 2.4G GR3E Receiver with Failsafe GT3B GR3C Upgrade for RC Car Truck Boat GT3 GT2 Transmitter
Product Pictures
What is the Details of our Product?
Features
Matching(Code)
A. Install the battery to 2.4G transmitter and shut it down.
B. Insert the matching lines to the channel BIND/CH3 port of the receiver.
C. Connect the receiver battery to VCC port of the receiver, on the same time the two LED are
flashing and this means the receiver are going to the matching status.
D. Press and hold the button on the transmitter, and then switch on the power supply.
E. Observe the LED on the receiver, if find that the LED is not flash anymore and that means successful Matched. (This process about 5s)
F. Release the match button on the transmitter, take out the match line.
G. Install the server and then test.
H. If the tests fail, please repeat the action above.
G. If the tests success, then insert the power supply port into VCC, match complete.
(The above ways of match is only suitable for FLYSKY 2.4G products)
Specifications
| Product Model: | FS-GR3E |
| PWM channels: | 3 |
| Wireless frequency: | 2.4GHz |
| Wireless protocol: | AFHDS |
| Range: | 100 ~ 200m (ground) |
| Antenna type: | single antenna (150mm) |
| Power: | 4.0-6.5V |
| RSSI: | Not Supported |
| Data port: | PWM |
| Temperature range: | 0 ℃ — + 60 ℃ |
| Humidity range: | 20% -95% |
| Online Update: | No |
| Dimensions: | 35 * 22 * 12 mm |
| Weight: | 8 g |
| Certification: | CE |
PACKING AND SHIPPING

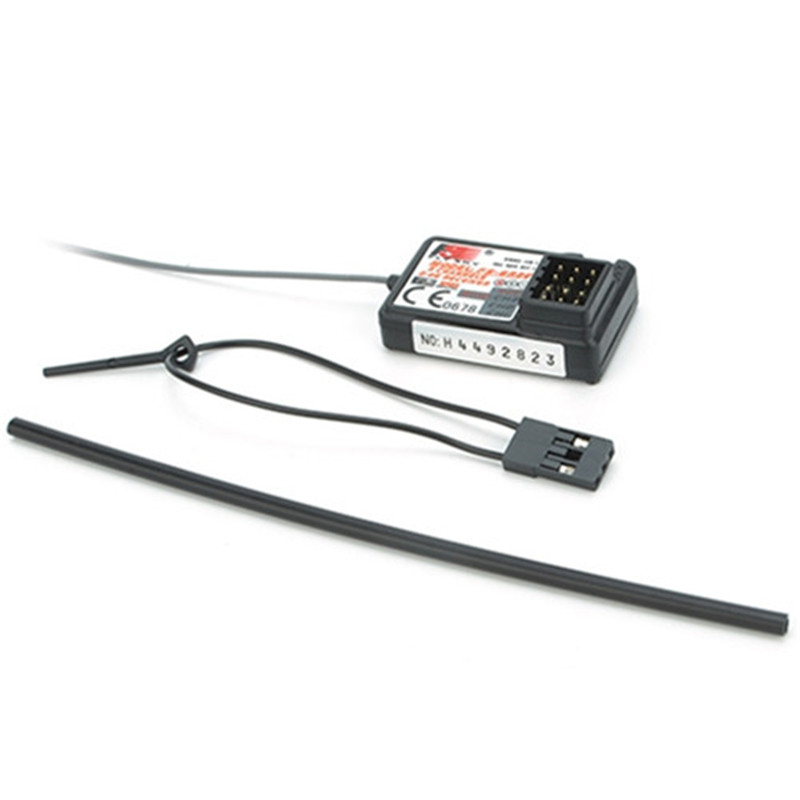

FS-GR3E 2.4G 3CH RECEIVER x 1
You can visit our wholesale online shop: www.lxrcmodel.com.
Regarding to the shipment, We can ship by EMS, Fedex, DHL, UPS, Air Mail, Sea.
Regarding to the payment, We can accept pay by Paypal, Western Union, Bank Transfer
We have not any MOQ for our customers
If there is any problem, you can tell me that I would be happy to answer it for you.
