- The motor outer diameter:46MM
- The stator diameter:40.6M
- The stator end thickness:6MM
- The stator terminal number:24 slot
- Motor pole number:22P
- The wire diameter:0.23MM
- Gear shaft installation - diameter:4MM
- Motor height:22.0MM
- Website:www.lxrcmodel.com
- Use:Vehicles & Remote Control Toys
- Place of Origin:CN;GUA
- Brand Name:Tarot
- Model Number:TL68P02

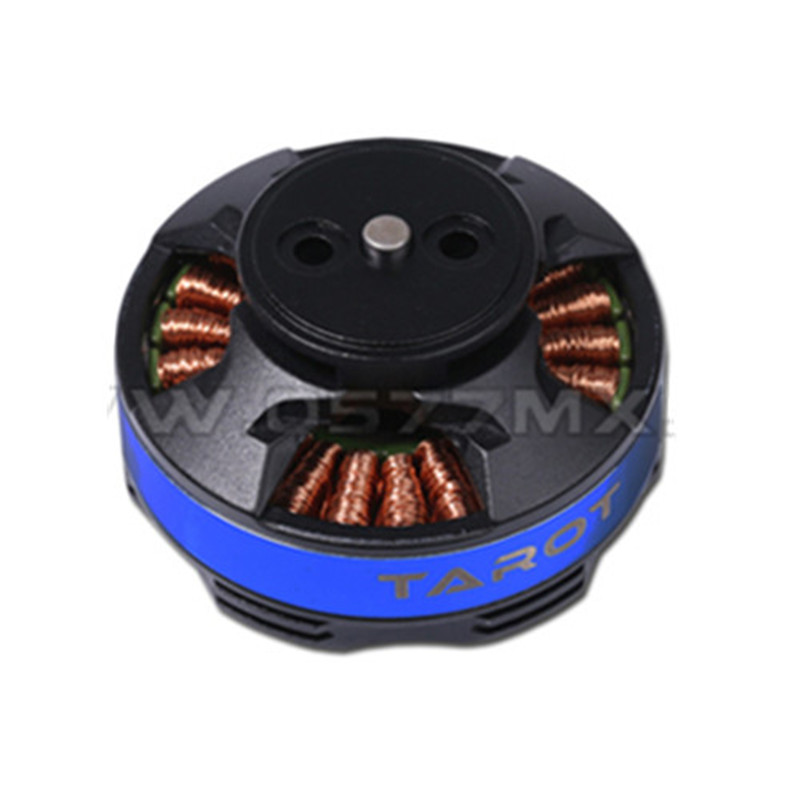

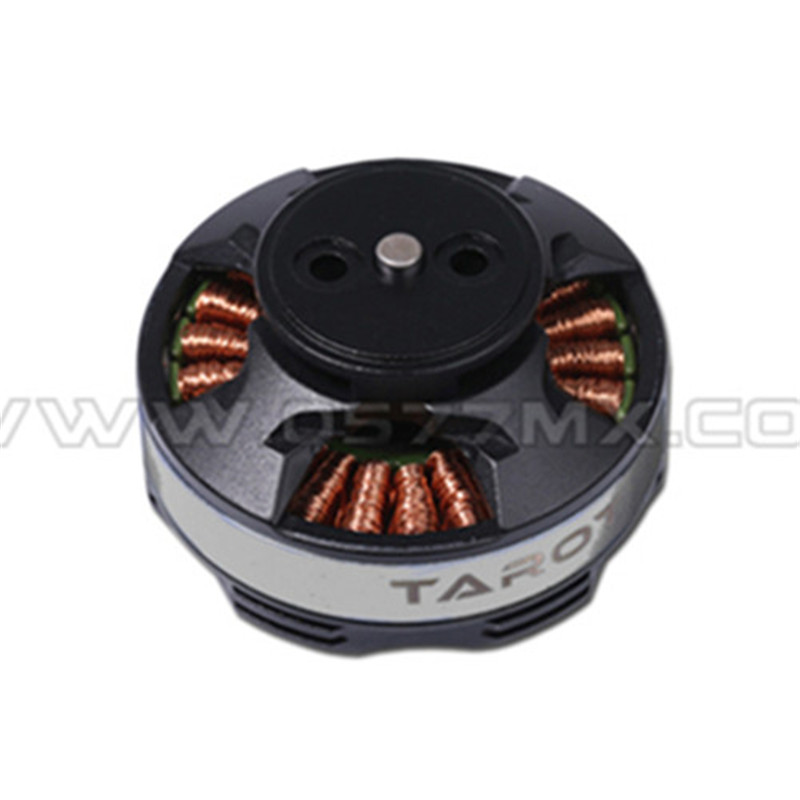

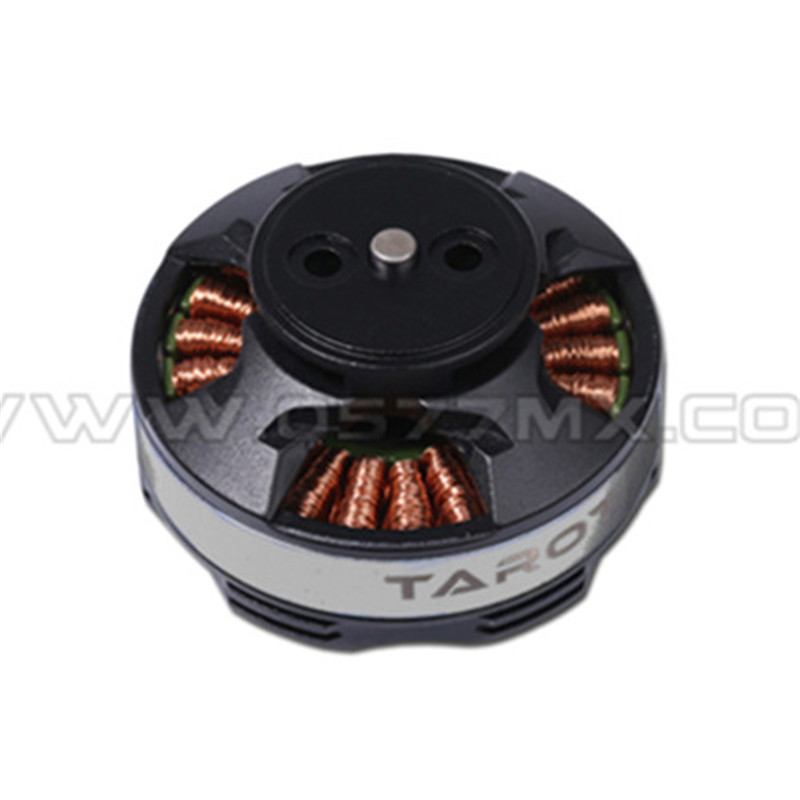

Tarot 4006 / 620KV Multicopter Brushless Motor TL68P02 for Multi-axis Copters Multicopters
What is the Details of our Product?
Features
· Designed for quad-copters and hex-copters, CNC processed, smooth surface and well-balanced
· Brand-new turbofan cover, which provide good heat dissipation effect.
· Rotor is made by neodymium iron boron, and stator is made by Epoxy resin, motor is well-balanced from factory, which solves vibration issue a lot. * Motor shaft is alloy steel applied.
· Motor upper and lower cover are special bearing applied, which has advantages such as low frictional torque, low power consumption, impact resistance, strong radial support.
· Designed for quad-copters and hex-copters, CNC processed, smooth surface and well-balanced
· Brand-new turbofan cover, which provide good heat dissipation effect.
· Rotor is made by neodymium iron boron, and stator is made by Epoxy resin, motor is well-balanced from factory, which solves vibration issue a lot. * Motor shaft is alloy steel applied.
· Motor upper and lower cover are special bearing applied, which has advantages such as low frictional torque, low power consumption, impact resistance, strong radial support.
Product Details
· Motor diameter: 46MM
· Stator diameter: 40.6MM
· Stator thickness: 6MM
· Stator pole: 24 Port
· Motor pole: 22P
· Cable diameter: 0.23MM
· Gear axis installation diameter: 4MM
· Motor height: 22.0MM
· Motor cord length: 30.50MM
· RPM: 620RPM/ volt
· Motor Weight: 82G
· Internal Resistance: 126 mΩ
· 14.8V no load current: 0.8A
· 14.8V load current: 14A
· 4006 Motor mounting pitch: 27.7MM equilateral triangle installation.
· Propeller installation:
· Hole diameter: 4mm (middle), 3mm (side),
· Distance from hole to hole: 12mm
Product Images
Product Picture

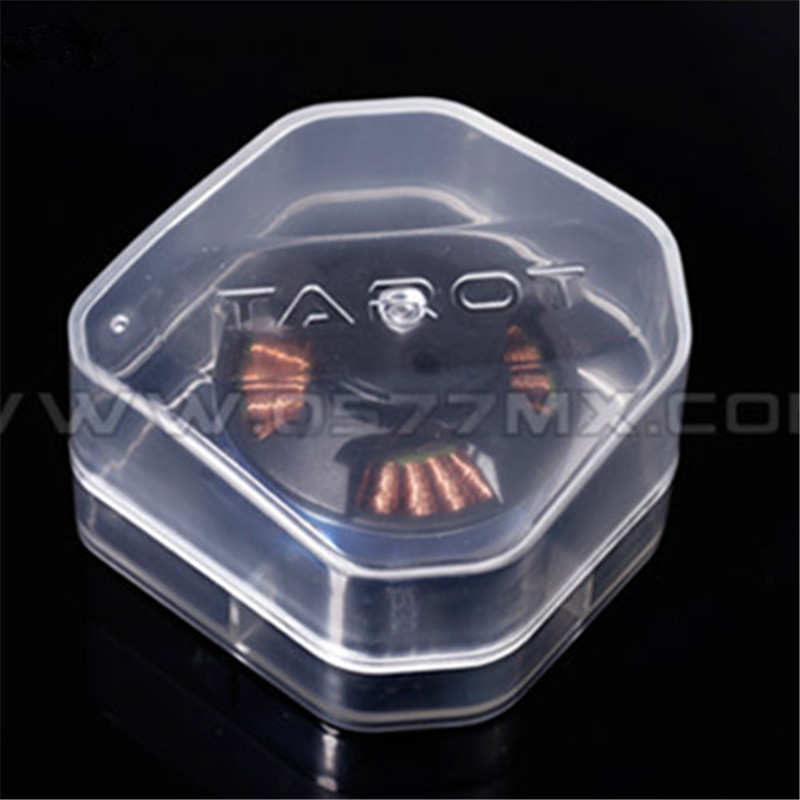

Item Packing
· 4006/620KV Brushless Motor 82G x 1
· M3x6MM Cup head screw x 3
· M3x8MM Half Round screw x 2
· Metal propeller installation plate 2.5G x 1
