- Brand name:Radiolink
- Item number:R12DSM
- Channels:12 channels
- Working voltage:4.8-6V
- Working current:40-180mA
- Size:30*15 MM
- Weight:2.5g
- website:www.lxrcmodel.com
- Model Number:R12DSM
- Type:Car
- Power:Battery
- Material:plastic
- Plastic Type:ABS
- Scale:1:8
- Radio Control Style:RC Hobby
- Place of Origin:CN
- Brand Name:Radiolink Radio Control
- Model Number:R12DSM
Features
* Only 1 gram of weight.

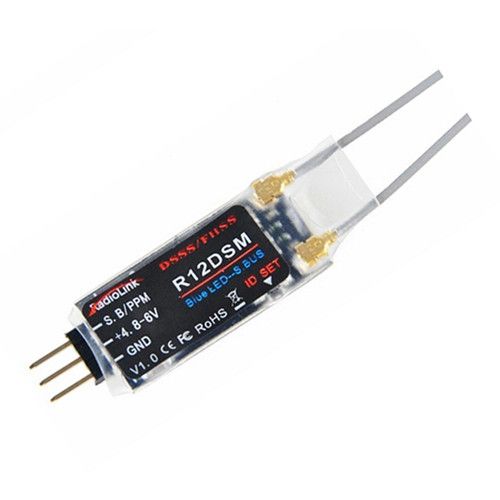

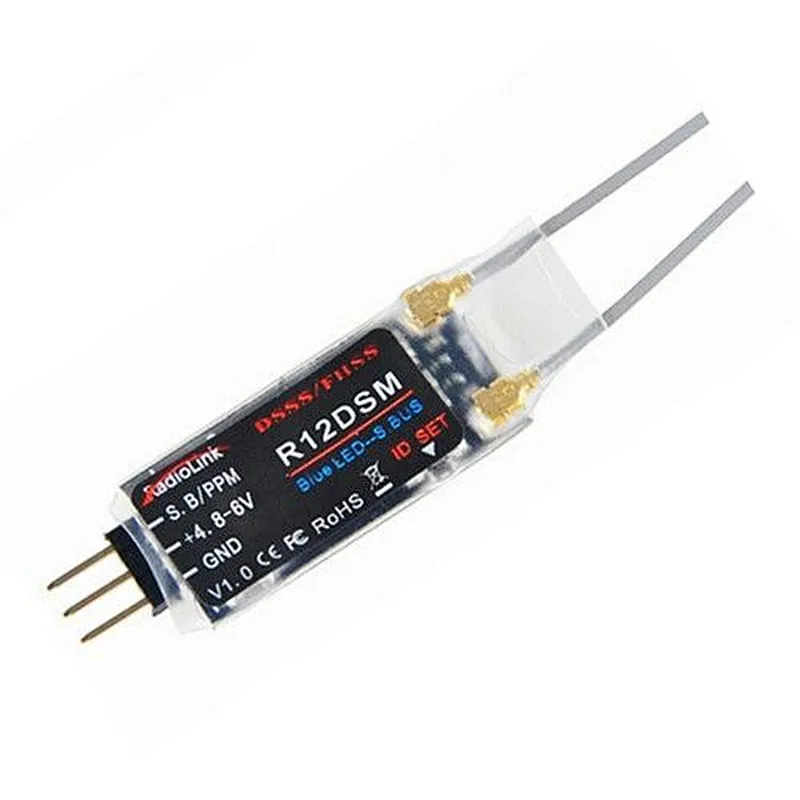

* Radiolink R12DSM, 2.4G 12CH receiver.
* DSSS and FHSS spread spectrum working synchronousl.
* SBUS and PPM signal support, use for Radiolink transmitters AT9,AT9S,AT10 and AT10II, is the best choice for racing drone.
Two signal working mode:
Blue/purple LED, SBUS signal, 12 channels totally.
Red LED always, PPM signal, 12 channels totally.
SBUS and PPM signal change:
Short press the ID SET switch two times within 1 second, the signal is changed from SBUS to PPM. The red LED indicates the PPM and
blue/purple indicates SBUS.
How to bind with transmitter:
1. Place the transmitter and the receiver close to each other within 1 meters.
2. Turn on the transmitter, then power on the R12DSM.
3. There is a black button on the R12DSM, press the binding button twice in two seconds and release, receiver light start
blinking, after about 8 times blinking, match code success when receiver signal LED always on!
* Radiolink R12DSM, 2.4G 12CH receiver.
* DSSS and FHSS spread spectrum working synchronousl.
* SBUS and PPM signal support, use for Radiolink transmitters AT9,AT9S,AT10 and AT10II, is the best choice for racing drone.
Two signal working mode:
Blue/purple LED, SBUS signal, 12 channels totally.
Red LED always, PPM signal, 12 channels totally.
SBUS and PPM signal change:
Short press the ID SET switch two times within 1 second, the signal is changed from SBUS to PPM. The red LED indicates the PPM and
blue/purple indicates SBUS.
How to bind with transmitter:
1. Place the transmitter and the receiver close to each other within 1 meters.
2. Turn on the transmitter, then power on the R12DSM.
3. There is a black button on the R12DSM, press the binding button twice in two seconds and release, receiver light start
blinking, after about 8 times blinking, match code success when receiver signal LED always on!
Product Detail
Brand name: Radiolink
Item number: R12DSM
Channels: 12 channels
Working voltage: 4.8-6V
Working current: 40-180mA (input voltage: 5V)
Size: 30*15 MM
Weight: 2.5g
4096 section precision, 0.5us per section, servo anti-shake rudder.
Control distance: about 1100 meters ground and 4000 meters air, actually control distance depends on the environment.
Item number: R12DSM
Channels: 12 channels
Working voltage: 4.8-6V
Working current: 40-180mA (input voltage: 5V)
Size: 30*15 MM
Weight: 2.5g
4096 section precision, 0.5us per section, servo anti-shake rudder.
Control distance: about 1100 meters ground and 4000 meters air, actually control distance depends on the environment.
Item Packing
R12DSM receiver x 1
