- Item Name:Transmitter Module
- Modulate:Wideband FM Modulate
- Video Format:NTSC/PAL
- Output Impedance:50 Ohm
- Output Power:23-24dBm
- Channel:40 CH
- Operating Voltage:7V-24V
- Website:www.lxrcmodel.com
- Use:Vehicles & Remote Control Toys
- Place of Origin:CN;GUA
- Brand Name:feixiang
- Model Number:TS5823

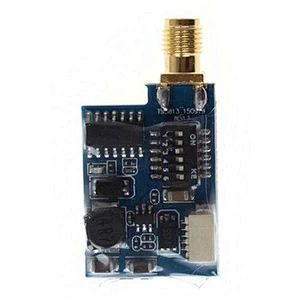

5.8G 200mW 40CH Micro Wireless Video Transmission Module TX TS5823 for Multicopter FPV Racing Drone
Product Pictures

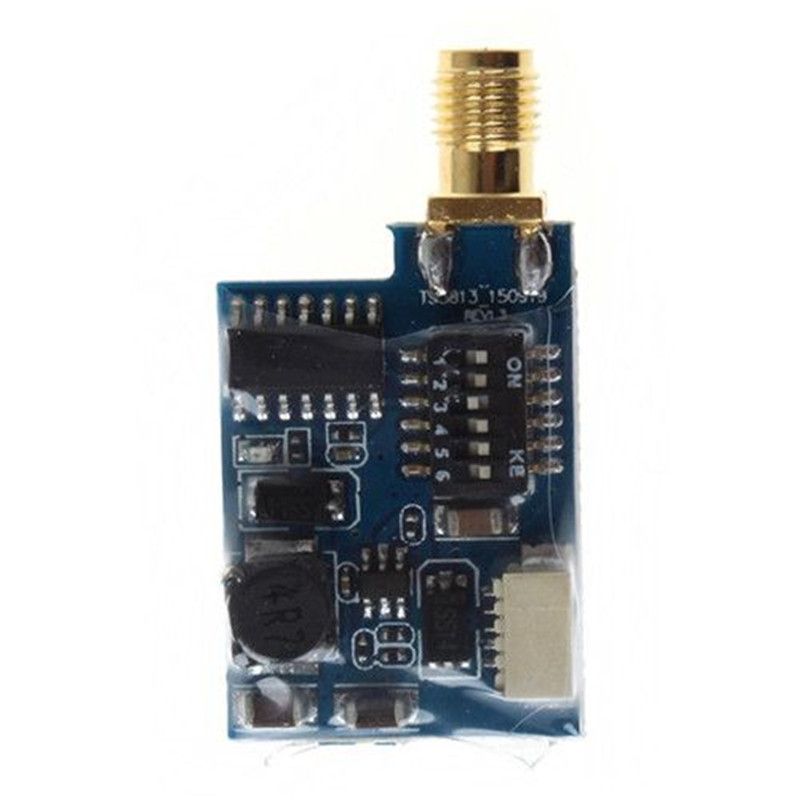

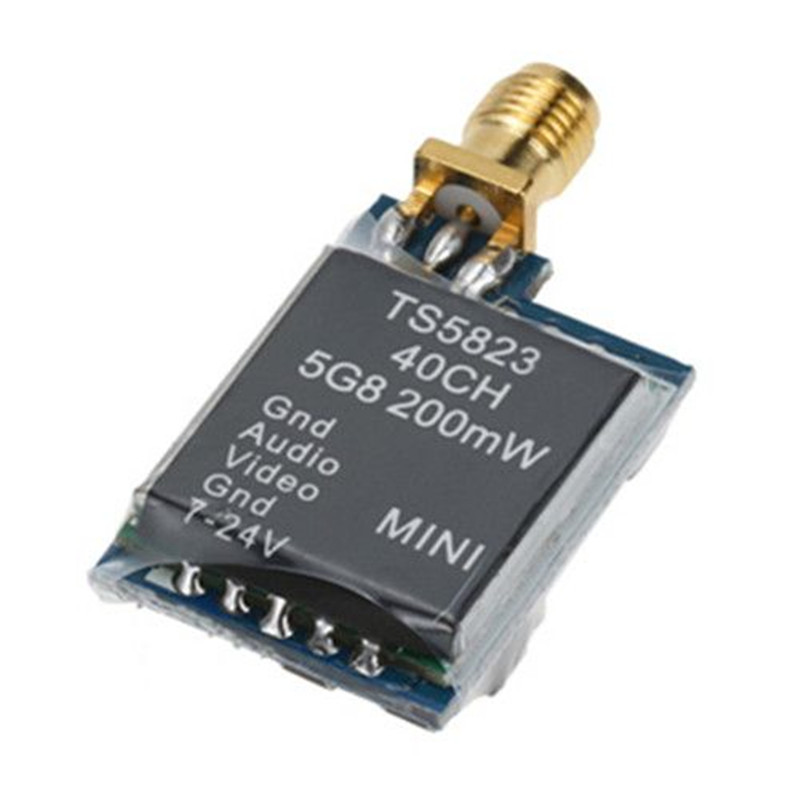

Product Picture
What is the Details of our Product?
Features
40 channels
200mW RF power output
Smallest and lightest, easy to carry
Super mini size and light weight
Suitable for small multi-quadcopter, escpeically for DJI wizard series aircraft
Product Details
| Item Name: | Transmitter Module |
| Modulate: | Wideband FM Modulate |
| Video Format : | NTSC/PAL |
| Output Impedance: | 50 Ohm |
| Output Power : | 23-24dBm |
| Channel: | 40 CH40 CH |
| Operating Voltage: | 7V-24V |
| Supply Current : | 190mA |
| Operating Temperature: | -10~85℃ |
| Video Band Width : | 0~8.0 MHz |
| Audio Carrier Frequency : | 6.5 MHz |
| Video Input Level: | 0.8~1.2 Vp-p |
| Video Input Impedance : | 75 Ohm |
| Audio Input Level : | 0.5~2.0 Vp-p |
| Audio Input Impedance : | 10K Ohm |

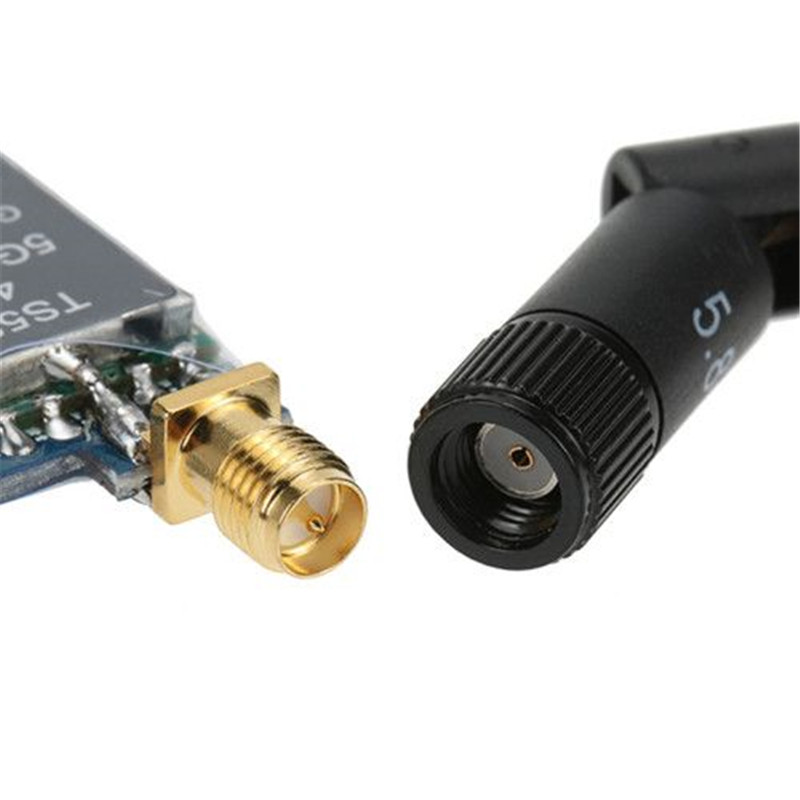

| Connector: | RP-SMA Female (Inner needle) |
| Antenna Connector: | RP-SMA Male (Inner hole) |
| Dimension: | 40mm x 23mm x 8mm |
| Weight: | 7.3g |

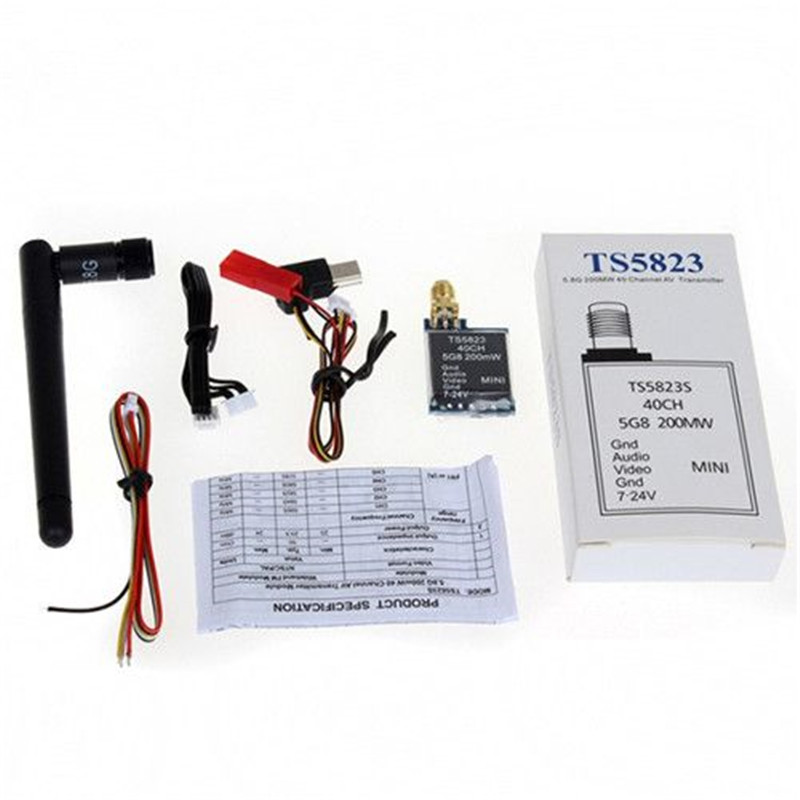

Item Packing
Upgrade TS5823 Mini FPV Transmitter x 1
Antenna x 1
Gopro3 video output cable x 1
connector cable x 2
Product Specification Table x 1
Antenna x 1
Gopro3 video output cable x 1
connector cable x 2
Product Specification Table x 1
You can visit our wholesale online shop: www.lxrcmodel.com.
Regarding to the shipment, We can ship by EMS, Fedex, DHL, UPS, Air Mail, Sea.
Regarding to the payment, We can accept pay by Paypal, Western Union, Bank Transfer
We have not any MOQ for our customers
If there is any problem, you can tell me that I would be happy to answer it for you.
