- Model:WP-1060-BRUSHED
- Fwd. Cont. / Peak Current:60A/360A
- Rev. Cont. / Peak Current:30A/180A
- Voltage Range:2-3S Lipo or 5-9 NiMH
- PWM Frequency:1KHz
- website:www.lxrcmodel.com
- Use:Vehicles & Remote Control Toys
- Place of Origin:CN;GUA
- Brand Name:Hobbywing
- Model Number:QUICRUN-WP-1060-BRUSHED

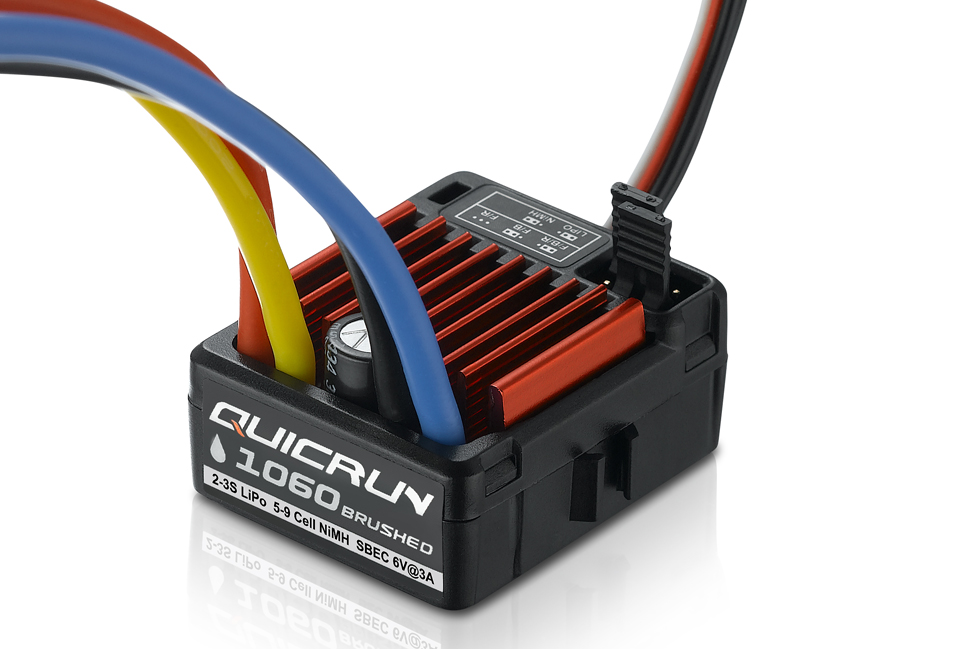

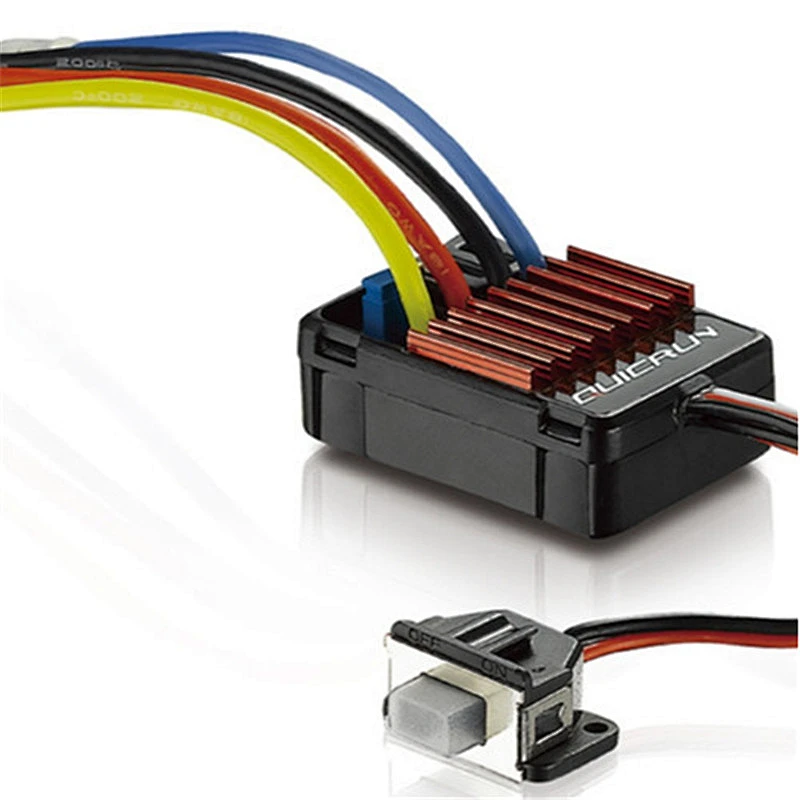

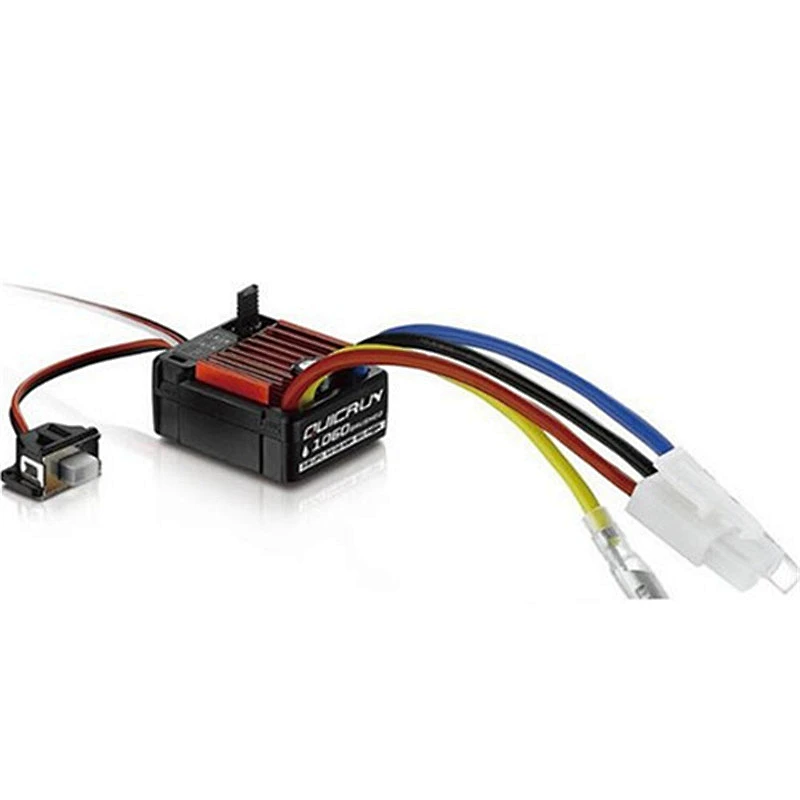

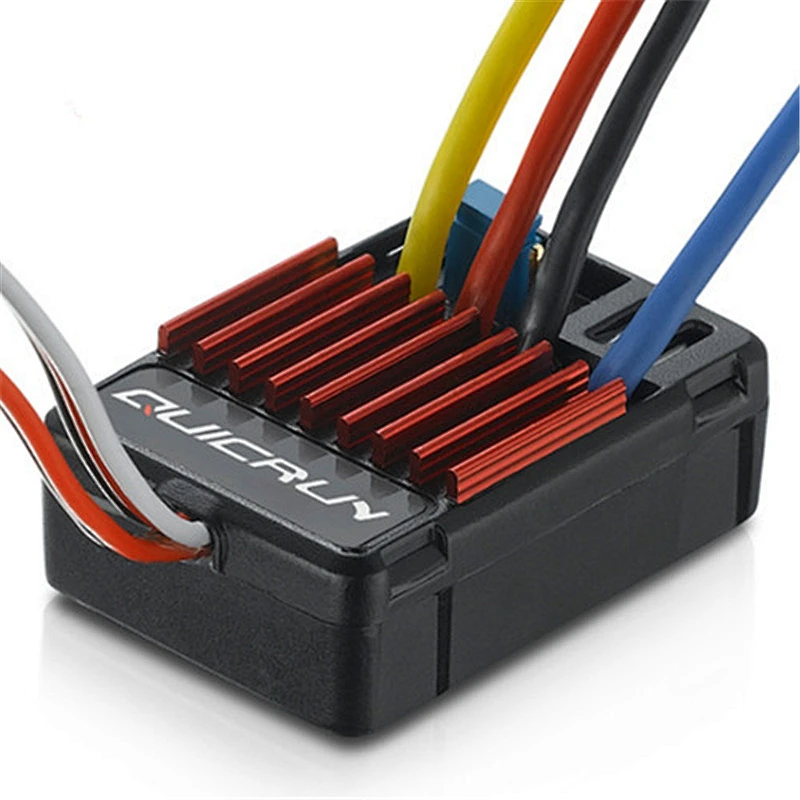

Original HobbyWing QuicRun 1060 60A Brushed Electronic Speed Controller ESC For 1:10 RC Car Waterproof TRX-4 Axial scx10 II TRX6
Features
1.1 Water-proof and dust-proof, suitable for all-weather condition races.
1.2 Small size with built-in capacitor module.
1.3 Three running modes: Fwd/Br, Fwd/Rev/Br and Fwd/Rev, fits for various vehicles (Fwd =Forward, Br=Brake, Rev=Reverse).

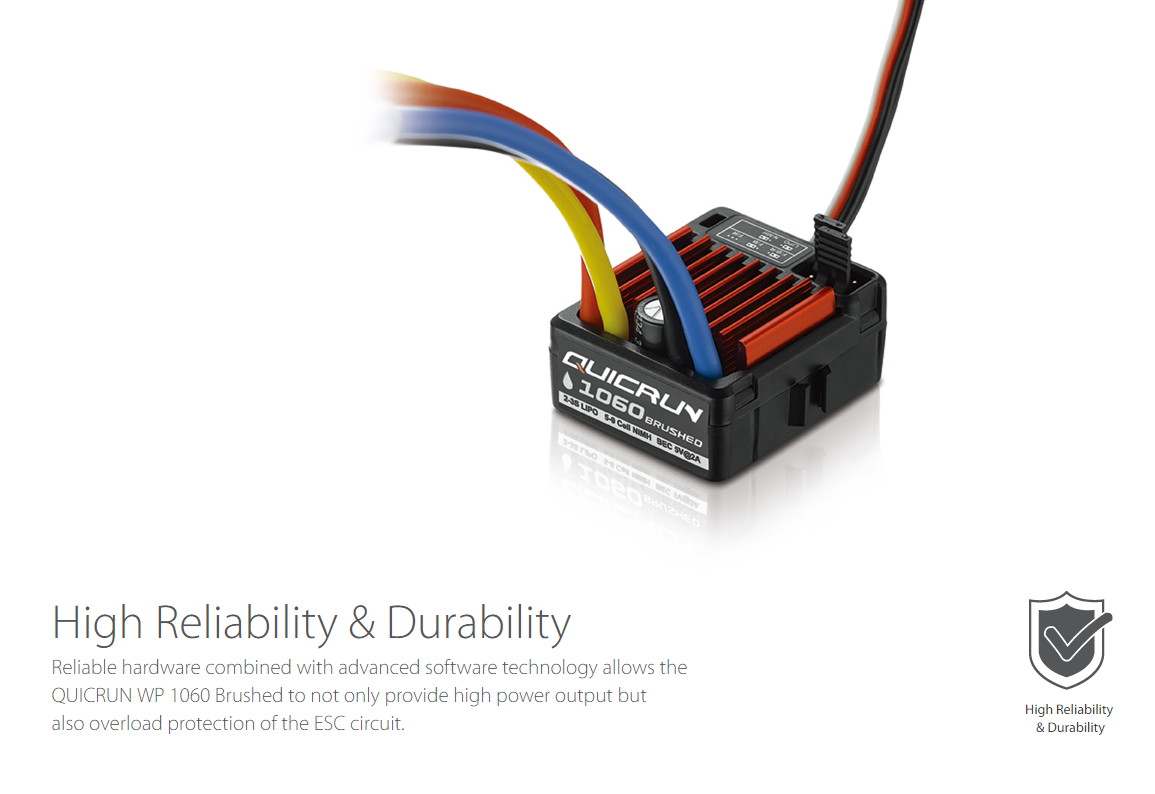

1.4 Great current endurance capability.
1.5 Great built-in BEC output capacity.

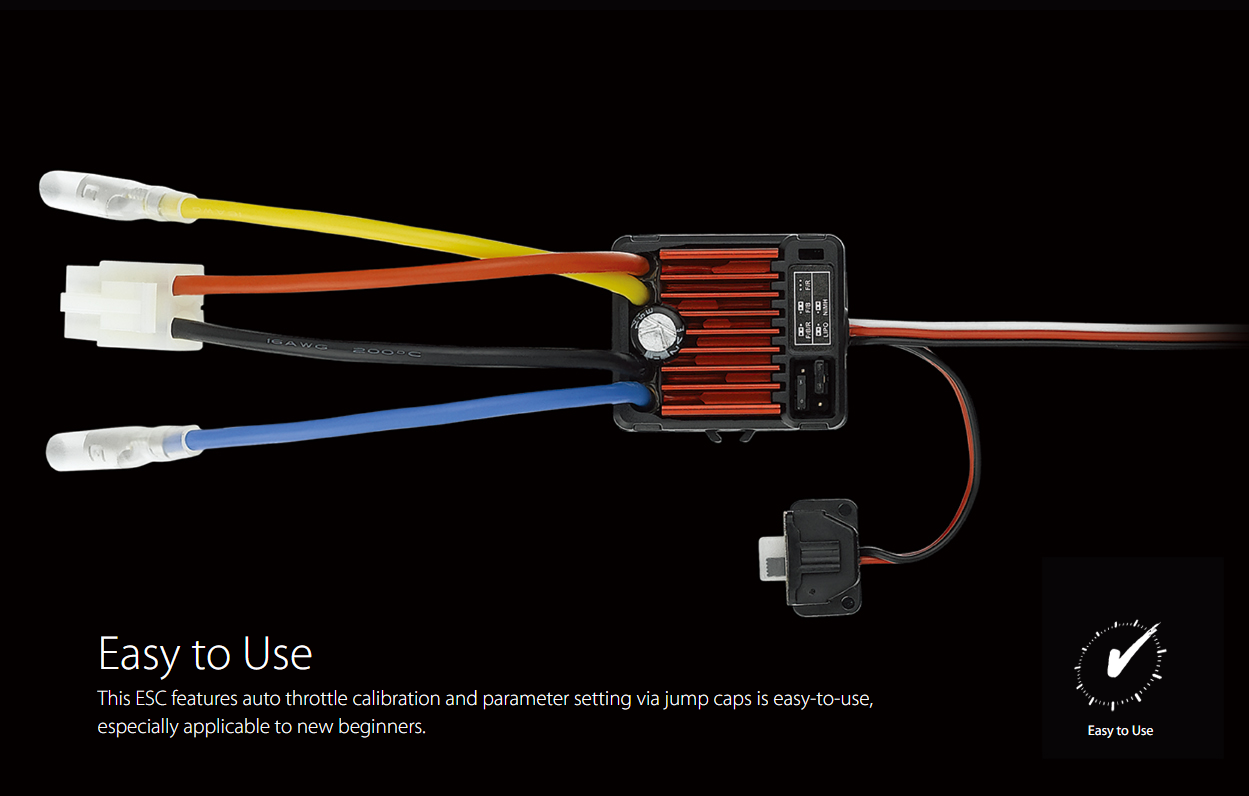

1.6 Automatic throttle range calibration, easy to use.

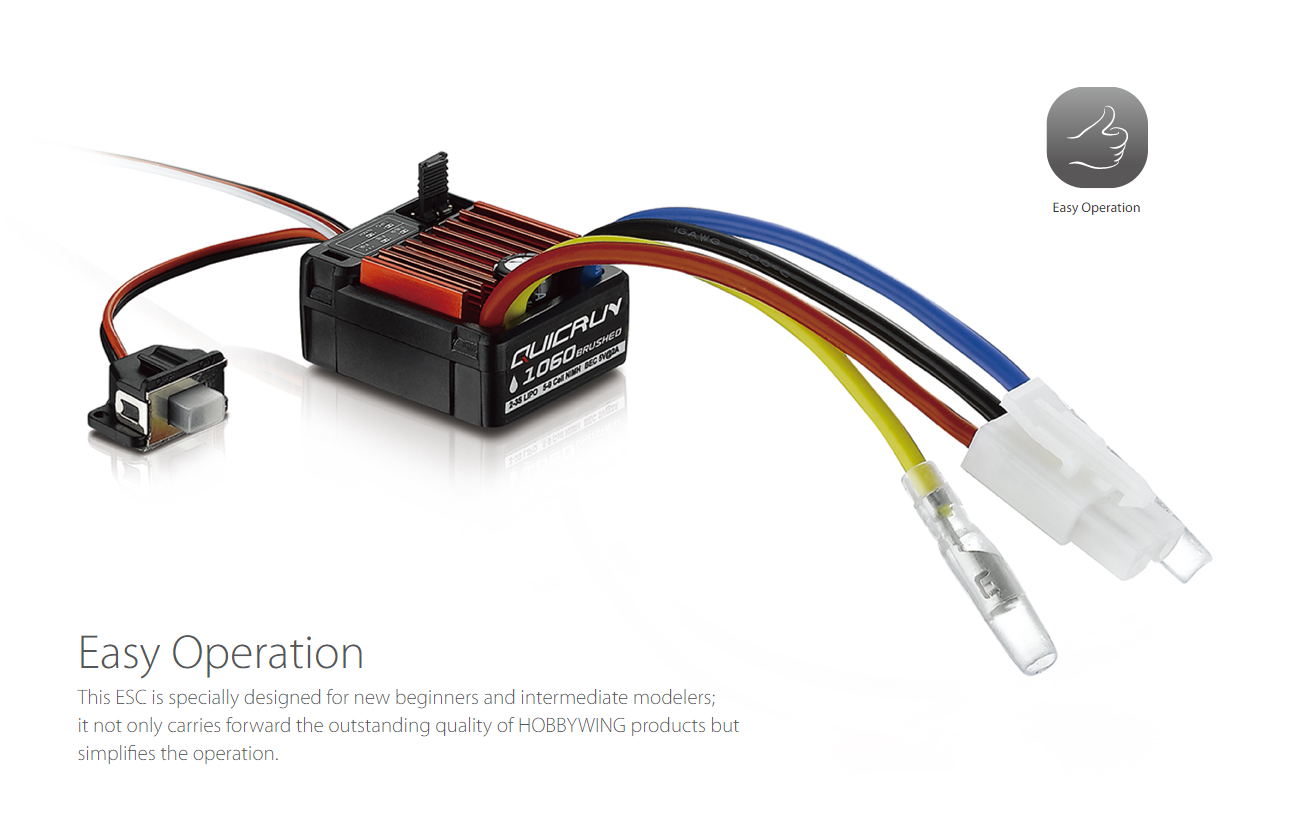

1.7 Easy to set the ESC parameters with jumpers.
1.8 Multiple protections: Low voltage cut-off protection for battery / Over-heat protection / Throttle signal loss protection.
What is the Details of our Product?
Model: WP-1060-BRUSHED
Fwd. Cont. / Peak Current: 60A/360A
Rev. Cont. / Peak Current: 30A/180A
Voltage Range: 2-3S Lipo or 5-9 NiMH
Cars Applicable: 1/10: Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank
Motor Limit : 540 or 550 Size Motor: ≥12T Or RPM<30000 @7.2V
540 or 550 Size Motor: ≥18T Or RPM< 20000 @7.2V
Resistance: Fwd 0.001Ω, Rev 0.002Ω
BEC Output: 2A/5V (Linear Mode)
PWM Frequency: 1KHz
Dimension / Weight: 36.5*32*18 / 39g
Cooling Fan: Without cooling fan

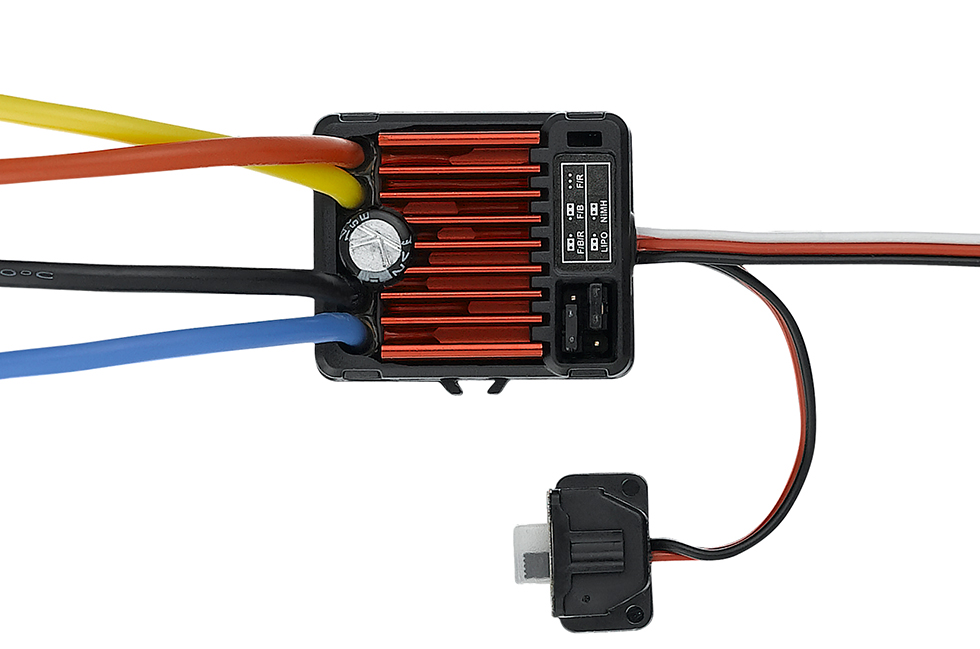

Detailed Images

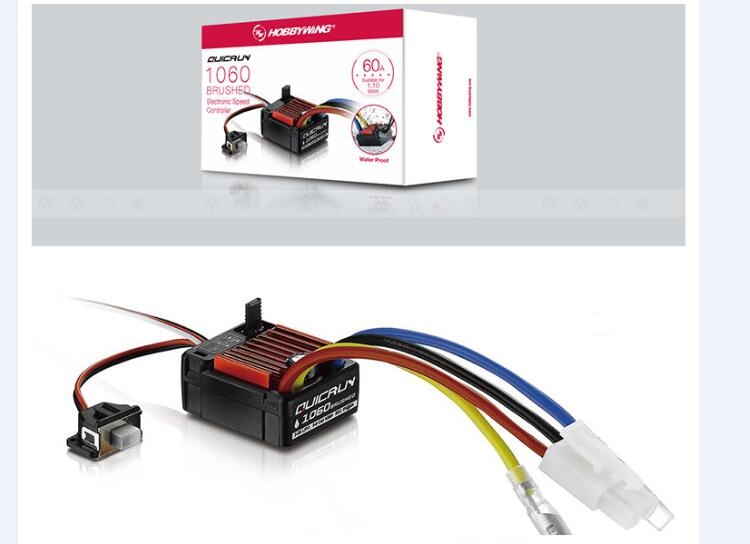

Item Packing
QUICRUN-WP-1060-BRUSHED X 1
