- Item Name:AT9S Pro Transmitter and R12DSM Receiver
- Frequencies Band:2.4Ghz ISM band (2400MHz-2483.5MHz)
- Bandwidth:5.0MHz
- ACPR:>38dbm
- Modulation Mode:QPSK
- Spread Spectrum Mode:DSSS&FHSS/CRSF
- Operating Voltage:7.4~18.0V
- Operating Current:DSSS&FHSS<90mA 12V
- Website:www.lxrcmoel.com
- Use:Vehicles & Remote Control Toys
- Model Number:AT90PRO
- Brand Name:Frsky
- Place of Origin:CN;GUA

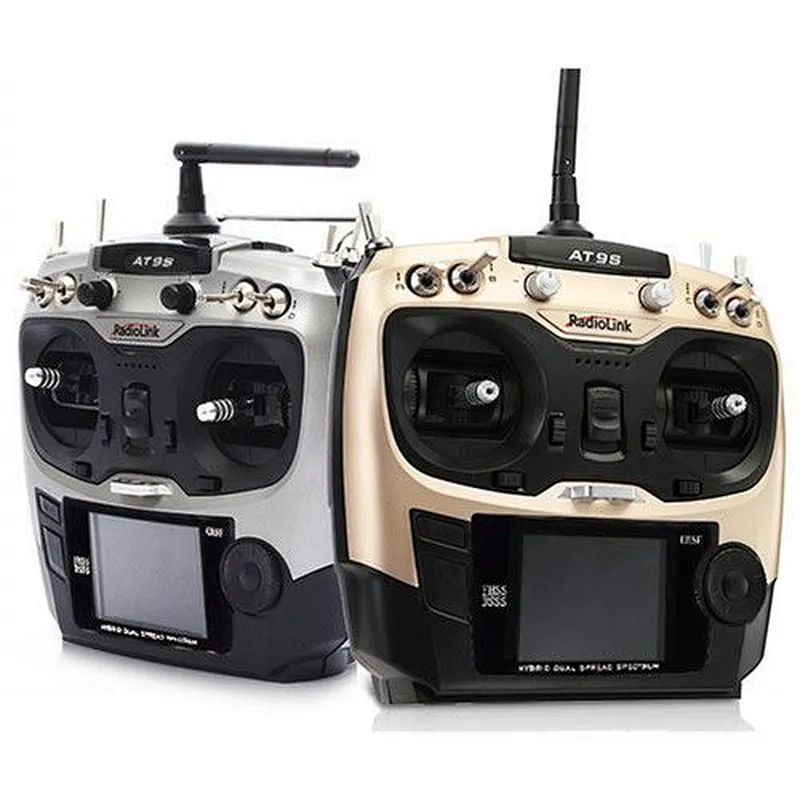

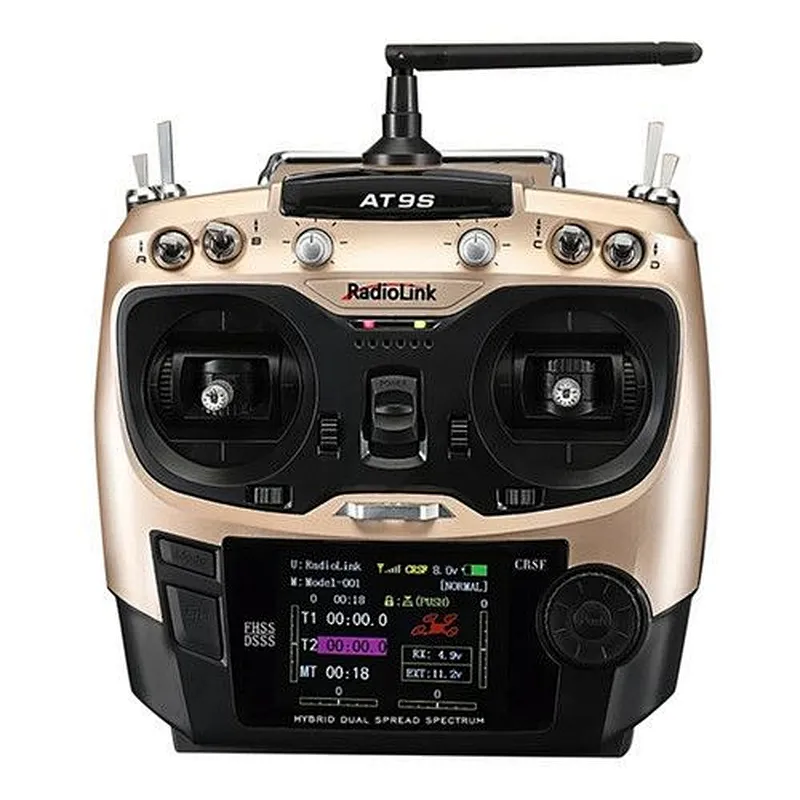

Radiolink AT9S Pro 2.4G 12CH DSSS FHSS Transmitter with R12DSM Receiver Compatible TBS Crossfire Module for RC Drone
Product Pictures
What is the Details of our Product?
Features
-Radiolink 2019 AT9S Pro Version TX 10/12CH RC Radio Controller Support T8S Crossfire CRSF Protocols with R12DSM Mini Receiver RX 2.4G for Racing Drone Quadcopter Mode 1/2.
-Excellent Anti-interference: The rc transmitter with DSSS&FHSS working synchronously to keep the excellent anti-interference performance, only 3ms for10 channels response.
-CRSF Protocol Supported: On the basis of the RadioLink unique communication technology of DSSS and FHSS, CRSF protocol from BLACKSHEEP is added. Compatible with TBS Crossfire TX.
-Compatible with SBUS, PPM, PWM and CRSF: With DSSS&FHSS protocol, SBUS, PPM and PWM can operate simultaneously for seamless user control. With CRSF protocol, TBS Crossfire TX is needed to bind to BLACKSHEEP receiver.

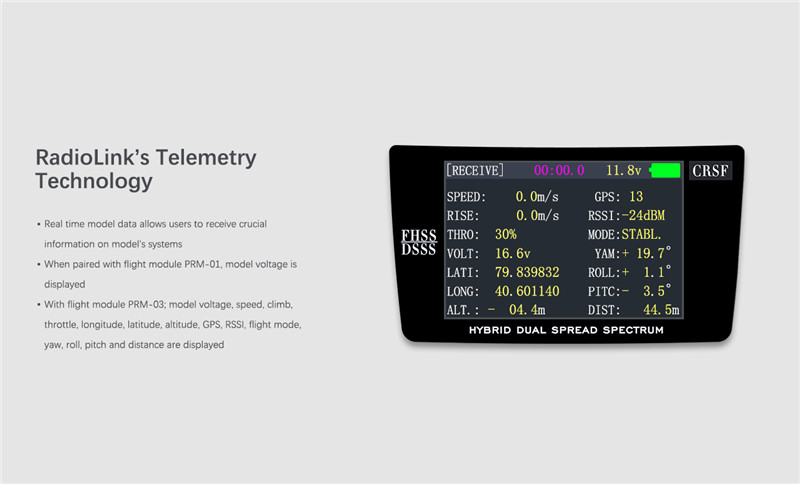

-Real-time Information: When with flight module PRM-03,model voltage, speed, climb, throttle, longitude, latitude, altitude, GPS, RSSI, flight mode, yaw, roll, Pitch and distance are displayed. on the LCD screen display.

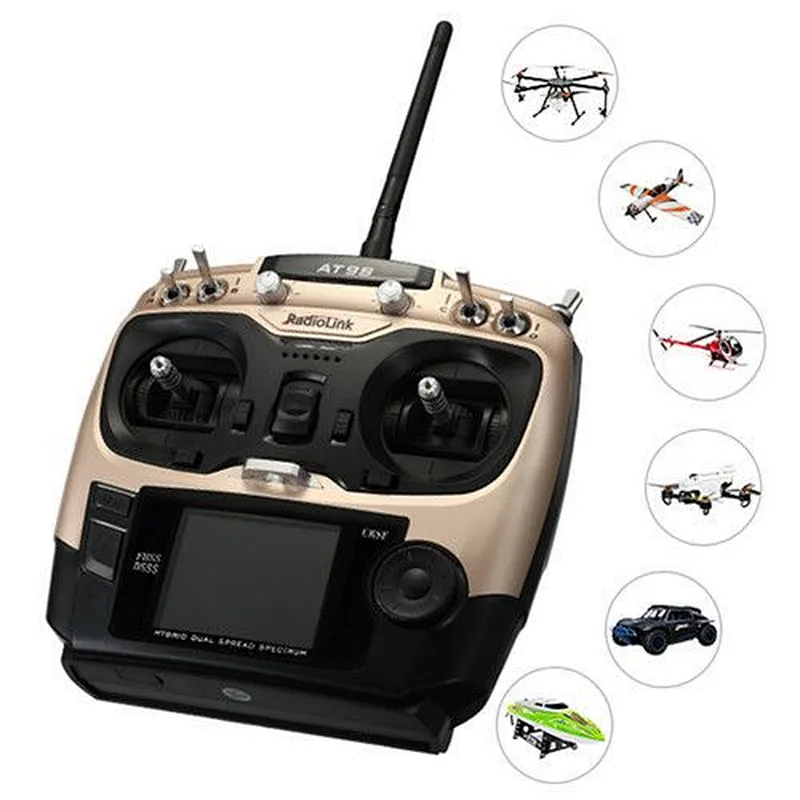

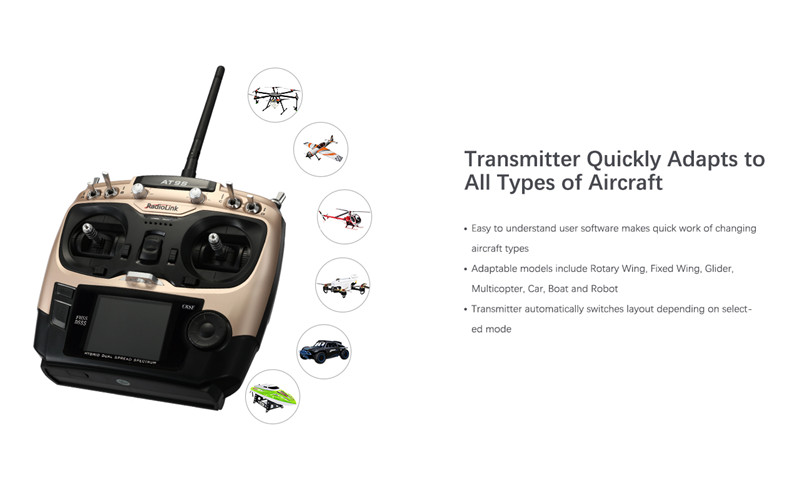

-Adapts to All Types of Aircraft: Easy to understand user software makes quick work of changing aircraft types, Rotary Wing, Fixed Wing, Multicopter, Car, Boat, Robot. Transmitter automatically switches layout depending on selected mode.
-USB Based Upgrades: Transmitter is easily updated with the latest firmware by USB cable to connect PC.
-Voltage Protection System: RadioLink’s voltage protection software ensures vital components are protected from a reverse polarity connection.
-Simple Setting Humanized: Menu is designed applicable to both beginners and skilled person, only need takes 1 second to bind.

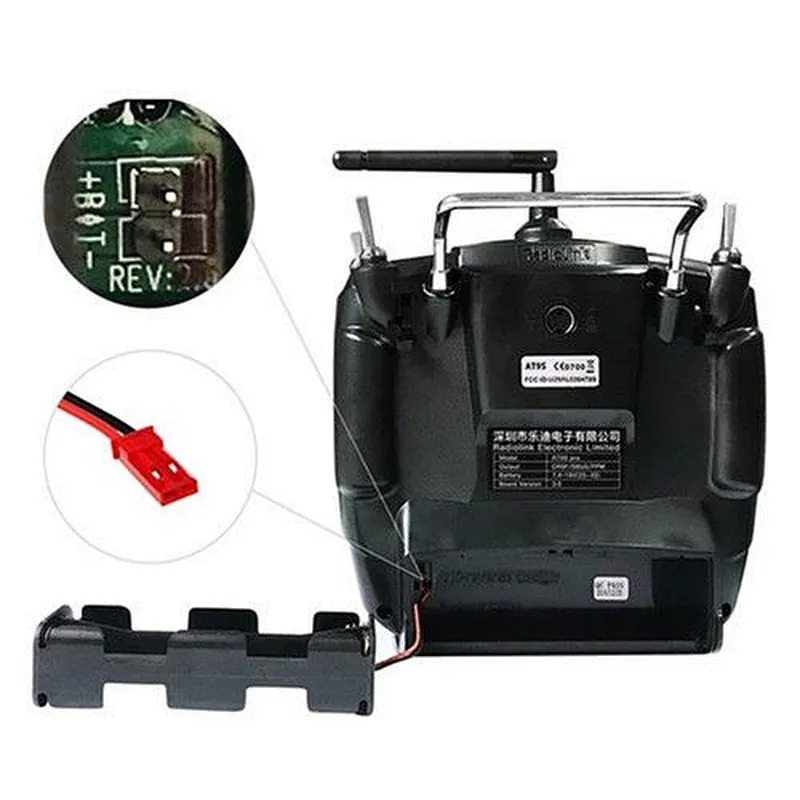

-Support for Universal Battery: JST connector supports multiple type batteries: 8 pcs AA or 2s-4s LiPo battery. (Not included batteries) A 3s 1800mAh liPo battery can work more than 12 hours.
Specifications
Brand Name: Radiolink
Item Name: AT9S Pro Transmitter and R12DSM Receiver
Weight: 880g
Size: 183*100*193 mm
Frequencies Band: 2.4Ghz ISM band (2400MHz-2483.5MHz)
Bandwidth: 5.0MHz
ACPR: >38dbm
Modulation Mode: QPSK
Spread Spectrum Mode: DSSS&FHSS/CRSF
Transmission Power: DSSS&FHSS<100mW (20dbm)
CRSF 10mW/25mW/100mW/500mW/1W/2W (Optional)
Operating Voltage: 7.4~18.0V
Operating Current: DSSS&FHSS<90mA@12V
CRSF Depends on the transmission power selected

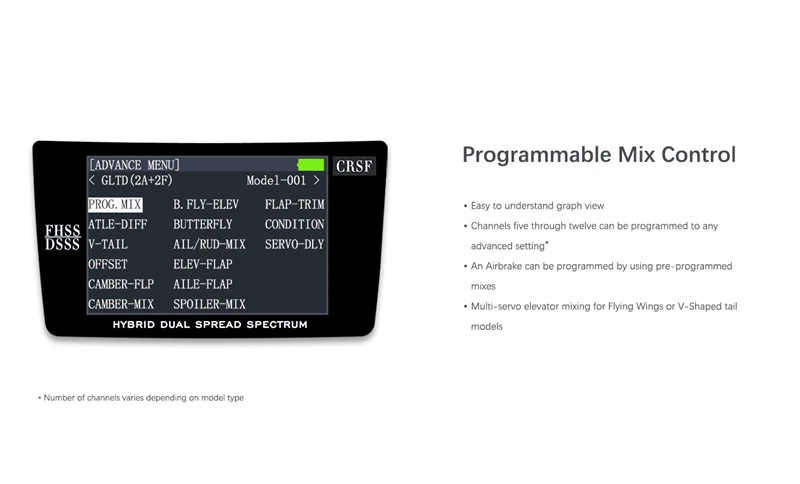

Channel Qty: 10/12 (CH5 through CH10/12CH can be programmed)
Control range: DSSS&FHSS-4KM in the air (Maximum range is tested in an unobstructed area free of interference)
CRSF-Depends on the RX and TX from BLACKSHEEP
Signal Output: PWM/SBUS/PPM/CRSF
Compatible receivers: 12CH-R12DSM, R12DS
10CH-R9DS (Std), R6DS, R6DSM
CRSF: RX from BLACKSHEEP
Simulator Mode: the transmitters RF circuit turns off to save battery power
Display: 2.8-inch 16-bit true color screen, resolution 240 * 320 pixels
Adaptable Models: Rotary Wing, Fixed wing, Multicopter, Car, Boat, Robot
PACKING AND SHIPPING
AT9S Pro Transmitter x 1
R12DSM Receiver x 1
Throttle-Stick Spring Retainer x 1
Lanyard x 1
Cable x 1
Manual x 1
Box x 1
