- Dimension:202.2mm*189.4mm*96mm
- Weight:613g
- Number of channels:16 (ACCST D16) / 24 (ACCESS) channels
- Internal RF module:ISRM-N
- Operating Voltage Range:6.5V~8.4V
- Operating Current:160mA/7.2V typ
- Operating Temperature:-10℃~60℃ (14℉~140℉)
- Backlight LCD resolution:128*64
- Vin Voltage Range:6.5V~13V
- External Power Supply:6.5V~13V
- Type:Car
- Power:Battery
- Material:plastic
- Plastic Type:ABS
- Scale:1:10
- Radio Control Style:RC Hobby
- Place of Origin:CN
- Brand Name:Frsky
- Model Number:QX7R9M
Features
The X7 ACCESS features 24 channels with a faster baud rate and lower latency thanks to its high-speed module digital interface. As
with the rest of the ACCESS transmitters, it provides a secure and reliable link, along with wireless firmware updating making it
fully compatible with our newest line of OTA receivers. The battery compartment now uses 2 18650 Li-Ion batteries and can be
balance charged via the Mini USB interface.
with the rest of the ACCESS transmitters, it provides a secure and reliable link, along with wireless firmware updating making it
fully compatible with our newest line of OTA receivers. The battery compartment now uses 2 18650 Li-Ion batteries and can be
balance charged via the Mini USB interface.
Product Detail

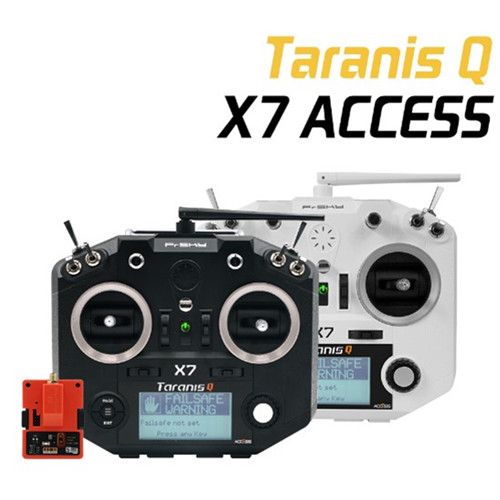

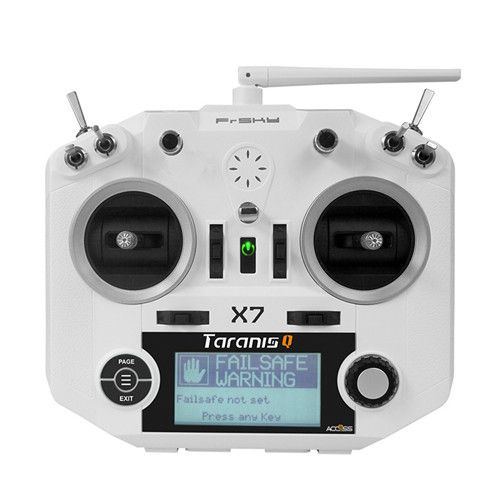

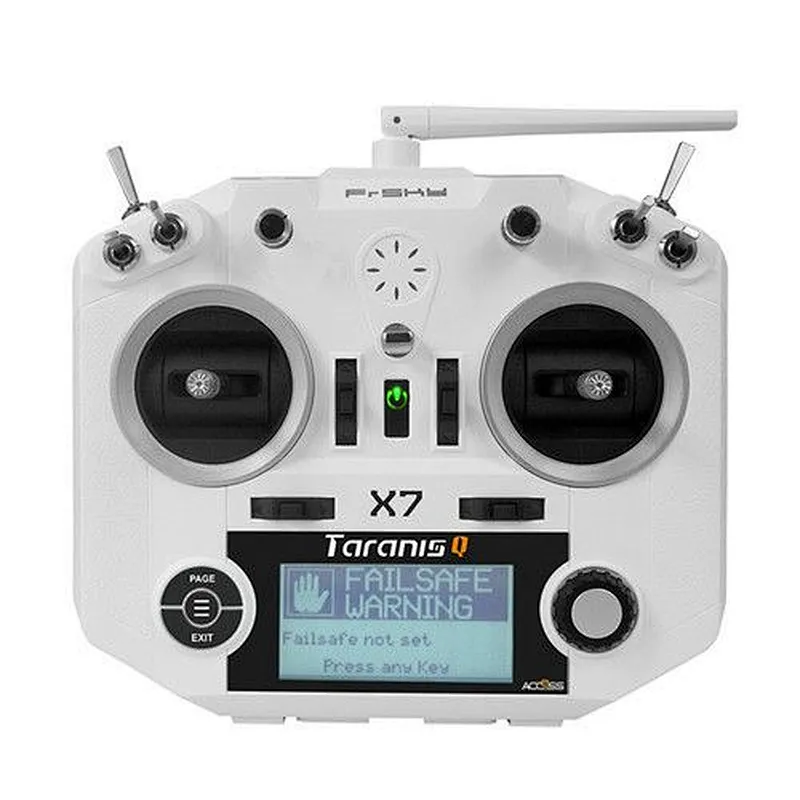

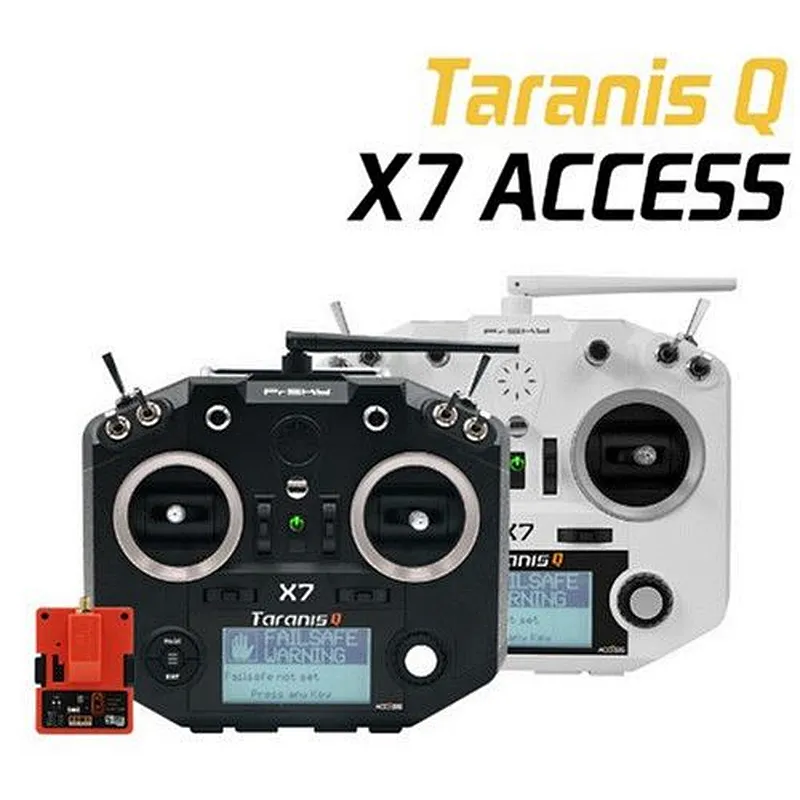

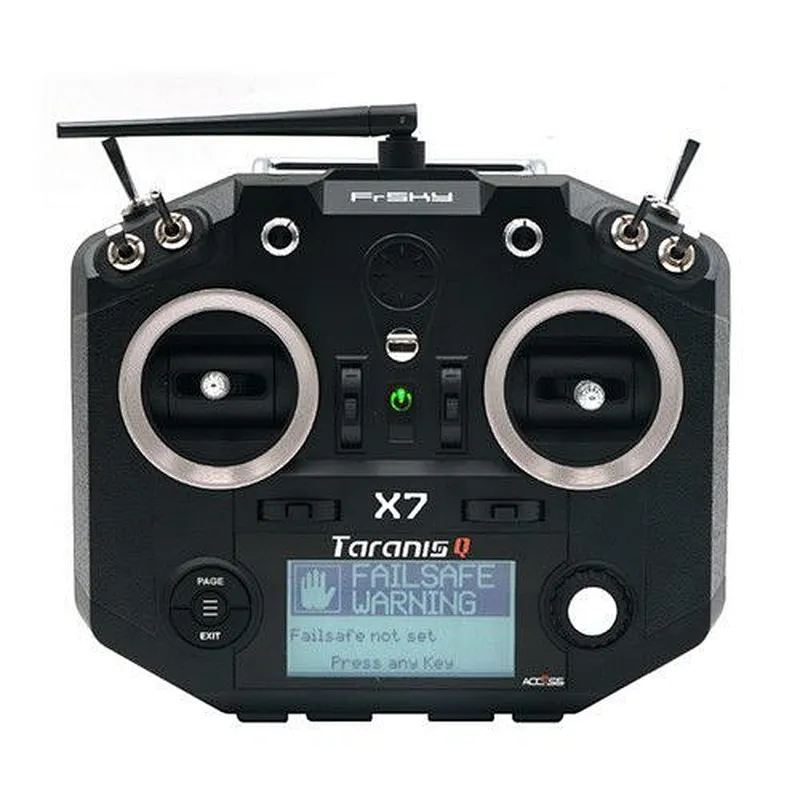

Q X7 ACCESS Transmitter:
Dimension: 202.2mm*189.4mm*96mm
Weight: 613g (without battery)
Number of channels: 16 (ACCST D16) / 24 (ACCESS) channels
Internal RF module: ISRM-N
Operating Voltage Range: 6.5V~8.4V
Operating Current: 160mA@7.2V typ
Operating Temperature: -10℃~60℃ (14℉~140℉)
Backlight LCD resolution: 128*64
Smart Port, Micro SD card slot, Mini USB Port and DSC Port

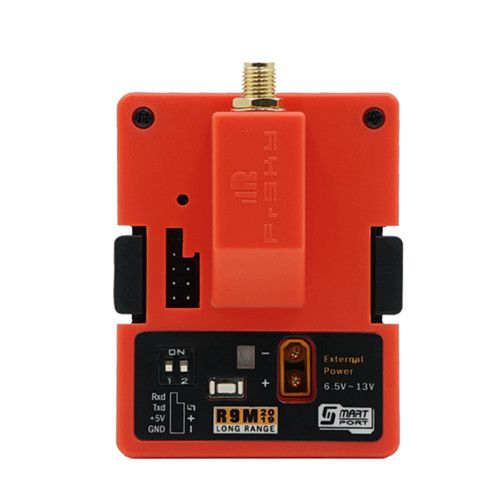

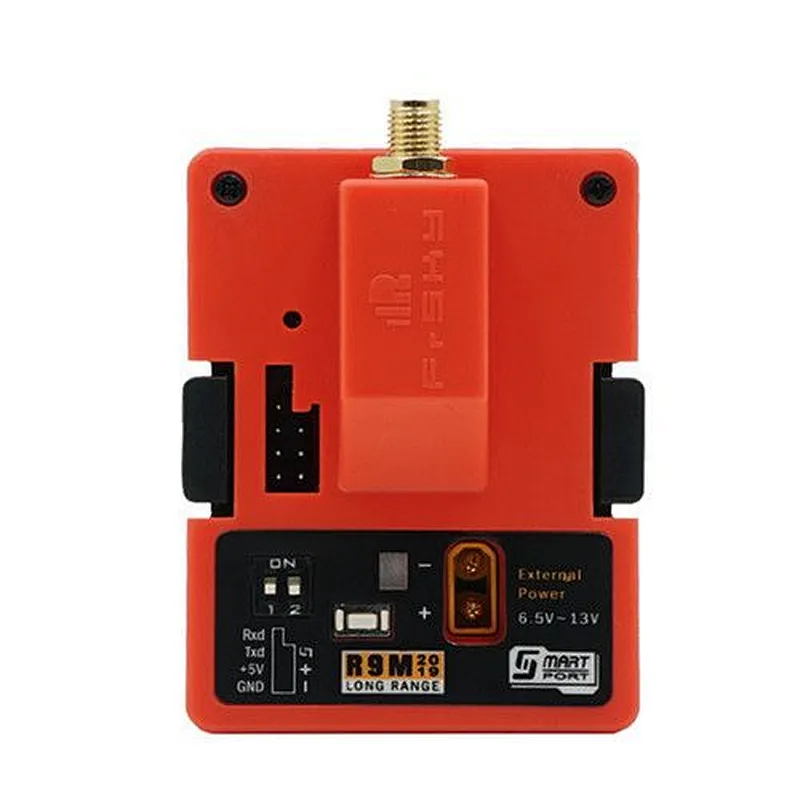

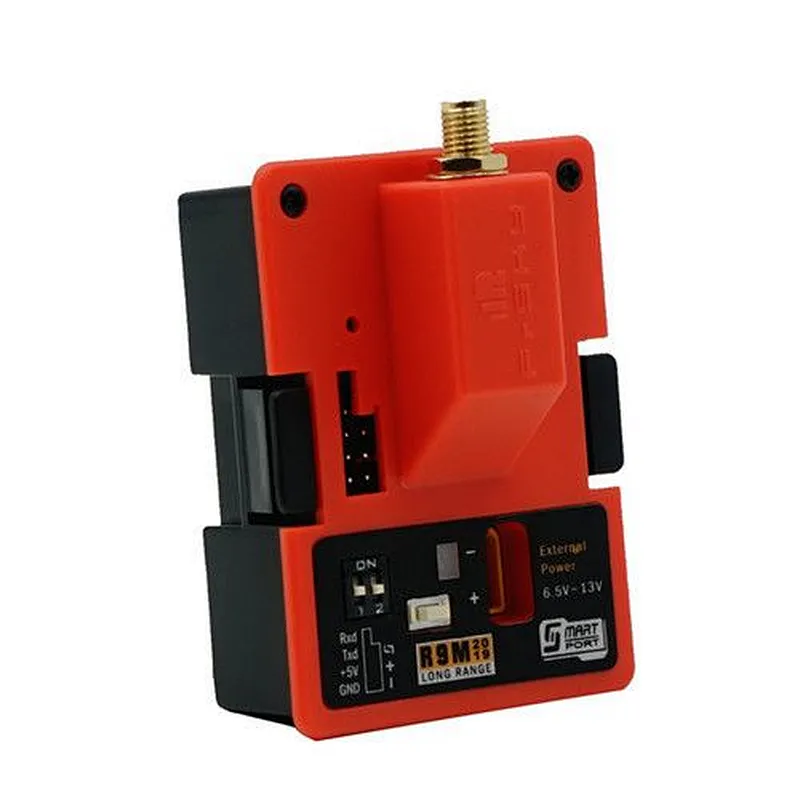

R9M 2019:
Vin Voltage Range: 6.5V~13V
External Power Supply: 6.5V~13V
Telemetry Interface: Smart Port
Upgrade Interface: Smart Port
Compatibility: R9 series (ACCST/ACCESS) and TD series
Dimension: 202.2mm*189.4mm*96mm
Weight: 613g (without battery)
Number of channels: 16 (ACCST D16) / 24 (ACCESS) channels
Internal RF module: ISRM-N
Operating Voltage Range: 6.5V~8.4V
Operating Current: 160mA@7.2V typ
Operating Temperature: -10℃~60℃ (14℉~140℉)
Backlight LCD resolution: 128*64
Smart Port, Micro SD card slot, Mini USB Port and DSC Port
R9M 2019:
Vin Voltage Range: 6.5V~13V
External Power Supply: 6.5V~13V
Telemetry Interface: Smart Port
Upgrade Interface: Smart Port
Compatibility: R9 series (ACCST/ACCESS) and TD series
Item Packing
Q X7 ACCESS Transmitter x 1
R9M 2019 Module x 1
Detailed Images
