- Input voltage:6~36V(2~8S LiPo)
- 5V Output:1A for Camera or FC
- Power Consumption:3.5W@ 800mW
- Video Input Impedance:75 Ohm
- Audio Subcarrier Frequency:6.5 MHz
- RF Connector:MMCX
- Video Format:NTSC/PAL
- Weight:4.5g (VTX-mini only, w/o antanna)
- website:www.lxrcmodel.com
- Use:Vehicles & Remote Control Toys
- Place of Origin:CN;GUA
- Brand Name:Matek
- Model Number:VTX-MINI

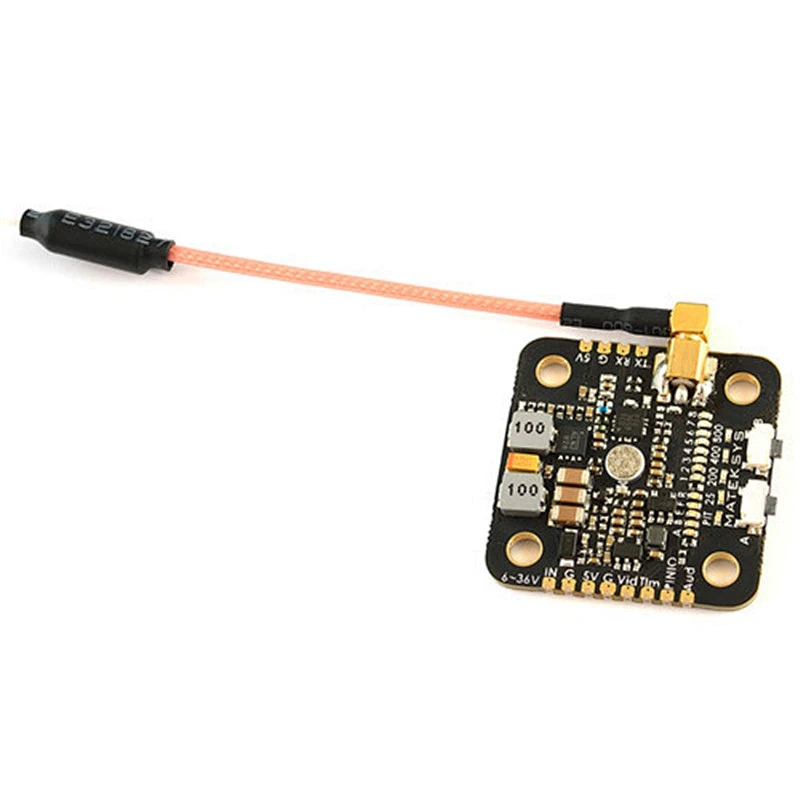

Matek System Mateksys mini VTX 5.8G 40CH Pit/25/200/400/800mW FPV Video Transmitter VTX
What is the Details of our Product?
Features
40CH(A/B/E/F/R Band)
Any Freq/band can be disabled or enabled by CLI command
Variable Output Power: PIT, 25, 200, 400, 800mW
Button control and LED indicators
CMS control(Tramp protocol) via FC Uart _Tx
Switchable VTX input power via FC PINIO
Constant full frequency band power
Clean powerup and frequency switching
Built-in microphone
Upgradeable firmware
Convertible 20 to 30mm mounting
Product Details
Input voltage: 6~36V(2~8S LiPo)
5V Output: 1A for Camera or FC
Power Consumption: 3.5W@ 800mW
Video Input Impedance: 75 Ohm
Audio Subcarrier Frequency: 6.5 MHz
RF Connector: MMCX
Video Format: NTSC/PAL
Weight: 4.5g (VTX-mini only, w/o antanna)
Size1: 28*28*4mm w/20mm_Φ3mm mounting
Size2: 36*36*5mm w/30.5mm_Φ3mm mounting

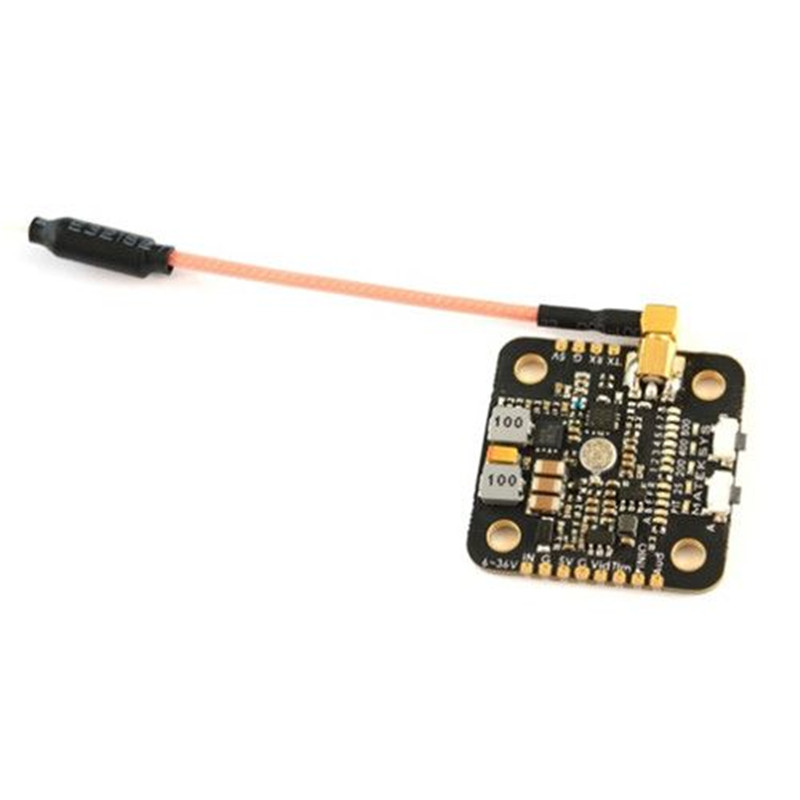

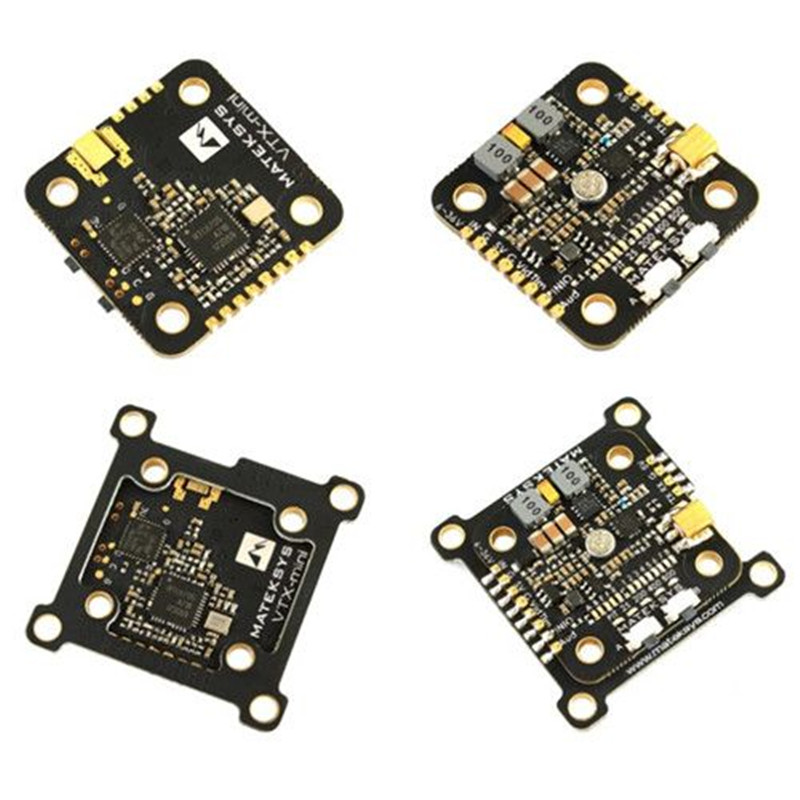

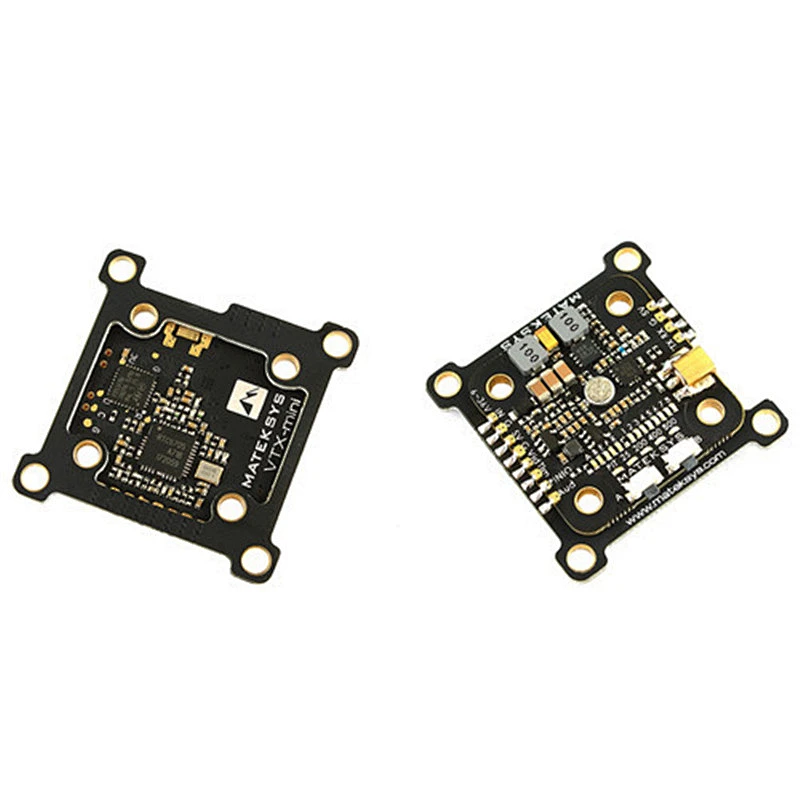

Product Pictures

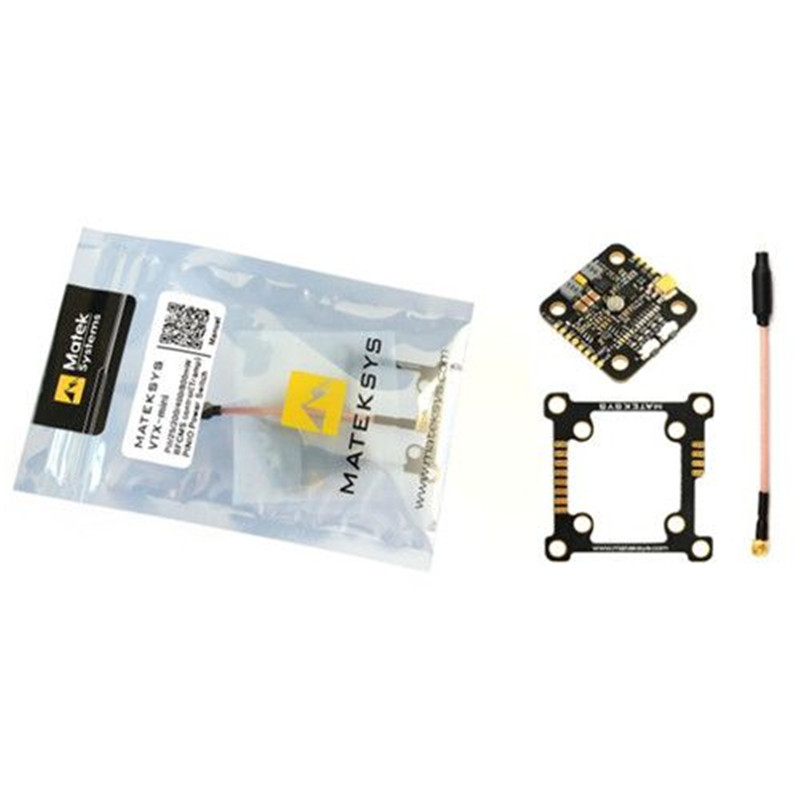

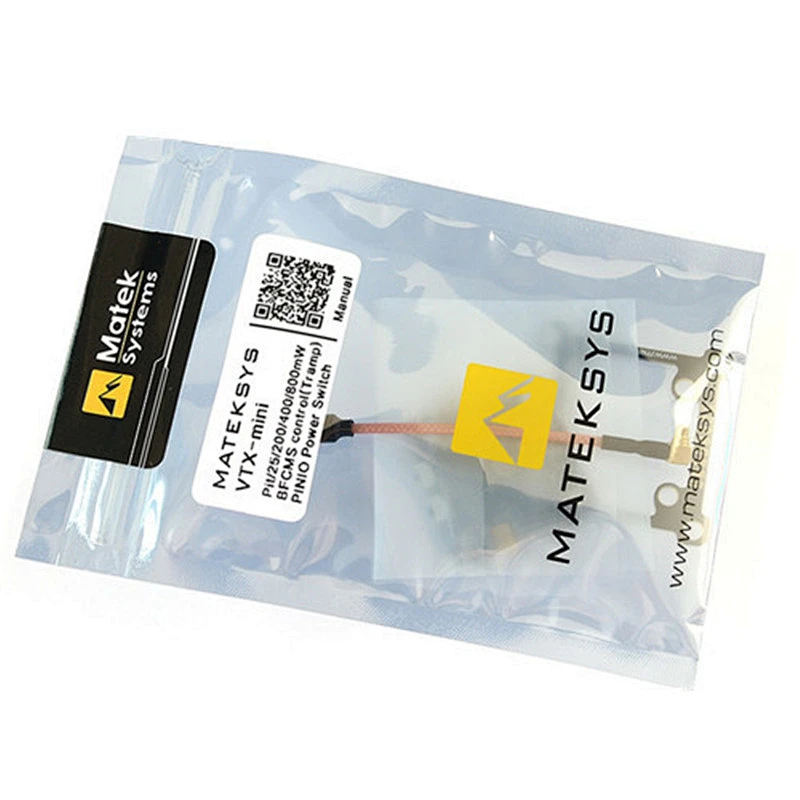

PACKING AND SHIPPING

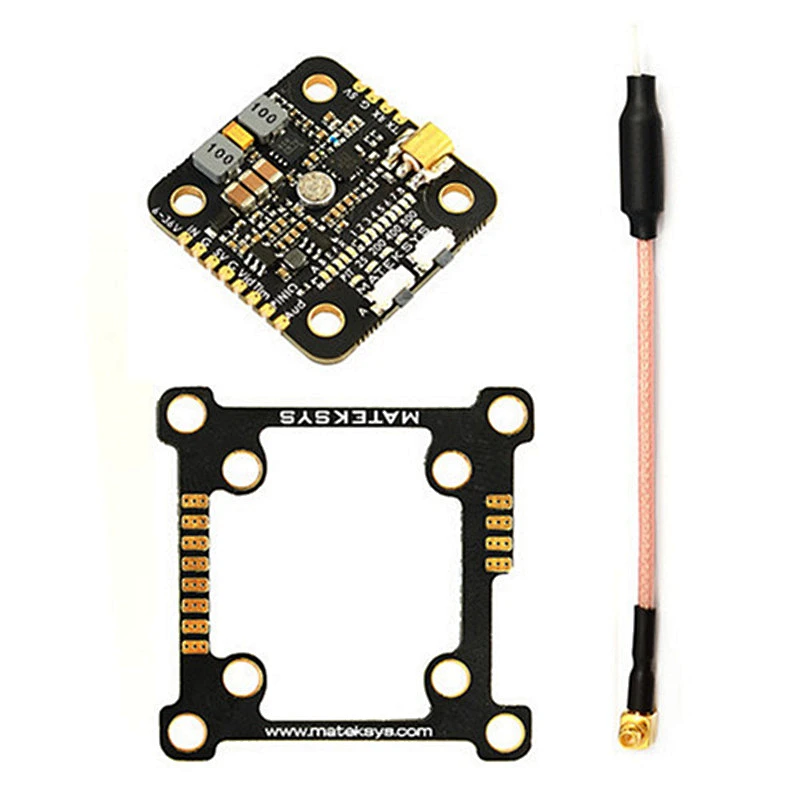

5.8G Video transmitter VTX-mini x 1
MMCX 5.8G whip antenna, 8cm x 1
20mm to 30.5mm conversion plate x 1
