- Website:www.lxrcmodel.com

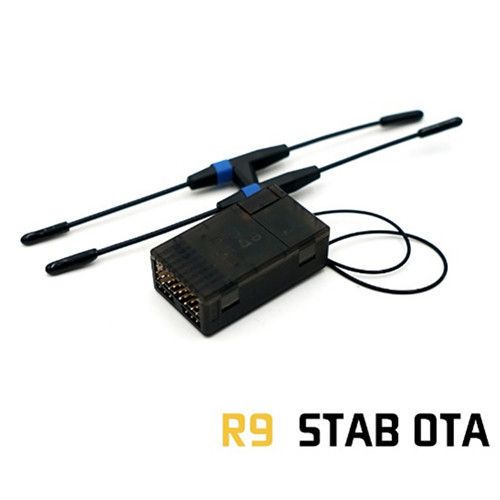

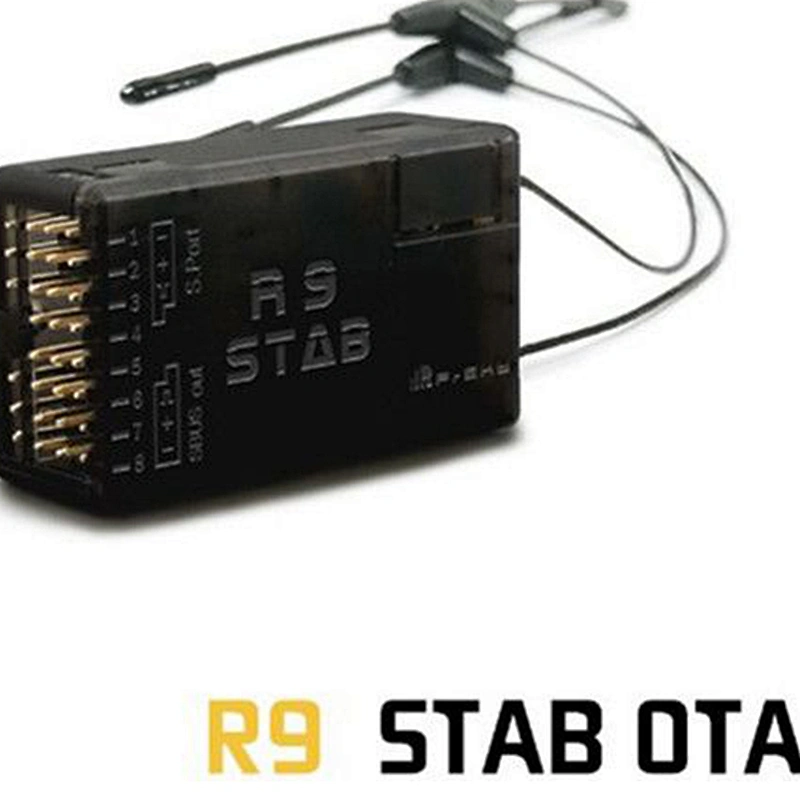

- Item Name:R9 STAB OTA Receiver
- Dimension:45.7*26.3*16.2mm
- Weight:18.6g
- Numbers of Channel:8/16CH
- Operating Voltage:DC 3.5V~10V
- Operating Current:140mA/7.4V
- Gyroscope Precision:±2000dps
- Compatibility:R9M 2019/R9M Lite/R9M lite Pro with ACCESS firmware
- Type:Car
- Power:Battery
- Material:plastic
- Plastic Type:ABS
- Scale:1:8
- Radio Control Style:RC Hobby
- Place of Origin:CN
- Brand Name:Frsky
- Model Number:R9-STAB-OTA
Features
ACCESS PROTOCOL
R9 STAB OTA receiver implements the ACCESS protocol and brings the user improved performance and features. It supports wireless
over-the-air firmware updates, making binding to receivers even easier as well as conveniently checking the current receiver
firmware version.
CONFIGURATION PARAMETERS
Paired with a FrSky radio transmitter, the parameters can be adjusted conveniently through the LUA script. In addition, parameters
may also be adjusted by FreeLink (PC) and FreeLink App (with AirLink S).
ACCESS protocol and supports OTA functions
900MHz/868MHz long-range with low latency
Built-in 3-axis gyroscope and 3-axis accelerometer
Support S.Port
Supports quick configuration for setting multiple flight modes (quick mode)
Detachable Ipex1 connector antenna
Multiple configuration methods (LUA script and FreeLink)
R9 STAB OTA receiver implements the ACCESS protocol and brings the user improved performance and features. It supports wireless
over-the-air firmware updates, making binding to receivers even easier as well as conveniently checking the current receiver
firmware version.
CONFIGURATION PARAMETERS
Paired with a FrSky radio transmitter, the parameters can be adjusted conveniently through the LUA script. In addition, parameters
may also be adjusted by FreeLink (PC) and FreeLink App (with AirLink S).
ACCESS protocol and supports OTA functions
900MHz/868MHz long-range with low latency
Built-in 3-axis gyroscope and 3-axis accelerometer
Support S.Port
Supports quick configuration for setting multiple flight modes (quick mode)
Detachable Ipex1 connector antenna
Multiple configuration methods (LUA script and FreeLink)
Product Detail
Brand Name: FrSky
Item Name: R9 STAB OTA Receiver
Dimension: 45.7*26.3*16.2mm
Weight: 18.6g
Numbers of Channel: 8/16CH (CH16 outputs RSSI)
Operating Voltage: DC 3.5V~10V
Operating Current: 140mA@7.4V
Gyroscope Precision: ±2000dps
Acceleration Precision: ±4g
Compatibility: R9M 2019/R9M Lite/R9M lite Pro with ACCESS firmware
* The compatible ACCST firmware for this receiver will be released later. Please stay tuned for the update.
Item Name: R9 STAB OTA Receiver
Dimension: 45.7*26.3*16.2mm
Weight: 18.6g
Numbers of Channel: 8/16CH (CH16 outputs RSSI)
Operating Voltage: DC 3.5V~10V
Operating Current: 140mA@7.4V
Gyroscope Precision: ±2000dps
Acceleration Precision: ±4g
Compatibility: R9M 2019/R9M Lite/R9M lite Pro with ACCESS firmware
* The compatible ACCST firmware for this receiver will be released later. Please stay tuned for the update.
Item Packing
FrSky R9 STAB OTA Long-range and Stabilization Receiver x 1

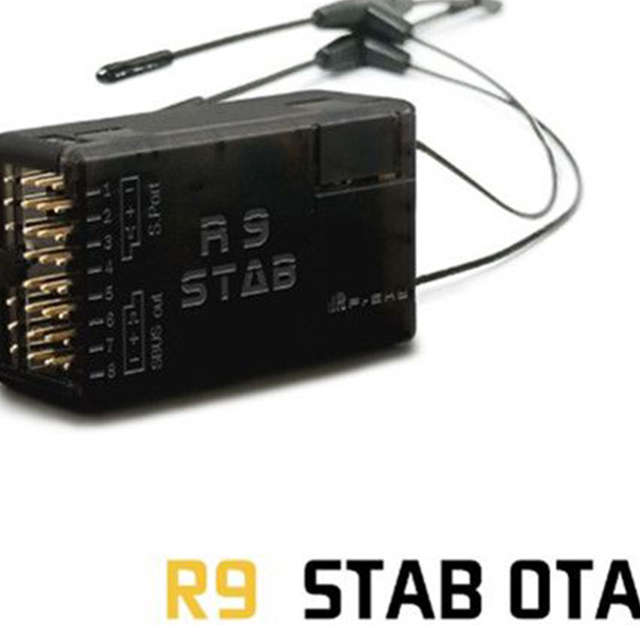

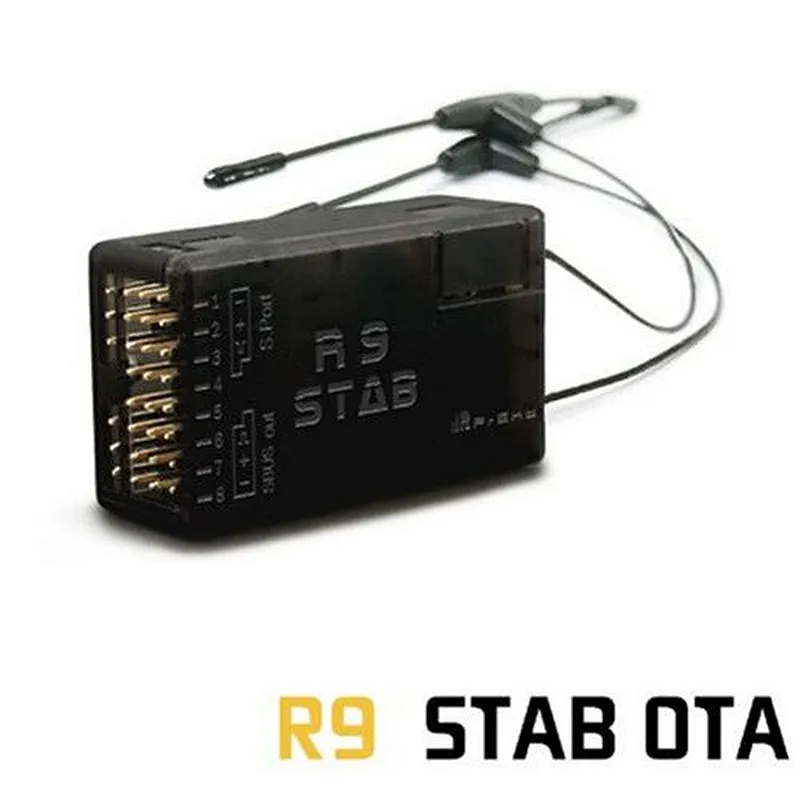

Detailed Images
