- Use:Vehicles & Remote Control Toys
- Place of Origin:China(Mainland)
- Brand Name:Aomway
- Model Number:TX100
Features
Designed for long range FPV transmission, this 5.8GHz 1000mW transmitter
equipped with a mini fan for cooling. Now upgraded to 32 channel frequencies
(include RaceBand) and optional 5 or 12 volt power output make it an all-round
player.
equipped with a mini fan for cooling. Now upgraded to 32 channel frequencies
(include RaceBand) and optional 5 or 12 volt power output make it an all-round
player.
Product Details
Electrical:
– Power Supply: DC 9-16V
– Output Voltage: 5V / 12V (select through jumper)
– Power Consumption: 700mA@DC 12V
– Power: 1000mW/30dBm
– Format: NTSC / PAL
– Channel: 32CH
– Frequencies:
Band A:
CH1_5705MHz,CH2_5685MHz,CH3_5665MHz,CH4_5645MHz,
CH5_5885MHz,CH6_5905MHz,CH7_5925MHz,CH8_5945MHz
Band B (Race Band):
CH1_5658MHz,CH2_5695MHz,CH3_5732MHz,CH4_5769MHz,
CH5_5806MHz,CH6_5843MHz,CH7_5880MHz,CH8_5917MHz
Band C:
CH1_5725MHz,CH2_5745MHz,CH3_5765MHz,CH4_5785MHz,
CH5_5805MHz,CH6_5825MHz,CH7_5845MHz,CH8_5865MHz
Band D:
CH1_5740MHz,CH2_5760MHz,CH3_5780MHz,CH4_5800MHz,
CH5_5820MHz,CH6_5840MHz,CH7_5860MHz,CH8_5860MHz
Mechanical:
– Dimension: 60 x 33 x 20mm
– Transmitter Weight: 43 g

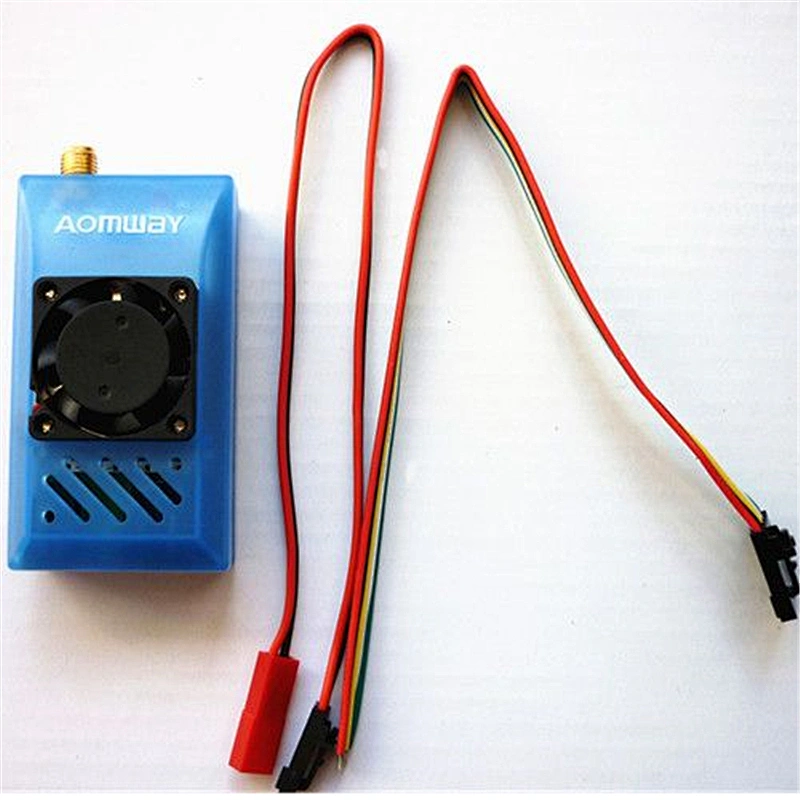

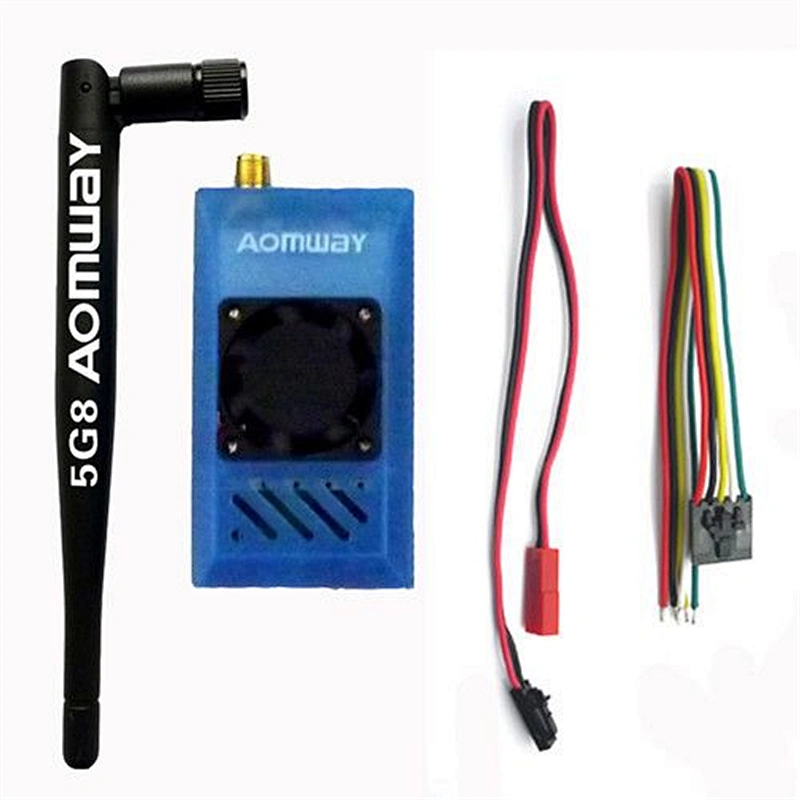

– Accessories: 5dB Dipole Antenna, DC Cable & Video Cable
– Power Supply: DC 9-16V
– Output Voltage: 5V / 12V (select through jumper)
– Power Consumption: 700mA@DC 12V
– Power: 1000mW/30dBm
– Format: NTSC / PAL
– Channel: 32CH
– Frequencies:
Band A:
CH1_5705MHz,CH2_5685MHz,CH3_5665MHz,CH4_5645MHz,
CH5_5885MHz,CH6_5905MHz,CH7_5925MHz,CH8_5945MHz
Band B (Race Band):
CH1_5658MHz,CH2_5695MHz,CH3_5732MHz,CH4_5769MHz,
CH5_5806MHz,CH6_5843MHz,CH7_5880MHz,CH8_5917MHz
Band C:
CH1_5725MHz,CH2_5745MHz,CH3_5765MHz,CH4_5785MHz,
CH5_5805MHz,CH6_5825MHz,CH7_5845MHz,CH8_5865MHz
Band D:
CH1_5740MHz,CH2_5760MHz,CH3_5780MHz,CH4_5800MHz,
CH5_5820MHz,CH6_5840MHz,CH7_5860MHz,CH8_5860MHz
Mechanical:
– Dimension: 60 x 33 x 20mm
– Transmitter Weight: 43 g
– Accessories: 5dB Dipole Antenna, DC Cable & Video Cable
Item Packing
1x Aomway 5.8G 1000mW Audio/Video AV 1W Transmitter & 5.8G Receiver

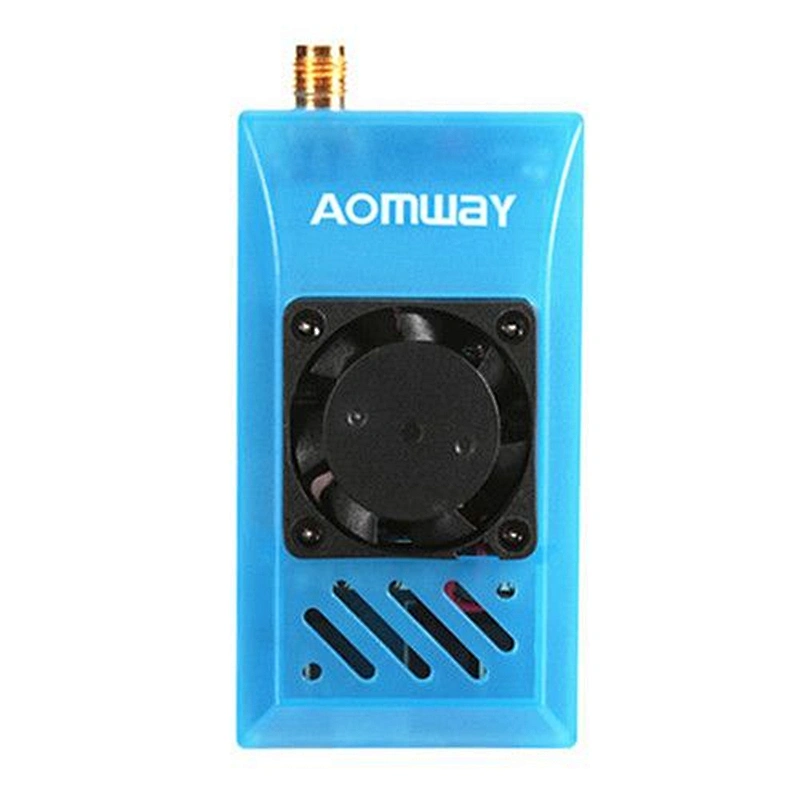

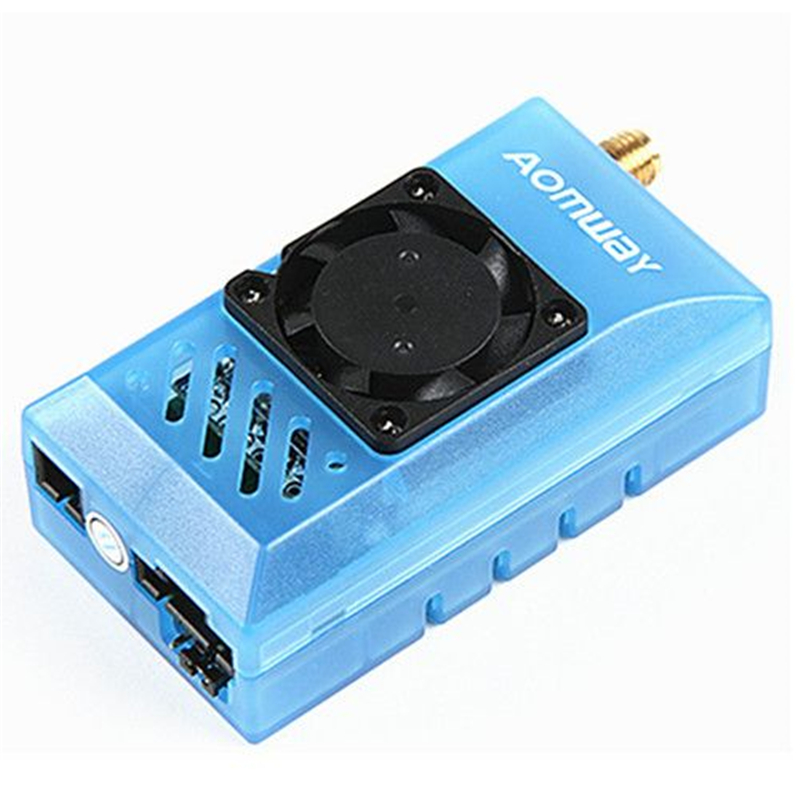

Detailed Images
